Safety Vision PRIMA FACIE User Manual

Two-way radio microphone
Hide thumbs Also See for PRIMA FACIE:
Table of Contents

Advertisement

Quick Links

PRIMA FACIE®
User Guide
Document Version 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRIMA FACIE and is the answer not in the manual?

Questions and answers

Related Manuals for Safety Vision PRIMA FACIE

Summary of Contents for Safety Vision PRIMA FACIE

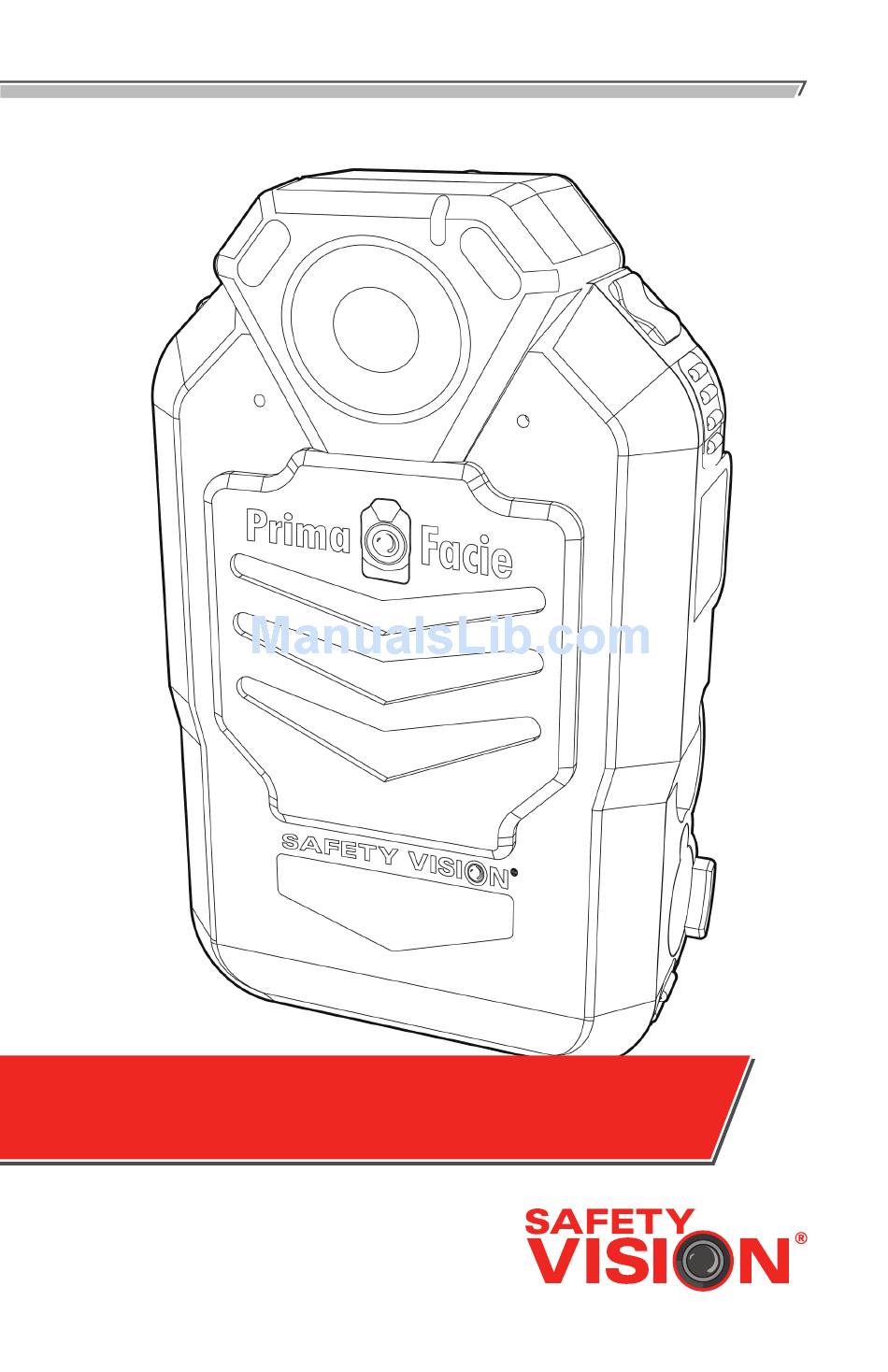

  • Page 1 PRIMA FACIE® User Guide Document Version 2.0...
  • Page 2 Safety Vision reserves the right to amend the information in this document at any time without prior notice. This material is confidential and the property of Safety Vision. It is shared with your company for the sole purpose of helping you with the operation of the described equipment.

  • Page 3: Table Of Contents

    Recharging the Battery..............8 LCD Screen Display................9 Recording a Video ................10 Recording Audio................10 Taking a Snapshot................11 Reviewing Recorded Files.............. 11 Installing Prima Facie Transfer Agent .........12 Using Prima Facie Transfer Agent ..........13 Specifications ............17 FCC Compliance Statement ............19...

  • Page 4: Features

    • Rechargeable battery with included base station • Rotating clothing clip and shoulder clip included • Secure download software ensures no unauthorized access Parts Included • Prima Facie unit • USB cable • Power cable • AC adapter • Base station...

  • Page 5: Prima Facie Components

    Prima Facie Components Two-Way Radio Microphone Infrared (IR) illuminator Camera Lens Status LED Infrared (IR) illuminator Voice Recording Microphone Audio Speaker Video Record Button Reset Button Lanyard Attachment LCD Screen Docking Station/Radio Interface Connector...
  • Page 6 Prima Facie Components Camera Snapshot Button Two-Way Radio Push-to-Talk (PTT) Button LCD On/Off Button Playback Button Power Button Audio Record Button USB Port - External Camera Input (model PRIMAFACE32E) - GPS antenna input (model PRIMAFACE32G) Headphone output...

  • Page 7: Alternative Button Functions

    Sleep Mode After three (3) minutes of inactivity, the Prima Facie turns off the LCD, cam- era, and other noncritical components to conserve power. Simply press the Camera Snapshot, Audio Record, Video Record, or LCD On/Off buttons to exit...

  • Page 8: Recharging The Battery

    Using the Base Station Plug the 5V DC power adapter to an appropriate power source and connect it to the Base Station. Insert the Prima Facie unit into the Base Station firmly as shown. The Status LED displays red while recharging, and displays green when the recharge is complete.

  • Page 9: Lcd Screen Display

    Displays the current date (in YYYY/MM/DD format) and time that will be applied to recorded files. Note: The Prima Facie Transfer Agent software automatically updates the time stamp to the PC’s date and time when the unit is attached and a password is...

  • Page 10: Recording A Video

    Recording a Video The Prima Facie captures video with synchronous sound in MP4 format. Depending on the configured resolution, the Prima Facie records a set amount of time before the Video Record button is pressed (pre-event time): FHD - approx. 5 seconds HD - approx.

  • Page 11: Taking A Snapshot

    Taking a Snapshot The Prima Facie captures still images (snapshots) in JPEG format. To take a snapshot: Ensure the unit is on. Press the Power button. When powered on, the Status LED displays solid green. Press the Camera Snapshot button on top of the unit.

  • Page 12: Installing Prima Facie Transfer Agent

    Select the Browse Files option to put the Prima Facie unit in USB Mass Storage mode and allow Windows to find and install the appropriate drivers. Note: Drivers only need to be installed the first time the Prima Facie unit is con- nected.

  • Page 13: Using Prima Facie Transfer Agent

    PC to securely browse or download recorded data. Connect the Prima Facie to the PC. - Insert the Prima Facie unit into a base station connected to the PC via USB - OR - - Connect the Prima Facie unit directly to the PC via the USB cable.
  • Page 14 Transfer Agent software. When finished changing settings, click Save Changes. Device Settings: Change Device ID: Enter a unique ID for the attached Prima Facie unit up to 8 alphanumeric characters long. Change Device Password: Enter a unique and secure password for the attached Prima Facie unit up to 6 alphanumeric characters long.
  • Page 15 Import Files Click the Import Files button to automatically import all files resident on the body camera to the location specified in the Prima Facie Transfer Agent Settings as described previously. A status bar appears displaying the progress of the transfer. Once the transfer is complete, a prompt appears that allows you to delete all of the contents of the body camera.
  • Page 16 Click the Browse button to automatically open a Windows Explorer window to the DCIM folder on the Prima Facie unit. Recorded media is stored in the 100MEDIA folder. From there, the files resident on the Prima Facie unit can be...

  • Page 17: Specifications

    Specifications SPECIFICATIONS Image Sensor 16 MP CMOS sensor 2 in LCD Screen Size F/No.: 3.2, 120° wide angle Lens Storage Built-in NAND flash memory 32 GB Video Resolution FHD: 1920 × 1080 (30 fps) Image Resolution 4608 × 3456 (16 MP) MP4/H.264 (video);...

  • Page 19: Fcc Compliance Statement

    FCC Compliance Statement NOTE This device has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equip- ment is operated in a commercial environment.
  • Page 20 CORPORATE HEADQUARTERS 6100 W. Sam Houston Pkwy. N. Houston, TX 77041-5113 Toll Free: 800.880.8855 Main: 713.896.6600 Fax: 713.896.6640 www.safetyvision.com 1/14...
