ALL IN ONE

Vehicle Video Recorder

User Manual

2012 NOV V1.1

OPTIONAL

Table of Contents

Need help?

Do you have a question about the Vehicle Video Recorder and is the answer not in the manual?

Questions and answers

Summary of Contents for Meriva Vehicle Video Recorder

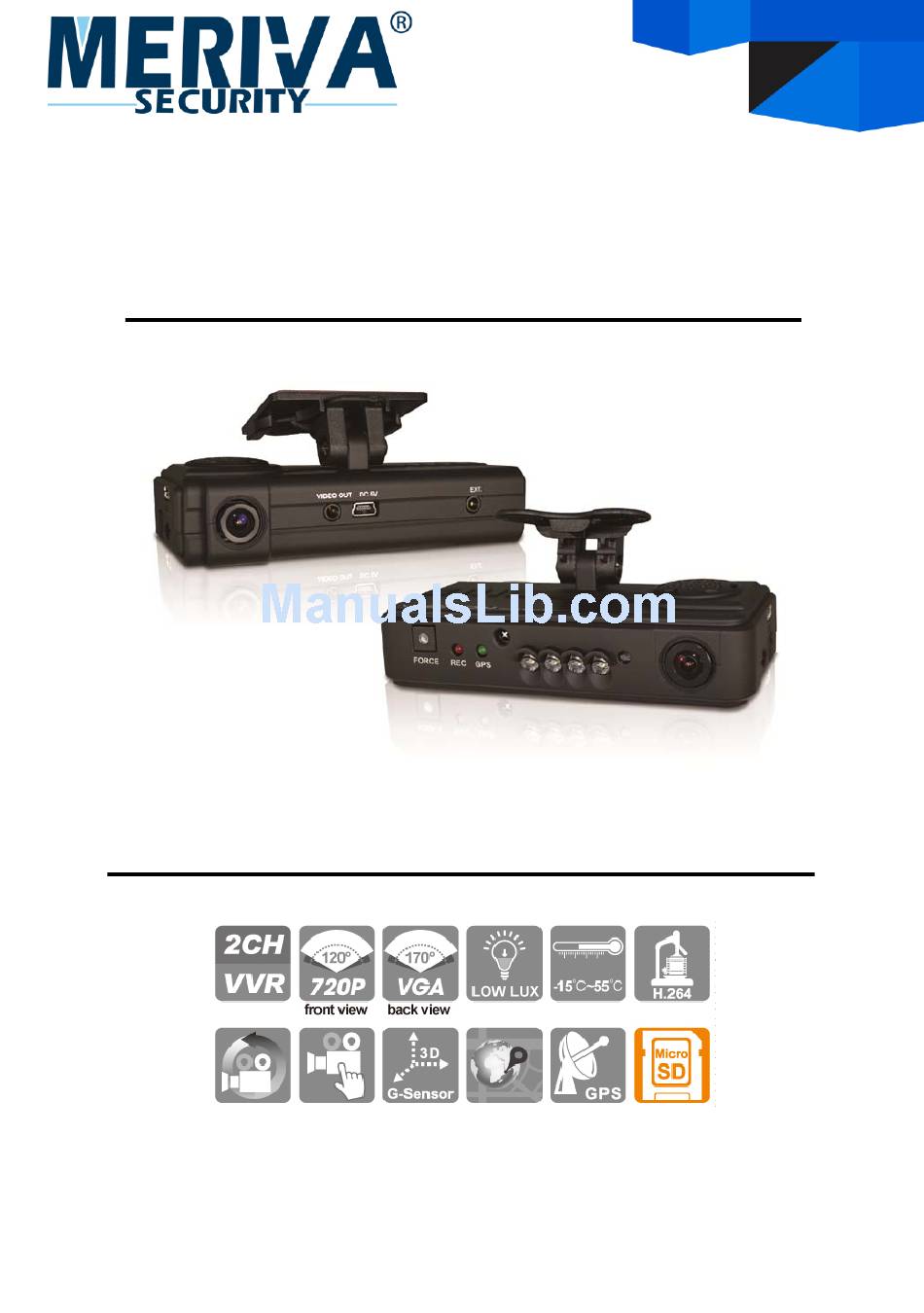

Page 1 ALL IN ONE Vehicle Video Recorder User Manual 2012 NOV V1.1 OPTIONAL...
Page 2: Table Of Contents
Table of Contents Features ..................1 Specification ................2 Structure of Product ..............5 Dimension ................. 5 Installation Guide ..............6 Functions of Remote Controller ..........7 Start / Stop Recording ............. 10 Software Player Instruction ............. 11 Formatting Memory Card ............19 Restoring Memory Card ............
Page 3: Features
A. Features Suitable for all personal vehicle, taxi, bus, truck…… Small size, easy installation and dismount, it does not affect the driver's line of sight. Insert the card and power on to start recording without additional operating. Simultaneously recording interior and exterior condition. Having full time, date recording and display on the screen directly.
Page 4: Specification
B. Specification Item Specification Chipset H.264 image compression chip Forward facing lens: 720p CMOS Sensor Sensor Device Backward facing lens: VGA CMOS Sensor. Outside vehicle approx : 120 degree View Angle Inside vehicle approx : 170 degree Please use 5V±5%, 1A Cigarette lighter adapter. The Voltage machine needs 4.7v to start.
Page 5 (a) TV-Out (1 Vp-p composite video output, 75 ohms), Video Output format: NTSC / PAL alternative. (b) Force Record Button: For emergency recording. Gleams in night time. (c) Red light: Recording indicator. In emergency recording, it flashes more frequently. Out Device (d) Green light Flashing: Searching GPS signals.
Page 6 soctets. The machine might be damaged. (d) If not use the player to format memory card, the machine will force to format the entire memory card and then start recording. (e) It's better not crossing the top of the machine and the left side of GPS.
Page 7: Structure Of Product
C. Structure of Product Remote Control Receiver Force Recording Button IR LED Backward Facing Lens Indicator Light Sensor Recording Indicator DC5V(2) DC5V(1) GPS Mouse MICRO SD Card Video Out Forward Facing ※ Please do not plug the power in both micro-USB terminals. The machine might be damaged.
Page 8: Installation Guide
Installation Guide Make the bracket facing Assemble the suction cups. Set up the machine in proper upward. position. Adjust the viewing angle. Plug the power cable to socket on photo No. 5 or No. 6, please do not plug in both sockets at the same time) Plug in the cigarette When the power is Force Record button: Light...
Page 9: Functions Of Remote Controller
F. Functions of Remote Controller Button Function Description Force Manually establish a Recording recorded file which cannot Button be overwritten. Mode Full screen / Half screen Button spilt shift Firmware version of the Menu Button device displayed Mute Button Voice recording On/Off ◆...
Page 10 1. The right side of LIVE view will show , left figure presented as forward facing lens, the other one is backward facing lens. When the figure becomes , the backward facing lens is turned off and the microphone recording is muted simultaneously. Appears in the top right side of LIVE screen, it 2.
Page 11 7. Playback page password instructions: Click the playback button of When the machine sets up playback password, remote control playback page will be asked to enter a password (this feature requires to set up on player), Click the remote control enter password in the input page.
Page 12: Start / Stop Recording
G. Start / Stop Recording When power on the device, the screen will show a welcome message for the device starts if connected to TV-Out. The firmware version of the device will displayed before LIVE view of recording starts. 1. Power on / Start Recording The device can be started completely after power on for one minute.
Page 13: Software Player Instruction
H. Software Player Instruction How to read the files from Micro SD card? Open the plastic Remove the card Insert the Micro SD Connect the card lid. from the machine. card into the card reader to the PC reader (please and use the make sure the software in CD to...
Page 14 Play & Settings Icon Instruction: play previous frame play backward Pause Stop Play Play next frame Play next file Disk back up Setting Google map Play back Snapshot Format Micro SD Card  Disk Backup Save the recorded files to your PC. Click on the button and it will pop up the screen as below.
Page 15 Step1: Select the origin for the Micro SD card Setp2: Select the recorded file which you want to backup Step3: Choose the backup file format (1)Micro SD Card Backup (*.sd) (2)AVI File Backup (*.avi) Backup format： (1) Micro SD card backup format Micro SD Card File type (*.sd)
Page 16 (2)AVI File Backup(*.avi) Chn01 is the forward facing lens record. The file name is *.avi. Chn02 is the backward facing lens record. The file name is *.avi. ★ Note: If backup by original format of Micro SD card, the file recorded with location of GPS (longitude and latitude), speed and G- SENSOR.
Page 17 Select the video Quality: High/ 1 Video Quality Normal / Low Set the recording frame rate for front camera NTSC(5 / 10 / 15 / 30) fps PAL(5 / 10 / 15 / 25)fps 2 Video Frame Turn the recording off for inside camera Set the recording frame rate for inside camera (5 / 10 /...
Page 18 This feature of the Micro SD card encryption, to prevent others from accessing any data. Set a password to 15 characters limited: Password 123,456,789,123,456. After setting the password, it is required to enter password to access the playback file, setting, formatting memory card.
Page 19 The night sensitivity settings for front and interior lens: very Sensor low, low, normal, high, very Sensitivity at high. night According to night conditions set sensitivity. Audio recording. Audio Open: recording voice / Close: Recording stop voice recording.  Snapshot While playing the recorded file, you can use this function to snapshot the picture and save it into your PC.
Page 20 Video Search & Play Speed Video Search Play speed (1)Video Search：You can use the mouse to drag the bar to search the video quickly. (2)Play Speed：Support 2x, 4x fast forwarding and -2x, -4x slow play mode. G SENSOR When detecting extraordinary G-force, the machine will record the images and separate the recorded file from normal recording.
Page 21: Formatting Memory Card
Formatting Memory Card When You Should Format Micro SD CARD? When you use the Micro SD card for the first time or just purchase a new card, you should format it in order to use it correctly. (The bundled Micro SD card has been formatted and tested by the manufacturer already.) Notice: 1.
Page 22 Windows XP Windows 7 3. When formatting is completed, please insert the card into the machine for recording. Open the plastic Insert the Micro Press the Micro Close the plastic lid . SD card in correct SD card in until it lid.
Page 23: Restoring Memory Card
J. Restoring Memory Card When you have backup the recorded files into PC and want to use the Micro SD card for other purposes, you have to restore it first so it can be used correctly. Notice: 1. Before formatting Micro SD card, please ensure to unlock it first.
Page 24 Windows XP Windows 7...
