Summary of Contents for SURGEMASTER SM11000LHE

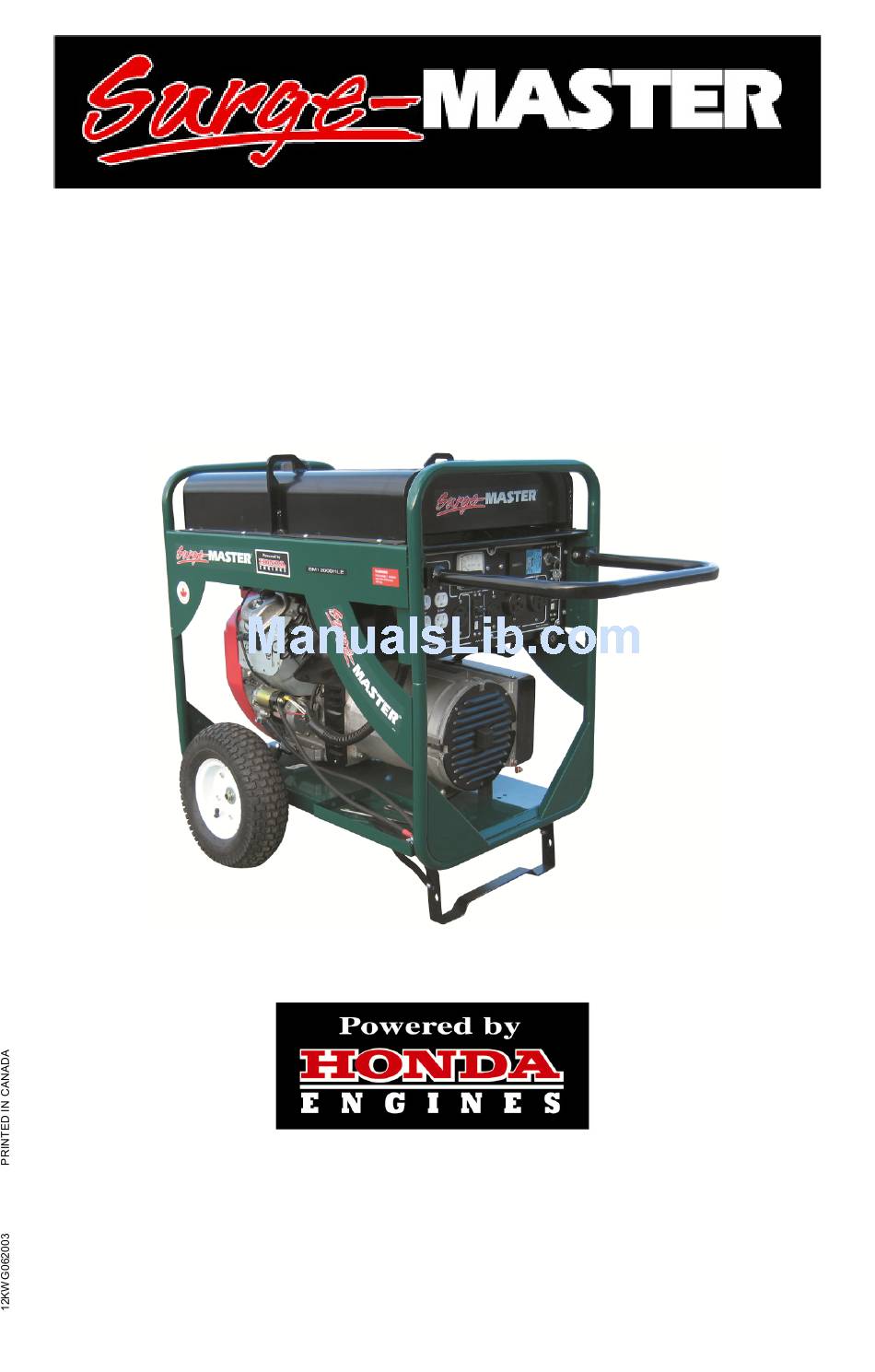

- Page 1 SURGEMASTER PORTABLE GENERATOR SM11000LHE OPERATING INSTRUCTIONS AND PARTS MANUAL...
-
Page 2: Warranty
Warranty Warranty Warranty Warranty This product is warranted to be free of defects in materials and work- manship under normal use and service, for a period of one year from the date of purchase, when operated and maintained in accordance with the Operating and Maintenance Instructions supplied with this unit. - Page 3 Setup Information Wheel kit installation instructions. 1. Remove this bolt on either side. 2. Fold leg down. 3. Install bolt which was re- moved from # 1. 4. Install axle through frame. 5. Install plastic cap and insert cotter pin.
-
Page 4: Product Specifications
Overload protection System Starting ELECTRIC The Surgemaster SM11000LHE generator has been designed with ease of portability, quiet operation, dependability and versatility in mind. This generator is powered by Honda's proven and reliable engine, which fea- tures Oil Alert for enhanced operational reliability. The alternator features a brushless design eliminating the need for costly carbon brush replace- ment and increases the service life of the generator. -
Page 5: Safety Precautions
Generator Usage Start Watts Running Watts 20-12000E Refrigerator, Freezer 2500 Toaster 1050 Microwave Coffee Maker 1500 Washing Machine 2000 Furnace Fan 1400 Sump Pump 2500 Circular Saw 1500 Drill 1000 Sander 1000 Y= WILL OPERATE C= CHECK EQUIPMENT WATTAGES PLEASE NOTE THAT THIS CHART REPRESENTS A SAMPLE OF APPLICATIONS ONLY. -
Page 6: Starting Operation
referring to the Honda Engine Owners Manual for the specified en- gine oil. 14. Do not cover the generator while it is in operation. Overheating can result in damaged equipment. 15. For storage, do not cover the generator until it has completely cooled down. -
Page 7: Maintenance And Storage
Maintenance and Storage (Please refer to the Honda Engine Owner's Manual) Periodic inspection and maintenance of the Honda engine are essential if a high level of performance is to be maintained. Regular maintenance will also ensure a long service life. The required service intervals and kind of maintenance to be performed are described and outlined in the Honda Engine Owner's Manual. - Page 8 Position Description Quantity Part # G20010 Battery Hold Down Kit G20011 50 amp, 250 volt Straight Blade Receptacle G20012 30 amp, 125/250 volt Twist Lock Rec. G20013 50 amp, 125/250 volt Twist Lock Rec. G20014 50 amp Main Switch Breaker G20015 30 amp Breaker G20016...
- Page 9 ALTERNATOR PARTS LIST Position Description Quantity Part # GRID G20042 TERMINAL BOX LID G20043 TERMINAL BOARD G20044 FRAME AND STATOR ROTATING INDUCTOR G20045 NON-DRIVE END BEARING (6306-2RS) G20046 DIODE G20047 VANSTOR G20048 SECURING STUD PROTECTION SCREEN G20049 FIXING RING G20050 CAPACITOR G20051 RUBBER CUP...
- Page 10 SM11000LHE WIRING DIAGRAM...
-
Page 11: Troubleshooting
Troubleshooting The majority of problems with generator units are with the engine. Please refer to the Honda Engine Owner's Manual if engine problems arise. If the problem persists, contact your local Honda Equipment Dealer. Trouble Cause Remedy Alternator excitation Low speed. Check rpm and set at nominal value failure Faulty condenser...
