Summary of Contents for ViewRec VR-101 Series

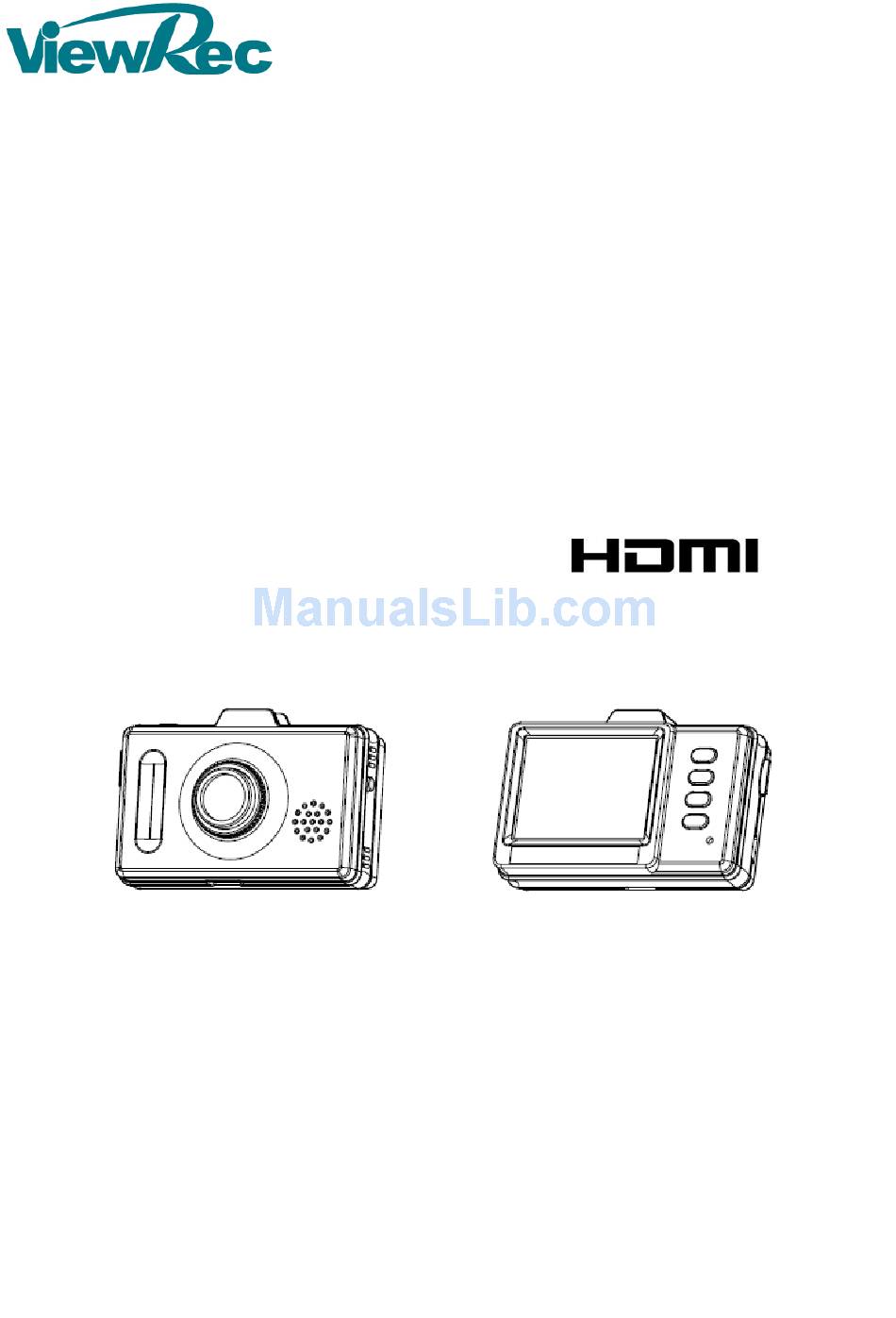

- Page 1 VR-101 series HD 720P High Definition Handheld Driving Recorder User Manual Please read the user manual carefully before use and keep for future reference. All rights reserved. © Mitech Technologies Co., Ltd. This user manual is subject to change without prior notice.
-
Page 2: Safety Precautions
Safety Precautions Please use this device according to the operation instructions and warnings on the user manual. Before you cleanse the device, make sure the power is switched off and Micro SD card is removed. ： Warnings Do not use this device in a humid (relative humidity above 80%), gaseous conductive environment. ... -
Page 3: Product Introduction
Things to be avoided： Do not block or cover the ventilation holes and slots on the device. When removing the device from the mounting bracket, please be careful not to break the mortise and tenon. When unexpected shutdown happens, simply long press power switch to turn the device on. Do not try to ... -
Page 4: Exterior Overview
Built-in audio and video recording can be played simultaneously. Built-in photo shooting. Multi-language interface: Traditional/Simplified Chinese, English, French, German, Spanish, Italian, Portuguese and Japanese. Accessories： HD Smart DVR Driving Recorder(1) Mini USB power cable (1) Mounting Bracket (1) ... -
Page 5: Dimension (Mm)
Dimension (mm) Exterior Description 1. Power Switch 8. Microphone 15. Micro SD Card Slot 2. Bracket Tenon 9. Play Button 3. Lens 10. Rightward Button 4. REC/OK Button 11. Downward Button 5. Speaker 12. Menu Button 6. Product Logo 13. LCD Screen 7. -
Page 6: Installation
Installation Please install the device on a flat place while the car is stopped. Please double-check the accessories and fully understand the installation instructions before you install the device. Please be noted not to let the device hinder driver’s visibility. ... -
Page 7: Guide To Controls
Guide to Controls Power Switch Key： Automatic recording when car starts. Press Power Switch anytime will automatically power off the device. Power on the device and it will start to record again. Record / Confirm Button： (1) Switch Recording [Start / Stop] (2) Confirm button for system parameter setup. ... -
Page 8: System Parameter Setup
System Parameter Setup Resolution： Press Menu→Downward buttons to enter submenu [720P→WVGA→QVGA], press Downward to select and then press REC/OK to confirm. Loop Recording： Press Menu→Downward twice→REC/OK to enter submenu and [Off→5 Minutes→10 Minutes→15 Minutes], press Downward to select and then press REC/OK to confirm Date/Time：... -
Page 9: Digital Zoom
Press Menu twice→Downward six times→REC/OK to enter submenu [Return menu setting to defaults→ Cancel→OK], press Downward to select and press OK to confirm. Version： Press Menu twice→Downward seven times→REC/OK to check version and then press REC/OK to confirm. Digital Zoom： ... - Page 10 Guide to HDMI Output HDMI output: Connect HDMI cable (C Type) to HDMI-supported devices to playback recorded video files from Micro SD card, these videos will not show on the LCD screen on the device at the same time. Guide to USB Connection Connect driving recorder to a PC/Laptop via USB cable, when Mass Storage shows on the screen, press ...
-
Page 11: Specification
Specification Power Input Voltage Input: 12 Vdc, Output:5Vdc (Note: for charging main device power and battery.) Built-in Battery 320 mAh (About 1 hour recording time) Mini USB Cable Input Voltage: 12Vdc. Output Voltage: 5Vdc. Battery Life Detection Battery Protective Circuit Camera Sensor Pixel 1.3 Mega Pixel HD (CMOS)
