Jensen Groove 410 User Manual

Congratulations in purchasing one of JENSEN's finest Speaker Systems to date.
Read this manual carefully to ensure your system will provide you with many

Voltage and fuse.

fuse. Fuse compartment is located at power lead input area on amplifier.
Room Placement – Subwoofer:
wall. Subwoofer Bass frequencies are non directional therefore can be placed anywhere in the room.
Additional subwoofers can be purchased and "daisy-chained" together to operate as one for extra
bass if required. Contact info@bdimports.com.au for more information on this.

Setup.

You will need 5 Speaker Leads and 1 x RCA to 1 x RCA lead for subwoofer. Lengths
are "room size dependent" and should have been supplied by your dealer upon purchase. Connect
all Maxi and Centre speakers to your Receiver/amplifier ensuring all connections are in phase. Ie:
Positive (+) wires at Receiver/amplifier end connect to Positive wires (+) at speaker end and vice
versa with Negatives (-). See Fig. C. On your Receiver/amplifier, be sure to select "SMALL" when
"telling" your receiver if you are using Large or Small Speakers. For your X-125 Subwoofer, you
will need a 1RCA to 1 RCA lead (not supplied) as these come in varying lengths of 1 to 20 mtrs).
One end connects to your receiver/amplifier and the other into either "L" or "R" Low Level Inputs
on Subwoofer amplifier. There is no need to connect to both "L" and "R" as these are paralleled
internally. See Fig B.

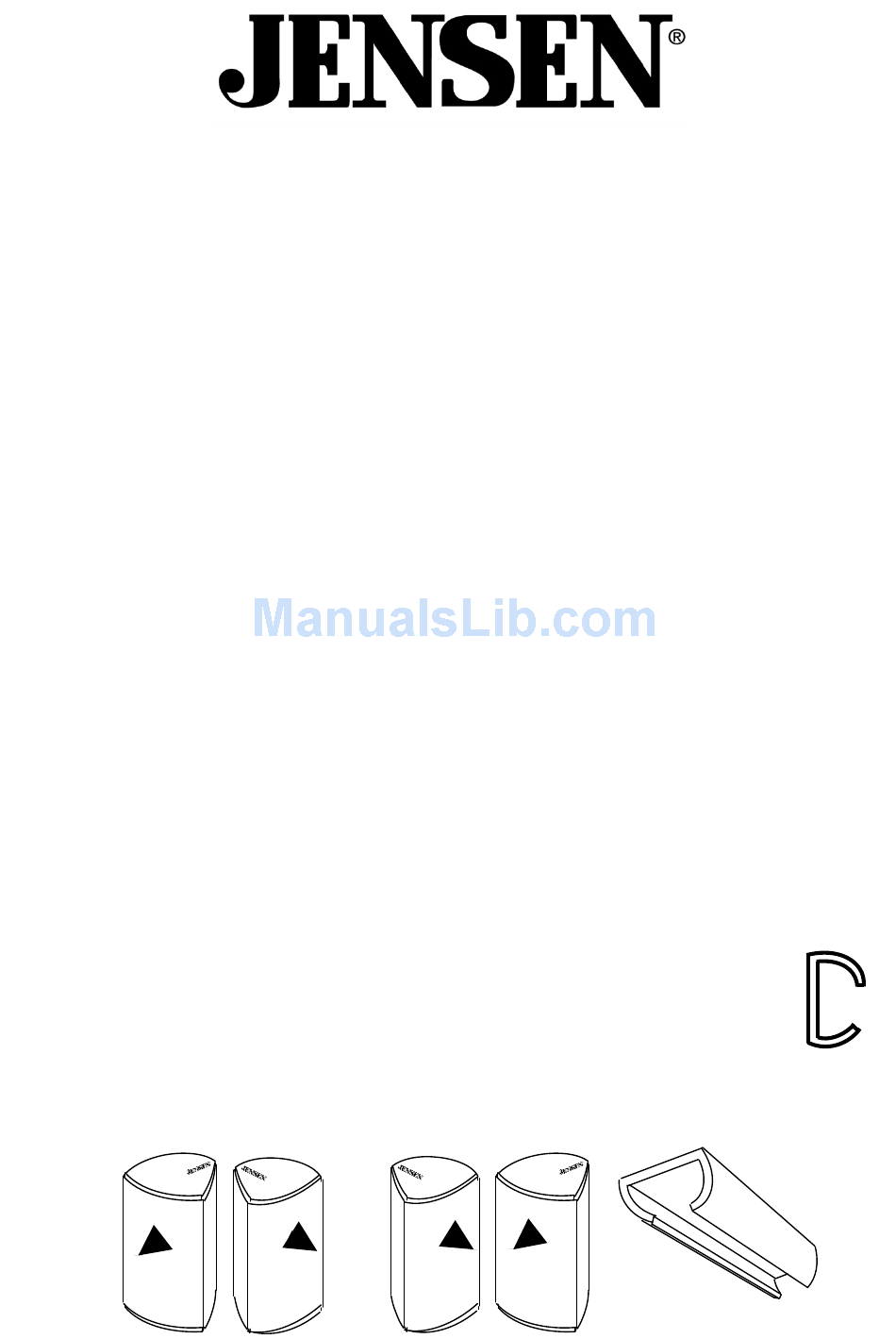

Wall Mounting Maxi speakers:

in 2 parts – one part is attached to speaker and the other supplied loose and attaches
to wall. Look closely at this Wall part and you will notice one "C" curve is longer than
the other (Fig. A) this will allow speaker when mounted to angle left or right when wall
mounted. When mounted vertically speaker will aim straight forward and can swivel left. Reverse
the bracket 180 degrees and speaker will then aim forward and can swivel right. Screws supplied and
screw spacing is 131.0 mm.
Groove 410
6 pce Home Theatre Speaker System.
years of musical enjoyment.
Your Subwoofer has been factory set to 220/240 volts using 1.0 amp
Best positioning for your Subwoofer is against a
Each smart Wall bracket is
fig.
A
