Summary of Contents for Sensor SENSORPROX 100R/PIN120

Page 1: User Manual

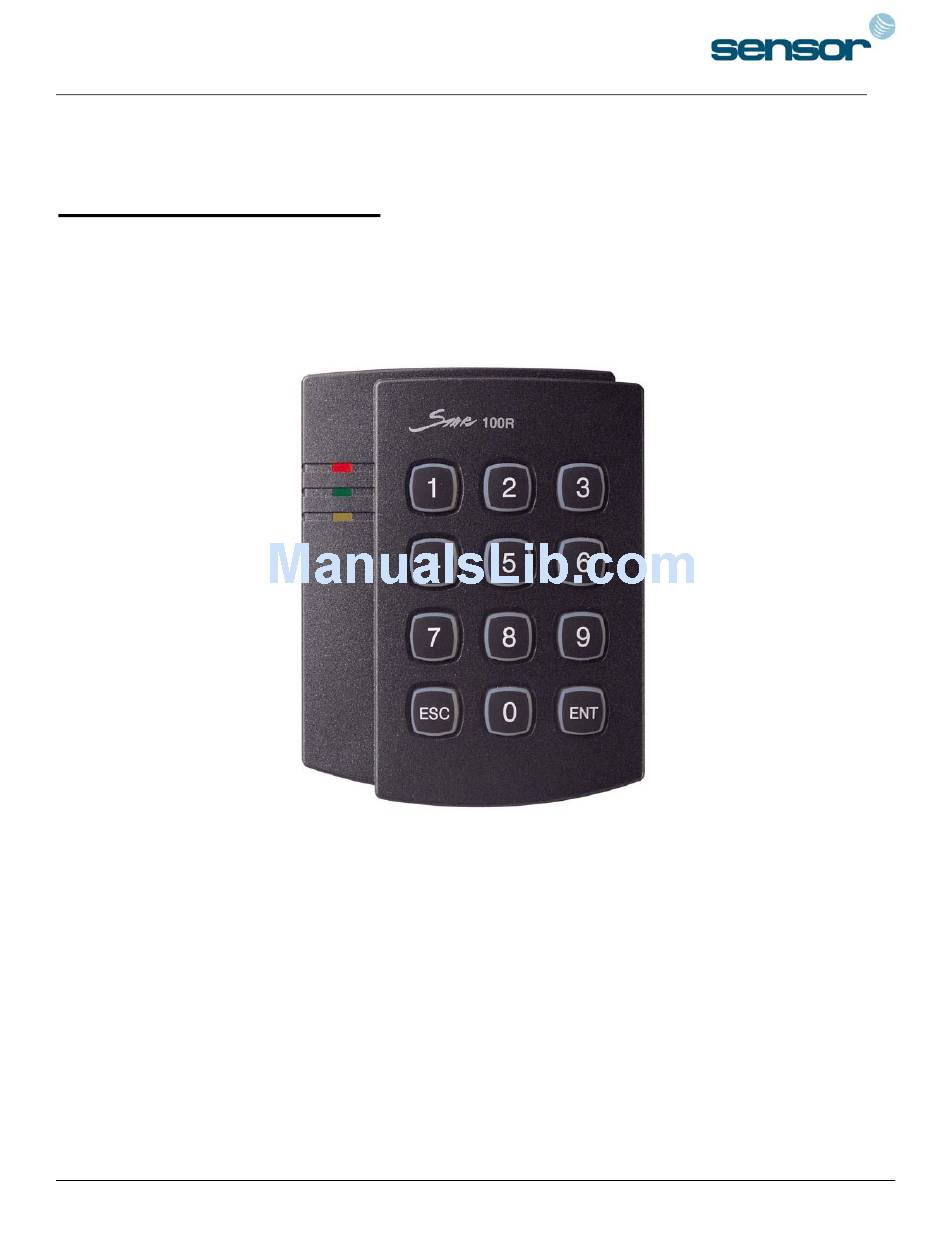

SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER USER MANUAL...
Page 2: Table Of Contents
SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER TABLE OF CONTENTS 1. Important Safety Instructions 2. General 3. Features 4. Specification 5. Front Panel Description 6. Identifying Supplied Parts 7. Installation of the Product 8. Color Coded & Wiring Table 9. System Wiring for Typical Application 10.
Page 3: Important Safety Instructions
The SENSORPROX 100R/PIN120 can interface and operate with these accessories: Request for EXIT button, Door-Contact sensor, PIR sensor, Fire sensor and other sensors via 5 independent input ports. Also, output ports which include 2 Relays and 2 TTL outputs can be used to control the operation of other accessories such as Electric/Magnetic Door Lock, Alarm, Chime Bell, and Auto-Dialer.
Page 4: Features
- All I/Os behaviors and associated Timers are user programmable either through the keypad or the application software - Door Lock and Unlock functions - Configurable for Normal/Secure mode of operation (Secure Mode requires using external sensor(s) and alarm/siren) - Covert Duress sensing and responding (activate a silent alarm through the external Auto-Dialer)
Page 5: Front Panel Description
SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER 5. FRONT PANEL DESCRIPTION SENSORPROX 100R/PIN120 Main Unit 6. IDENTIFYING SUPPLIED PARTS Please unpack and check the contents of the box. MainUnit Wall Mount O-Ring Manual (1 EA) (1 EA) (5 EA) (1 EA)
Page 6: Installation Of The Product
Using 2 screws, install wall mount to the wall. * CAUTIONS * Before mounting the SENSORPROX 100R/PIN120 unit to the Wall Mount bracket, operational testing of the unit should be completed, as the locking pins will lock the unit to the Wall Mount. Removing the unit from the Wall Mount bracket after they have been installed together may cause damages to the bracket and render its effectiveness.
Page 7: Color Coded & Wiring Table
SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER 8. COLOR CODED & WIRING TABLE I/O PORT NAME SIGNAL NAME COLOR CODED POWER Main Power (V+) +12V Red wire & Red with White band Power Ground Black wire & Black with White band...
Page 8: System Wiring For Typical Application
SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER 9. SYSTEM WIRING FOR TYPICAL APPLICATION . Power Connection - Connect (+) wire of DC +12V power to Red wire and Red/White banded wire. - Connect Power GND (-) wire of DC +12V to Black wire and Black/White banded wire.
Page 9 - Connect Door Contact sensor (COM) wire to Door Contact Input, Green wire. - Connect Door Contact sensor (NO) wire to Power GND (-) wire. (If a normally closed Door Contact sensor is used, then see section 12-69 to change the detection scheme from the defaulted setting.) .
Page 10 - Connect RS-232-GND, Yellow wire of Main Unit to pin number 5 of 9-pin connector. - Plug in 9-pin connector to COM1 or COM2 Port of Personal Computer. - Install and run SENSORPROX 100R/PIN120 Application Software. 9-10. Chime Bell Connection (Separate purchase required) - Connect (+) wire of Chime Bell unit to Bell Output, Brown/White wire of Main Unit.
Page 11: Initial Setup
SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER 10. INITIAL SETUP The Flash memory of each shipped STAR 100R/PIN120 contains a minimum set of defaulted values, but it does not have any other preprogrammed values or user’s data in it, therefore, Initial Setup is required upon the first time the unit is powered-up in order to operate the unit properly.
Page 12 SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER (5) Now, the Main Unit is entered into the normal operation mode with factory defaulted settings. 10-3. Registration of PIN ONLY MODE (1) Apply 12VDC to the unit. All 3 LEDs will be flashing along with a powered-up melody (do mi sol me do..do mi sol do~).
Page 13: Operation
(9) Activate TTL output to ‘L’ (10) Delay time to activate SECURE MODE = 00 min. (11) Door Open time-out for Door Contact sensor = 00 sec. (12) Number of times of Try-out = 05 times (13) Input keypress time-out time = 20 sec.
Page 14: Setting Changes
SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER 11-5. Secure Mode The last person to exit can change the operation of the unit from Normal Mode to Secure Mode by entering the Secure Code of onto the keypad. Change to Secure Mode.
Page 15 Set Exit Button Input Detection from ‘L’ to ‘H’ Set Exit Button Input Detection from ‘H’ to ‘L’ Set Door-Contact sensor Input Detection from ‘L’ to ‘H’ Set Door-Contact sensor Input Detection from ‘H’ to ‘L’ Activate TTL output to ‘H’...
Page 16 SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER Set Tamper Alarm output port Enable Tamper Alarm Disable Tamper Alarm Re-Initialize and erase all setup data 12-11. Add User Access Cards (RF CARD ONLY MODE) ….. Configuration Card Command Cards to be registered ..
Page 17 SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER <TABLE 1> SETTINGS FOR COMMAND Symbol Setting Values Examples/Remarks (You must add value • and •) EX1)Activate Door Relay Setting value for activating time In Safe & Secure Mode • Activate Mode Value Safe & Secure Mode •...
Page 18 SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER 12-21. Change Door Open Time When User Access Card (or PIN) Is Granted =00~99 sec., Defaulted Door Open time = 03 sec.) Configuration Card Command Door open time TTL time /Configuration PIN 12-22. Change Alarm Time When User Access Card (or PIN) Is Denied (Refer to Table 1 for OM, =00~99 sec., Defaulted Alarm time = 02 sec.)
Page 19 SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER 12-28. Change Alarm Time When Magnet Detected (Refer to Table 1 for OM, =00~99 sec.) Configuration Card Command Output Mode Door time Alarm Time TTL time /Configuration PIN 12-29. Register 2 Digit Duress Alarm Password...
Page 20 SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER 12-39. Change Chime Bell Activating Time =00~99 sec., Defaulted Chime Bell time= 05 sec.) Configuration Card Command Chime Bell time /Configuration PIN 12-41. Open Door Unconditional Configuration Card /Configuration PIN 12-42. Close Door Unconditional...
Page 21 Exit Button input is detected on the falling edge of Exit Button input Configuration Card /Configuration PIN 12-69. Set Door Contact Sensor Input Detection from ‘L’ to ‘H’ Door Contact input is detected on the raising edge of Door Contact input Configuration Card...
Page 22 Command Delay time /Configuration PIN] 12-81. Set Door Open Time-out for Door Contact Sensor =00~99 sec., Defaulted value = 00 sec. means no detect Door Contact Sensor, refer to 12.24 for Alarm time settings) Configuration Card Command Door Open time-out...
Page 23 SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER 12-82. Set Number of Times of Try-Out (NN=00~99 times, Defaulted Try-out numbers= 05 times) Configuration Card Command Try-out numbers /Configuration PIN 12-83. Set Input Keypress Time-out Time =10~99 sec., Defaulted Keypress time-out= 20 sec., Minimum = 10 sec.)
Page 24 SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER Additional Function • 12-73. Enable Keypad Input To Enter ID Number Keypad input is enabled to enter the ID numbers through keypads. Configuration Card /Configuration PIN 12-74. Disable Keypad Input To Enter ID Number Keypad input is disabled to enter the ID numbers through keypads.
Page 25: Fcc Registration Information
SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER 13. FCC REGISTRATION INFORMATION FCC REQUIREMENTS PART 15 Caution: Any changes or modifications in construction of this device which are not expressly approved by the manufacturer for compliance could void the user's authority to operate the equipment.
Page 26: Template
SENSORPROX 100R/PIN120 - SINGLE DOOR CONTROLLER 15. TEMPLATE...
