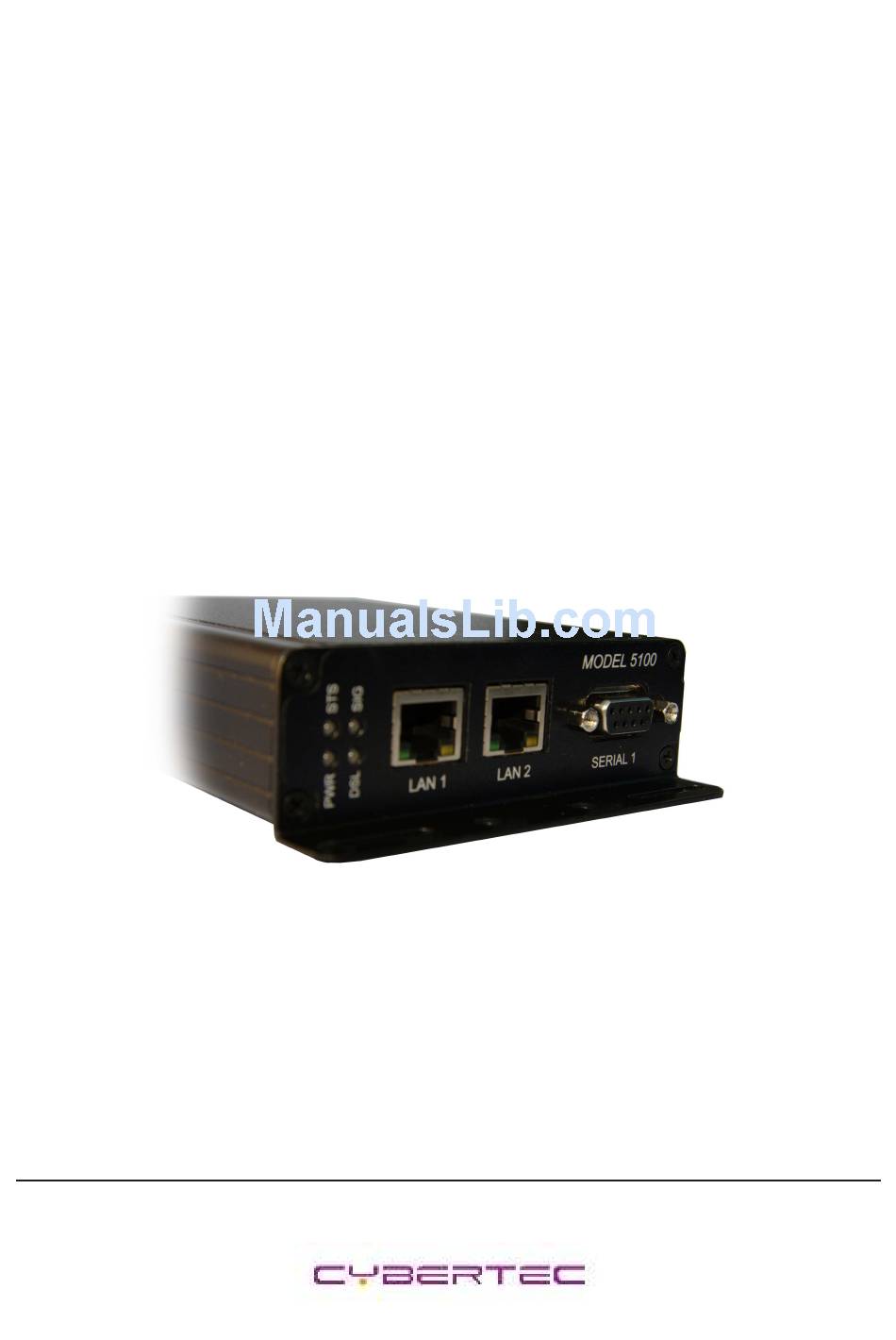

Cybertec 5000 series Quick Start Manual

Adsl modem / router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Series 5000
ADSL Modem / Router

Quick Start Guide

Document Number: 0013-001-000172
Version: 1.0 (22 October, 2009)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5000 series and is the answer not in the manual?

Questions and answers

Summary of Contents for Cybertec 5000 series

  • Page 1: Quick Start Guide

    Series 5000 ADSL Modem / Router Quick Start Guide Document Number: 0013-001-000172 Version: 1.0 (22 October, 2009)

  • Page 2: Legal Information

    fitness for a particular purpose, are made in relation to the accuracy and reliability or contents of this document. Cybertec Pty Ltd reserves the right to revise this document or withdraw it at any time without prior notice.

  • Page 3: Table Of Contents

    Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 Contents 1 Introduction 2 Safety 3 Care Recommendations 4 Indicators and Interfaces 4.1 Model 5100 ..........

  • Page 4: Care Recommendations

    1 Introduction The Cybertec Series 5000 is an ADSL Modem / Router capable of data rates up to 24Mbps download and up to 3 Mbps upload. The Series 5000 features include stateful inspection firewall and virtual private networks for security, dynamic and static routing, network management and event reporting.

  • Page 5: Indicators And Interfaces

    Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 4 Indicators and Interfaces This section describes the indicators and interfaces of the Series 5000 Modem / Router. 4.1 Model 5100 The Ethernet ports, serial port and indicators are located on the front panel as show in figure 1. The rear panel contains the connectors for power, and ADSL line, as shown in figure 2.
  • Page 6 Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 4.2.1 Power Indicator The power indicator will light green when power is applied. If the indicator does not light when power is applied check the power supply voltage and connections, refer to Section 5.4 for details.

  • Page 7: Ethernet

    Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 4.3 Ethernet The Ethernet ports are on the front of the unit and are marked LAN 1 and LAN 2, each port has a LED indicating the connection speed and a LED indicating activity as shown in Figure 4.

  • Page 8: Factory Default Reset Switch

    Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 4.5 Factory Default Reset Switch The factory default reset switch is used to restore the configuration of the Series 5000 to the factory defaults. The switch is accessed through a small hole on the rear of the unit adjacent to the power connector, refer to Figure 6.

  • Page 9: Installation

    Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 5 Installation The steps required to install the Series 5000 Modem / Router are described. The Series 5000 Modem/Router should be mounted in a clean and dry location, protected from water, excessive dust, corrosive fumes, extremes of temperature and direct sunlight.

  • Page 10: Adsl Line

    Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 5.3 ADSL Line The ADSL line connection is an RJ12 connector located on the rear panel of the unit marked “DSL”. Use the supplied cable to connect the modem to an ADSL capable connection.

  • Page 11: Accessing And Using The Web Interface

    Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 6 Accessing and Using the Web Interface All configuration of the Series 5000 modem is performed via the web interface. In order to view the web pages a computer with a fixed IP address, on the same sub-net as the Series 5000 Modem/Router, will need to be connected to one of the...

  • Page 12: Accessing The Series 5000 Web Server

    Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 Figure 11: Local Area Connection Status and Properties dialog boxes. 5. The Local Area Connection Properties dialog box, as shown on the right of Figure 11, will be displayed. Click on Internet Protocol (TCP/IP) to highlight it and then click the Properties button.
  • Page 13 Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 Figure 13: Web login box • Enter the following login details: ◦ User Name: admin ◦ Password: admin • The Status summary page will be displayed, it will be similar to Figure 14.

  • Page 14: Basic Configuration

    Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 7 Basic Configuration The section explains the procedure for configuring the Series 5000 to establish an ADSL connection. For details on more advanced functionality configuration refer to the Series 5000 User Manual.
  • Page 15 Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 To add an ADSL connection click the “Add new profile” button, the first of 3 configuration pages will be displayed. The values required will depend on the service provider.
  • Page 16 Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 To complete the connection click Submit. The ADSL connection page will again be displayed with the new connection listed as shown in Figure 20.

  • Page 17: Configure The Lan Interface And Dhcp Server

    Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 Figure 22: Status Alarms page. 7.2 Configure the LAN interface and DHCP Server To access the configuration page for the LAN interface and DHCP Server, select Interfaces from the top level menu the LAN interface screen similar to that shown in Figure 23 will be shown.

  • Page 18: Configure Clients To Use The Series 5000

    Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 7.2.2 Enabling DHCP The DHCP server allows clients on the local network to be automatically allocated IP addresses from the Series 5000.

  • Page 19: Troubleshooting

    Cybertec Pty Limited Document: 0013-001-000172 Version: 1.0 Copyright c 2009 Series 5000 Quick Start Guide 22 October, 2009 8 Troubleshooting The following is a list a potential problems and possible causes. If after the checking through the list a problem persists refer to the Series 5000 User Manual for further information.
  • Page 20 Cybertec Pty Limited ABN 72 062 978 474 Unit 11, 41-43 Higginbotham Road Gladesville NSW 2111 Australia Phone: +612 9807 5911 Fax: +612 9807 2258 www.cybertec.com.au...
