Tieline Mic Adapter Getting Started

Getting Started with the Mic Adapter
Correctly insert 2 x AAA batteries into the
mic adapter battery compartment
Insert the Mic Adapter iPhone connector into
the iPhone® and then make sure it clips
firmly into place at the top of the Mic Adapter
Attach a broadcast quality dynamic micro-
phone to the balanced XLR female input
connector at the bottom of the mic adapter
Select the appropriate Mic Gain for your
microphone
Switch Automatic Gain Control (AGC) to ON
to avoid audio distortion and clipping
Switch power from OFF to ON and check the
BATTERY LED flashes green
Attach 32 Ohm headphones to the head-
phone outputs for audio monitoring
Visit www.tieline.com for more info and support

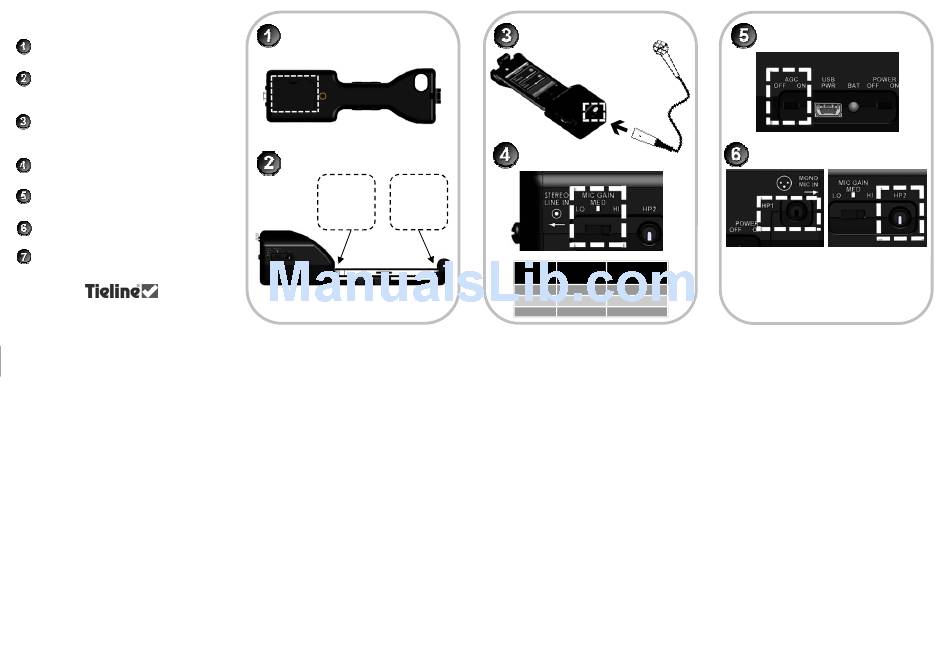

Insert Batteries
Attach iPhone to Mic Adapter
Insert base Then gently
of phone push top of
onto iPhone phone down
connector under roller
Attach Microphone
Adjust Mic Gain
IGC OFF IGC ON
Setting
Gain dB Max Gain dB
LO 10 30
MED 25 45
HI 40 60
Switch AGC ON
Plug in Headphones
Note: The volume setting is identical for each headphone
output. Adjust headphone volume for both headphones 1
and 2 (HP1 & HP2) using the iPhone volume buttons.
When using the iPhone headphone output, local mic
(sidetone) audio monitoring is disabled.
