Summary of Contents for AZ e-lite AZPOSE XL-25S

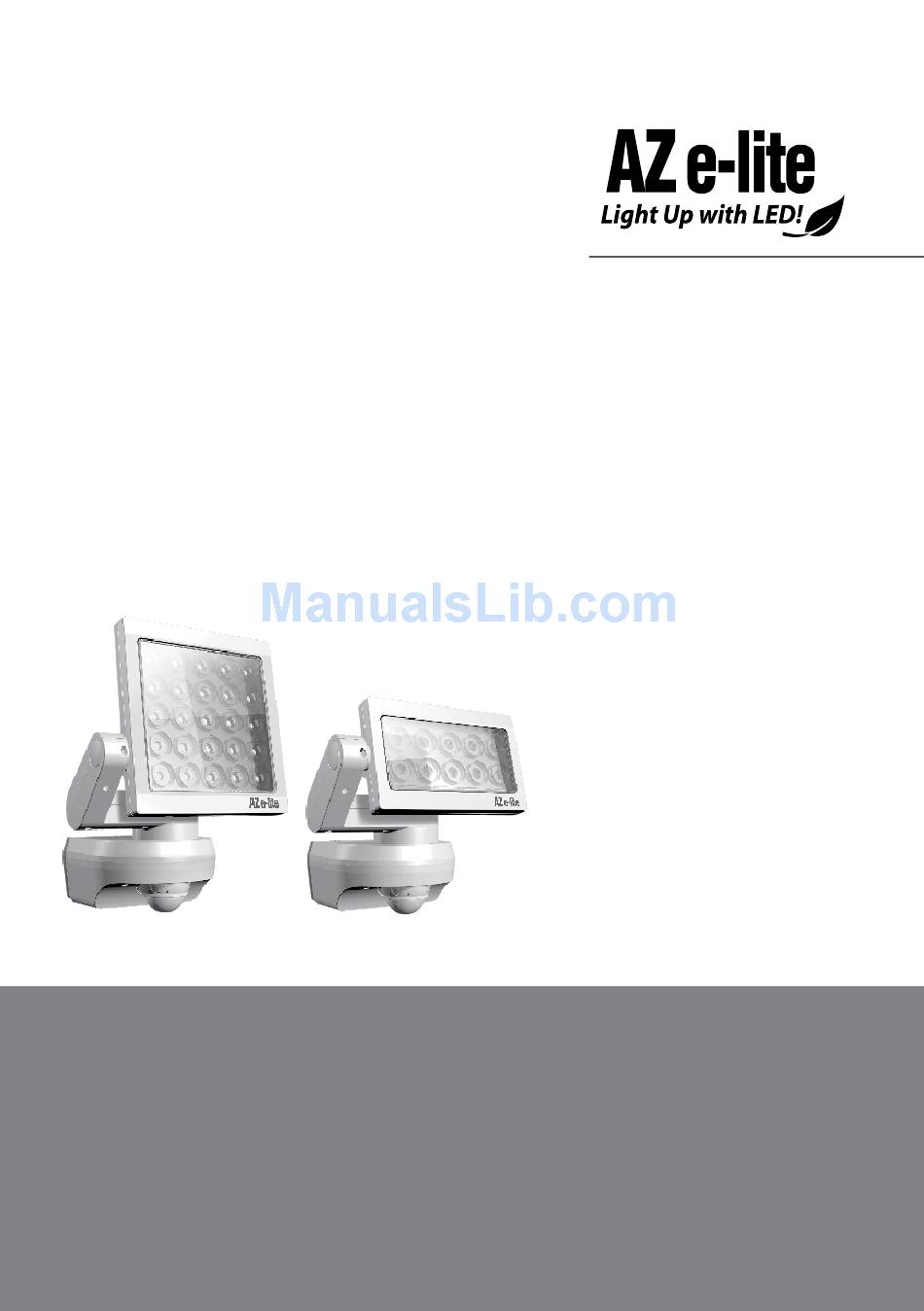

- Page 1 LED Sensor Floodlight AZPOSE XL-S XL-25S-765/830/840 XL-10S-765/830/840 Installation Guide...
-
Page 3: Table Of Contents
Contents Product Information ..............p.1 Specifications ...................p.1 Specifications summary ...............p.2 Detection Range ................p.2 Outline Drawing (XL-10S) ............p.3 Outline Drawing (XL-25S) ............p.4 Set Up Instructions ................p.5 Cascade Networking Application ..........p.6 Permanent Light Function (4 Hrs) ..........p.7 Dial Function ..................p.7 Motion Sensor Range Dial ............p.8 Principle .....................p.9 Safety warnings................p.9 Installation ..................p.9... -
Page 4: Product Information
Installation Guide Product Information The XL-10S/XL-25S is a motion sensor controlled The XL-10S/XL-25S has an ingress protection LED floodlight for various indoor/outdoor rating of IP54, which makes it suitable for both applications such as illumination of walkway, car indoor and outdoor applications. porch, garden, low usage area, etc. -
Page 5: Specifications Summary
Specifications summary XL-10S-765/830/840 XL-25S-765/830/840 Operating Input Voltage 220 – 240 Vac, 50 - 60Hz Lumen 1300 lm 2800 lm Colour Temp. daylight / warm white / cool white (765) (830) (840) >70 No. of LEDs Power Consumption Dimension(mm) HxWxD 223 x 212 x 211 304 x 214 x 211 Lifespan 35,000 hours... -
Page 6: Outline Drawing (Xl-10S)
Installation Guide Outline Drawing (XL-10S) +/- 100 deg +/- 90 deg Floodlight XLS... -
Page 7: Outline Drawing (Xl-25S)
Outline Drawing (XL-25S) +/- 100 deg +/- 90 deg Installation Guide 4... -
Page 8: Set Up Instructions
Installation Guide Set Up Instructions Disconnect the power supply before installing the floodlight. The unit is to be wall mounted with four screws. Separate the base of the floodlight by removing the 2 screws. Mark the position of the 2 mounting holes with pencil before drilling. -
Page 9: Cascade Networking Application
Cascade Networking Application The XL-10S/XL-25S can be wired up to control other electrical devices The XL-10S/XL-25S can also be wired up with more XL-10S/XL- 25S floodlights to expand the motion sensor detection zone. If any of the XL-10S/XL-25S detects a motion, it will switch ON its LED and inform the rest of the XL-10S/XL-25S to switch ON their respective LED. -
Page 10: Permanent Light Function (4 Hrs)
Installation Guide Permanent Light Function (4 Hrs) If the XL-10S/XL-25S is installed with a main AC switch, the XL-10S/XL-25S LED can be forced to switch ON for 4hrs. Activating 4hrs Permanent ON mode: Assuming the XL-10S/XL-25S is powered on and in normal operation: Switch OFF and ON the main AC switch in rapid succession (Interval between 0.5 - 1 sec). - Page 11 Motion Sensor Range Dial The Motion Sensor Range Dial allows you to define the coverage range of the motion sensor up to a maximum range of 12m. To set the motion sensor detection range to 3m, turn the dial fully anti-clockwise. To set the motion sensor detection range to 12m, turn the dial fully clockwise.
-
Page 12: Principle
Installation Guide Dear Customer, Thank you for purchasing AZ e-lite AZPOSE XL-S LED Sensor Floodlight. Please read the instructions carefully before installing the AZPOSE Floodlight to ensure long-lasting, reliable and smooth operation. Principle The AZPOSE XL-S is a motion sensor controlled... -
Page 13: Functions
Functions Ambient Dial Ambient Dial: Determines under what light level condition (2 - 2000 lux) to disable the XL-10S/XL-25S floodlight. Turn Dial to fully clockwise position = XL-10S/XL-25S will be operational and surrounding light level will be ignored. Turn Dial to midway position = XL-10S/XL-25S will be operational when surround light level is less than 1000 lux. -
Page 14: Reach Setting/Adjustment
Installation Guide Reach setting/adjustment The detection zone can be optimised to suit grooves. After removing the decorative ring, the requirements. The shrouds provided are used for shrouds can be clipped on at the top of the sensor blanking out any number lens segments or to lens. -
Page 15: Declaration Of Conformity
AZ e-lite guarantees that it is in perfect invoice (date of purchase and dealer’s stamp) to condition and proper working order. The warranty the appropriate Service Centre. - Page 16 Tel: (1)(510) 683 9800 Fax: (49)(0)(611) 45020 100 Tel: (852) 2757 1177 Tel: (603) 7804 8450 Fax: (1)(510) 683 9803 Fax: (852) 2753 0578 Fax: (603) 7804 8457 © 2010 AZ e-lite Pte Ltd - A Member of Aztech Group. Floodlight XL...
