PHICOMM FWN-651ND User Manual

150mbps wireless n high gain usb adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual

150Mbps Wireless N
High Gain USB Adapter
FWN-651ND
User Manual / V2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FWN-651ND and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PHICOMM FWN-651ND

  • Page 1: User Manual

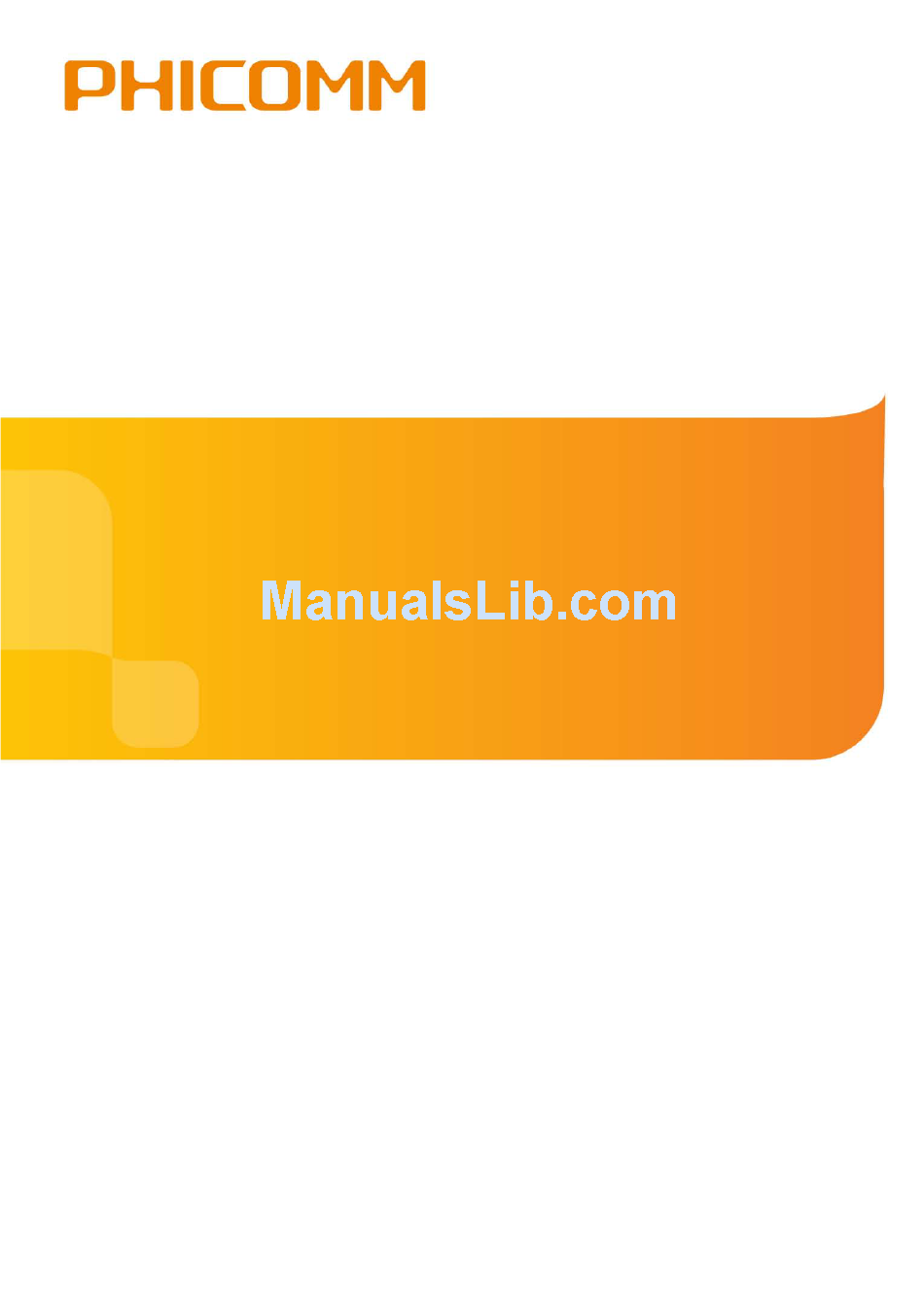

    User Manual 150Mbps Wireless N High Gain USB Adapter FWN-651ND User Manual / V2.0...
  • Page 2 All the photos and product specifications mentioned in this manual are for references only, as the upgrading of software and hardware, there will be changes. And if there are changes, PHICOMM is not responsible for informing in advance. If you want to know more information about our products, please visit our website at www.phicomm.com.

  • Page 3: Table Of Contents

    150Mbps Wireless N High Gain USB Adapter www.phicomm.com CONTENTS Chapter 1: Get to Know the Product ......1 Product Overview ....................1 Main Features ....................... 2 Chapter 2: Install Driver & Utility ........3 Chapter 3: How to Use the Product ........ 5 Use under Client Mode ..................

  • Page 4: Chapter 1: Get To Know The Product

    Thank you for choosing PHICOMM 150Mbps Wireless N High Gain USB Adapter FWN-651ND. FWN-651ND allows users to connect desktop computer or notebook to the internet anywhere in your house without the hassle of messy wires. Designed with high performance wireless N technology, the adapter is ideal for you to watch movies, transfer photos, and download music with the speed of up to 150Mbps.

  • Page 5: Main Features

    150Mbps Wireless N High Gain USB Adapter www.phicomm.com Main Features Detachable high gain antenna ensures excellent wireless signal and speed  Wireless speed up to 150Mbps, ideal for surfing, emailing, online gaming and even HD video  streaming Gets your secure wireless network up and running in seconds by using the Resource CD ...

  • Page 6: Chapter 2: Install Driver & Utility

    150Mbps Wireless N High Gain USB Adapter www.phicomm.com Chapter 2: Install Driver & Utility Note: Please download the driver from our website www.phicomm.com if your computer is  not equipped with CD drive. 1. Fix the enclosed antenna onto the USB adapter, and then plug it into your computer. The window as below might be popped up.
  • Page 7 3. Click Install Driver & Utility and follow the step-by-step instructions to finish the driver and utility installation. After installing the driver and utility, a PHICOMM Wireless Utility icon will appear on your taskbar, and a utility shortcut will show on your desktop.

  • Page 8: Chapter 3: How To Use The Product

    Chapter 3: How to Use the Product Use under Client Mode FWN-651ND is defaulted to working under Client mode as a wireless signal receiver, you can link your device to a wireless network by plugging the adapter into your network device.
  • Page 9 150Mbps Wireless N High Gain USB Adapter www.phicomm.com 2. Double click the network that you would like to connect from the Available Networks Table on the right. Click the icon to get into the next step. 3. Input the password of your wireless network, and then click the icon...

  • Page 10: Enable Wps Function

    4. Wait for a second till the following page appears. If the IP Address displays as 0.0.0.0, you are failed to connect to the network, please try again. If not, the wireless network connection is successful. The PHICOMM Wireless Utility icon on the taskbar will display as . Green bars show the quality of wireless signal, means no signal while means full signal.
  • Page 11 3. Wait for the adapter to connect to the Wireless Router. B. Connect via the PBC 1. Click the Profile Settings button on the PHICOMM Wireless Utility. 2. The Profile List screen displays. In this page, click the WPS button Chapter 3: How to Use the Product...
  • Page 12 150Mbps Wireless N High Gain USB Adapter www.phicomm.com 3. Select Push-Button Configuration (PBC). Click to continue. 4. Click Start PBC. At the same time (within 120 seconds) click the WPS button on the device to which you are connecting. 5. Once connected, your WPS profile appears in the Profile List.
  • Page 13 C. Connect via the PIN code 1. Click the Profile Settings button in the PHICOMM Wireless Utility. 2. The Profile List screen displays. In this page, click the WPS button 3. Select PIN / numeric code, in the WPS AP List field, select the name of the network to which you connecting.
  • Page 14 150Mbps Wireless N High Gain USB Adapter www.phicomm.com 4. Select Registrar In the Config Mode field, input the PIN Code provided by the device to which you are connecting (Usually you can find the PIN code on the label of the device). And click to save your settings.

  • Page 15: Manage Connection Profile

    150Mbps Wireless N High Gain USB Adapter www.phicomm.com Manage Connection Profile Click the Profile Settings button to display the Profile List screen. If you need to connect to different wireless access points at different time, like the access point of your home, office, cybercafé, or public wireless service, you can store the connection parameters (encryption, passphrase, security etc.) as a profile for every access point, so you don’t...
  • Page 16 150Mbps Wireless N High Gain USB Adapter www.phicomm.com 2. Settings of the selected network will be automatically displayed. Click to finish. If required, enter security settings such as the security key for your network. 3. After you have set up a profile, it appears in the Profile List.
  • Page 17 150Mbps Wireless N High Gain USB Adapter www.phicomm.com 2. If the connection is successful, the tick icon appears. C. Edit an existing profile 1. Select the profile which you want to edit from the Profile List, and click the Edit button 2.

  • Page 18: Share Files Between Pcs

    (up to 219 yards/ 200 meters) with stronger security (WPA2-PSK with AES encryption). For instructions on making and accepting a Wi-Fi Direct connection using the PHICOMM Wireless Utility, follow the steps given below.
  • Page 19 150Mbps Wireless N High Gain USB Adapter www.phicomm.com 1. To access the Wi-Fi Direct screens, click the Wi-Fi Direct button on the PHICOMM Wireless Utility. 2. The Wi-Fi Direct screen displays. To enable Wi-Fi Direct, double-click the notebook icon. Chapter 3: How to Use the Product...
  • Page 20 150Mbps Wireless N High Gain USB Adapter www.phicomm.com 3. To identify your computer to other Wi-Fi Direct enabled devices, select Use My Computer name or type a name. Click to save your settings. 4. The following screen displays available Wi-Fi Direct enabled computers and devices.
  • Page 21 150Mbps Wireless N High Gain USB Adapter www.phicomm.com 5. Select your connecting method and follow the step-by-step instructions. If your connection is succeed, the connection details are shown on the screen that displays. 6. In the Wi-Fi Direct screen, right-click on the notebook icon and select Media Sharing.
  • Page 22 9. To finish sharing using the PHICOMM Media Server, in the Media Sharing window, press the stop button Chapter 3: How to Use the Product...

  • Page 23: Use Under Ap Mode

    Set Up a Wireless Network 1. Right-click the PHICOMM Wireless Utility icon on your taskbar, and then click Switch to AP Mode. The tray icon will turn from 2.
  • Page 24 150Mbps Wireless N High Gain USB Adapter www.phicomm.com 3. Set the name of your network (SSID) using up to 32 ASCII characters. Click navigate to the next screen. 4. In the Select Country Region drop-down list, leave at the default settings for your region.
  • Page 25 You have completed setting up a wireless network. Other wireless-enabled computers and devices may now join your network using the same wireless settings as those you configured on your PHICOMM Wireless Utility. Chapter 3: How to Use the Product...

  • Page 26: Chapter 4: Specification

    150Mbps Wireless N High Gain USB Adapter www.phicomm.com Chapter 4: Specification Product Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, CSMA/CA with ACK Interface USB 2.0 Button WPS Button 11n: 150Mbps Data Rate 11g: 54Mbps 11b: 11Mbps Frequency Range 2.4-2.4835GHz Wireless Transmit Power <...

  • Page 27: Appendix A: Troubleshooting

    150Mbps Wireless N High Gain USB Adapter www.phicomm.com Appendix A: Troubleshooting 1. How do I know if my adapter is installed properly? Right click on My Computer icon on your desktop screen, and then choose Manage. Expand Network Adapters. Right-click on 802.11n USB Wireless LAN Card, choose Properties.
  • Page 28 150Mbps Wireless N High Gain USB Adapter www.phicomm.com Look under Device Status to check that the device is working properly. 2. The computer does not recognize the wireless network Adapter. Make sure that the Wireless Network Adapter is properly seated in the computer’s USB port.

  • Page 29: Appendix B: Certification

    150Mbps Wireless N High Gain USB Adapter www.phicomm.com Appendix B: Certification FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 30: Ce Mark Warning

    150Mbps Wireless N High Gain USB Adapter www.phicomm.com CE Mark Warning Marking with the above symbol indicates compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

  • Page 31: Appendix C: Glossary

    150Mbps Wireless N High Gain USB Adapter www.phicomm.com Appendix C: Glossary WLAN: Wireless Local Area Network. 802.11: A family of specifications developed by the IEEE for WLAN technology. 802.11a: An extension to 802.11 WLAN standard that provides up to 54 Mbps transmission in the 5 GHz UNI radio band.
  • Page 32 Shanghai Feixun Communication Co., Ltd. E-mail: support@phicomm.com Website: www.phicomm.com Copyright © 2011 Shanghai Feixun Communication Co., Ltd. All rights reserved.
