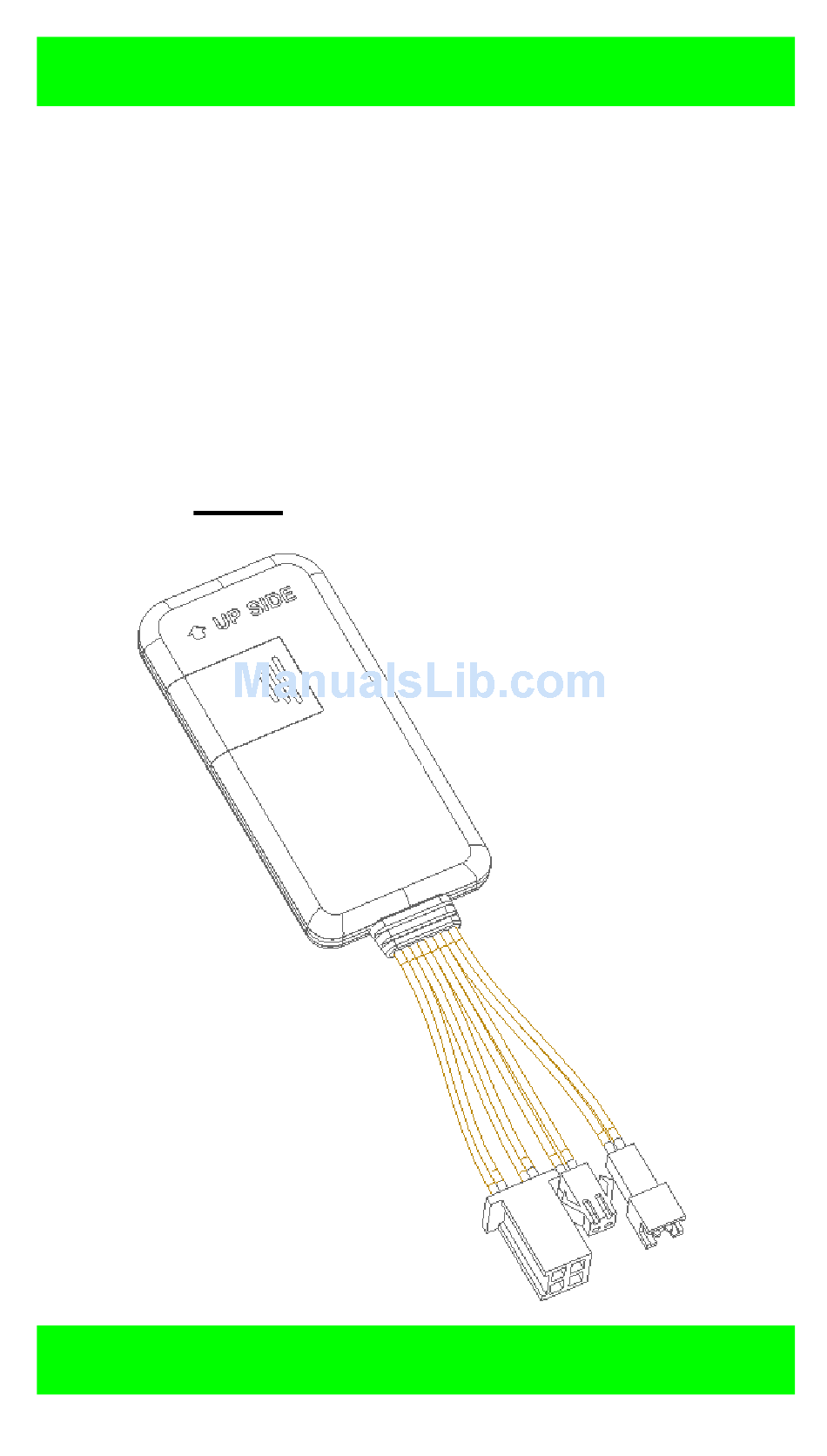

- Page 1 Tracker Tracker For Vehicle <GPS+GSM+SMS/GPRS>S User Manual V1.0 By www.moralwinhk.com Model：P168 Appearance - 1 -...
- Page 2 Welcome to use our terminal，please read this manual carefully to install and operate the terminal exactly. This user manual is for reference only. If some contents and operation steps are inconsistent with those for the actual product, the latter will prevail. Using TK116 GPS tracker, we can position、monitor and control the vehicle on the position server via GPRS、GPS and...
-
Page 3: Table Of Contents
Catalog Ⅰ. Product Features ........1 Ⅱ. Components and Accessories ....2 Ⅲ. Environment for use......3 Ⅳ. Technical Specifications .......4 4.1 Basic Specifications： ....4 4.2 LED Indicators .......4 Ⅴ. Installation..........5 5.1 Before Installation ......5 5.2 Install the terminal ......9 5.3 Terminal wiring definition ....11 5.4 Terminal wiring diagram....14 Ⅵ. - Page 4 8.3 Inquiry position......19 8.4 SOS alarm........19 8.5 Monitor........19 8.6 Cut off the fuel pump connection ...20 8.7 Recover the fuel circuits....20 Ⅸ. Login the position server.....20 Ⅹ. Trouble shooting .........21 10.1 Cannot connect to the position server ..........21 10.2 Show offline status on the position server ..........22 10.3 Cannot position for a long time ..23 10.4 Position drift is serious ....23...
-
Page 5: Ⅰ. Product Features
Ⅰ. Product Features ■Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world. ■Wide Input Voltage：6-36V DC. ■Supports single positioning and feedbacks position via GPRS at setting times. ■Supports vehicle positioning and tracking. ■Supports ACC status checking and vehicle status notifying. ■Use relay to remote control the vehicle.. -
Page 6: Ⅱ. Components And Accessories
Ⅱ. Components and Accessories ■ Components -Top Front- -Top Back- - 2 -... -
Page 7: Ⅲ. Environment For Use
Accessories（reference pictures） ■ Power Cables（Fault） Micphone（Optional） Relay（Optional） SOS Cables（Optional） Ⅲ. Environment for use 1. Limited working temperature：-20℃~80℃ 2. Storage temperature：-45℃~90℃ 3. Humidity：<95% 4. Make sure the terminal is installed in rainproof and snow-proof places. - 3 -... -
Page 8: Ⅳ. Technical Specifications
Ⅳ. Technical Specifications 4.1 Basic Specifications： Voltage 12VDC/24VDC Standby Current <3mA Work current <30mA GPS positioning accuracy GSM positioning accuracy 100m GPS Frequency 1575MHz 850/900/1800/190 GSM Frequency 0MHz <3s，<15s，<60 Hot/warm/cold start time L*W*H：79.5X38. Dimensions (mm) 5X10.5 Net Weight 45 g 4.2 LED Indicators Blue LED/GPS Red LED/GSM... -
Page 9: Ⅴ. Installation
4.2.1 Red LED(indicates GSM working state) Searching for GSM fast flicker network GSM/GPRS works intermittently flicker normally 4.2.2 Blue LED(indicates GPS signal state) Searching GPS fast flicker Satellites intermittently flicker GPS works normally Ⅴ. Installation 5.1 Before Installation 5.1.1 Open the packing case, then check if the terminal is Ok and the accessories are intact, or please contact your dealer;... - Page 10 5.1.4 Uninstall the SIM card：Lift up the edge of the SIM card, next pull it out. ●Pull down the SIM cover(three steps) - 6 -...
- Page 11 ●Install SIM Card（two steps） First. Insert the SIM card until cannot move it inside anymore; Second. Pull the SIM card back a bit; - 7 -...
- Page 12 ●Uninstall the SIM card First. Lift up the edge of the SIM card; Second. Pull out the SIM card. 5.1.4 Notice ●Please cut off the power before installing or uninstalling the SIM card. ●The SIM card should support GPRS and the GPRS should be opening.
-
Page 13: Install The Terminal
please use your mobile phone to disable the PIN code. ●Please make sure that the SIM card has sufficient balance. 5.2 Install the terminal 5.2.1 Suggest to install the terminal concealed by the dealer designated professional body. Please make sure to install the terminal with this side upward, and use wide strong double-sided adhesive sponge to fix it. - Page 14 Please make sure to install the terminal with this side towards the ground, and use wide strong double-sided adhesive sponge to fix it. 5.2.2 Notice ●Hide the terminal properly inside the car body in order to avoid damages. ●Keep the terminal away from RF emission sources such as backing radar、car burglar alarm and other vehicle mounted communication devices.
-
Page 15: Terminal Wiring Definition
weakened if there is metal thermal insulation layer or heating layer on the front windshield, the terminal may work abnormally, so please change the place to install the terminal. 5.3 Terminal wiring definition - 11 -... - Page 16 - 12 -...
- Page 17 5.3.1 Power cables and other interface for remote control - 13 -...
-
Page 18: Terminal Wiring Diagram
5.3.2 Other accessories’ interfaces 5.4 Terminal wiring diagram Relay wiring diagram shows how to wire the relay to control the fuel pump: 5.4.1 Connect the 85 terminal(with small white cable) to the positive pole of the vehicle power (+12V/+24V), connect the 86 terminal(with small yellow cable) to the 4# cable of the terminal. - Page 19 terminal(with think green cable) of the relay, and connect another pole to 30 terminal(with think green cable), showing as in the figure. Notice: Be sure that the voltage of the vehicle power should match up to the working voltage of the relay, or the relay will be damaged.
- Page 20 -Wiring Diagram - 16 -...
-
Page 21: Ⅵ. Attentions For Wiring
Ⅵ. Attentions for wiring 6.1 Power cables 6.1.1The standard input voltage of the terminal is 6V-36VDC, so please choose the our original power cables, the red cable is positive and the black cable is negative; Please ground the positive pole separately or ground it to ground connection, not to any other ground. -
Page 22: Sos Cables
6.3 SOS cables Using SOS cables we can make SOS call. Please stick the SOS switch to the place where the driver can touch. Ⅶ. Set up the terminal Please refer to the《Operation Commands》 Ⅷ. Use the terminal 8.1 Power on Power on: insert a valid SIM card and wire all the cables, then the terminal power on itself. -
Page 23: Inquiry Position
8.3 Inquiry position 8.2.1 Inquiry by SMS You can write a positioning SMS sending to the terminal when inquiring position, the terminal will reply position SMS or map link. The SMS commands please refer to the《Operation Commands》。 8.2.2 Inquiry by position server Customer can login the position server to check the position of the vehicle. -
Page 24: Cut Off The Fuel Pump Connection
seconds ringing, then you can monitor the voice in the vehicle. When using the numbers which are not belong to the managers, the terminal will not auto- answer. Notice: This function needs preset manager numbers. 8.6 Cut off the fuel pump connection The position server or the managers can send cut- off fuel commands when needed. -
Page 25: Ⅹ. Trouble Shooting
please contact your dealer. Ask your dealer to provide an ID and the password. Now open the web site, use your ID and password to enter the position server. Notice: Please get the instructions about the position server from your dealers. Ⅹ. - Page 26 commands and check the accuracy of the parameters. 10.2 Show offline status on the position server First check if the LED indicators are OK, if cannot check them, you can check the SIM card following next steps: 1）call the SIM card of the terminal and check if you can hear the connect ring.
-
Page 27: Cannot Position For A Long Time
10.3 Cannot position for a long time If the GPS is active, but the terminal cannot be positioned for long time, please check the terminal: 1）If the vehicle is in the place where there is no GPS signal. 2）The upside of the terminal should be installed with face toward the sky. -
Page 28: Instructions Receiving Abnormally
10.5 Instructions receiving abnormally 1）Check the instructions format. 2）Check if the vehicle is in the places where there is GSM signal. 3）Check if the SIM card is properly installed. Ⅺ. Warranty rules 11.1 Special statement 1）Technology change, without notice. 2) If the color and appearance are inconsistent with those for the actual product, the latter will prevail. -
Page 29: Warranty Period
11.2 Warranty period Since the date of purchase, passive waste host has one year warranty. 11.3 After sales Any of the following circumstances not covered by the warranty, but may be appropriate to pay repair: 1）More than the warranty period. 2）Unauthorized removal or repair damaged. -
Page 30: Customer's Information
Customer’s Information Name: Tel: Add: Product Model: IMEI Number： Selling Unit: Purchase Date: YY MM DD - 26 -...
