EC-300
Audible Visual Emergency Call System
INSTALLATION and OPERATION MANUAL
LNOTICE
All information, documentation, and specifications contained in this manual are subject to change
without prior notice by the manufacturer.
©2000 by Mircom Technologies Limited
Printed in CANADA, MAY 2000
LT-368 Rev. 1
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC-300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mircom EC-300

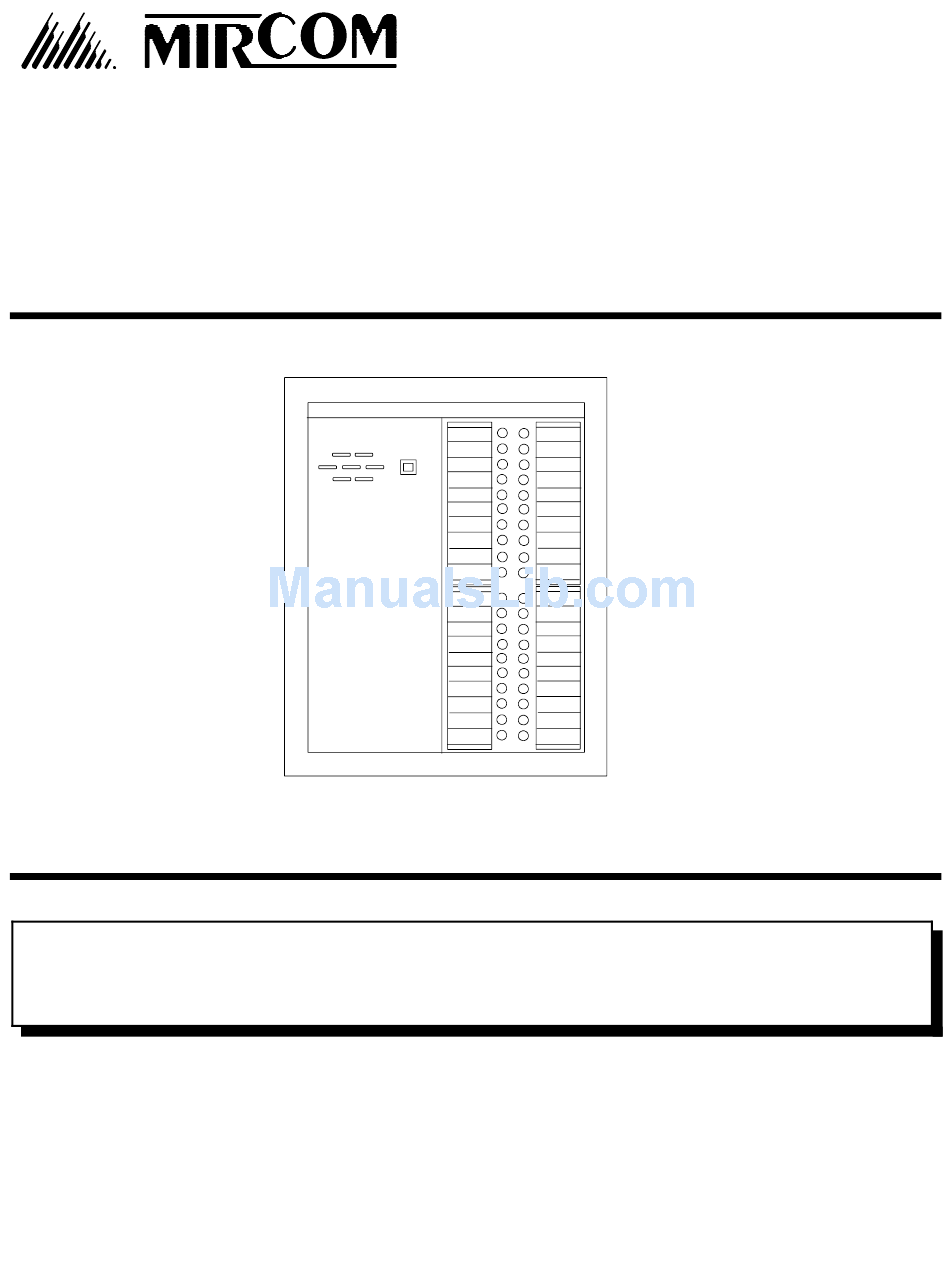

  • Page 1 Audible Visual Emergency Call System INSTALLATION and OPERATION MANUAL LNOTICE All information, documentation, and specifications contained in this manual are subject to change without prior notice by the manufacturer. ©2000 by Mircom Technologies Limited Printed in CANADA, MAY 2000 LT-368 Rev. 1...

  • Page 2: Table Of Contents

    EC-300 TABLE OF CONTENTS PAGE 1.0 INTRODUCTION ............... . 1 2.0 INSTALLATION .

  • Page 3: Introduction

    Over the years, nurse call systems have become increasingly complicated and expensive. Mircom’s EC- 300 system offers a basic system most nurses and administrators feel is necessary. The EC-300 has been designed for easy operation so few instructions are required for staff to learn and essentially no training is required.

  • Page 4: Central Nurse's Station

    EC-300 CALL RECEIVER PANEL The EC-300 is the electronic central control board. All wiring is terminated to this panel excluding the selective room wiring which terminates on the annunciator panels. Connections are made to the EC-300 to determine the type of system operation and various flash rates.

  • Page 5: System Operation

    To prevent staff from forgetting a call previously silenced, a time-out call back feature is available. A selectable DIP switch on the EC-300 Call Receiver board will re-activate the audible alarm within 2.5, 5 or 10 minutes. 3.0 SYSTEM OPERATION: Various system operations are obtainable with the EC-300 control.

  • Page 6: Distinguishable Alarm States, Normal And Emergency

    An ‘emergency’ patient call will flash the room Corridor and annunciator lamp at a fast rate. A corresponding audible tone will be heard at the EC-300 Call receiver panel. All ‘emergency’ patient calls in the same room will override ‘normal’...

  • Page 7: Subsequent Alarm Using Ec-103 And Ec-115 Stations

    An ‘emergency’ patient call will flash the room Corridor and annunciator lamp at a fast rate. A corresponding audible tone will be heard at the EC-300 Call receiver panel. All ‘emergency’ patient calls in the same room will be distinguishable by the faster audible and visual pulse rate.

  • Page 8: Panel Specifications And Power Consumption Chart

    THIS CONTROL WILL RE-ACTIVATE THE ALARM TONES AFTER THE PRE-SELECTED TIME DELAY HAS EXPIRED. F1 AND F2 CONTROL UNIT FUSES. REPLACE ONLY WITH MAXIMUM 3 AMP, 250V TYPE POWER CONSUMPTION CHART ITEM EC-300 CALL RECEIVER EC-104 DOME LIGHT EC-220/240 EACH ILLUMINATED LED EC-105DC HORN...

  • Page 13: Warranty

    Warranty & Warning Information Warning Please Read Carefully Note to End Users: This equipment is subject to terms and conditions of sale as follows: Note to Installers This warning contains vital information. As the only individual in contact with system users, it is your responsibility to bring each item in this warning to the attention of the users of this system.
  • Page 14 Mircom shall not be liable for any delays, breakdowns, interruptions, loss, destruction, alteration or other problems in the use of a product arising our of, or caused by, the software.

  • Page 15: Limited Warranty

    (90) days, whichever is longer. The original owner must promptly notify Mircom Technologies Ltd. in writing that there is defect in material or workmanship, such written notice to be received in all events prior to expiration of the warranty period.
  • Page 16 Products which Mircom Technologies Ltd. determines to be repairable will be repaired and returned. A set fee which Mircom Technologies Ltd. has predetermined and which may be revised from time to time, will be charged for each unit repaired.
  • Page 18 Notes...
  • Page 20 Advanced Life Safety Solutions Canada U.S.A. © Mircom 2006 Printed in Canada 25 Interchange Way 60 Industrial Parkway PMB 278 Subject to change without prior notice Vaughan, ON L4K 5W3 Cheektowaga, NY 14227 Tel: 1-888-660-4655 Fax: 1-888-660-4113 www.mircom.com Tel: 905-660-4655 Fax: 905-660-4113...
