Summary of Contents for Quintet Q35

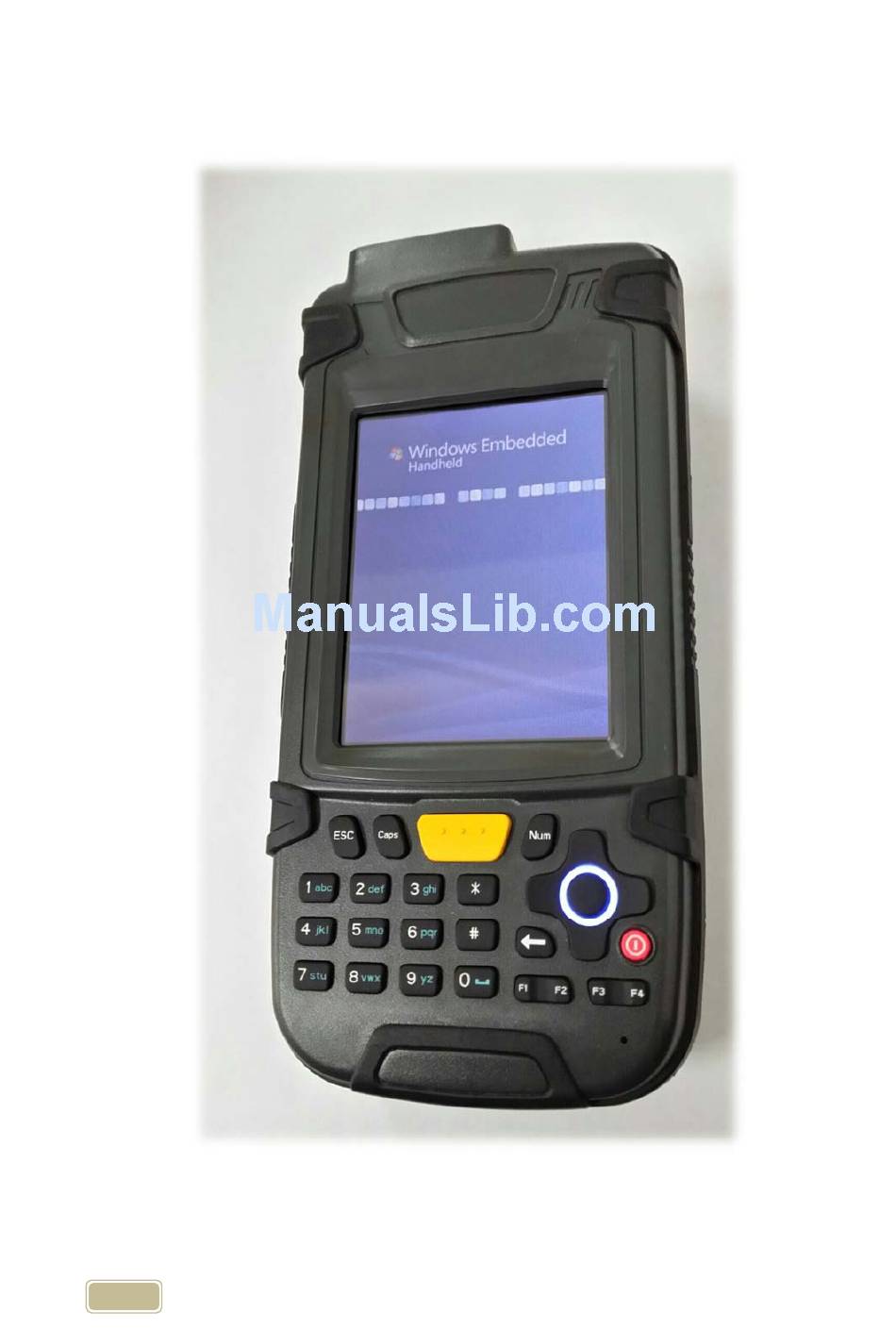

- Page 1 Q35 User’s Manual Handheld Device User’s Manual 1 ...
- Page 2 Q35 User’s Manual Q35 - User's Manual Edition: 11/2012 2 ...
-
Page 3: Table Of Contents
Safety Regulation............................5 General Safety Rules...........................5 Radio Compliance............................6 FCC Compliance.............................6 Quick Start…………………………………………………………………………………………………………..7 Chapter 1 Introduction ...........................8 1.1 Introduction……………………………………………………………………….........8 1.2 Q35 Handheld DeviceDescription..................11 1.3 Package Contents..........................11 1.4Accessories..............................11 1.5 Operating System ..........................12 Chapter 2 Connections..........................13 2.1 Inserting Micro SD Card .......................13 2.2 Installing Battery packs .........................15 2.3 USB Direct Connections .......................16... - Page 4 Q35 User’s Manual 5.1.1 Electrical Features........................27 5.1.2 Environmental Features......................27 5.1.3 Mechanical Features......................... 27 5.1.4 Programming Features....................... 27 Glossary................................28 4 ...
-
Page 5: Reference
The user is responsible for any damages caused by incorrect use ofthe equipment or by inobservance of the indication supplied in thismanual. General Safety Rules − Use only the components supplied by the manufacturer for the specific Q35 handheld device being used. -
Page 6: Radiocompliance
Q35 User’s Manual RadioCompliance In radio systems configured with handheld device, the frequencies to be usedmust be allowed by the spectrum authorities of the specific country in which theinstallation takes place. Be absolutely sure that the system frequencies are correctlyset to be compliant with the spectrum requirements of the country. -
Page 7: Quick Start
Q35 User’s Manual Quick Start: 1. Control Panel:Click”Start” on the bottom left corner of the home screen, select “Setting” to launch control panel. 2. Stylus calibration: Launch “Control Panel”, then select “System” tab; Click “Screen”, choose “General” tab. Click “adjust” to perform stylus calibration. -
Page 8: Chapter 1 Introduction
Q35 User’s Manual Chapter 1 Introduction 1.1 General View A B G G C F D E Figure 1 – Front View A) Data captureoutput window B) Scan key(s) C) Standby & power/chargerstatus LED D) Power on/off switch E) Microphone input F) Keypad input functions rotation key G) Alphabetic/Numerical indicator LED 8 ... - Page 9 Q35 User’s Manual I J Figure 2 – Side View Battery cover Earpiece jack USB/Power/Dock connector Figure 3 – Top View K) Barcode Scanner Module 9 ...
- Page 10 Q35 User’s Manual L M N O P Figure 4 – Rear View UHF RFID antenna Camera (reserved) Speaker SIM socket (reserved) Micro SD socket 10 ...
-
Page 11: Q35 Tm Handheld Devicedescription
The Q35 is equipped with a function-based interfacefor direct ERPtransactions and with a web-based layout for HTML needs as well. These keyrequirements make the Q35 perfect for use in field Force automation,instore and logistics applications. The Q35 enables companies and organizations worldwide to make moreeffective use of people and tools for receiving, storage, and shipping activities. -
Page 12: Accessories
Q35 User’s Manual 1.4Accessories Cradles 91-C1Q35 Single Cradle Desk (includes slot for spare battery packrecharge; RS232 and USB communications) 91-C2Q35 Vehicle Cradle Standard Charger 91-C3Q35 Multi-Battery pack Charger (2 slots) Batteries 46-11Q35 Standard Battery pack (Li-Ion battery pack 1800 mAh@7.4 V) 46-21Q35 Large Capacity Battery pack (Li-Ion battery pack 2800 mAh@7.4 V) -
Page 13: Chapter 2 Connections
With Q35 , it is possible to add a Micro SD Card for additional storagecapacity. To access the Micro SD card slot, unlock the battery cover at the bottom of Q35 (See Figure 4, 5) and then proceed as follows: 1. - Page 14 Q35 User’s Manual Figure 6 Caution Follow proper ESD precautions to avoid damaging the SD. Proper ESDprecautions include, but are not limited to, working on an ESD mat andensuring that the operator is properly grounded. Do not Force the card. If you feel resistance, remove the card, checkthe orientation, and reinsert it.
-
Page 15: Installing Battery Packs
Avoid the power supplyconnection when the USB link is active. Windows7/ Vista user need to use Windows MobileDeviceMobilenter6.1 on the PC end， XP or earlier version of Windows, please use ActiveSync to synchronize the information with Q35 for detail information please follow the link： http://www.microsoft.com/windowsphone/en‐us/howto/wp6/sync/installing‐wmdc.aspx 15 ... -
Page 16: Cradle Connections
AC adaptor, see the Figure 8 for connection instruction. Figure 8 Chapter 3 Usesand Functioning The use of the Q35 handheld device depends on the application software loaded. However there are several parameters that can be set and utilities that can be usedto perform some basic functions such as data capture, communications, filemanagement, etc. -
Page 17: Using The Stylus
Q35 User’s Manual When it is no longer used for more than a programmable timeout, which is defined inthe Power applet of the Control Panel, the PDA goes into power-off (low powerwith display and keyboard backlight off). In this mode it can be awakened (resumingoperation) by the [Standby] key. -
Page 18: Descriptionofthe Keys
27keys. The keyboard can be divided as follows: Power ON/OFF key / Standby key Power ON/OFF the Q35 handheld device while press the key. Switch off the backlight for saving power while press. -
Page 19: Control Panel
Q35 User’s Manual 3.5 Control Panel From the Windows Mobile Desktop, double tap on the "Control Panel" icon to open the Windows Mobile control panel main window. The Control Panel can also be launchedfrom Start ->Settings ->Control Panel. Figure 10 Figure 11 3.5.1 Stylus Calibration... - Page 20 Q35 User’s Manual Figure 12 Figure 13 Startup stylus calibration on Windows Mobile When starting the terminal, a stylus calibration screen comes up if valid calibrationsettings are not available. This happens in the following circumstances: 1. At the first startup of the terminal.
-
Page 21: Volume Settings
Q35 User’s Manual 3.5.2 Volume Settings From the Windows MOBILE control panel main window, select the Volume Settingsapplet by double tapping the Volume Settings icon. The Volume Settings applet allows managing the audio features and appears asfollows: Figure 15 Figure 16 3.5.3 Backlight Settings... -
Page 22: Windows Connections
ActiveSync options to turn synchronization onand off for specific information types. ® For example: Synchronize Microsoft Word and Microsoft Excel files between the Q35™PDA and the desktop computer. The files will automatically be converted to thecorrect format. 22 ... -
Page 23: Chapter 4 Maintenance
2.5.Alternatively, it is also possible to recharge the battery pack by using the Q35 Single Cradle Desk or the Q35™ Vehicle Cradle. The charging process is signaled by a bi-colored charging status LED positioned atthe right side of the display (see par. 3.4). -
Page 24: Replacingthe Battery Pack
3. Remove the battery pack. 4. Replace the battery pack by pressing the latch release button and pulling thebattery latch down, and then by inserting it towards the speaker and pressing itinto the Q35™ PDA until the battery latch is automatically closed. - Page 25 WARNING Use only a Q35 approved power supply. Use of analternative power supply will void the product warranty and may causeproduct damage. Do not apply voltages to the batteries contacts.
-
Page 26: Cleaningthepda
In order to guarantee an adequate operating autonomy, whenreplacing the battery pack the PDA checks the battery energy level. If the battery is not sufficiently charged, Q35™ does notturn on (when pressing the ON button). In this case, either substitute the battery pack with a charged one(sufficiently charged) or insert Q35™... -
Page 27: Chapter 5 Technicalfeatures
Q35 User’s Manual Chapter 5 Technical Features 5.1 Technical Data 5.1.1 Electrical Features Power AC/DC supply 12 V 2A Battery pack 2 Cell Li-Ion 2200 mAh@ 11.1 V (nominal) Large capacity pack 2 Cell Li-Ion 2800 mAh@ 11.1 V (nominal) Internal backup battery Rechargeable Li-Ion 11 mAh... - Page 28 Q35 User’s Manual Protection IP65 ESD protection,8 KV contact discharge, 15 KV air discharge Drop resistance, 1.2 m / 4 ft 5.1.3 Mechanical Features Dimensions (LxWxH),18.0 x 8.7 x 4.5 cm Weight,540 g (incl. battery) 5.1.4 Programming Features Operating system Windows Mobile6.x Professional...
- Page 29 Q35 User’s Manual Bluetooth® A standard radio technology using a proprietary protocol. The onboard Bluetoothmodule in the PDA is compatible with the 1.2 protocol. Byte On an addressable boundary, eight adjacent binary digits (0 and 1) combined in apattern to represent a specific character or numeric value. Bits are numbered fromthe right, 0 through 7, with bit 0 the low-order bit.
- Page 30 Q35 User’s Manual is managed by the United States Air Force 50th Space Wing. Host A computer that serves other terminals in a network, providing Services such asnetwork control, database access, special programs, supervisory programs, or Programming languages. Liquid Crystal Display (LCD) A display that uses liquid crystal sealed between two glass plates.
