Syspine IP Phone Quick Setup Manual

Powerful New
Experience with
Voice Dialing!
®
Syspine IP Phone
Quick Setup Guide v2.0

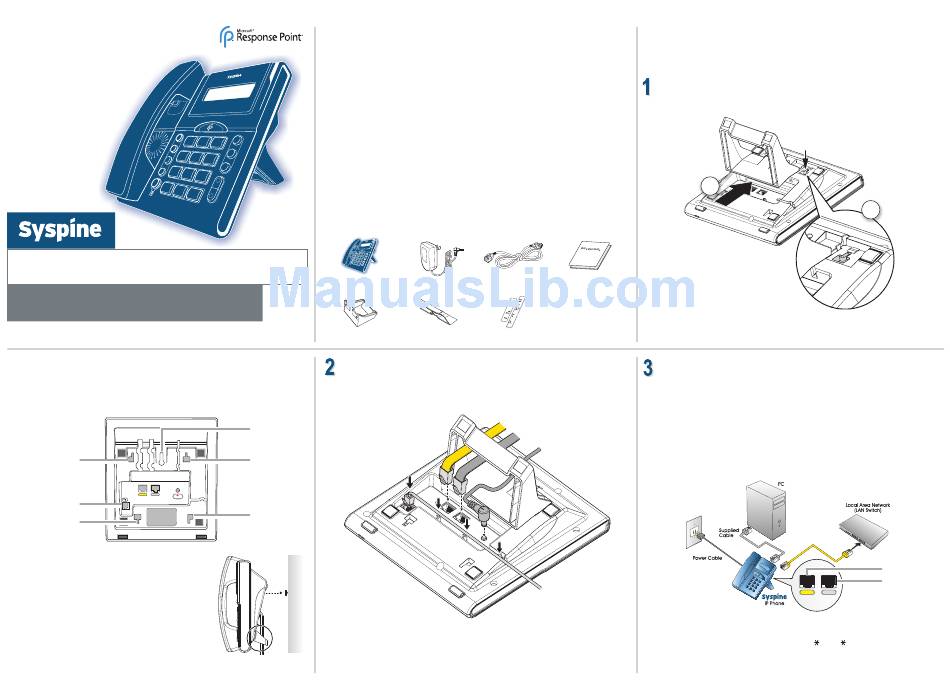

Wall Mount Installation
For installation ease, use the following illustrations to correctly wall mount the
Syspine IP Phone.
NOTE: The handset hook is supplied in the upright position, suitable for desktop or
wall mounting. If the phone is installed on a desktop without the stand, remove
the hook and install it point down.
Desktop stand
socket
LAN PC - +
Handset
DC 12V
connection port
Wall mount
stand socket
1. Insert the two alignment pins of the Wall Mount Stand
in to the sockets on the phone.
2. Push the stand toward the bottom of the IP Phone to
until it clicks into place.
3. Locate a clean, even wall space with adequate room
for cabling.
4. Drill a hole and insert a suitable wall-fixing plug.
5. Insert a suitable screw and tighten until approximately
5 mm (0.2 inch) is visible.
6. Align the wall-mounting slot on the underside of the
IP Phone with the screw.
7. Place the IP Phone on the wall and pull down to locate
the screw securely.
I n : p
mportant otIce lease
• Power, network or telephone service outages: If there is an outage, disruption, or other degradation
of the power, network or telephone services at your location, Response Point will not work.
• How to dial 911: Please inform all of your employees, visitors, and Response Point users that they can
either dial the emergency number, or 9 plus the emergency number, to access emergency services.
• Maintain an alternative means of calling 911: You should maintain a backup means of calling 911
emergency services (for example, by using a phone plugged into a standard telephone line or a cell
phone) in case of a power failure, telephone service outage, or other problem that may inhibit you
from using Response Point.
• Calling emergency services using a VoIP service provider: Please note that not all VoIP service
providers enable users to call emergency services. Such requirements vary by country. If you have
questions about this capability, please contact your VoIP service provider.
• 811 feature: By dialing 811, you can call back the last phone that was used to dial 911. This information
will be stored for only 24-48 hours after 911 is dialed. NOTE: This feature may not work if the phone
has not been registered with the DOS-A50 by your system administrator.
• Emergency-number location obligations that may apply to certain owners of Response Point: Your
telephone company or voice/VoIP service provider may be required under applicable law to provide a
telephone number and address associated with that telephone number to emergency services when a
caller dials an emergency number. Further, certain countries' laws may require the owner/operator of a
multi-line telephone system (MLTS), such as Response Point, to provide emergency services with the
physical location/address of the phone that was used to call an emergency number, in addition to the
caller's telephone number. In such cases, compliance with such MLTS laws is your responsibility. Please
note that Response Point does not provide to emergency services with the physical location/address
of a phone that is used to call an emergency number.
Package Contents
IP Phone, handset and
A Microsoft ® Response Point™ Phone System
handset cable
Desktop Phone Stand
Wherever Business Grows
NOTE: If any items are missing or damaged, contact the dealer immediately.
Basic connections
Locate the rear view of the IP Phone and make all the necessary connections as
follows.
Wall mount
socket
Desktop stand
socket
Wall mount
stand socket
Wall Mount Stand
r c
ead arefully
Power adaptor 2m Ethernet Cable Quick Start Guide
Wall Mount Stand Labels
Connect to LAN
Connect to PC
Connect to power outlet
Connect to phone
handset
Hardware Setup
The section that follows describes how to install the Syspine IP Phone.
Important: The Syspine IP Phone is designed specifically to work in conjunction with the
Syspine Digital Operator System A50.
Locating the IP Phone
Desktop Installation
1. Insert the two alignment pins of the Desktop Phone Stand into the sockets as
shown.
2
2. Push the stand toward the top of the IP Phone until it clicks into place.
NOTE: Only the Desktop Phone Stand is required for desktop installation.
Connecting the IP Phone
After connecting the DOS-A50 to the LAN and a suitable power outlet, connect
all the required IP Phones at once to the LAN.
The IP Phone supports daisy-chain connection for limited port access
using the supplied Ethernet cable.
Perform the following steps to connect the IP Phone as part of a daisy-chain:
1. Disconnect the existing LAN cable from the PC.
2. Plug the LAN cable into the LAN port on the IP Phone.
3. Using the supplied Ethernet cable, connect the PC port on the IP Phone to the LAN
port on the PC.
4. Using the supplied power cables for each phone, connect the IP Phones to a power
source.
5. Record the IP address for each phone as displayed on the LCD screen.
3 3
LAN
If port access is not a consideration and a daisy chain connection is not required,
attach the IP Phone directly to the LAN switch with the supplied cable.
NOTE: • If the IP address is not displayed, enter # 47 (# IP) on the keypad to display
the IP address.
• If the IP Phone is connected through a Power over Ethernet (PoE) device, it is
not necessary to connect the power adapter.
1
Connect to LAN
Connect
to PC
PC
