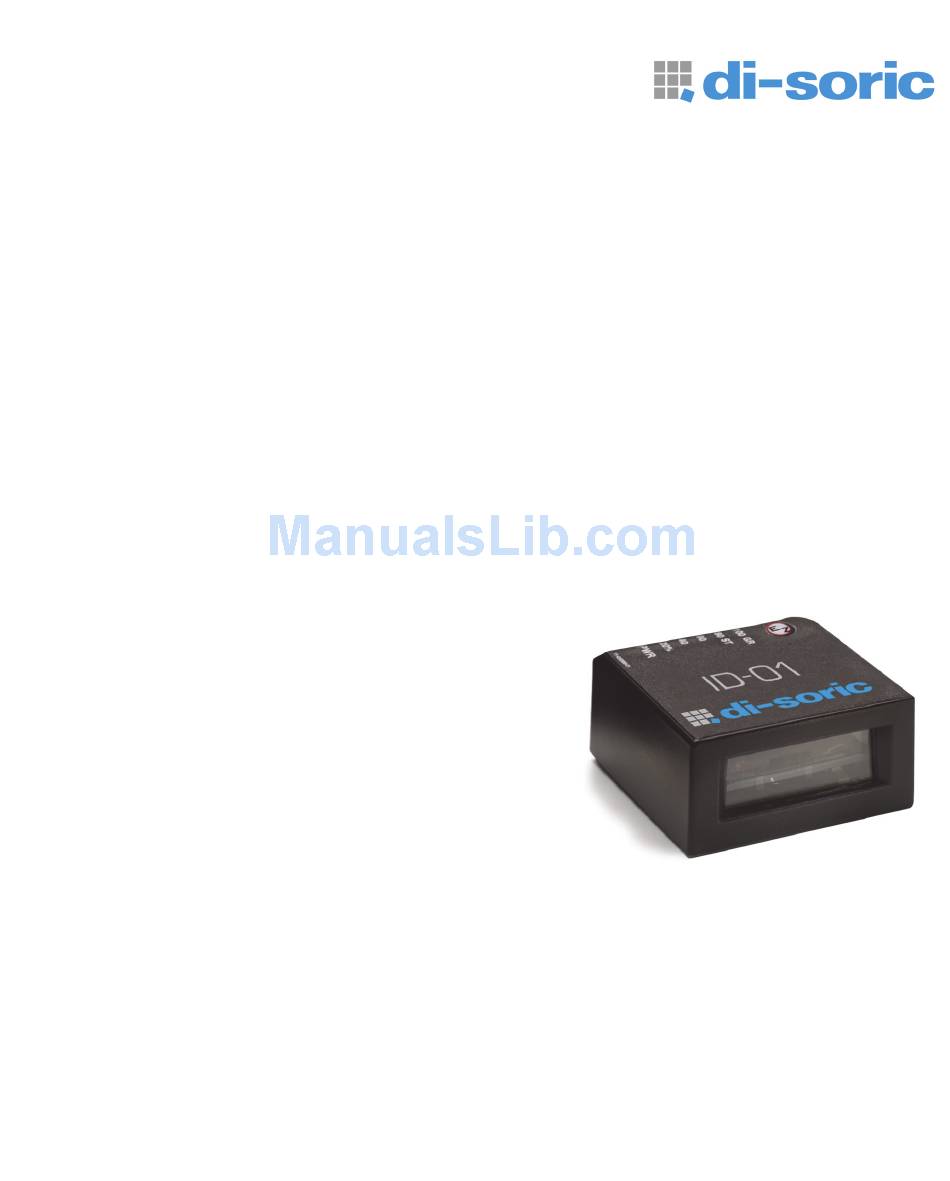

  • Page 1 ID-01 Laser Scanner User’s Manual ID-01 User’s Manual...

  • Page 2: Technical Support

    All rights reserved. The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service di-soric manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of di-soric.

  • Page 3: Table Of Contents

    Preamble ....................3-20 Postamble....................3-21 LRC Status ....................3-22 Intercharacter Delay ................3-22 Chapter 4 Read Cycle Read Cycle by di-soric ID ................4-2 Read Cycle by Serial Command..............4-2 Multisymbol....................4-3 Number of Symbols .................4-4 Serial Trigger ..................4-12 End of Read Cycle.................4-14 Decodes Before Output .................4-16 Scanner Setup ..................4-17...
  • Page 4 Background Color.................. 5-24 Autodiscriminate ..................5-24 Symbol Ratio Mode ................5-25 Chapter 6 I/O Parameters Output Conditions by di-soric ID Menu............ 6-2 I/O Parameters by Serial Command............6-3 Symbol Data Output ................6-4 Message Output ..................6-7 No Read Message................... 6-8 Bad Symbol Message................
  • Page 5 Appendix I Formulas for Number of Decodes........A-18 Appendix J Operational Tips..............A-21 Appendix K Interface Standards ............A-22 Appendix L Multidrop Communications ..........A-23 Appendix M Troubleshooting ..............A-28 Appendix N Glossary of Terms............. A-30 ID-01 Laser Scanner User’s Manual...
  • Page 6 About the ID-01 Laser Scanner About the ID-01 Laser Scanner The ID-01 is an ultra-compact scanner that can decode high density symbols from 2 to 10 inches at a 70 degree scan angle, at speeds of 300 to 1,000 decodes per second, with a power draw of only 300mA at 5V.
  • Page 7 Use of controls, adjustments, or performance of procedures other than those specified herein may result in hazardous laser light radiation exposure. There are no user-serviceable parts in the scanner. Opening the scanner voids the di-soric Systems, Inc. warranty and could expose the user to laser diode power.
  • Page 8 CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. IMPORTANT: The ID-01 is intended for connection to a UL-listed direct plug-in power unit marked Class 2 and rated 5 VDC at 3.5 Watts, or greater if using electrical accessories.
  • Page 9 Introduction Warning and Caution Summary (cont.) Warning Label Placement These labels are located on the ID-01 Laser Scanner: ID-01 Laser Scanner User’s Manual...

  • Page 10: Statement Of Agency Compliance

    The ID-01 has been tested by an independent electromagnetic compatibility laboratory in accordance with the applicable specifications and instructions. The ID-01 is compliant with FDA performance standards for laser products except for deviations pursuant to laser notice no. 50, dated June 24, 2007.
  • Page 11 The information provided in this certification notice is correct to the best of di-soric’s knowledge at the date of publication. This notice is not to be considered a warranty or quality specification. Users are responsible for determining the applicability of any RoHS legislation or regulations based on their individual use of the product.
  • Page 12 ID-01 Laser Scanner User’s Manual...

  • Page 13: Quick Start

    Windows™ operating system (2000 or above), you can use di-soric ID (Setup Program) to configure and control your ID-01 Laser Scanner. In addition to di-soric ID, you can send commands to your scanner by serial command and by the scanners’s embedded menus.
  • Page 14 Description ID-01-LX-X-S ID-01 Scanner Host Computer (running Windows 2000 or higher, and with di-soric ID or a terminal communications pro- gram such as HyperTerminal) Cable, Setup, DB-25 Plug to DB-9 Socket, 6 ft. (If VSID-K-25S/9K-2 using another host cable, be certain it does not have RTS/CTS connected to the host.)

  • Page 15: Step 2 Connect The System

    Note: If using your own null modem RS-232 host cable, be certain that the host’s TxD connects to the scanner’s RxD and the scanner’s TxD connects to the host’s RxD. Figure 1-2 ID-01 Hardware Configuration Caution: Be sure that all cables are connected BEFORE applying power to the system.

  • Page 16: Step 3 Install Di-Soric Id

    • Extract the di-soric di-soric ID WinZip files to a directory of your choice. • At the end of the install process, copy a shortcut di-soric ID icon onto your desktop. • Click the di-soric ID icon to run the program.

  • Page 17: Step 4 Select Scanner Model In Di-Soric Id

    When you start the program, the following menu will appear: 5. Select ID-01 Laser from the menu and click OK. If you do not want to make this selection every time you load di-soric ID, uncheck “Show this window at Startup”.

  • Page 18: Step 6 Autoconnect

    2. Click the Start button. When connected, the scanner’s settings will be loaded into di-soric ID and the CON- NECTED message will appear in a green box in the status bar at the bottom right of your screen. 3. If the connection fails, enable a different Com Port, check connections, and try again.

  • Page 19: Step 6 Position Symbol And Scanner

    Note: If using an I 2/5 symbol, verify that the number of characters in the symbol being scanned matches the symbol length enabled for the I 2/5 symbol type (default is 10 and 6). See “Interleaved 2 of 5” on page 5-10. ID-01 Laser Scanner User’s Manual...

  • Page 20: Step 7 Test For Read Rate

    With this test you can learn the percentage of decodes per images captured by observing the LEDs (20% through 100%) on the top of the ID-01 which are active during a read rate test. If the results are not satisfactory, move on to Step 8 — “Calibrate the Scanner”.

  • Page 21: Step 8 Calibrate The Scanner

    Press and hold the EZ Button until you hear two beeps and see two performance LEDs turn amber to indicate that the calibration is in progress. The scanner will beep once at the end of calibration. ID-01 Laser Scanner User’s Manual...
  • Page 22 After calibrating the ID-01, you can save your new settings to be available at power-on. By di-soric ID Caution: If you have settings in the scanner that you have not yet loaded into di-soric ID, the di-soric ID settings will overwrite the scanner’s settings when you save. Under these...

  • Page 23: Step 10 Configure The Scanner

    Mode button. See Chapter 2, To return to the Setup Mode, click the Setup Mode button. By Serial Command From your terminal program or the Terminal screen in di-soric ID, you can enter serial commands and configuration and utility commands. See "Serial Configuration Com- mands"...
  • Page 24 Configure the Scanner 1-12 ID-01 Laser Scanner User’s Manual...

  • Page 25: Using Di-Soric Id

    This section is designed to help you understand the structure, elements, and application of di-soric ID (Setup Program). When you start up di-soric ID, unless otherwise specified, you will enter the Setup Mode for initial setup. From there, you move easily into the App Mode (application mode) where you can access several configuration and utilities menus.

  • Page 26: Setup Mode

    Calibration is available on some models Note: This view may be slightly different for each model. Saves Calibration results (if available) On some models, clicking Autodiscriminate will enable most available symbology types. Ends the read rate test ID-01 Laser Scanner User’s Manual...

  • Page 27: Application Mode

    Note: For specific information on any of the icons shown above in the operations bar or configuration bar, see specific chapters in this document. ID-01 Laser Scanner User’s Manual...

  • Page 28: Pulldown Menus

    (Save to Scanner) (Receive Scanner Settings) Import/Export Import converts the ASCII settings from a text file to di-soric ID configuration settings. Export converts the active di-soric ID configuration settings to an ASCII text file. ID-01 Laser Scanner User’s Manual...
  • Page 29 Model menu and that the same menu is repeated when clicking the Switch Model icon. When you save your di-soric ID file, you will be saving the settings of all the models defined in a single di-soric ID file. ID-01 Laser Scanner User’s Manual...

  • Page 30: General Tab

    Would you like to connect... prompt. Receive After Connect At startup, loads the scanner’s settings into di-soric ID. (This is not recommended if you want to preserve your di-soric ID settings for future use.) Enable ‘Send and Save as Factory Settings’...
  • Page 31 Sets the font characteristics for text that is echoed back to the screen from the scanner. Toolbar Style By user selection, displays toolbar buttons as icons, text only, or both (default). Note: See also Chapter 10, "Terminal Mode". ID-01 Laser Scanner User’s Manual...
  • Page 32 Whatever you type into the Document Memo will appear in a text box whenever your cur- sor hovers over the Document Memo option. Model Memo Memos created in Model Memo are specific to the model enabled when the message was created. ID-01 Laser Scanner User’s Manual...

  • Page 33: Connect Menu

    OK. If the host serial port is not con- nected in di-soric ID, you will see the following popup message: “di-soric ID is not currently con- nected to the multidrop concentra- tor.
  • Page 34 Retrieve Scanner Settings to upload scanner’s configuration. If upload fails, return to the Connection Settings dialog and make the corrections. 8. Follow the same procedure for connecting other scanners to your multidrop network. 2-10 ID-01 Laser Scanner User’s Manual...

  • Page 35: View

    This is a very useful tool for creating configuration symbols which allows you to configure your scanner by reading the bar code symbols you print out. To configure the size, text and caption parameters, see "Bar Code Options tab" on page 2-8. 2-11 ID-01 Laser Scanner User’s Manual...

  • Page 36: Navigating In Di-Soric Id

    Left click again on the open screen to complete the selec- tion. Right click on the open screen and select Save to Reader to implement the command in the scanner. 2-12 ID-01 Laser Scanner User’s Manual...

  • Page 37: Send/Receive Options

    Caution: Do not select this option if you do not want to upload the scanner’s settings. For example, if your di-soric ID file has a number of custom settings that you want to maintain and download into the scanner, these settings would be lost by choosing Yes.

  • Page 38: Advanced Options

    <A> or a <Z> command. Also, if there is a corresponding di-soric ID menu item, the di-soric ID Value column for that item will be blank following a Receive from Reader command. 1. From the Send/Recv button or right-clicking from within the tree menus.

  • Page 39: Communications

    Intercharacter Delay ........................3-22 With di-soric ID (Setup Program), configuration changes can be made and then sent and saved to your scanner. You can also send serial commands to the scanner via di-soric ID’s Terminal window. This section includes connecting parameters and options for communicating by the auxil- iary port and various interfaces.

  • Page 40: Communications By Di-Soric Id

    <K100,baud,parity,stop bits,data bits> Host Protocol <K140, protocol> Host RS422 Status <K102, status> Aux Port Parameters <K101,aux port mode,baud rate,parity,stop bits,data bits, status, ID> Preamble <K141,preambole status,preamble> Postamble <K142,postamble status,postamble> LRC Status <K145,status> Intercharacter Delay <K144,intercharacter delay> ID-01 Laser Scanner User’s Manual...

  • Page 41: Password Protection

    Quick Start Password Protection Note: Password protection options are entered serially and are not available in di-soric ID menus. Usage: Password Protection when enabled prevents the scanner’s parameters from being modified but does not affect the flow of data from the scanner or its response to read only commands.

  • Page 42: Host Port Connections

    Only changed if necessary to match host setting. Definition: One or two bits added to the end of each character to indicate the end of the character. Serial Cmd: <K100,baud rate,parity,stop bits,data bits> Default: Options: 0 = One 1 = Two ID-01 Laser Scanner User’s Manual...

  • Page 43: Host Port Protocol

    Point-to-Point (standard) Usage: Used only with RS232 or RS422. Definition: Standard Point-to-Point requires no address and sends data to the host whenever it is available, without any request or handshake from the host. Serial Cmd: <K140,0> ID-01 Laser Scanner User’s Manual...
  • Page 44 Point-to-Point, it requires an address and must wait for a poll from the host before sending data. Serial Cmd: <K140,4> User Defined Point-to-Point Usage: Useful for developing custom protocols in polled or unpolled mode. ID-01 Laser Scanner User’s Manual...
  • Page 45 User Defined Address Definition: User Defined is considered to be in a polled mode only if an address has been assigned. Serial Cmd: <K140,6,RES,address,REQ,EOT,STX,ETX,ACK,NAK,from host> Default: No address Options: Any ASCII character except a null. ID-01 Laser Scanner User’s Manual...
  • Page 46 If From Host is disabled, the defined protocol is not included. If From Host is enabled, the defined protocol must be included. Serial Cmd: <K140,6,RES,address,REQ,EOT,STX,ETX,ACK,NAK,from host> Default: Disabled Options: 0 = Disabled 1 = Enabled ID-01 Laser Scanner User’s Manual...
  • Page 47 Only changed if necessary to match host setting. Definition: Enables RS422. When RS422 is enabled, RS232 is disabled. Serial Cmd: <K102,status> Default: Disabled Options: 0 = Disabled 1 = Enabled Whenever RS422 is disabled, RS232 is enabled in the background. ID-01 Laser Scanner User’s Manual...

  • Page 48: Rs-232 Auxiliary Port

    Default: 9600 Options: 0 = 600 3 = 4800 6 = 38.4 K 1 = 1200 4 = 9600 7 = 57.6 K 2 = 2400 5 = 19.2 K 8 = 115.2 K 3-10 ID-01 Laser Scanner User’s Manual...
  • Page 49 Only changed if necessary to match host setting. Definition: Number of bits in each character. Serial Cmd: <K101,aux port mode,baud rate,parity,stop bits,data bits, ID status, ID> Default: Seven Options: 0 = Seven 1 = Eight 3-11 ID-01 Laser Scanner User’s Manual...

  • Page 50: Auxiliary Port Mode

    Serial Cmd: <K101,aux port mode,baud rate,parity,stop bits,data bits, ID status, ID> Default: Disabled Options: 0 = Disabled 1 = Transparent 2 = Half duplex 3 = Full duplex 5 = Command Processing 3-12 ID-01 Laser Scanner User’s Manual...
  • Page 51 Data initiated from the Host Host • All host data is echoed to the auxiliary port in Port unpolled and polled mode. Scanner Serial Cmd: <K101,aux port mode,baud rate,parity,stop bits,data bits, ID status, ID> 1 = Transparent 3-13 ID-01 Laser Scanner User’s Manual...
  • Page 52 Data is initiated from the Host • All host data is echoed to the auxiliary port in unpolled mode. Host Port Scanner Serial Cmd: <K101,aux port mode,baud rate,parity,stop bits,data bits, ID status, ID> 2 = Half Duplex 3-14 ID-01 Laser Scanner User’s Manual...

  • Page 53: Full Duplex Mode

    Data initiated from the Host Host • All host data is echoed to the auxiliary port in Port unpolled mode. Scanner Serial Cmd: <K101,aux port mode,baud rate,parity,stop bits,data bits, ID status, ID> 3 = Full duplex 3-15 ID-01 Laser Scanner User’s Manual...
  • Page 54 2. If a reset occurs, all data will be transmitted to the host port. Serial Cmd: <K101,aux port mode,baud rate,parity,stop bits,data bits, ID status, ID> Options: 5 = Command Processing 3-16 ID-01 Laser Scanner User’s Manual...

  • Page 55: Preamble

    This has the effect of allowing the control key to be recognized as a part of the control character. Next hold down the control key while typing the desired character. Example: Space CNTL-m to enter ^M. 3-17 ID-01 Laser Scanner User’s Manual...

  • Page 56: Postamble

    This has the effect of allowing the control key to be recognized as a part of the control character. Next hold down the control key while typing the desired character. Example: Space CNTL-m Space CNTL-j to enter ^M^J. 3-18 ID-01 Laser Scanner User’s Manual...

  • Page 57: Lrc Status

    Definition: The time interval in milliseconds between individual characters transmitted from the scanner to the host. Serial Cmd: <K144,intercharacter delay> Default: Options: 0 to 255 (in milliseconds). Zero (0) causes no delay between characters. 3-19 ID-01 Laser Scanner User’s Manual...
  • Page 58 Intercharacter Delay 3-20 ID-01 Laser Scanner User’s Manual...

  • Page 59: Read Cycle

    Note: When assigning characters in user-defined fields, the characters NULL <> only be entered through embedded menus, not through di-soric ID or serial commands. Note: You can learn the current setting of any parameter by inserting a question mark after the number, as in <K100?>.

  • Page 60: Read Cycle By Di-Soric Id

    Scan Speed <K500,scan speed> Symbol Detect/Transition <K505, symbol detect status,transition counter> Maximum Element <K502, maximum element> Scan Width Enhance <K511,scan width enhance> <K700, laser on/off status,laser framing status,laser on position, Laser Controls laser off position,laser power> ID-01 Laser Scanner User’s Manual...

  • Page 61: Multisymbol

    Number of Symbols Definition: Number of Symbols allows the user to define up to 6 symbols that can be read in a single read cycle. Serial Cmd: <K222,number of symbols,multisymbol separator> Default: Options 1 to 6 ID-01 Laser Scanner User’s Manual...
  • Page 62 Note: If Multisymbol Separator has been changed to any character other than the default comma and you wish to re-define the separator as a comma, use di-soric ID or the embedded menu. Default: (comma) Options: Any available ASCII character, except <...

  • Page 63: Trigger

    In Continuous Read, trigger input options are disabled, the scanner is always in the read cycle, and it will attempt to decode and output every scan crossing a symbol.When To Output and Noread options have no affect on Continuous Read. Serial Cmd: <K200,0> ID-01 Laser Scanner User’s Manual...
  • Page 64 Note: If Trigger is set to Continuous Read 1 Output, Number of Symbols will default back to 1 (if set to any number greater than 1). ID-01 Laser Scanner User’s Manual...
  • Page 65 Rising edge is the trigger signal associated with the appearance of an object. Falling edge is the trigger signal associated with the subsequent disappearance of the object. ID-01 Laser Scanner User’s Manual...

  • Page 66: External Trigger Edge

    Rising edge is the trigger signal associated with the appearance of an object. Falling edge is the trigger signal associated with the subsequent disappearance of the object. ID-01 Laser Scanner User’s Manual...
  • Page 67 Definition: In this mode the scanner accepts either a serial ASCII character or an external trigger pulse to start the read cycle. Serial Cmd: <K200,5> ID-01 Laser Scanner User’s Manual...
  • Page 68 Users can select the trigger polarity that will operate with their systems. Definition: Determines whether a positive or negative transition will initiate the read cycle. Serial Cmd: <K202,external trigger state> Default: Positive Options: 0 = Negative 1 = Positive 4-10 ID-01 Laser Scanner User’s Manual...

  • Page 69: Serial Trigger

    Any single ASCII character, including control characters, except NUL (00H), an existing host command character, or an on-line protocol character. Note: Serial Data or Serial Data & Edge triggering mode must be enabled for Serial Trig- ger Character to take effect. 4-11 ID-01 Laser Scanner User’s Manual...
  • Page 70 < and >. Serial Cmd: <K230,stop trigger character> Default: Null (disabled) Options: Two hex digits representing an ASCII character except <, >, XON and XOFF. See Appendix E, "ASCII Table", for ASCII character information. 4-12 ID-01 Laser Scanner User’s Manual...

  • Page 71: End Of Read Cycle

    With External Level enabled, the read cycle does not end until the falling edge trigger or a timeout occurs. The next read cycle does not begin until the next rising edge trigger. 4-13 ID-01 Laser Scanner User’s Manual...
  • Page 72 Note: A minimum setting of 2 is recommended. Note: Timeout or Timeout or New Trigger under End of Read Cycle must be enabled for Read Cycle Timeout to take effect. 4-14 ID-01 Laser Scanner User’s Manual...

  • Page 73: Decodes Before Output

    If it doesn’t achieve the number of good reads during the read cycle, then a noread will be sent. Note: Higher settings will decrease throughput speed. Serial Cmd: <K221,number before output,decodes before output mode> Default: Options: 1 to 255 4-15 ID-01 Laser Scanner User’s Manual...

  • Page 74: Scanner Setup

    Allows the user to set the number of scans per second by controlling the spinning mirror motor speed. Serial Cmd: <K500,scan speed> Default: (x 10) Low density scanner (x 10) High density scanner Options: 300 to 1000 4-16 ID-01 Laser Scanner User’s Manual...

  • Page 75: Laser Power

    Finds the leading edge of a symbol by looking for a 40 μS quiet zone fol- lowed by the number of transitions set in "Transition Counter" (page 4- 20), stores the highest value of the samples, and adjusts the AGC accord- ingly at the end of the scan. 4-17 ID-01 Laser Scanner User’s Manual...
  • Page 76 AGC routines. When enabled, a bad symbol or no symbol message can be output rather than a noread message. Serial Cmd: <K505,symbol detect status,transition counter> Default: Disabled Options: 0 = Disabled 1 = Enabled 4-18 ID-01 Laser Scanner User’s Manual...
  • Page 77 70-80% of total scan width. Definition: Scan width Enhance tends to trade depth for width. Disable if outside edge/long range performance is needed. Serial Cmd: <K511,scan width enhance> Default: Enabled Options: 0 = Disabled 1 = Enabled 4-19 ID-01 Laser Scanner User’s Manual...
  • Page 78 Scanner Setup 4-20 ID-01 Laser Scanner User’s Manual...

  • Page 79: Laser Setup

    Note: Because scan widths are not always perfectly symmetrical, the most effective way to setup laser framing is to experiment with the Laser On Position and Laser Off Position commands until you get the best results. 4-21 ID-01 Laser Scanner User’s Manual...
  • Page 80 Laser Setup Laser On Position Definition: Percentage of the full scan arc that the scan beam moves through before the laser turns ON. For example, if set for 30, the laser will be off during the first 30 percent of the scan. When Laser Framing is disabled, the laser is ON for 100 percent of the full scan.
  • Page 81 This parameter allows the user to select a laser power setting as follows: Serial Cmd: <K700,laser on/off status,laser framing status,laser on position,laser off position,laser power> Default: High Options: 0 = Low (~0.6mW) 1 = Medium (~1.0mW) 2 = High (~1.5mW) 4-23 ID-01 Laser Scanner User’s Manual...
  • Page 82 Laser Setup 4-24 ID-01 Laser Scanner User’s Manual...

  • Page 83: Symbologies

    Note: When assigning characters in user-defined fields, the characters NULL <> only be entered through embedded menus, not through di-soric ID or serial commands. 1. If using an I 2/5 symbol, verify that the number of characters in the symbol being scanned matches the code length enabled for the I 2/5 symbol type (default is 10 and 6).

  • Page 84: Symbologies By Di-Soric Id

    Code 93 <K475,status,fixed symbol length status,symbol length> <K477,status,fixed bar length status,fixed bar length,min. no. of Pharmacode bars,bar widths,direction,fixed threshold value> Narrow Margins/ <K450, narrow margins status,symbology ID status> Symbology ID Background Color <K451, background color> ID-01 Laser Scanner User’s Manual...

  • Page 85: Code 39

    Serial Cmd: <K470,status,check digit status,check digit output,large intercharacter gap,fixed symbol length status,symbol length,full ASCII set> Default: Disabled Options: 0 = Disabled 1 = Enabled ID-01 Laser Scanner User’s Manual...
  • Page 86 (this does not include start and stop and check digit characters). The scan- ner ignores any symbol not having the specified length. Serial Cmd: <K470,status,check digit status,check digit output,large intercharacter gap,fixed symbol length status,symbol length,full ASCII set> Default: Default: 1 to 64 ID-01 Laser Scanner User’s Manual...
  • Page 87 ASCII character set, from 0 to 255. Serial Cmd: <K470,status,check digit status,check digit output,large intercharacter gap,fixed symbol length status,symbol length,full ASCII set> Default: Disabled Options: 0 = Disabled 1 = Enabled ID-01 Laser Scanner User’s Manual...

  • Page 88: Code 128

    <K474,status,fixed symbol length status,fixed symbol length,EAN-128 status,output format,application record separator status,application record separator character,application record brackets,application record padding> Default: Options: 1 to 64 Note: Fixed Symbol Length Status must be enabled for Symbol Length to take effect. ID-01 Laser Scanner User’s Manual...
  • Page 89 (zeros) for variable length fields. Note: If an illegal Application Record format is detected, the scanner will process it as a noread and output a noread message (if enabled). ID-01 Laser Scanner User’s Manual...
  • Page 90 Default: Disabled Options: 0 = Disabled 1 = Enabled Note: Output Format must be set to Application Record before this parameter can take effect. ID-01 Laser Scanner User’s Manual...
  • Page 91 Default: Disabled Options: 0 = Disabled 1 = Enabled Note: Output Format must be set to Application Record before this parameter can take effect. ID-01 Laser Scanner User’s Manual...

  • Page 92: Interleaved 2 Of 5

    When enabled, a check digit character is sent along with the bar symbol data for added data security. Serial Cmd: <K472,status,check digit status,check digit output status,symbol length #1,symbol length #2,unused,range mode> Default: Disabled Options: 0 = Disabled 1 = Enabled 5-10 ID-01 Laser Scanner User’s Manual...
  • Page 93 10 characters plus a check digit, then enable Symbol Length for 12. Note: Typically, when printing an I 2/5 symbol with an odd number of digits, a 0 will be added as the first character. 5-11 ID-01 Laser Scanner User’s Manual...
  • Page 94 <K472,status,check digit status,check digit output status,symbol length #1,symbol length #2,unused,range mode> Default: Options: 0 = Disabled 1 = Enabled When set to Enabled, minimum and maximum symbol lengths will be defined by Symbol Length #1 and Symbol Length #2. 5-12 ID-01 Laser Scanner User’s Manual...

  • Page 95: Codabar

    Serial Cmd: <K471,status,start & stop match status,start & stop output status,large intercharacter gap,fixed symbol length status,symbol length,check digit type,check digit output status> Default: Enabled Options: 0 = Disabled 1 = Enabled 5-13 ID-01 Laser Scanner User’s Manual...
  • Page 96 The following rules apply: Serial Cmd: <K471,status,start & stop match status,start & stop output status,large intercharacter gap,fixed symbol length status,symbol length,check digit type,check digit output status> Default: Any/Minimum Options: 0 = Disabled 1 = Enabled 5-14 ID-01 Laser Scanner User’s Manual...
  • Page 97 When disabled, symbol data is sent without the check digit. Serial Cmd: <K471,status,start & stop match,start & stop output status,large interchar- acter gap,fixed symbol length status,symbol length,check digit type,check digit output status> Default: Disabled Options: 0 = Disabled 1 = Enabled 5-15 ID-01 Laser Scanner User’s Manual...

  • Page 98: Upc/Ean

    UPC version A symbols is not desired, disable EAN. Note: The extra character identifies the country of origin. Serial Cmd: <K473,UPC status,EAN status,supplementals status,separator status,sep- arator character,unused,UPC-E output as UPC-A> Default: Disabled Options: 0 = Disabled 1 = Enabled 5-16 ID-01 Laser Scanner User’s Manual...
  • Page 99 Supplementals is set to Enabled or Required. Serial Cmd: <K473,UPC status,EAN status,supplementals status,separator sta- tus,separator character,unused,UPC-E output as UPC-A> Default: Disabled Options: 0 = Disabled 1 = Enabled 5-17 ID-01 Laser Scanner User’s Manual...
  • Page 100 UPC/EAN Separator Character (UPC/EAN) Note: If Separator Character has been changed to any other character and you wish to re-define the separator as a comma, you will need to use di-soric ID or the embedded menu. Usage: As required by the application.

  • Page 101: Code 93

    (this does not include start and stop and check digit characters). The scan- ner ignores any symbol not having the specified length. Serial Cmd: <K475,status,fixed symbol length status,fixed symbol length> Default: Options: 1 to 64 5-19 ID-01 Laser Scanner User’s Manual...

  • Page 102: Pharmacode

    Default: Options: 2 to 16 Minimum Bars (Pharmacode) Serial Cmd: <K477,status,fixed bar count status, fixed bar count, min. no. of bars, bar widths,direction,fixed threshold value> Default: Options: 2 to 16 5-20 ID-01 Laser Scanner User’s Manual...
  • Page 103 Fixed Threshold Value (Pharmacode) Definition: Used when Bar Width Status field is set to Fixed Threshold Value. Serial Cmd: <K477,status,fixed bar count status,fixed bar count,min. no. of bars, bar widths,direction,fixed threshold value> Default: Options: 1 to 65535 5-21 ID-01 Laser Scanner User’s Manual...

  • Page 104: Narrow Margins

    Narrow Margins is enabled. Serial Cmd: <K450,narrow margins status,symbology id status> Default: Disabled Options: 0 = Disabled 1 = Enabled Note: Do not use Narrow Margins with Large Intercharacter Gap enabled in Code 39 or Codabar. 5-22 ID-01 Laser Scanner User’s Manual...

  • Page 105: Symbology Id

    Code 39 symbol with Check Digit and Check Digit Output Status enabled and Full ASCII conversion performed. For Other Symbologies • For Code 128, a indicates EAN-128; otherwise the modifier is a 0. • For all other codes, the modifier is 0. 5-23 ID-01 Laser Scanner User’s Manual...

  • Page 106: Background Color

    Note: If using an I 2/5 symbol, verify that the number of characters in the symbol being scanned matches the symbol length enabled for the I 2/5 symbol type (default is 10 and 6). 5-24 ID-01 Laser Scanner User’s Manual...

  • Page 107: Symbol Ratio Mode

    Maximum ratio is set at 5.6:1. A Validate function is not used in this mode. This method may be useful on long symbols where the spot velocity can change throughout the symbol and effect the minimum and maximum bar values. 5-25 ID-01 Laser Scanner User’s Manual...
  • Page 108 Maximum ratio is set at 6.2:1. A Validate function is not used in this mode. This method may be useful on long symbols where the spot velocity can change throughout the symbol and effect the minimum and maximum bar values. 5-26 ID-01 Laser Scanner User’s Manual...
  • Page 109 Maximum ratio is set at 2.65:1. A Validate function is not used in this mode. This method may be useful on long symbols where the spot velocity can change throughout the symbol and effect the minimum and maximum bar values. 5-27 ID-01 Laser Scanner User’s Manual...
  • Page 110 Symbol Ratio Mode 5-28 ID-01 Laser Scanner User’s Manual...

  • Page 111: I/O Parameters

    I/O Parameters Contents I/O Parameters by di-soric ID ....................... 6-2 I/O Parameters by Serial Command..................... 6-3 Symbol Data Output ........................6-4 Message Output ........................... 6-7 Noread Message .......................... 6-8 Bad Symbol Message........................6-9 No Symbol Message ........................6-10 Beeper ............................6-11 Partial Output..........................

  • Page 112: I/O Parameters By Di-Soric Id

    I/O Parameters by di-soric ID Click this Button to bring up the I/O Parameters menu. To open nested options, single-click the +. To change a setting, double-click the setting and use your cursor to scroll through the options. ID-01 Laser Scanner User’s Manual...

  • Page 113: I/O Parameters By Serial Command

    Output 3 Parameters <K812,output on,polarity,pulse width> <K782, trend analysis mode,number of triggers,number to output Trend Analysis (Output 3) on,decodes/trigger threshold> <K792, usused,service threshold,unused,laser current high,laser Diagnostics (Output 3) current low> Quality Output <K704, quality output separator,reads/trigger status> ID-01 Laser Scanner User’s Manual...

  • Page 114: Symbol Data Output

    When set to Match, the scanner transmits symbol data whenever a symbol matches a master symbol. However, if Matchcode Type is Disabled, it transmits on any good read. Note: A noread can still be transmitted if Enabled. ID-01 Laser Scanner User’s Manual...
  • Page 115 It’s typically used in tracking applications in which each object is uniquely identified. Definition: With Good Read enabled, the scanner transmits symbol data on any good read regardless of Matchcode Type setting. Note: A noread can still be transmitted if enabled. ID-01 Laser Scanner User’s Manual...
  • Page 116 End of read cycle Start of read cycle Read cycle Timeout Host The point at which the activates trigger host expects output Read Cycle ID-01 Laser Scanner User’s Manual...

  • Page 117: Message Output

    Does the scanner decode the symbol? Noread Is Symbol message sent Detect enabled? (if enabled) Bad Symbol Transition message sent Counter Threshold (if enabled) met? No Symbol message sent (if enabled) End of read cycle ID-01 Laser Scanner User’s Manual...

  • Page 118: Noread Message

    Note: Noread Message will only be transmitted if Symbol Output ( "Symbol Data Out- put Status" on page 6-4) is set to Match, Mismatch or Good Read. Noread Message can be set to any ASCII characters except NULL <> (comma). ID-01 Laser Scanner User’s Manual...

  • Page 119: Bad Symbol Message

    The Bad Symbol output is tied to the transition counter. If during a read cycle no symbol is decoded and the required setting for the Transition Sample Threshold is met, a user defined message will be sent to the host. ID-01 Laser Scanner User’s Manual...

  • Page 120: No Symbol Message

    <K716,no symbol status,no symbol message> Default: Disabled Options: 0 = Disabled 1 = Enabled No Symbol Message Serial Cmd: <K716,no symbol status,no symbol message> Default: NO_SYMBOL Options: Up to 10 ASCII characters (except NUL) 6-10 ID-01 Laser Scanner User’s Manual...

  • Page 121: Beeper

    Beeper Output Condition selection. Note: Beeper will also sound if any of the following occur: • the scanner is defaulted a send/save command from di-soric ID or an Exit command from any embedded menu. • a <Z>, <Zp>, <Zd>, or <K,1>...

  • Page 122: Partial Output

    <K703,partial output status,start position,length> Default: Options: 1 to 64 Length (Partial Output) Definition: Allows you to determine the number of characters to be transmitted. Serial Cmd: <K703,partial output status,start position,length> Default: Options: 1 to 64 6-12 ID-01 Laser Scanner User’s Manual...

  • Page 123: Serial Verification

    Definition: Allows the user to verify configuration command status. Serial Command Echo Status Important Note: di-soric ID will not function whenever this command is enabled. Definition: When enabled, a configuration command received from the host is echoed back to Host Scanner the host with the resultant settings.
  • Page 124 For example, a carriage return will be shown as the two characters: ^M. When set to Hex, the output is the hex character. Serial Cmd: <K701,serial command echo status,serial command beep status,control/ output> Default: Control Options: 0 = Control 1 = Hex 6-14 ID-01 Laser Scanner User’s Manual...

  • Page 125: Ez Button

    When enabled, if the EZ Button is held down during power-on, the scanner will default to customer defaults and save for power-on. This is the same as sending a <Zrc> command. Serial Cmd: <K770,global status,default on power-on> Default: Enabled Options: 0 = Disabled 1 = Enabled 6-15 ID-01 Laser Scanner User’s Manual...

  • Page 126: Ez Button Modes

    This is the same as sending the <Z> in the terminal. Auto Frame: Auto Framing will be initiated when this button position is selected. To abort 6-16 ID-01 Laser Scanner User’s Manual...
  • Page 127 Sleep Mode: If sleep mode is enabled, the EZ Button will shut off the mirror motor and laser. To exit sleep mode, press the EZ Button once quickly. 6-17 ID-01 Laser Scanner User’s Manual...
  • Page 128 Activates a discrete output whenever the symbol data does not match that of the master symbol. Noread Activates a discrete output whenever the symbol data is not decoded before the end of the read cycle. 6-18 ID-01 Laser Scanner User’s Manual...
  • Page 129 Sets the time in 1 mS increments that the discrete output remains active. Serial Cmd: <K810,output on,polarity,pulse width,output mode> Default: (50 mS) Options: 0 to 65535 (0 to 65.535 seconds). Divide the number entered on the com- mand line by 1000 for time in seconds. 6-19 ID-01 Laser Scanner User’s Manual...

  • Page 130: Output 1

    Note: All of the Output On modes are inhibited when any Output on Warning is active for Output 1 (see <K713> command). 6-20 ID-01 Laser Scanner User’s Manual...
  • Page 131 Number to Output On within the trigger window selected in Trigger Evaluation Period. Noread Definition: The output will be activated when the number of noreads equals the value entered for Number to Output On within the trigger window selected in Trigger Evaluation Period. 6-21 ID-01 Laser Scanner User’s Manual...
  • Page 132 In this example, the scanner will activate an output whenever the number of decodes falls below the decodes per trigger threshold (10) for 4 trigger (read cycle) events. Serial Cmd: <K780,trend analysis mode,number of triggers,number to output on,decodes/trigger threshold> Default: Options: 0 to 65535 6-22 ID-01 Laser Scanner User’s Manual...
  • Page 133 Laser Current Low Definition: Activates the output whenever the high current threshold has been met. Will output once. Serial Cmd: <K790,usused,service threshold,unused,laser current high,laser current low> Default: Disabled Options: 0 = Disabled 1 = Enabled 6-23 ID-01 Laser Scanner User’s Manual...

  • Page 134: Output 2

    Diagnostic Warnings (output 2) Definition: Applies warning to Output 2. Serial Cmd: <K791,usused,service threshold,unused,laser current high,laser current low> Diagnostic Warnings to Output 2 has the same parameters and default settings as Diagnostic Warnings to Output 1. 6-24 ID-01 Laser Scanner User’s Manual...

  • Page 135: Output 3

    Diagnostic Warnings (output 3) Definition: Applies warning to Output 3. Serial Cmd: <K792,usused,service threshold,unused,laser current high,laser current low> Diagnostic Warnings to Output 3 has the same parameters and default settings as Diagnostic Warnings to Output 1. 6-25 ID-01 Laser Scanner User’s Manual...

  • Page 136: Quality Output

    If enabled the decode direction is appended to the barcode output with a quality output separator as an “F” (forward) or an “R” (reverse). Serial Cmd: <K704,quality output separator,reads/trigger status,decode direction sta- tus> Default: Disabled Options: 0 = Disabled 1 = Enabled 6-26 ID-01 Laser Scanner User’s Manual...

  • Page 137: Matchcode

    Note: When assigning characters in user-defined fields, the characters NULL <> can only be entered through embedded menus, not through di-soric ID or serial com- mands. Note: You can learn the current setting of any parameter by inserting a question mark after the number, as in <K100?>.

  • Page 138: Matchcode By Di-Soric Id

    Request Master Symbol Information <K231?, master symbol number> Request all Master Symbol Information <K231, ?> Delete Master Symbol <K231, master symbol number,> Store Next Symbol as Master Symbol <G master symbol number> ID-01 Laser Scanner User’s Manual...

  • Page 139: Overview Of Matchcode

    (see "New Master Pin"on page 7-9). Other Master Symbol Serial Commands See also "Master Symbol Database Size" on page 11-8 for more information details on entering, requesting, and deleting master symbols. ID-01 Laser Scanner User’s Manual...

  • Page 140: Matchcode Type

    With Sequential enabled, Sequential Matching determines if a count is in ascending (incremental) or descending (decremental) order. Serial Cmd: <K223, matchcode type,sequential matching,match start position, match length,wild card character,sequence on noread,sequence on mis- match> Default: Increment Options: 0 = Increment 1 = Decrement ID-01 Laser Scanner User’s Manual...
  • Page 141 Default: Options: 0 to 64 Note: Match Start Position must be set to 1 or greater to enable this feature. A 0 setting will disable this feature. ID-01 Laser Scanner User’s Manual...

  • Page 142: Match Length

    Wild Card Character allows a user to define a wild card character as part of the master symbol. Serial Cmd: <K223 ,matchcode type,sequential matching,match start position, match length,wild card character,sequence on noread,sequence on mis- match> Default: (asterisk) Options: Any valid ASCII character ID-01 Laser Scanner User’s Manual...

  • Page 143: Sequence On Noread

    007 (sequenced on noread) As an example of Sequence on Noread Disabled, consider the following series of decodes: Master symbol Decoded symbol Master symbol after decode noread 003 (not sequenced) noread 004 (not sequenced) noread 004 (not sequenced) ID-01 Laser Scanner User’s Manual...

  • Page 144: Sequence On Mismatch

    As an example of Sequence On Mismatch Disabled, consider the following decodes: Master symbol Decoded symbol Master symbol after decode 004 (sequenced because of previous match) 006 (sequenced because of previous match) 006 (not sequenced because of previous mismatch) ID-01 Laser Scanner User’s Manual...

  • Page 145: New Master Pin

    For example, if Number of Symbols is set to 3 and New Master Pin is then activated, at the end of the next read cycle, the decoded symbols will be saved as master symbols 1, 2, and 3. ID-01 Laser Scanner User’s Manual...

  • Page 146: Master Symbol Database

    Definition: Allows you to define up to 10 master symbols as the master symbol data- base, which can be entered by keyboard, scanned in, displayed, or deleted by serial or di-soric ID commands. Request Master Symbol Data Definition: Returns master symbol data for any enabled master symbols from 1 to 10.

  • Page 147: Diagnostics

    Note: When assigning characters in user-defined fields, the characters NULL <> can only be entered through embedded menus, not through di-soric ID or serial com- mands. Note: You can learn the current setting of any parameter by inserting a question mark after the number, as in <K100?>.

  • Page 148: Diagnostics By Di-Soric Id

    Command Title Format Counts, Power-on/Resets <K406, power-on,resets,power-on saves,custom default saves> Hours Since Last Reset <K407?> (read only— returns: hours,minutes) <K411, laser high status,laser high message,laser low sta- Laser High/Low tus,laser low message> Service Message <K409,status,service message,threshold,resolution> ID-01 Laser Scanner User’s Manual...

  • Page 149: Diagnostic Messages Overview

    Note: When enabled, the error condition will override all other operational modes configured for the output. When enabled, laser current and NOVRAM warning messages will be transmitted to the host or any active port whenever the pre-defined condi- tions are met. ID-01 Laser Scanner User’s Manual...

  • Page 150: Counts

    ESD transients. Definition Returns Resets for all the “warm” resets, including <A>, <Ard>, <Arp> <Arc>. Serial Cmd: Send <K406?> Returns <K406, power-on,resets,power-on saves,custom default saves> Read Only 0 to 65,535 powerups, 0 to 65,535 resets. Ranges: ID-01 Laser Scanner User’s Manual...
  • Page 151 Useful for detecting unwanted resets caused by power supply problems or ESD transients. Definition Returns the number of customer default saves: <Zrd>. Serial Cmd: Send <K406?> Returns <K406, power-on,resets,power-on saves,custom default saves> Read Only 0 to 65,535 powerups, 0 to 65,535 resets. Ranges: ID-01 Laser Scanner User’s Manual...

  • Page 152: Hours Since Last Reset

    Useful as a troubleshooting tool that can help pinpoint the cause of a reset. Definition: Records the number of hours and minutes of operation since the last sys- tem reset. Serial Cmd: Send <K407?> Returns <K407hours,minutes> Read Only 0 to 23 hours, 0 to 59 minutes. Ranges: ID-01 Laser Scanner User’s Manual...

  • Page 153: Laser High

    Laser High Message Definition: Defines the Laser High message. Serial Cmd: <K411,laser high status,laser high message,laser low status,laser low message> Default: HIGH-LASER Options: Any 1 to 10 character ASCII string except NUL, <, or >. ID-01 Laser Scanner User’s Manual...

  • Page 154: Id-01 Laser Scanner User's Manual

    Laser Low Message Definition: Defines the Laser Low message. Serial Cmd: <K411,laser high status,laser high message,laser low status,laser low message> Default: LOW-LASER Options: Any 1 to 10 character ASCII string except NUL, <, or >. ID-01 Laser Scanner User’s Manual...

  • Page 155: Service Message

    Serial Cmd: <K409,status,service message,threshold,resolution> Default: (5 minutes) Options: 1 to 65,535 Resolution Definition: Records time in seconds or minutes. Serial Cmd: <K409,status,service message,threshold,resolution> Default: Seconds Options: 0 = Seconds 1 = Minutes ID-01 Laser Scanner User’s Manual...
  • Page 156 Service Message 8-10 ID-01 Laser Scanner User’s Manual...
  • Page 157 This section includes the overall steps in calibration and specific steps for calibration by di-soric ID, serial command, and embedded menus. For most applications, calibration is the only opti- cal setup required.
  • Page 158 2. Note: If using an I 2 of 5 label, verify that the number of characters in the label being scanned matches the code length enabled for the I 2 of 5 code type (default is 10 and 6). See "Interleaved 2 of 5"on page 5-10. ID-01 Laser Scanner User’s Manual...
  • Page 159 Apps Mode, click the Calibration button on the icon bar at the top of di-soric ID to open the calibration menu. 2. In the Fixed Parameter Calibration area you can select one or two parameters that you do NOT want to change. (Selecting all three will produce an error.)
  • Page 160 Note: Doing all 3 of the above routines is the equivalent of sending the <@CAL> serial command or clicking Calibrate in the di-soric ID Calibration display page. Enter to do laser framing. This is the same as clicking the Auto Frame button in the Calibration display.
  • Page 161 “DO YOU WANT TO SAVE THESE SETTINGS FOR POWER-ON? Y/N” These settings include Motor Speed, Gain, AGC Level, Laser Power and Laser Frame. Typing will cause the scanner to be reset without saving the settings for power-on. ID-01 Laser Scanner User’s Manual...

  • Page 162: Auto Frame

    Calibration button on the icon bar at the top of di-soric ID to open the calibration menu. In the Auto Frame portion of the display, note that in the default mode is Framing Enabled the Off position is set to and the On position is set to 10.
  • Page 163 Auto Frame by Embedded Menu From the embedded menus, select Scanner Setup 2. From here you can use the Laser On Position %and Laser Off Position % to constrain the width of the scan beam. ID-01 Laser Scanner User’s Manual...
  • Page 164 Auto Frame ID-01 Laser Scanner User’s Manual...
  • Page 165 NULL <> can only be entered through embedded menus, not through di-soric ID or serial commands. Note: You can learn the current setting of any parameter by inserting a question mark after the number, as in <K100?>. To see all “K” commands, send <K?>.

  • Page 166: Chapter 10 Terminal

    The Terminal screen also displays bar code data or information from the scanner (in blue). You can also right click in the Terminal screen to bring up a handy option box. 10-2 ID-01 Laser Scanner User’s Manual...

  • Page 167: Find Function

    3. The first instance of ABC will be high-lighted in the Terminal window. 4. Press the key to search again for the next instance of ABC. 5. Press Shift-F3 to search for the previous instance of ABC. 10-3 ID-01 Laser Scanner User’s Manual...

  • Page 168: Macros

    When you click the arrow next to a any macro and select Edit, the following appears: You can edit an existing macro or type in a new macro name and define it in the Macro Value text box. Click OK. 10-4 ID-01 Laser Scanner User’s Manual...

  • Page 169: Terminal Window Menus

    Stop to end the flow and open the file. • Save Current Text... saves all text in the Terminal window to a text file of your choice. 10-5 ID-01 Laser Scanner User’s Manual...
  • Page 170 Terminal Window Menus 10-6 ID-01 Laser Scanner User’s Manual...

  • Page 171: Utilities

    (<A> and <Z>). They can be entered from within any terminal program or from within di-soric ID in the Terminal window. Note: You can learn the current setting of any parameter by inserting a question mark after the number, as in <K100?>. To see all “K” commands, send <K?>.

  • Page 172: Utilities By Di-Soric Id

    Click this button to bring up the Utilities menu. Utilities opens in the Read Rate utility. Click on the tabs to access other utili- ties. Note: Utility commands are not accessible by embedded menus. 11-2 ID-01 Laser Scanner User’s Manual...

  • Page 173: Summary Of Utilities Commands

    Display Checksums of EPROM Flash memory <!b> Display Checksum for Boot Code <!a> Display Checksum for Application Code Part Number/ Checksum <#> Display Part Numbers <#b> Display Boot Code Part Number <#a> Display Application Code Part Number 11-3 ID-01 Laser Scanner User’s Manual...
  • Page 174 Save current settings for power-on <Zc> Save current settings as customer default parameters <?> Scanner Status Status Requests <?1> Extended scanner status <K?> Configuration status Note: Utility commands are not accessible by embedded menus. 11-4 ID-01 Laser Scanner User’s Manual...

  • Page 175: Read Rate

    End Read Rate Test Sending <J> ends both the Percent test and the Decodes/Second test for both single and multi-symbol. 11-5 ID-01 Laser Scanner User’s Manual...

  • Page 176: Counters

    You can access Counters from the Utilities menu. Right-click the appropriate counter option and select Request to display count or Clear to set counter to zero. Or, right-click on Counters and select Request All. 11-6 ID-01 Laser Scanner User’s Manual...
  • Page 177 Mismatch Counter With Matchcode enabled, sending <X> displays the number of decoded symbols since the last reset that do not match the master symbol. Mismatch Counter Reset Sending <Y> sets the mismatch counter to zero. 11-7 ID-01 Laser Scanner User’s Manual...

  • Page 178: Master Database

    Definition: Allows you to define up to 10 master symbols as the master symbol data- base, which can be entered by keyboard, scanned in, displayed, or deleted by serial or di-soric ID commands. Master Symbol Database Size Definition: Master Symbol Database Size allows you to select 1 to 10 master sym- bols for the master symbol database.

  • Page 179: Enter Master Symbol Data

    "Maximum Characters for Master Symbol Database", on page 11-10, specifies the maximum number of characters available to each symbol according to the number of mas- ter symbols defined, from 1 through 10. See "Master Symbol Database Size" on page 11-8. 11-9 ID-01 Laser Scanner User’s Manual...
  • Page 180 1. Serial Cmd: <Gmaster symbol number> To store the next symbol scanned as master symbol #1 send: <G> <G1>. For all symbols numbers except 1, the number must be included. Options: 1 to 10 11-10 ID-01 Laser Scanner User’s Manual...

  • Page 181: Digital Bar Code

    Zoom In, Zoom Out You can zoom in by sliding the Zoom lever to the right. You may have to scroll right or left to locate your symbol, but the results will be striking. 11-11 ID-01 Laser Scanner User’s Manual...

  • Page 182: Firmware

    RDY and GD/RD LEDs will flash intermittently, and a progress indicator at the bottom of the di-soric ID window will let you know when the download is complete. Caution: Do not interrupt power or disconnect the host cable while download is in prog- ress.

  • Page 183: Device Control

    Activates the link between Output 3 (+) and Output 3 (–) of the host connec- Definition: tor for the duration set by "Pulse Width" on page 6-19. (regardless of Master Symbol or Output 3 status). di-soric ID: Click Output # 3 Pulse to activate. Serial Cmd: <L3> 11-13 ID-01 Laser Scanner User’s Manual...
  • Page 184 This feature is useful during extended periods of time when no symbols are being scanned or the scanner is being configured. Definition: Turns the spinning mirror on (if not already running). di-soric ID: Click Send Motor On button. 11-14 ID-01 Laser Scanner User’s Manual...

  • Page 185: Symbol Type

    Code 39 symbols without changing scanner configuration. Sending <R> enables the scanner to decode Codabar symbols without changing scanner configuration. Sending <S> enables the scanner to decode I 2 of 5 symbols without changing scanner configuration. 11-15 ID-01 Laser Scanner User’s Manual...

  • Page 186: Defaulting/Saving/Resetting

    Save current settings for power-on <Zc> Save current settings as customer default parameters <Zrd> Recall di-soric default parameters and save for power-on <Zrc> Recall customer parameters and save for power-on See Appendix F, "Defaulting/Saving/Resetting", on page A-13 for complete explanation on resets, saves and defaulting.

  • Page 187: Command Format

    Quick Start di-soric Grading di-soric grading informs the user how the scanner perceives a symbol it is scanning. Except for special circumstances, the slower the scan speed and the closer the symbol is to the focal point, the more accurate the results.
  • Page 188 • Intercharacter Gap - Measures the largest intercharacter gap within the symbol. If the symbol does not have intercharacter gaps then N/A is output. • Margin - Measures the size of the smallest margin around the symbol. 11-18 ID-01 Laser Scanner User’s Manual...

  • Page 189: Scanner Status Requests

    (35-338201-xx), the fpga part number (5-559001-xx), flash checksum (476C), current RAM parameter checksum (33), and flash parameter checksum (33). <K?> Configuration Command Status Returns the current status of all configuration commands. 11-19 ID-01 Laser Scanner User’s Manual...
  • Page 190 Scanner Status Requests 11-20 ID-01 Laser Scanner User’s Manual...

  • Page 191: Appendices

    Appendix I Formulas for Number of Decodes................A-18 Appendix J Operational Tips...................... A-21 Appendix K Interface Standards ....................A-22 Appendix L Multidrop Communications ..................A-23 Appendix M Troubleshooting ..................... A-28 Appendix N Glossary of Terms ....................A-30 ID-01 Laser Scanner User’s Manual...

  • Page 192: Appendix A General Specifications

    Trigger Input: 3 to 24V rated (1mA @ 5 VDC) ID-01 Integral Right New Master: 3 to 24V rated (1mA @ 5VDC) Angle Laser Scanner Outputs (1, 2, 3): 5V TTL compatible, can sink 10 mA and source 2 mA. ID-01 Laser Scanner User’s Manual...
  • Page 193 ISO Certification ISO 9001 Certified Issued by TüV USA ©2011 di-soric GmbH & Co. KG All rights reserved. Specifications subject to change. Product specifications are given for typical performance at 25°C (77°F) using grade A labels. Performance characteristics may vary at high temperatures or other environmental extremes. Warranty–One year limited warranty on parts and labor.

  • Page 194: General Specifications

    3” to 6” (76 to 152 mm) .010” (.254 mm) 2” to 7” (51 to 178 mm) .015” (.381 mm) 2” to 8” (51 to 203 mm) .020” (.508 mm) 2” to 10” (51 to 254 mm) ID-01 Laser Scanner User’s Manual...

  • Page 195: Appendix B Electrical Specifications

    Output 3 TTL (can sink 10mA and source 2mA) New Master Pin (NPN) Chassis Ground Output 2 TTL (can sink 10mA and source 2mA) Caution: 1. Be sure all cables are connected BEFORE applying power. 2. Always power down BEFORE disconnecting any cables. ID-01 Laser Scanner User’s Manual...

  • Page 196: Appendix C Serial Configuration Commands

    <K511,scan width enhance> <K700,laser on/off status,laser framing status,laser on position,laser Laser Setup off position,laser power> Symbologies <K470, status,check digit status,check digit output status,large inter- Code 39 character gap,fixed symbol length status,default symbol length,full ASCII set> ID-01 Laser Scanner User’s Manual...
  • Page 197 Output 3 Parameters <K812,output on,output state,pulse width,output mode> <K782,trend analysis mode,number of triggers,number to output Trend Analysis (Output 3) on,decodes/trigger threshold> <K792,over temperature,service threshold,unused,laser current Diagnostics (Output 3) high,laser current low,low temp> ID-01 Laser Scanner User’s Manual...
  • Page 198 Service Message <K409,status,service message,threshold,resolution> Serial Communication Programs You can send serial commands from your terminal window in di-soric ID. You can also use a terminal program such as Hyperterminal to send serial commands from your PC to the scanner. From your PC host computer, you can ini-tiate communications with the scanner by with a terminal communications program such as Hyperterminal™...

  • Page 199: Appendix D Serial Command Format

    For example, if only the last field in the following command is changing, <K100,4,1,0,0> can be entered as <K100,,,0>. • All fields following a modified field can be omitted. For example, to change Baud Rate, send <K100,3>. 1. Many K command will automatically be saved for power-on. ID-01 Laser Scanner User’s Manual...

  • Page 200: Control Characters

    <K101?>. To see all K commands, send a <K?> command. With the ID-01, each K command is framed with a preamble and postamble and may be mixed with bar code symbol data. To prevent this, send an <I>...

  • Page 201: Appendix E Ascii Table

    Appendices Appendix E — ASCII Table Ctrl “ & < > A-11 ID-01 Laser Scanner User’s Manual...
  • Page 202 Protocol Command Control Characters (Mnemonic displayed on (Entered in menu or Effect of Command Code menu) serial command) Reset Request Reset Start of Text End of Text Acknowledge Negative Acknowledge Begin Transmission XOFF Stop Transmission A-12 ID-01 Laser Scanner User’s Manual...

  • Page 203: Appendix F Defaulting/Saving/Resetting

    By using the hardware default to default the power-on settings to the known di-soric default, the user can then recall their previously customer saved settings with the <Arc>...
  • Page 204 Defaulting/Saving/Resetting di-soric Default Parameters di-soric default parameters are contained in the firmware that cannot be changed. Software Default di-soric default parameters can be recalled (loaded into current settings) with <Ard> com- mand or recalled and saved for power-on with the <Zrd>...

  • Page 205: Appendix G Symbol Configuration

    Appendices Appendix G — Symbol Configuration You can configure your scanner by presenting Code 128 symbols that the ID-01 responds to as serial commands. Note: Your scanner does not need to be enabled for Code 128 in order to enter symbol configuration.
  • Page 206 To end the read rate test and the symbol configuration program, scan this symbol: This will terminate symbol configuration mode. Changes made in configuration will remain in effect just as would changes made in the menus or by serial commands. A-16 ID-01 Laser Scanner User’s Manual...

  • Page 207: Appendix H Object Detector

    As the item continues to move down the line, its symbol moves into the scanner beam and is read by the scanner. Bar-coded Object Bar-coded Object Object Detector Scanner Object Detector A-17 ID-01 Laser Scanner User’s Manual...

  • Page 208: Appendix I Formulas For Number Of Decodes

    Formulas for Number of Decodes Appendix I — Formulas for Number of Decodes To ensure reliable scanning, apply a minimum of five decodes to each symbol. Use the for- mulas below to calculate the number of decodes that your symbol will receive. If the number of decodes you derive from one of these calculations is less than the mini- mum for your application, plug in the minimum number of decodes (5) and solve for another parameter that might be changed, such as scan speed or scans per second.
  • Page 209 Sweep Rate (SR) Sweep rate is the number of raster sweeps (up or down) that occur per second and can be set in di-soric ID. Since the sweep rate cannot exceed 30 you first need to ensure that your application can achieve this by solving Raster pattern for sweep rate.

  • Page 210: Scan Speed

    Increas- ing the height of a ladder symbol means it will receive more scans. Changing symbol density and/or symbol ratio is another way ranges, decode rates, etc. can be altered. A-20 ID-01 Laser Scanner User’s Manual...

  • Page 211: Appendix J Operational Tips

    • Avoid excessive tilt, pitch, and skew of the symbol. • Check the symbol for readability by doing a decode rate test. If there is any question about the symbol's readability, contact your di-soric representative. • After changing any parameter that might affect decode rate, repeat decode rate test.

  • Page 212: Appendix K Interface Standards

    With di-soric devices, selection of interface is made by pin assignment and, in the case of the host communications, by software switching between RS232 and RS422.
  • Page 213 2. If necessary, change the default address to match the address of your ped scanner and click OK. If the host serial port is not connected in di-soric ID, you will see the following popup message: di-soric ID is not currently connected to the concentrator.
  • Page 214 REQ to the concentrator and request another response. If after three retries (the number of times it transmits a REQ to the concentrator) the scanner receives no response, it ends the transmission with a RES (reset). A-24 ID-01 Laser Scanner User’s Manual...
  • Page 215 The concentrator will end the sequence with a RES (reset) if no ACK is received. Multidrop Addresses Poll Select Poll Select Multidrop Multidrop Character Character Character Character Address Address ASCII ASCII ASCII ASCII " & A-25 ID-01 Laser Scanner User’s Manual...
  • Page 216 Interface Standards < > A-26 ID-01 Laser Scanner User’s Manual...

  • Page 217: Appendix M Troubleshooting

    Other objects in field of view are misleading Try to eliminate shiny objects from the field of the gain control system. view. Scan rate is too fast, exceeding ID-01’s video Slow down the scan rate. bandwidth. Do not violate the 10x rule for quiet zone;...

  • Page 218: Troubleshooting

    Read Read Control Control Control Boot LEDs Read Read Read Test Test Test Test Test Test Mode Mode Mode Mode Modes Modes Modes Mode Mode Mode Mode Mode Mode 100% BLINK BLINK BLINK BLINK A-28 ID-01 Laser Scanner User’s Manual...

  • Page 219: Appendix N Glossary Of Terms

    Full Duplex — A communication system in which signals can travel simultaneously between devices. Gain — Optimal signal strength. Good Read — A decode. The successful scanning and decoding of the information encoded in a symbol. A-29 ID-01 Laser Scanner User’s Manual...
  • Page 220 Pitch — Rotation of a symbol around an axis parallel to the symbol length on the substrate. See the illustration below. Laserscanner Imager PLC — See Programmable Logic Controller. Port — Logical circuit for data entry and exit. (One or more ports may be included within a single connector.) A-30 ID-01 Laser Scanner User’s Manual...
  • Page 221 Trigger — A signal, transition, or character string that initiates a read cycle. Very Large-Scale Integration (VLSI) — The creation of integrated circuits by combining thousands of transistor-based circuits on a single chip. VLSI — See Very Large-Scale Integration. A-31 ID-01 Laser Scanner User’s Manual...
  • Page 222 Glossary of Terms A-32 ID-01 Laser Scanner User’s Manual...

Table of Contents
