Blacet Research StonZ 2440 User Manual

Vc phase shifter module
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

BLACET RESEARCH MODEL StonZ 2440
Blacet Research 15210 Orchard Rd Guerneville CA 95446
blacet@blacet.com http://www.blacet.com
Reproduction by any means including the Internet prohibited without permission.
This document contains proprietary and trade secret information of Blacet Research and is provided
as a service to the module owner. Any unauthorized duplication or transferral may violate trade secret laws.

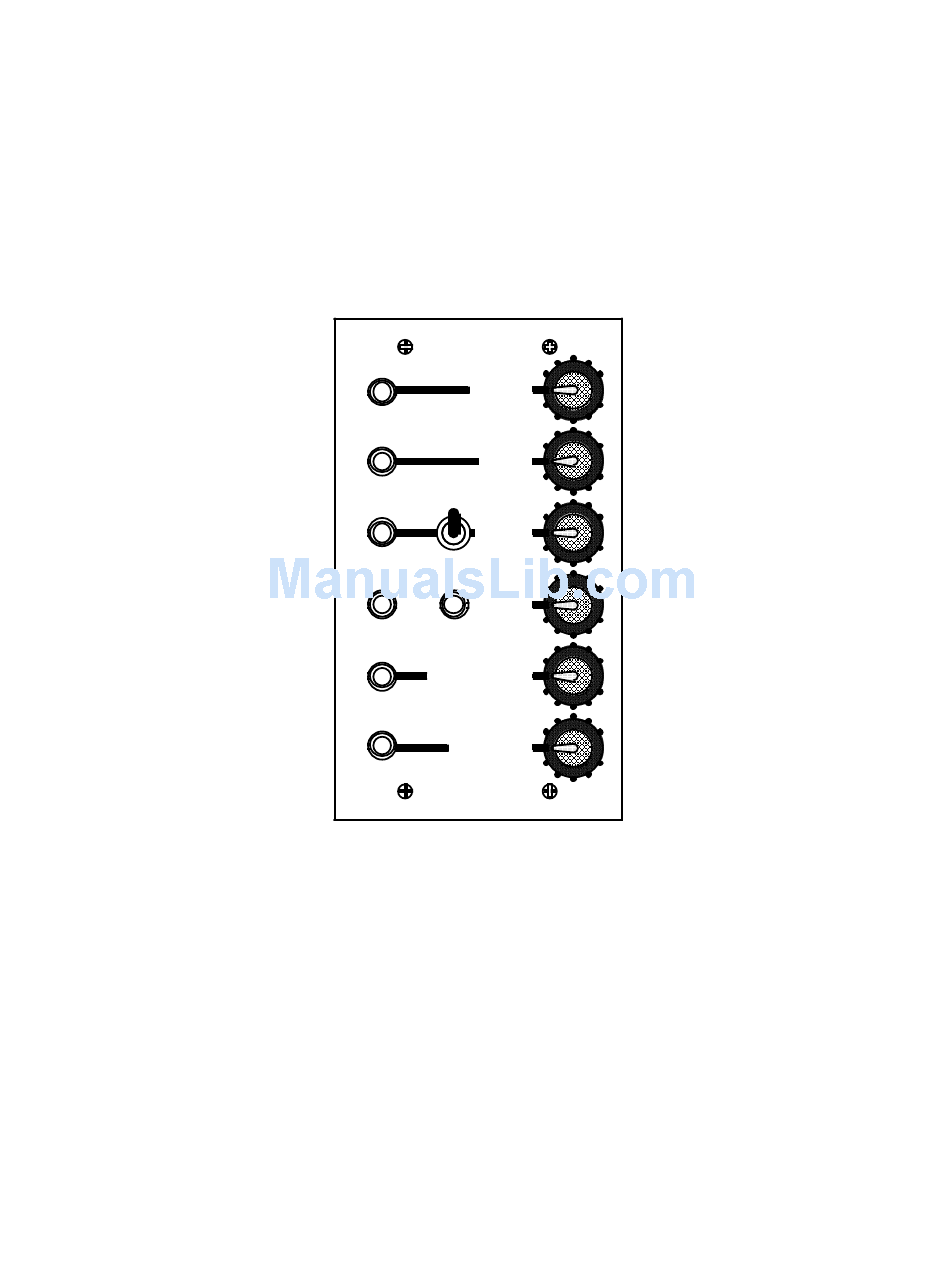

StonZ
VC Phase Shifter Module
User Manual
StonZ
IN
LEVEL
CV
FREQ
+
CV
REGEN
-
-
OUT A
OUT B
LFO
RATE
CV
MOD DEPTH
EXT MOD
MOD MIX
BLACET RESEARCH
Contents Copyright.
Contents subject to change without notice.
Page 1
EXT
LFO
2440
707-869-9164

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StonZ 2440 and is the answer not in the manual?

Questions and answers

Summary of Contents for Blacet Research StonZ 2440

  • Page 1 Reproduction by any means including the Internet prohibited without permission. This document contains proprietary and trade secret information of Blacet Research and is provided as a service to the module owner. Any unauthorized duplication or transferral may violate trade secret laws.
  • Page 2 Introduction The StonZ 2440 is a classic four stage phase shifter, enhanced with voltage controlled functions such as center frequency, regeneration and modulation depth. A wide range low frequency oscillator (LFO) is built in. External modulation may be applied to the Frequency jack or the Ext Mod jack, which is mixable with the internal LFO.

  • Page 3: Safety Information

    Controls and Operation IN Jack, LEVEL Pot: Audio input and attenuator pot. Maximum gain is unity. FREQ CV Jack and Pot: Sets the center frequency of the phasing effect. Typically, use 0-10V. Negative voltages will cancel the effect (unless biased with the pot) but allow the unprocessed signal through the module. Regeneration CV Jack, Phase Switch (+/-), and Pot: Controls the “bite”...
  • Page 4 Calibration There are no calibration points on this module. Troubleshooting, Repair, Warranty If you encounter problems that you can’t solve, contact us, preferably via e-mail with a description of the problem. Let us know what does and does not work. We can then help you get your module working. We can fix modules for a minimum fee of $25.
