MediPendant

10 STEP

QUICK START GUIDE

INSTALLING YOUR MediPendant™

This is for basic installation of your MediPendant™. Please see OWNER'S MANUAL

for full instructions, product details, warranties and disclaimers.

STEP 1

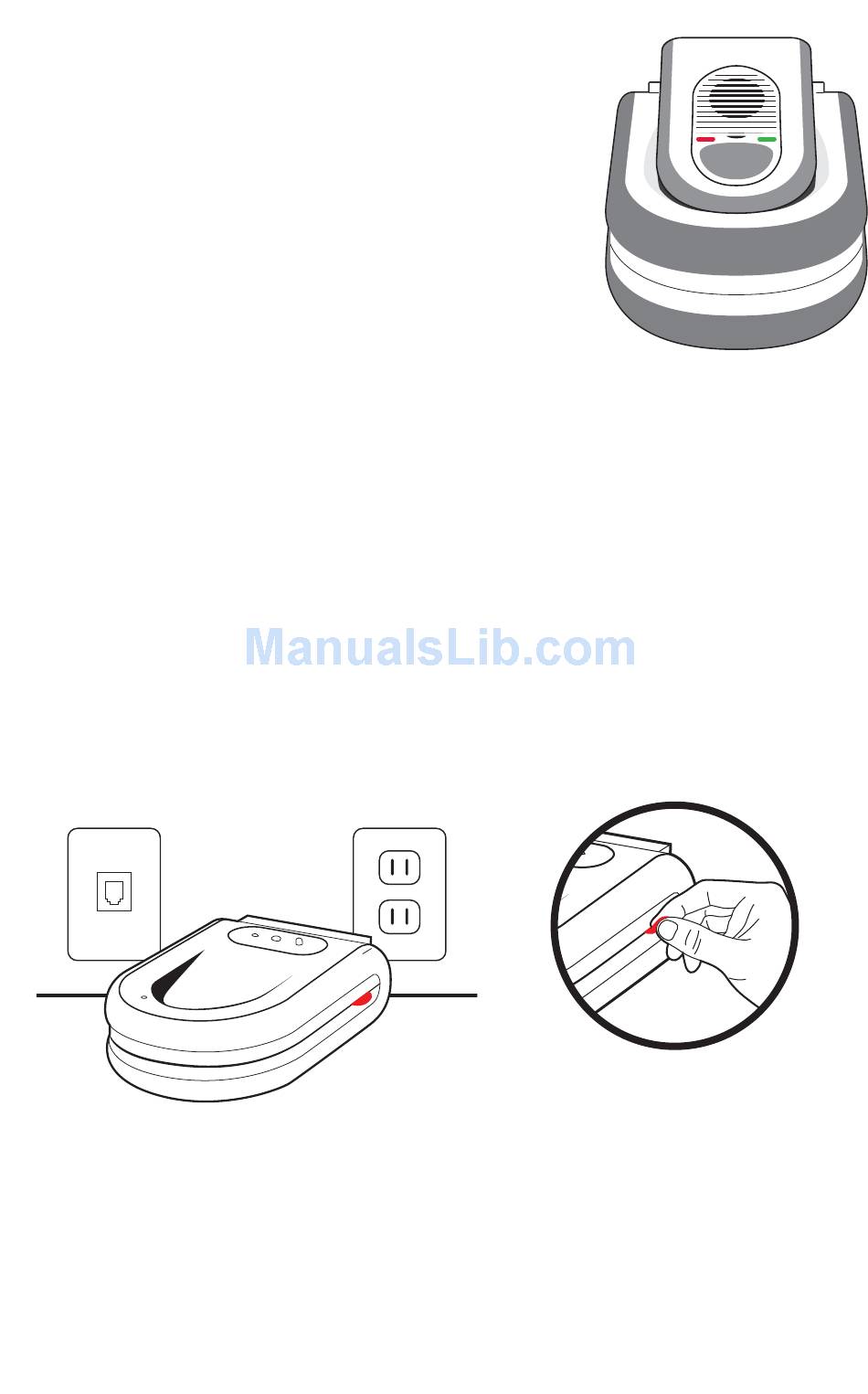

Place the MediPendant™ base station on a stable surface located near a power outlet

and an available phone jack. For best results, locate the base station in an area away

from household appliances which could present electrical interference. See Fig. 1

If you are using more than one MediPendant™ system in your home, we recommend

that you place the base stations at least 15 ft. apart from each other.

STEP 2

Grab RED TAB located on side of base station and pull it straight out. Removing tab

activates back-up battery. See Fig. 2

Unit will beep continuously and the POWER LED and PHONE LINE INDICATOR LED

will both flash RED until AC/DC adapter is plugged in. See STEP 3.

™

Phone

Jack

Model #MED01

Power

Outlet

Fig. 1

Fig. 2

Table of Contents

Need help?

Do you have a question about the MED01 and is the answer not in the manual?

Questions and answers

Summary of Contents for MediPendant MED01

Page 1 STEP 1 Place the MediPendant™ base station on a stable surface located near a power outlet and an available phone jack. For best results, locate the base station in an area away from household appliances which could present electrical interference.
Page 2 STEP 3 Connect the AC/DC Adapter into the BLACK plug in the back of the base station marked DC. See Fig. 3 STEP 4 Connect the other end of the AC/DC Adapter into a standard power outlet. See Fig. 4 Once plugged in, your base unit will continue to beep and the RED PHONE LINE INDICATOR LED will continue to flash.
Page 3 If installed properly, the RED PHONE LINE INDICATOR LED on the top of the base station should not be illuminated and beeping should cease. If your telephone system is DSL or VoIP, please see the MediPendant™ OWNER’S MANUAL for optional telephone configurations.
Page 4 Identify yourself with the operator and tell him/her that you are simply testing your system. Follow the operator’s instructions to complete the test. YOUR MediPendant™ SYSTEM IS NOW ACTIVATED AND READY FOR USE. See OWNER’S MANUAL for further instructions. Manufactured by 5215-C Militia Hill Road, Plymouth Meeting, PA 19462 Rev.
Page 5 PASO 1 Coloque la estación base del MediPendant™ en una superficie estable ubicada cerca de una salida de corriente eléctrica y una salida de teléfono disponible. Para mejores resultados, ubique la estación base lejos de artefactos eléctricos que pudieran presen- tar interferencia eléctrica.
Page 6 PASO 3 Conecte el adaptador de corriente AC/DC dentro del enchufe NEGRO en la parte posterior de la estación base marcada DC. Ver Fig. 3 PASO 4 Conecte el otro extremo del adaptador de corriente AC/DC dentro de la salida de corriente de la pared.
Page 7 LINEA TELEFONICA (PHONE LINE) ubicada en la parte superior de la estación base debe apagarse y el sonido “bip” dejará de sonar. Si su sistema de telefonía es DSL o VoIP, por favor vea el MANUAL DEL USUARIO DEL MediPendant™ para configuraciones opcionales del teléfono.
Page 8 Identifíquese con el operador e indíquele que usted se encuentra probando su sistema. Siga las instrucciones del operador para completar la prueba. SU SISTEMA MediPendant™ HA SIDO ACTIVADO Y ESTÁ LISTO PARA SER USADO. Para mayor información, vea el MANUAL DEL USUARIO...
