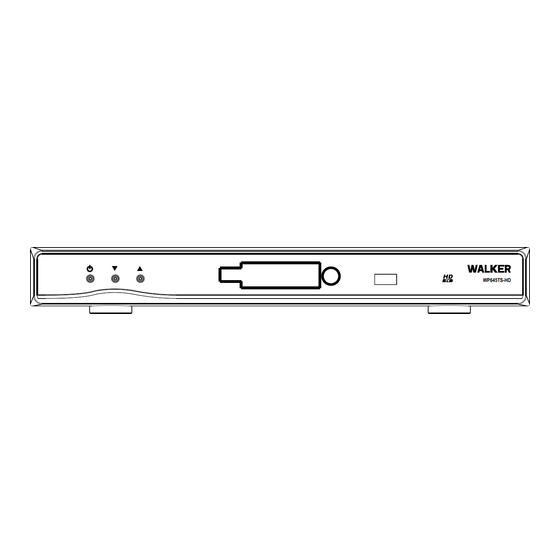

Summary of Contents for Walker WP645TS-HD
-
Page 2: Table Of Contents
Contents Country Contents Timers, Recordings Library Safety Information Output Settings Preparation Receiver Upgrade Introduction Menu Locking Safety Precautions Managing Settings Power Cord Set Pin Symbols in this Instruction Book Menu Lock Batteries Safety Information & Getting Started Time Settings (Optional) Audio Description Accessories included HDCP... -
Page 3: Safety Information
Safety Information IMPORTANT - Please read these instructions fully before installing or operating • A location should not be selected such as a room Preparation with high humidity, as the condensation, arising in For ventilation, leave a free space of at least 10 cm the kitchen for example, may cause malfunction or all around the set. -
Page 4: Batteries
Safety Information & Getting Started Safety Precautions - continued, Features IMPORTANT Warnings on the appliance and restrictions are displayed like this. Read this information strictly in order to operate the system correctly and avoid damage. NOTE: Information about the operation and additional explanations are marked like this. -
Page 5: Batteries
Safety Information & Getting Started Safety Precautions - continued, Features • Resetting to factory settings option IMPORTANT • TV Scart Warnings on the appliance and restrictions are displayed • Ku band reception: 10.7 – 12.7 GHz like this. Read this information strictly in order to operate the system correctly and avoid damage. -
Page 6: Viewing Remote Control
Getting Started Viewing remote control 1- Standby 2- Favourite mode 3- No function 4- Numeric buttons 5- Media Browser 6- Previous programme 7- Volume Up/Down 8- Electronic Programme Guide 9- Exit Menu 10- Info 11- OK / Confi rm 12- Play 13- Programme recording 14- Pause / Timeshift recording 15- Rapid reverse... -
Page 7: Connections On The Set Top Box
Getting Started Connections on the Set Top Box Rear Panel 9 10 Common Interface (CI) Slot. ANTENNA IN : Aerial input. ANTENNA OUT : To watch analogue channels on the TV. LNB IN: To connect satellite signal to the box. HDMI IN : HDMI connection. -
Page 8: Inserting Batteries In The Remote Control
Getting Started Inserting Batteries in the Remote Control • Remove the battery cover located on the back of the remote control by gently pulling backwards from the indicated part. • Insert two AAA/R3 (2 X 1.5Volt) or equivalent type batteries inside. Place the batteries in the correct direction observing the polarity symbols (+/-) and replace the battery cover. -
Page 9: Power Connection
Getting Started Power Connection IMPORTANT: The set top box is designed to operate on 220-240V AC, 50 Hz. Plug the power cable to the mains socket outlet. • After unpacking, allow the set top box to reach the ambient room temperature before you connect the device to the mains . -
Page 10: Important - Usb Connection Precautions
Getting Started Important - USB Connection Precautions Programme Recording • You can connect a USB hard disk drive or USB memory stick to your box by using the USB input. IMPORTANT: When using a new USB hard disk This feature allows you to play fi les stored in a USB drive, it is recommended that you fi... -
Page 11: First Time Installation
Getting Started First Time Installation Satellite Scan: There are four types of antenna selection. You can IMPORTANT: Ensure that the aerial and/or select Antenna type as, Direct, Unicable, DiSEqC satellite is connected before switching on the or Motor by using “ ”/“ ” buttons. set top box for the fi... -
Page 12: Changing Channels
Getting Started First Time Installation - continued the motor type. When fi nished, press OK to scan Scan results view: for services. • After setting antenna settings, press OK to Changing Channels continue. • You can change channels with the following methods. -
Page 13: On-Screen Information
Basic Features General Operation, Instant Recording, Time Shifting On-Screen Information • You can press the INFO button to display on-screen Time Shifting (Pause Live Recording) information. Details of the station and current programme will be displayed on the information screen. •... -
Page 14: Menu System
Basic Features Menu System, Channel List • Press P<P button to view fi ltering options. Menu System • Press YELLOW button to tag/untag a channel. Viewing the Main Menu • Press BLUE button to tag/untag all. • Press the MENU button to view main menu. •... -
Page 15: Renaming Channels
Basic Features Channel list, continued Renaming Channels • Select the channel that you want to rename and select Edit Name option using “ ”/“ ” button. Press OK button to continue. • Pressing “ ”/“ ” button moves to the previous/next character. -
Page 16: Event Options
Basic Features Channel list, continued - Electronic Programme Guide To cancel an already set recording, highlight that programme and press the OK button and select the option “Cancel Timer”. The recording will be cancelled. Confi guring Timers Select Timers from the main menu and press OK button. -
Page 17: Recordings Library
Basic Features Timers, Recordings Library You can save the adjustments by pressing the Options” menu) and begin with playback from the GREEN key or cancel the process by pressing the selected chapter. RED button. You can edit the timers list via OK key Confi... -
Page 18: Output Settings
Basic Features Managing Settings Output Settings HDMI Resolution By pressing “ ”/ “ ” on the remote control, you can change to HDMI resolution as 576P, 720P or 1080i. AUDIO Delay First press OK and than by pressing “ ”/“ ” buttons on the remote control, you can set to Audio Delay to desired value. -
Page 19: Set Pin
Basic Features Managing Settings - continued 0000. After coding the correct PIN number, parental settings menu will be displayed: Audio Description This function enables or disables the audio description feature by pressing the “ ” or “ ” buttons. Set Pin Preferred Language •... -
Page 20: Installation
Basic Features Language Settings, Installation Options Use “ ” or “ ” buttons to highlight the menu item that set satellite values as desired. Press GREEN will be adjusted and then press “ ” or “ ” button to button to scan selected satellite. Press BLUE set. -
Page 21: Terresterial Mode
Basic Features Installation Options - continued satellite signal. Signal Quality bar shows lock quality of Frequency Scan the device for entered values. • If Network Search item selected as YES, after tuning to that transponder, the parameters of other transponders will be collected from NIT (Network Information Table) and tuning will be performed for other transponders. -
Page 22: Load Settings
Basic Features Recordings Confi guration None: The unit will not discard any recordings and the Save Settings timer will not record the requested programme. You can use this item to load preset channel table or Oldest: Starting with the oldest, recordings will be last saved settings as a factory settings. -
Page 23: Advanced Features
Advanced Features Viewing the Media Browser • To display Media Browser window, press either Play ( button) : Plays all media fi les in the folder “MENU” button on the remote control and then starting with the selected one. select Media Browser by pressing “ ” or “ ” button. Stop ( button) : Stop the playing fi... -
Page 24: Playing Video Files
Advanced Features Media Browser, continued & Conditional Access Shuffl e:Plays the fi les randomly. If shuffl e mode Conditional Access is enabled, previous/next function will also jump to Press the “MENU” button to display the main the tracks randomly. menu and use the “ ” or “ ” button to highlight Previous/Next ( buttons): Jump to previous the “Conditional Access”... -
Page 25: Other Information
Other Information Audio Mode Selection (Yellow Button) Favourite Programme (FAV.) You can navigate within favourites by pressing The YELLOW key (LRS) will toggle the sound mode. The mode is stereo as default. If you want to the FAV button (if available). A program can be listen only the left or only the right speaker, sound selected as a favourite from the program table menu. -
Page 26: Product Support
Product Support Troubleshooting Problem Possible Reasons What To Do The LED indicator does not Check if the mains cable is plugged into the power Mains cable is not connected. glow. socket. No picture or sound. No signal or weak signal. Check the aerial and video connections (scart/HDMI). - Page 27 Product Support GENERAL CHARACTERISTICS Supply Voltage 220 - 240 V AC ~ 50Hz Input Frequency 174Mhz-862Mhz Frequency Band VHF, UHF Maximum Power consumption 30 W Standby Power Consumption Operating temperature 5ºC to +40ºC Storage temperature -15ºC to +55ºC Humidity 25 to 75 % rel Physical dimensions 360x280x48 mm Weight...
- Page 28 Product Support REMOTE CONTROL Operating Distance 7 m Max. Batteries 2x1.5V Micro (R-03/AAA) TUNERS & LNB 1 xRF In IEC-type, female (75Ohm) 1 x RF Out (loop through) IEC-type, male (75Ohm) 1 x F-type LNB connector LNB POWER SUPPLY • Vertical : 13/14 Volt • Horizontal : 17/18 Volt • Max. Output Current : 400mA (Short-circuit protected) •...
-
Page 29: Important Instruction
Important Instruction For your own safety read following instruction carefully before attempting to connect this unit to the mains supply. MAINS (AC) OPERATION The wires in the mains lead are coloured in accordance with the following code : GREEN FUSE &...
