- Page 1 DUAL ZONE WINE CABINET INSTALLATION GUIDE 956657...
-
Page 2: Table Of Contents
Installation Specifications for Dual Zone Wine Cabinet 8-11 This guide will answer most of your questions about the installation of your True Cabinet Components Professional unit. If you have questions that are not answered here, contact... -
Page 3: Ownership
Junked or abandoned refrigerators are uncrating the unit: C. Remove skid by carefully lifting the refrigerator off the delivery freight carrier. True is not responsible for still dangerous... even if they will sit for “just a few and place skid aside. Remove clear plastic damage incurred during shipment. -
Page 4: Electrical Specifications
This provides the best performance and also prevents overloading house 2. Proper leveling of your True unit is critical to operating success To minimize the depth of the cutout opening, the wiring circuits which could cause a fire hazard from (for non-mobile models). -
Page 5: Installing Anti-Tip Brackets
ANTI-TIP BRACKET LOCATOR - TOP VIEW 27/32” 27/32” Back of the unit 3/16 25/32 ” ” 20 ” Cabinet door Cabinet Front Door Front Door stop installed Cabinet grill True Professional Installation Guide True Professional Installation Guide... -
Page 6: Installation Specifications For Dual Zone Wine Cabinet

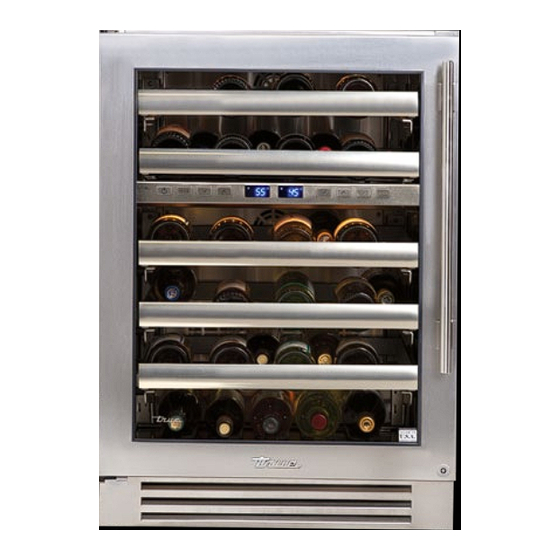

NOTES Installation Specifications DUAL ZONE WINE CABINET TWC-24DZ-R-SG-A TWC-24DZ-L-SG-A True Professional Installation Guide True Professional Installation Guide... - Page 7 24” VIEW FRONT SIDE " " VIEW VIEW " ROUGH OPENING WIDTH 24” " " " " Front view Dimensions may vary by ± ” of unit " " between cabinets " True Professional Installation Guide True Professional Installation Guide...
-
Page 8: Cabinet Components
INSTALLATION SPECIFICATIONS - OUTDOOR Installation Guide True’s stainless steel cabinets are Ul rated for use in outdoor settings. In outdoor locations where the ambient temperature regularly exceeds 95˚F, it is recommended to vent the rear of the cut out opening as shown below for optimum performance. The recommended cut out size is 4”... - Page 9 TRUE WINE CABINET COMPONENTS TRUE PRECISION CONTROL OPERATION Location of Serial Tag Power Button Non-Adjustable Wine Shelf Controls for Upper Section Fully Adjustable Displays for Temperature Upper (Left) and Lower (Right) Wine Shelves (4) Controls for Lower Section Activates Accent Light...
- Page 10 The wine shelves are held securely by the anti-vibrations Installation Checklist bumpers. If there is too much play side-to-side, tighten the bumpers against the compartment walls by rotating Frequently Asked Questions with your fingers. Warranty anti-vibrations bumpers True Professional Installation Guide True Professional Installation Guide...
- Page 11 Q. Why isn’t my unit cooling properly? True maintains a record of the cabinet serial number for your unit If at any time during the life of your unit, a part is needed, you may obtain that part by furnishing the model number and A.
- Page 12 TERMS APPLICABLE TO EACH WARRANTY Any part covered under the above warranties that is determined by TRUE to have been defective within the time frame is limited to the repair or replacement, including labor charges, of defective parts or assemblies. The labor warranty shall include standard straight time labor charges only and reasonable travel time, as determined by TRUE.
- Page 13 DUAL ZONE WINE CABINET INSTALLATION GUIDE INSPIRED BY PROFESSIONALS BUILT BY EXPERTS. DESIGNED FOR YOU. KEY PACKET LOCATION 2001 East Terra Lane O’Fallon, MO 63366 phone: 888.616.8783 parts: 800.424.8783 email: info@true-residential.com 956657 web: true-residential.com AD 1.4.12...
