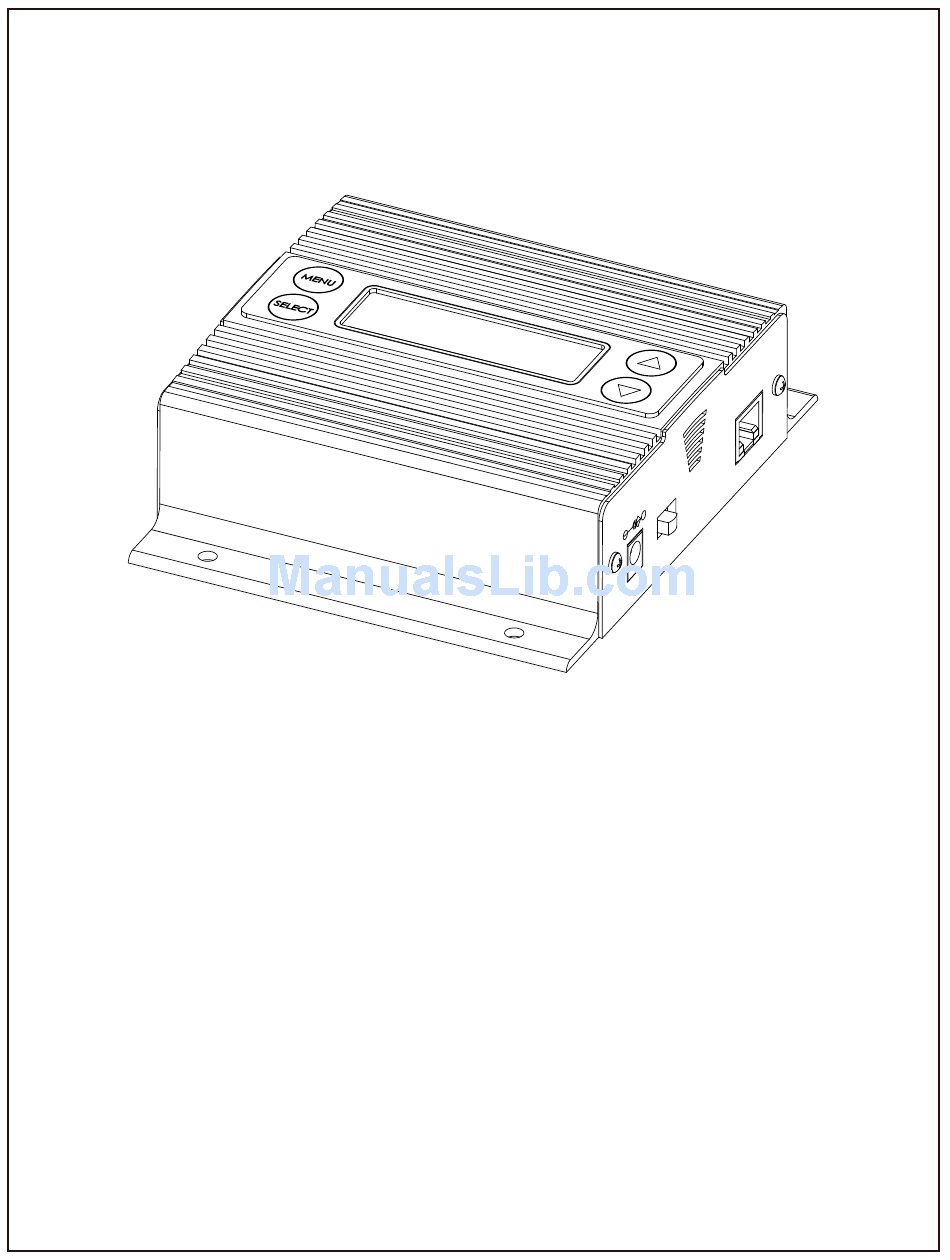

- Page 1 LCD Nel-Tech Labs, Inc. Installation & User Manual...
-
Page 3: Table Of Contents
Warranty & FCC ........................Introduction: The iLink LCD is an Internet downloadable messaging system utilizing state-of-the-art MPEG compression to achieve truly stunning near-CD quality audio storage and playback. All unit management and audio downloads are accomplished by your dealer using a special controller software suite. When an update is needed your dealer connects to the iLink via your high-speed Internet connection and digitally transfers the MP3 audio files and configuration settings you need. -
Page 4: Ilink Layout Summary
iLink Layout Summary Front of Unit 12VDC 500mA POWER 12VDC - This is where the supplied 12VDC @ 500mA power pack is connected. POWER - Use this switch to turn the unit ON and OFF. LAN - This jack connects to the local Ethernet that allows the iLink connectivity to the Internet. The jack also has two built in LEDs that report back network activity and speed status. - Page 5 Top of Unit iLink v07.00.a 10.1.1.206 MENU BUTTON - Keypad button used to cycle through menu items. SELECT BUTTON - Keypad button used to select menu item to be changed. UP and DOWN BUTTONS - Keypad buttons used to make changes to selected items. 2 x 16 LCD - White lettering on blue backlighting LCD used to display unit information.
-
Page 6: Lcd Layout Summary
LCD Menu = Menu Button Push iLink v07.00.a = Select Button Push 10.1.1.206 Output A qp Changes Volume Volume = XX Output B qp Changes Volume Volume = XX Locked if local volume control is disabled Input A BGM qp Changes Volume Volume = XX Input B BGM qp Changes Volume... -
Page 7: Web Browser
Web Browser (Feature on firmware version 07.09X or higher) The iLink LCD has a built-in password protected web browser that will display the units serial number, firmware version and MAC address. This browser will also allow the units communication mode, connect-back address and port to be changed. -
Page 8: Installation
Installation : Step 1: Wall or shelf mount the unit. Rubber feet and screws are supplied in the accessory kit. Step 2: Verify the power switch on the right side of the unit is set to OFF. Attach the included power pack to a wall or power strip receptacle, then attach the other end to the jack on the right side of the unit labeled 12VDC. -
Page 9: Connectivity Test/Volume Adjustments
Connectivity Test: Step 1: Verify the power switch on the right side of the unit is set to ON. Step 2: On the LCD menu verify unit has a valid IP, subnet and gateway. 010.001.001.206 Subnet Example: 255.255.255.128 Gateway 010.001.001.120 Step 3: On the LCD menu go to the “PRESS UP ARROW TO CONNECT-BACK”... - Page 10 Channel A & B Output Level Adjustments: Step 1: Verify CHANNEL A or B (OUT) is connected to either a phone’s MOH port, PA amplifier or speaker. MADE IN USA CHANNEL A █ CHANNEL B █ 600Ω 600Ω ▄ ▄ 8Ω...
- Page 11 Channel A & B Input BGM Feedthrough Level Adjustments (Optional): Step 1: Plug feed from an unamplified external background music source to the CHANNEL A or B (IN) MADE IN USA CHANNEL A █ CHANNEL B █ 600Ω 600Ω ▄ ▄...
-
Page 12: Troubleshooting
Other LCD Status Messages: Unit is booting: Booting... please wait... Unit is initializing: ilink 07.00.a initializing... Unit is getting ip address: ilink 07.00.a seeking ip... Dealer is connected to unit: DIRECT CONNECT IS ACTIVE Unit is connected to dealer: ACTIVE CALLBACK xxx.xxx.xxx.xxx Format and reboot in progress : FACTORY RESET... -
Page 13: Warranty & Fcc
In the event that the product serial number is missing or has been tampered with in any way, the foregoing warranty is void and without effect and Nel-Tech Labs shall have no liability whatsoever on account of defects to such product. - Page 16 Nel-Tech Labs, Inc. 4 Ash Street Extension Derry, NH 03038 1.800.344.4685 www.nel-techlabs.com ilink_lcd_manual Rev. B - 09/11 Copyright © 1984 - 2011 by Nel-Tech Labs, Inc.
