DHP-2000/DT-200 Wireless digital noise reduction headphone
Features
● 2.4GHz wireless digital technology make music and movies more enjoyable and
personal.
● USB and 3.5mm/6.3mm Analog audio inputs to work with various players.
● Up to 30-meter working distance. You could do anything while listening to the music
indoor.
● Multi-headphone (DHP-2000) operation with only one transmitter (DT-200).
● Low power consumption. 2 AKLN batteries offer over-20 hours operation.
● 40mm speaker system delivers heavy and distinct bass quality, bright mediant and
treble sound.
● The transmitter can use rechargeable battery to last 3-6 hours of operation.
● The transmitter battery can be recharged by connecting to a USB port or the adaptor.
● Power off automatically after 10 minute pause.
● Suitable for any device with USB input, e.g TV, audio equipment, DVD/CD player, PC,
notebook, iPod, iPhone, MP3 and mobile phones.
● Storage case available for easy protection and carrying.

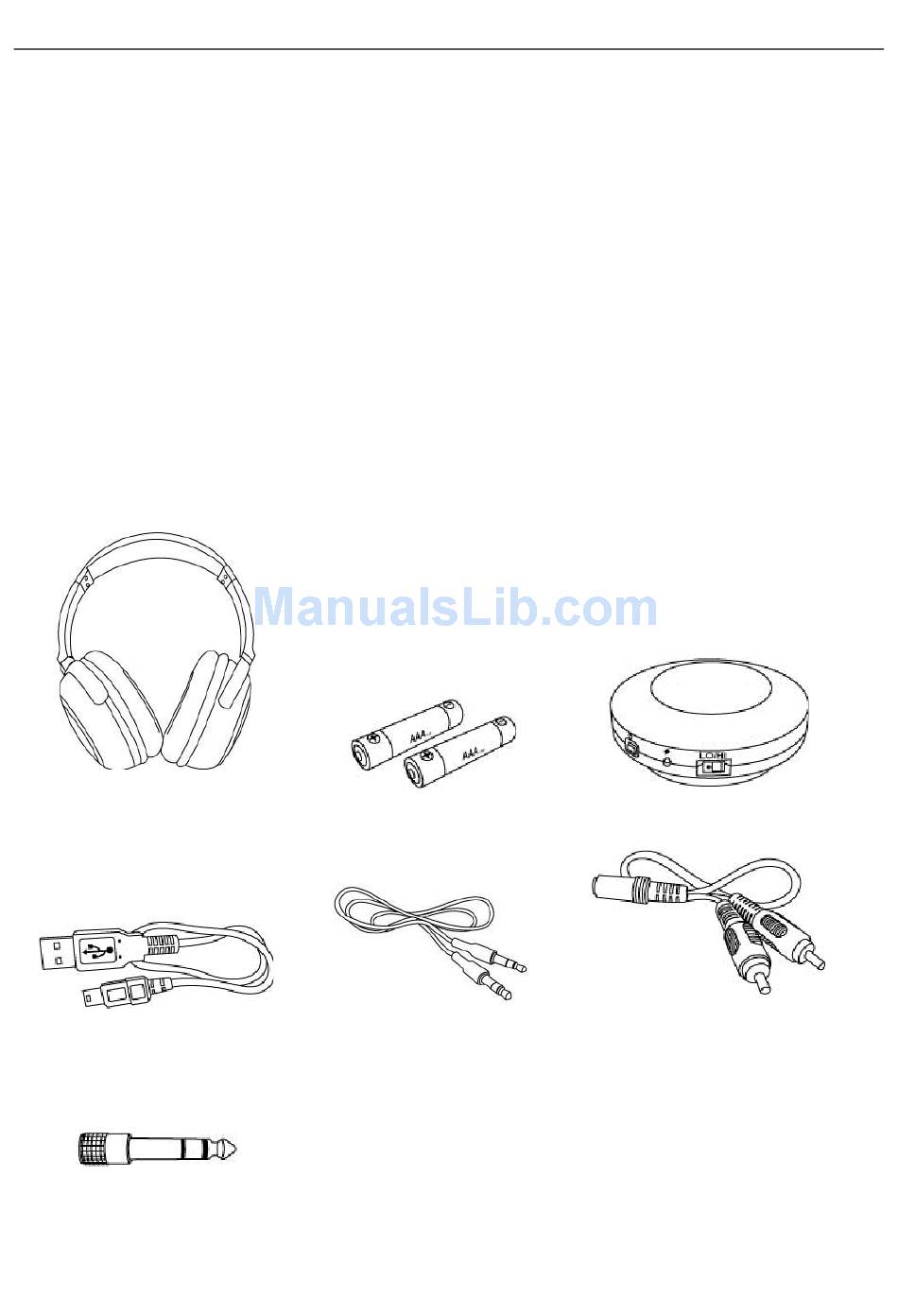

Components and Accessories
DHP-2000 Digital Wireless
Headphone
USB Connection Cable
ψ3.5mm→ψ6.3mm Adaptor
Alkaline Battery 1.5V AAA x 2.
ψ3.5mm Plug-pin Double Head
Cable
-1-
DT-200 Digital Transmitter
RCA Audio Source Adaptor
Cable
Advertisement
Related Manuals for Chiayo DHP-2000
Summary of Contents for Chiayo DHP-2000
- Page 1 ● Up to 30-meter working distance. You could do anything while listening to the music indoor. ● Multi-headphone (DHP-2000) operation with only one transmitter (DT-200). ● Low power consumption. 2 AKLN batteries offer over-20 hours operation. ● 40mm speaker system delivers heavy and distinct bass quality, bright mediant and treble sound.
- Page 2 DHP-2000/DT-200 Wireless digital noise reduction headphone Location and Function of Parts DT-200 Digital Transmitter 1. LO/HI：Frequency Transmit Strength Adjust Button, LO Effective Distance about 10 meters, HI Effective Distance about 30 meters, Higher Power Consumption on HI simultaneously. 2. Battery Charging Indicator: Indicator will light up red while charging, it will turn off when charging completes.
- Page 3 DHP-2000/DT-200 Wireless digital noise reduction headphone Battery Inserting (Installation) 1. Pressing down lightly the battery cover and opening the cover. 2. Inserting the batteries (AAA 1.5V x 2 Alkaline Batteries) 3. Restoring the battery cover and pushing up lightly and close up the battery cover.
- Page 4 DHP-2000/DT-200 Wireless digital noise reduction headphone 4. Press lightly on the headphones power switch for 3 seconds to turn on headphones power, now, the power and frequency verification indicator (Green) will blink in slow pace. 5. Hand-pressing on the headphones frequency verification push button (PAIR) to proceed the frequency verification (pairing) operation with the transmitter (for about more than 3 seconds), until one hears the “bi”...
- Page 5 DHP-2000/DT-200 Wireless digital noise reduction headphone 3. Shutting off the headphones power and restart it. Transmitter indicator (Blue) is not on 1. Confirming that the wireless transmitter has been properly connected to PC or NB via the USB transmission 2. When using ψ3.5mm plug pin double head connection cable to perform the audio source input, the indicator is still not on 3.
- Page 6 DHP-2000/DT-200 Wireless digital noise reduction headphone Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 7 DHP-2000/DT-200 數位無線抗噪頭戴式耳機 特色 ● 2.4GHz 無線數位傳輸，讓聽音樂、看電影更自由與個人化，不干擾到別人。 ● USB / Analog(3.5mm & 6.3mm 插針)雙重的音源輸入方式，方便各種播放器的配用。 ● 有效接收距離 30 公尺，你可以在室內邊聽音樂邊做你想做的事情。 ● 一個發射器(DT-200)可以使用多支耳機(DHP-2000)同時接收聲音。 ● 耳機耗電量低，一般鹼性電池(1.5V AAA x2)可以使用 20 小時以上。 ● 耳機採用大口徑 40mm 喇叭單元，低音渾厚分明，中高音清澈、明亮，忠實呈現出中低音 效果及原音的重現。 ● 發射器採用充電式電池，可以使用 3-6 小時，方便於外出時使用。 ● 發射器也可以使用 USB 連接線直接連結 USB 連接埠供電使用，或是選擇 USB 電源轉換器連...
- Page 8 DHP-2000/DT-200 數位無線抗噪頭戴式耳機 各部名稱介紹 DT-200 數位發射器 1. LO/HI：頻率發射強度調整鈕，LO 有效距離約 10 公尺，HI 有效距離約 30 公尺，HI 耗電量 較大。 2. 電池充電指示燈，充電時紅燈亮，充電完成紅燈不亮。 3. 電源開關，輕按三秒啟動或關閉。 4. DC IN 5V：USB 連接埠，電池充電用，或是同時進行電池充電與音源輸入的操作使用。 5. ID：對頻按鍵，與耳機對頻時使用。 6. ψ3.5 IN：ψ3.5mm 音源輸入孔。 7. 電源與對頻指示燈(藍燈)：電源開啟後，若音源線未連線則慢閃，連線後恆亮。 DHP-2000 數位無線耳機 1. 耳墊(左)。 2. 電源開關，輕按三秒啟動或關閉。 3. 電池蓋：使用 AAA 1.5V*2 鹼性電池。...
- Page 9 DHP-2000/DT-200 數位無線抗噪頭戴式耳機 電池安裝 1. 輕壓下推電池蓋，打開電池蓋。 2. 放入電池(AAA 1.5V x 2 鹼性電池)。 3. 蓋上電池蓋及輕壓上推關閉電池蓋。 發射器與耳機對頻與使用 發射器與耳機在出廠時就已經完成對頻，請依如下作業使用就可以。 1. 發射器以連接線連接好播音器(iPod、iPhone、MP3, PC, NB ---)，進行音源的輸入，並且確認 播音器已經開啟播放音源。 2. 輕壓發射器的電源開關三秒鐘，啟動發射器電源，此時電源與對頻指示燈(藍燈)恒亮。 3. 輕壓耳機的電源開關三秒鐘，啟動耳機電源，此時電源與對頻指示燈(綠燈)恒亮。 4. 正確的配戴上耳機，輕鬆愉快的享受無線的自由自在。 若有其他因素需要或新增耳機共用發射器時，需要進行發射器與耳機的對頻，請依如下作業 程序： 1. 發射器已經連接線連接好播音器(iPod、iPhone、MP3, PC, NB ---)，進行音源的輸入，並且確 認播音器已經開啟播放音源。 2. 輕壓發射器的電源開關()三秒鐘，啟動發射器電源，此時電源與對頻指示燈(藍燈)恒亮。 3. 以筆尖輕壓發射器對頻按鍵(ID)三秒鐘，此時電源與對頻指示燈(藍燈)快閃。 4. 輕壓耳機的電源開關()三秒鐘，啟動耳機電源，此時電源與對頻指示燈(綠燈)為慢閃。...
- Page 10 DHP-2000/DT-200 數位無線抗噪頭戴式耳機 5. 當使用於電視、DVD 播放機時，請以 RCA 音源轉接線連結 ψ3.5mm 插針雙頭連接線，連接 發射器進行音源的輸入。 疑難排解 耳機聲音微弱或沒聲音 1. 調整耳機音量開關。 2. 檢查音源播放是否停止或音量過小。 3. 將耳機移近無線發射器。 4. 將耳機與發射器重新對頻一次。 耳機指示燈(綠燈)沒亮 1. 關閉耳機電源並重新啟動。 2. 更換電池(AAA 1.5V*2 鹼性電池)。 耳機無法建立連接(指示燈閃爍) 1. 將耳機移近無線發射器。 2. 確認無線發射器與音源播放器的聯接是否正常？而且音源正常播放中。 3. 關閉耳機電源並重新啟動。 發射器指示燈(藍燈)沒亮 1. 確認無線發射器已透過 USB 傳輸線，完成與 PC 或 NB 的正確連結。...
- Page 11 DHP-2000/DT-200 數位無線抗噪頭戴式耳機 -11-...
- Page 12 DHP-2000/DT-200 數位無線抗噪頭戴式耳機 12I0028 -12-...
