Heaven Fresh NatroPure Instruction Manual

Air purifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
HEAVEN FRESH UK
©2008, HFUKENG HF 380 - 06/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NatroPure and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heaven Fresh NatroPure

Summary of Contents for Heaven Fresh NatroPure

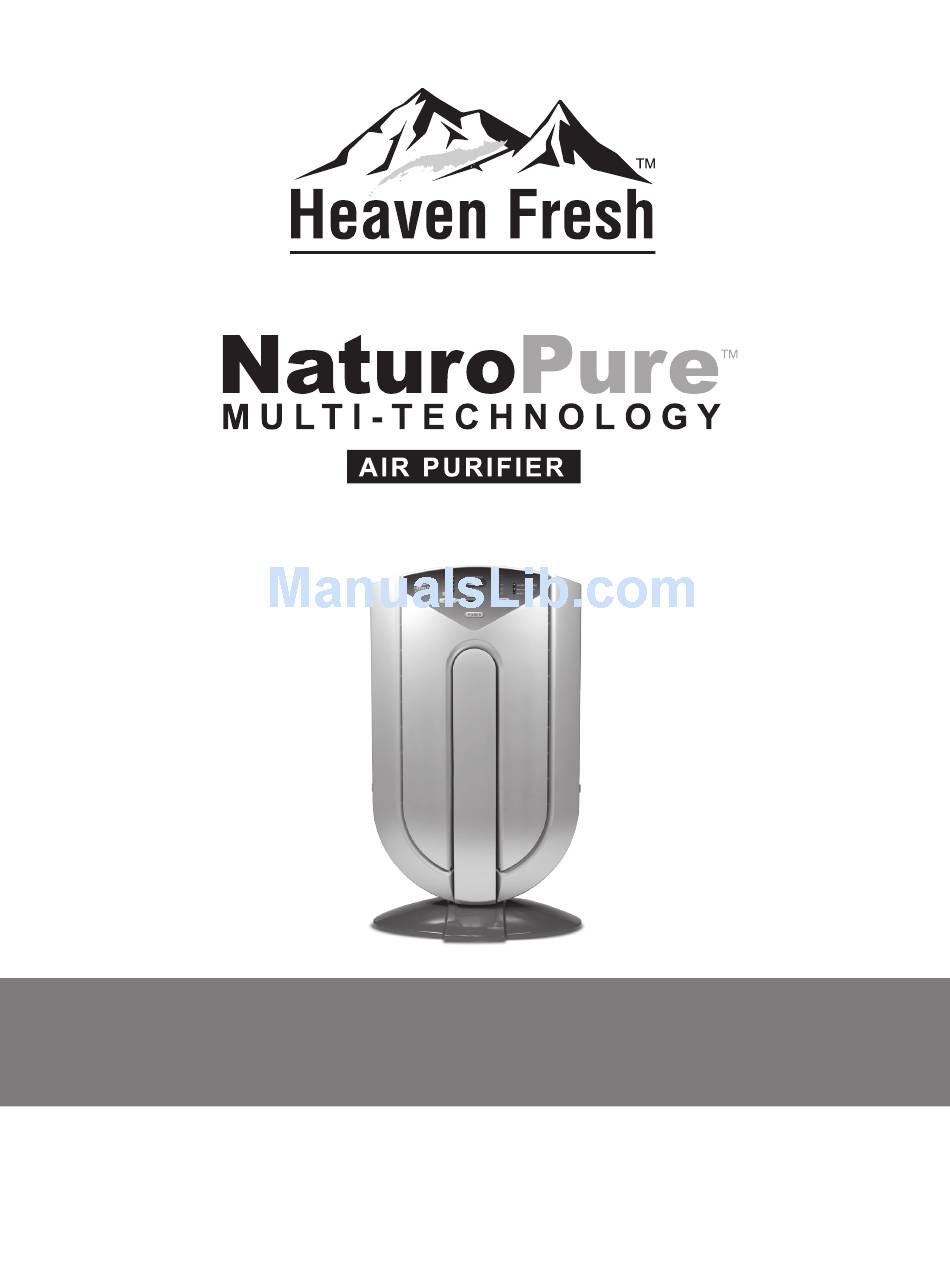

  • Page 1 INSTRUCTION MANUAL HEAVEN FRESH UK ©2008, HFUKENG HF 380 - 06/08...

  • Page 2: Main Features

    Air-cleaning negative ions are circulated throughout the room. Powerful yet quiet fan for maximum air circulation. ² Washable pre filter to collect the larger particles. Photocatalytic oxidation filter which effectively reduces chemicals, bacteria and odours. Heaven Fresh UK HF 380...

  • Page 3: Special Attention

    When you do not use the device for a long period. When cleaning, servicing the machine or casing during replacement of filter materials. ambient 104 ˚F) When you move the device. power an anthorized electric personnel shocks and fire hazards. Heaven Fresh UK HF 380...
  • Page 4 COMPONENTS Front View Air Outlet Dust Sensor Air Inlets Air Inlets Bottom Stand Control Panel Receiver port Odour Sensor CLEAN METAL GRID REPLACE FILTER RESET Heaven Fresh UK HF 380...
  • Page 5 COMPONENTS [ Back View ] [ Interior View ] Heaven Fresh UK HF 380...
  • Page 6 By first ensuring the air is as clean as possible, and then immediately But the of the sensor resetting, the sensor will be more accurate once you resume normal operation. But the of the sensor Heaven Fresh UK HF 380...

  • Page 7: Explanation Of Indicators

    EXPLANATION OF INDICATORS Odour odour odour odour odour, Heaven Fresh UK HF 380...
  • Page 8 OPERATING INSTRUCTIONS from to turn off Timer duration duration Heaven Fresh UK HF 380...

  • Page 9: Cleaning And Maintenance

    Push the two tabs inward and lift up the dust collector.Hold the top of the unit (where the control panel is) down to help pull out the collector grid. Removing Removing Place please ensure that the filter is installed correctly with the Removing Heaven Fresh UK HF 380...
  • Page 10 CLEANING AND MAINTENANCE from with running & avoid scratching the coating on the cover. Remove UV lamp before cleaning Use a slightly damp cloth to wipe & clean Heaven Fresh UK HF 380...
  • Page 11 2. Lift up the tab at the top of the plastic housing for the metal dust collector gird. Once this tab is open,remove the dust collector. Please wear protective gloves to avoid any cuts on your fingers. Heaven Fresh UK HF 380...
  • Page 12 Please beware not to damage any wiring while cleaning the dust collector. removed or discarded this would result in if you want to purchase cause rusting ensure that the unit is completely dry Heaven Fresh UK HF 380...
  • Page 13 Please use a toothpick or other sharp object to push the RESET button. 1.CLEAN METAL GRID Indicator CLEAN METAL GRID REPLACE FILTER RESET CLEAN METAL GRID indicator RESET 2.REPLACE FILTER Indicator CLEAN METAL GRID REPLACE FILTER Indicator REPLACE FILTER RESET RESET Heaven Fresh UK HF 380...
  • Page 14 CLEANING AND MAINTENANCE Take out Put back the sensor correctly after cleaning, make sure that the cord is reconnected in the correct direction. Heaven Fresh UK HF 380...

  • Page 15: Frequently Asked Questions

    A. The sensor memory needs to be reset. Refer to page 6 under Before Using. When first purchased or when the unit has been unplugged for over a week, the sensor will not be as sensitive. After 1 to 2 days of operation, the sensor will regain its sensitivity. Heaven Fresh UK HF 380...
  • Page 16 Is it firmly plugged into the wall socket? Please check to make sure it is. Has the unit been properly reassembled after being cleaned? Please confirm. The unit will not operate if the plasma dust collector or the front cover is not properly installed. Heaven Fresh UK HF 380...
  • Page 17 Noise Level (dB): Silent (20) Low (35) Med (45) High (52) Air Volume: 106 Cubic Feet per Minute (High Setting) Dimensions: 34.3 (L) x 25.4 (W) x 61.0 (H) (cm) Weight: 6.8 kg (15 lbs) Coverage Area: 60.4 m² (650 ft²) Heaven Fresh UK HF 380...

  • Page 18: Warranty Information

    90-Day Replacement Policy If, due to manufacturer defect, any part requires repair during the first 90 days after receiving your ionizer, Heaven Fresh will replace it with a new machine. What You Must Do 1. Contact Heaven Fresh customer support at 0800 952 9962 (www.heavenfresh.co.uk) for Return Authorization Number.

  • Page 19: Warranty Certificate

    Make sure to include the appropriate return postage for the package. 2. Please enclose a short description of the damage, fault or malfunction, and the circumstances under which these problems arose. Heaven Fresh UK HF 380...
  • Page 20 Canada France sales@heavenfresh.ca sales@heavenfresh.fr www.heavenfresh.ca www.heavenfresh.fr 1-866-625-1857 (English) 0800 900 991 1-866-583-1857 (French) Ireland sales@heavenfresh.com sales@heavenfresh.ie www.heavenfresh.com www.heavenfresh.ie 1-800-642-0367 1-800-550-457 Middle East sales@heavenfresh.co.uk sales@heavenfresh.ae www.heavenfresh.co.uk www.heavenfresh.ae 0800 952 9962 +971 (06) 557 3640 Germany sales@heavenfresh.de www.heavenfresh.de 0800 66 47 259...
