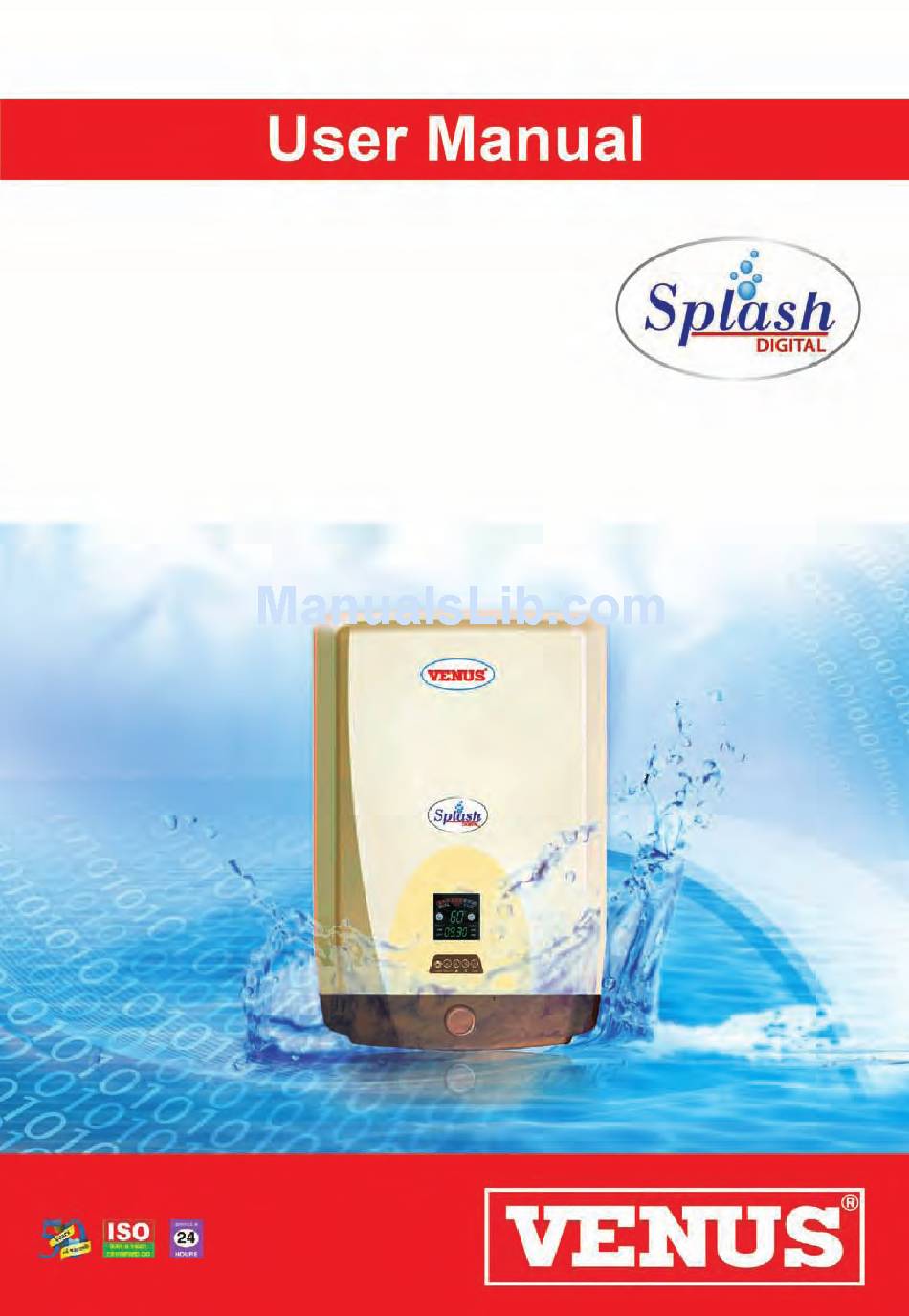

Venus Splash digital User Manual

Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Splash digital and is the answer not in the manual?

Questions and answers

Related Manuals for Venus Splash digital

Summary of Contents for Venus Splash digital

  • Page 2: Dear Customer

    There is also a section called “Trouble Shooting Guide” to assist you in setting right, minor problems. We wish you and your new Venus Splash Digital Water Heater a life time of happy association. I. STATE OF THE ART FEATURES Porcelain Enamel Glass Lined Tank - a water proof coating that protects the inner container from rust &...

  • Page 3: Precautions During Installation

    GLASS LINED These and a host of other features make Venus Splash Digital Water Heater WATER HEATER a truly world class product designed to give you years of reliable, trouble free performance. II. PRECAUTIONS DURING INSTALLATION: Do not switch on the heater without water inside.
  • Page 4 GLASS LINED c. Fix the wall plate by inserting the screw into the nylon plug and tight- WATER HEATER ening it till the wall plate is firmly held. d. The heater can now be hang on to the wall plate by the hanger. Leave a minimum clearance of 25mm between the heater and the ceiling to facilitate removal of the heater from the clamps if necessary.
  • Page 5 GLASS LINED Connection to Automatic Pressure Pump WATER HEATER The heater can be connected to an automatic pump system also, provided the line pressure does not exceed the rated pressure as given in the name plate sticker of the water heater. On connecting an automatic pump to the water heater, the Multi Function Valve(MFV) may drip during the usage of the heater.

  • Page 6: Operation

    GLASS LINED Switch. Connect Red wire to Phase, Black wire to Neutral and Green wire WATER HEATER to earth terminal of the plug. A separate fuse can be provided as an addi- tional safety feature. Fig : 3 Wiring Diagram IV.
  • Page 7 GLASS LINED B. Using the heater regularly : WATER HEATER Always keep the inlet valve open so that water drawn from the hot wa- ter tap is automatically replace from the mains. Switch “ON” the Heater. The Red color indicator will glow, indicating that the heater is working.
  • Page 8 D. Draining the Water Heater: The Water Heater can be drained fully by Lifting the drain lever provided in the MFV. (See figure 4) V. USING SPLASH DIGITAL FEATURES Digital Panel Operation • Temperature setting from 30 C to 75 • Real Time Clock with Battery Backup.

  • Page 9: Program Settings

    GLASS LINED - To decrease the temprature setting and select Menu. WATER HEATER - After selection press Enter to set DISPLAY 1. LED Scale for temperature display 2. Display in C of actual and set temperature. 3. Indication of Time / Power Consumption 4. ON Indicates that ON timer is set 5.
  • Page 10 GLASS LINED WATER HEATER 1. Temperature Setting: Temperature can be set from 30 C to 75 “UP” “DN” key to set the desired Temp. 2. Program (P1): Normal / Smart Mode PROGRAM To set the Press “Menu” key and select P1 by using “UP”...
  • Page 11 GLASS LINED 6. Program (P5): OFF Timer Setting WATER HEATER To set OFF-TIMER, press “Menu” Key and select P5 by using the “UP” “DN” Keys and Press ter. OFF-TIMER icon starts blinking along with OFF- Time hours. “Up” “Down” Keys to set Hours. OFF-TIMER icon stops blinking.
  • Page 12 GLASS LINED WATER HEATER Scale formation can be prevented by operating in SMART Mode, Scale (calcium deposits) forms on top of the heating element when water is heated above 50ºC. When the temperature does not cross 40ºC Scale does not form. This can prolong the operating life of the heating element substantially as well as avoid wastage of power.

  • Page 13: Safety Devices

    GLASS LINED WATER HEATER VII. SAFETY DEVICES Your Venus Water Heater comes with a host of Safety Devices to ensure your safety at all times. A. Thermal Cutout A non-self resetting thermal cutout is provided as a safety device. If the Digital Temperature Sensor fails to function, this cuts off the power nearly 95 ±...
  • Page 14 GLASS LINED WATER HEATER VIII. Performance Table: Maximum Time Required to raise temp.by 50 water Mixing Capacity Loading Output Models During During Factor in in Ltrs. in Watts Minimun Initial Re-heat- % max Heating Max.H:Mins Max.H:Mins 15SD 2000 0 : 29 0 : 27 15 Litres 25SD...
  • Page 15 Venus Service Centre. To increase the life of heating element, de-scaling can be done periodically with the assistance of your nearest Venus Service Centre or Autho- rized Dealer. If the water heater is not going to be used for a long time, the Water can be drained fully by Lifting the drain lever provided in the MFV.
  • Page 16 (Refer to C : Electrical Connections) Do not bye pass any safety devices, if the unauthorized service technicians do not have spares reaily available. Genuine Venus Spares Parts are always, available at our service center (list given at the end of this...

  • Page 17: Troubleshooting Guide

     Check Power If power is “ON” contact indicator light available your nearest VenusService Centre. “OFF” Water cold and  Element may have  Contact your nearest Venus service failed centre indicator light “ON” Water Hot and  Contact your nearest Venus service ...
  • Page 18 GUARANTEE WATER HEATER This Venus water Heater is guaranteed for a period of Three Years from the date of purchase, against manufacturing defects of all functional parts. Free repair will be provided under this guarantee when the water heater is re- turned to our service centre freight and cartage paid.
