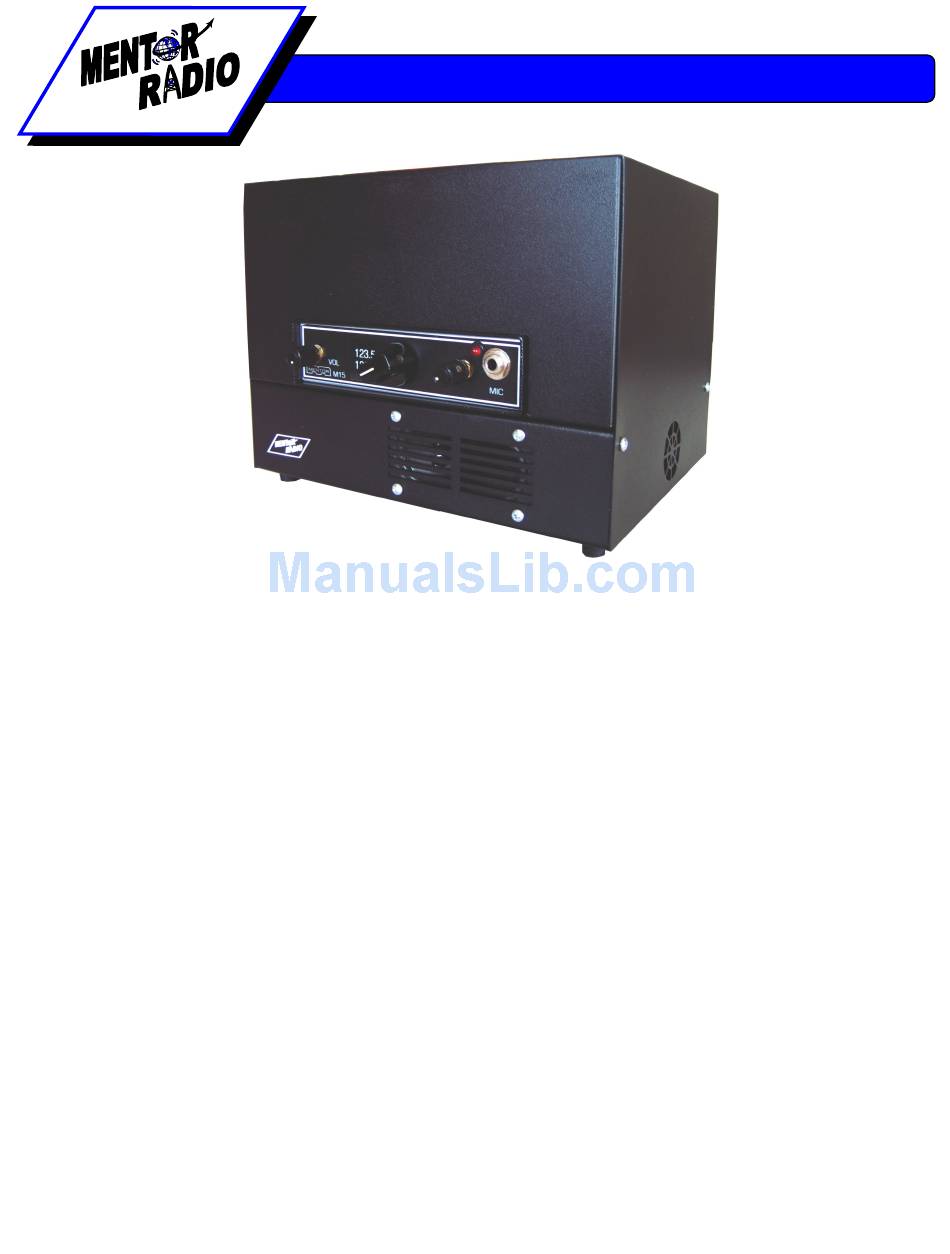

  • Page 1 Solutions for Advancing Communications MODEL MB-R OWNER’S MANUAL Model MB-R AVIATION BAND VHF RADIO RECEIVER/TRANSMITTER Base Station (118.000-136.975 MHz) www.mentorradio.com Phone: 216-65-2315 Fax: 216-267-2915 MB-R-OM-03/11...
  • Page 2 INTRODUCTION The Mentor Radio Model MB-R receives and transmits on up to six discrete channels in the VHF aviation band between 118 and 136 Mhz. It is a base transceiver for air carriers, airports, fixed-base operators, corporate flight departments, hospital helipads, etc.
  • Page 3 INSTALLATION Select a desk, counter, shelf or table top on which to place the Model MB-R, convenient to the operator but inaccessible to unauthorized persons. Allow several inches of space behind and above the unit for air circulation; this is especially important if heavy use is anticipated.
  • Page 4 The connector should be installed by a person skilled in this operation. This connector plugs into the mating connector (type “N”) on the rear of the MB-R. Be sure to turn the ring with the internal threads CW until the connection is firmly made.
  • Page 5 MB-R ASSEMBLY/INSTALLATION Assembly required before first use. Remove all packing material. Connect UHF connector and power harness as shown. MB-R Rear View Antenna Connector Connect the UHF connector to rear panel receptacle Connect power harness to rear as shown. panel receptacles as shown.
  • Page 6 OPERATION The Model MB-R is turned on and off by the rocker switch near the lower left rear corner on the base. The volume control knob (marked VOL) adjusts speaker loudness to the level preferred by the operator. The volume control may have a built-in, on- off switch.

  • Page 7: Limited Warranty

    On the front panel a red LED lights when transmitting. The MB-R includes a transmitter timeout circuit. This protects the unit from unintended non-stop transmission and also frees the channel in the event of a “stuck-mic”. The transmit timeout will shut down the transmitter after approximately 30 seconds of continuous transmission.
