Summary of Contents for Anywhere TK106

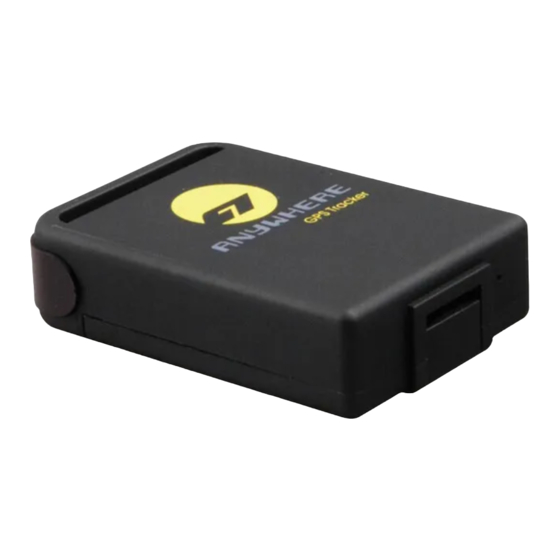

- Page 1 TK106 Quick start guide...
- Page 2 Thanks for choose our product. This Quick Start guide tells you how to set up your GPS Tracker. Please charge 12hours at first use. Insert SIM card in right way. Please put the unit outside and make sure th ...
- Page 3 Installation method...
- Page 4 Password We suggest change the password and keep it in mind. Please contact with franchiser if you forgot it, Unit only work with correct one. Authorization* SMS will be send to Authorized number. Authorized number can send the command without password. Traffic Mode When moved ,the device will send GPS data to monitor platform or mobile phone automatically;...
- Page 5 Breakpoint continuingly Breakpoint continuingly also called blind spot fill preach ,the device will sa ve data automatically, when in real time monitoring, or in the GPRS blind area , or SIM credit run out .Once the GPRS network regained , the stored data will b e automaticly uploaded to monitor platform.
- Page 6 Internet monitor. Set APN. APN stands for Access Point Name. For exa mple picture, China mobile “CMNET”, send SMS“123456apn cmnet” to the unit; if APN have user name and password, For e xample picture, Microcell, APN is internet, user name: fido , password: fido...
- Page 7 IP and port. When APN setting succeed, send SMS“1234 56adminip 119.147.23.100 2337”，it will r eply “ ADMINIP ok!” “2337”is port numbe Data transmission. Send SMS“123456t010s***n” to the unit, will reply ” t010s***n ok”. Data will be tran smission to the platform every 10 seconds. Stop send sms “123456tmno”...
- Page 8 Internet platform. Please contact franchise r. They will supply you platf orm website, User name, Pa ssword and help you to add your unit into platform. You can check more inf ormation about platform in CD-ROM.
- Page 9 Authorization and Password* Call the unit for 10 times and successful positioning. This number will be the defaul t for authorized number. Send SMS "123456 admin 159200XXXX X" to the unit, it will be authorized of this n umber. Only 5 numbers able to be authoriz ation.
- Page 10 One time. Using your mobile phone call the inside number of unit .it will hang up and reply to a real time positioning messages. Contents include: latitude, longitude, speed, date, ba ttery, signal, IMEI number. Send SMS "123456smslinkone" to the u nit, will reply location SMS.
- Page 11 Successive positioning. Send SMS “123456t030s002n” to the u nit, Will reply “t030s002n ok!” It will report the real time SMS at 30s interval for 2 time s. Notice: s=second, minute, h=hour. The sh ortest interval time is 005s, the longest inte rval time is 255h;...
- Page 12 Monitor. Send "123456monitor” to the unit, will reply” monitor ok!”，then call the unit to e nter into the monitor mode .Send “123456t racker”to the unit when need cancel , it will reply “tracker ok!” back into the positionin g mode again.
- Page 13 Traffic mode* Send SMS "123456traffic 5" to the unit, will reply "traffic 5 ok! ". 5 stands for the s ensibility level, setting from 0 to 10. 0 mea ns closing the function. When moving, the unit will send GPS data to monitor platform or mobile phone automatically every 30 se conds;...
- Page 14 Sensor alarm. Send SMS "123456shake 5" to the unit, it will reply "shake 5 ok!". The unit will sen d alarm message to phone when shake. Se nd SMS“123456shake 0” when needs to ca ncel the function. Number 5 stands for the sensibility level, setting from 0 to 10.
- Page 15 Over speed alarm. Send SMS“123456speed 050”to the uni t, it will reply “speed ok!”. When the unit m oves exceeding 50 km/h, the unit will send SMS alarm. When the speed is no more tha n 50km/h, it will send alarm as well. Send “123456speed 0”when needs to cancel.
- Page 16 Movement alarm. When the unit stays immobile in a place for more than 3 minutes, send SMS“12345 6move 200”to the unit, it will reply “move 200 ok!". It will send alarm SMS when mov es out of 200 meters. Send SMS“123456mo ve 0”when needs to cancel.
- Page 17 Geo fence. Set Geo fence for the unit to restrict it movement with in a district. The unit will se nd SMS to the authorized numbers when it breaches the district. If needs Send SMS"12 3456stockade 22589155N,113.827732E;22. 559000N,113.897111E”. 123456stockade stop send“ ”...
- Page 18 Total mileage calculation. If you want to calculate the mileage, acc ording to the following steps: Send SMS“123456gprsdata 1”to the un Send SMS “123456t010s***n” to the unit. Send SMS “123456km0”to the unit. Send SMS “123456km？”,it will reply t he mileage dates.
- Page 19 SOS. Press the SOS for 3 second when dange rous. It will send“ help me ” to all the autho rized numbers.
- Page 20 Map link. There are two f ormats: date forma t, map link format. Send SMS“123456s mslink”to the unit, i t will reply “smslin k ok”，then call th e unit again, it will reply map link, acce ss to this website m ay view location ma p.
- Page 21 Status. Send“123456status”to the unit ，it will reply SMS. Include: IMEI、speed、 battery、position state、time、IP、AP N、Port etc. Time. Default is Beijing time, if you want to Ch ange time, send SMS“123456time zone -6. 5”.Notice :“+”no need to write，“-”must w rite； 6.5=6:30.
- Page 22 UDP/TCP. Default is TCP， change into UDP，Sen d SMS“123456gprsmode 1” to unit，if you want change back to TCP, send SMS“12345 6gprsmode 0”. Version. Send SMS“123456version”to the unit ，it will reply version information Reset. Send SMS“123456begin”to the unit, it will reply“begin ok!”,...
- Page 23 Product parameter GSM/GPRS module: SIMCOM SIM900\SIM300 Band: 850/900/1800/1900Mhz 、900/1800/1900Mhz CPU: ARM Communication protocol: TCP/UDP GPS chip: SIRF3 Sensitivity: -159dBm Accuracy: 5-20m Time To First Fix: Cold status 45s Hot status 1s Wall charger：110－220V input 5V output ...
