CONTROL
MICROSYSTEMS
Quick Start Guide – Ultra JR5O Ethernet Data Radio
Introduction
Welcome to the Quick Start Guide for the Ultra JR50 Ethernet Data Radio. This guide provides step-
by-step instructions, with simple explanations to get you up-and-running.
For further information, please refer to the SCADAWave JR50 User Manual.

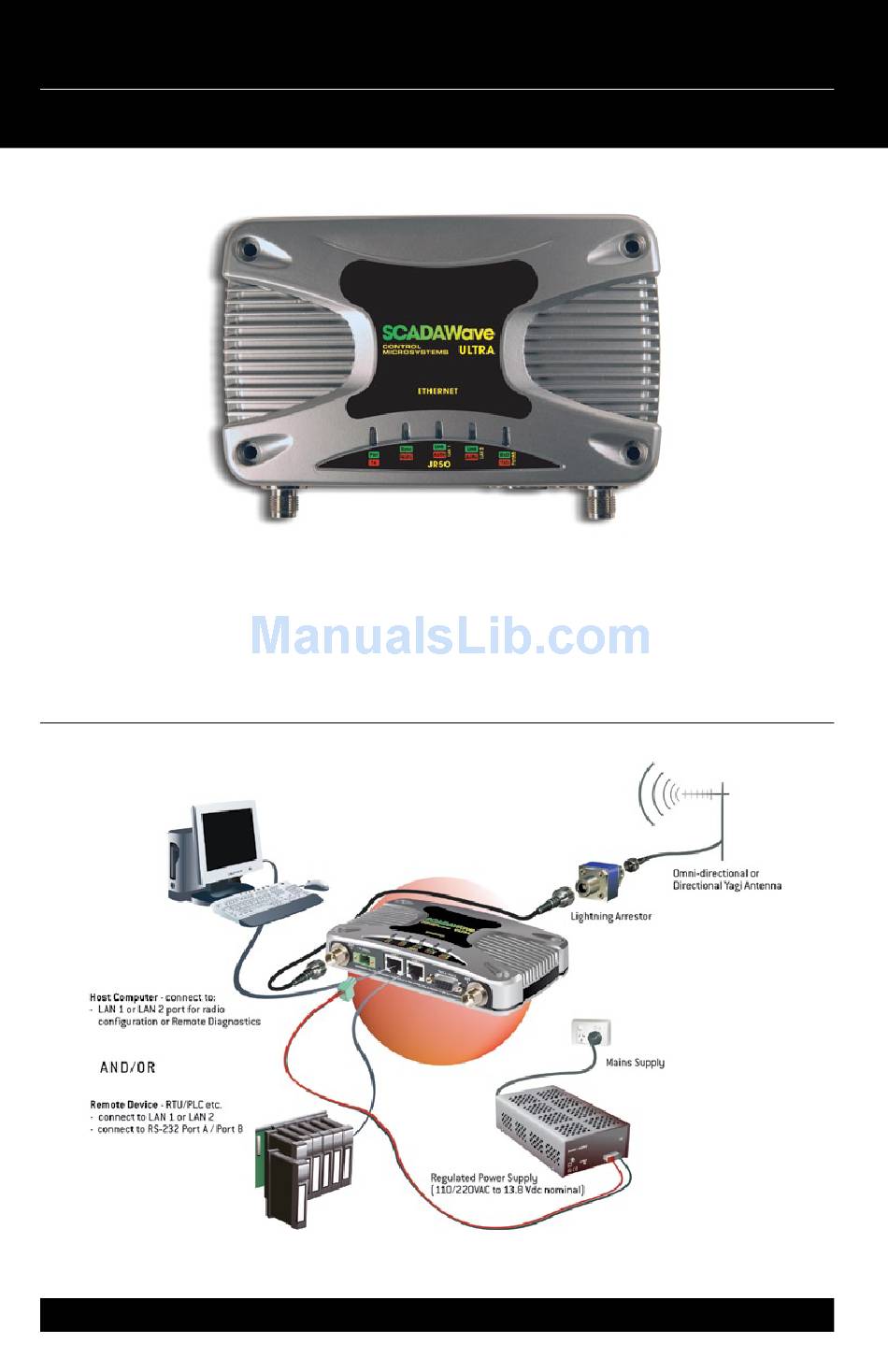

Typical Radio Setup
Quick Start Guide - Ultra JR50 Ethernet Data Radio
1
Advertisement
Table of Contents
Summary of Contents for Control Microsystems SCADAWave Ultra JR5O
- Page 1 CONTROL MICROSYSTEMS Quick Start Guide – Ultra JR5O Ethernet Data Radio Introduction Welcome to the Quick Start Guide for the Ultra JR50 Ethernet Data Radio. This guide provides step- by-step instructions, with simple explanations to get you up-and-running. For further information, please refer to the SCADAWave JR50 User Manual. Typical Radio Setup Quick Start Guide - Ultra JR50 Ethernet Data Radio...
-
Page 2: Mounting And Installation Instructions
SCADAWave Ultra JR5O Mounting and Installation Instructions The radio should be mounted in a clean and dry location, protected from water, excessive dust, corrosive fumes, extremes of temperature and direct sunlight. In high power or high temperature applications, please allow sufficient passive or active ventilation. To avoid moisture ingress mount the radio with the connectors facing downwards. -
Page 3: Communication Ports
Quick Start Guide Communication Ports LAN 1 and LAN 2 Ethernet Ports The LAN 1 and LAN 2 ports are 10/100 Base-T compliant ports using an RJ-45 connector. These ports support both TIA/EIA-568-A & B wiring as they have Auto MDI/MIDX Auto Sensing. This means you can use both straight-through and cross-over type CAT-5 or better patch cables. - Page 4 SCADAWave Ultra JR5O Optimising the Antenna for Rx Signal When using a directional antenna, it will be necessary to align the antenna for the best received signal. This can be done using TVIEW+ Diagnostics or by measuring the RSSI output on Pin 9 of the serial data port.
-
Page 5: Led Indicators
Quick Start Guide LED Indicators DC Power If all the LEDs are off, no DC power is reaching the radio modem or the internal fuse is open. Successful power-up is indicated by the Pwr/Tx LED showing a continuous GREEN state for Remotes or an alternating Red/Green for Access Points. - Page 6 SCADAWave Ultra JR5O J Series Configuration (Web Interface) Introduction and Warnings: Please read the following notes carefully. Configuration errors with Ethernet connections can be difficult to find and resolve. It is strongly recommended that you follow these guidelines. IP Address and Factory Default Reset The factory default IP address of the J Series is 192.168.2.15.
- Page 7 Quick Start Guide IP address of that radio is 192.168.2.15 and a compatible IP address for the PC would be 192.168.2.1. Click OK to accept the changes. Note: Check with your Network Administrator before allocating IP addresses as each LAN/ WAN network is different.
- Page 8 SCADAWave Ultra JR5O Resolving Ethernet Configuration Problems Here are some basic tips to help you along the way with Ethernet configuration problems. The Windows operating system (and others) comes complete with many useful tools. First, you need to open a command window. This can be done by clicking on “Start” then “Run” and entering “CMD”...
- Page 9 Quick Start Guide Step by Step Point to Point Link Setup Introduction This document describes the 10 key steps required for configuring the radio and demonstrating remote diagnostics on a pair of J Series radios operating in Point to Point ( PTP ) mode. After successful diagnostics polling is achieved, subsequent testing can then be done on user equipment such as RTUs or PLCs.
- Page 10 SCADAWave Ultra JR5O Step 2 - Power Up Radios Nominal Power Supply Requirements 13.8V @ 500 mA Apply DC power to the radios. The “Pwr” LED should now be solid GREEN. Wait for 45 secs for the radio to boot. If the radio is configured as a Remote (factory default) the LED will be solid GREEN.
- Page 11 Quick Start Guide Step 4 - Start Web Browser on your PC Start your web browser and insert the IP address of the J Series into the URL. In this case, we type “192.168.2.15” and the configuration page is now displayed in the browser.
- Page 12 SCADAWave Ultra JR5O Step 6 - Activate Remote - PTP Wizard Repeat steps (3) to (6) for the Remote radio. Step 7 - Verify Modem Operation The J Series Ethernet radio modems are now ready for operation. Allow 15 seconds for the...
-
Page 13: Step 10 - Commissioning Record
Quick Start Guide Step 9 - Packet Error Testing This tool provides a useful way to test a radio communications link by transmitting data packets between two units in a loop- backed mode. To start the test, direct the browser to Access Point by typing the IP address of this unit into your URL. - Page 14 4. Tampering or replacement with non-factory components may adversely affect the safe use of the radio modem in hazardous locations and may void the approval 5. A power connector with locking screws as supplied by Control Microsystems MUST be used WARNING EXPLOSION HAZARD Do not connect or disconnect this equipment unless power has been removed or the area is known to be nonhazardous.
- Page 15 (in dBm), the cabling loss and the antenna gain cannot exceed the above stated EIRP limits. Contact www.controlmicrosystems.com The Control Microsystems web site has links to e-mail and telephone support, technical notes, manuals, and software updates. Quick Start Guide - Ultra JR50 Ethernet Data Radio...
- Page 16 Houston Melbourne Leiden Within Nor th America: (888) 267-2232 Outside Nor th America: (613) 591-1943 Control Microsystems reserves the right to change product specifications without notice. Printed in Canada V006 250236 Quick Start Guide - Ultra JR50 Ethernet Data Radio...
