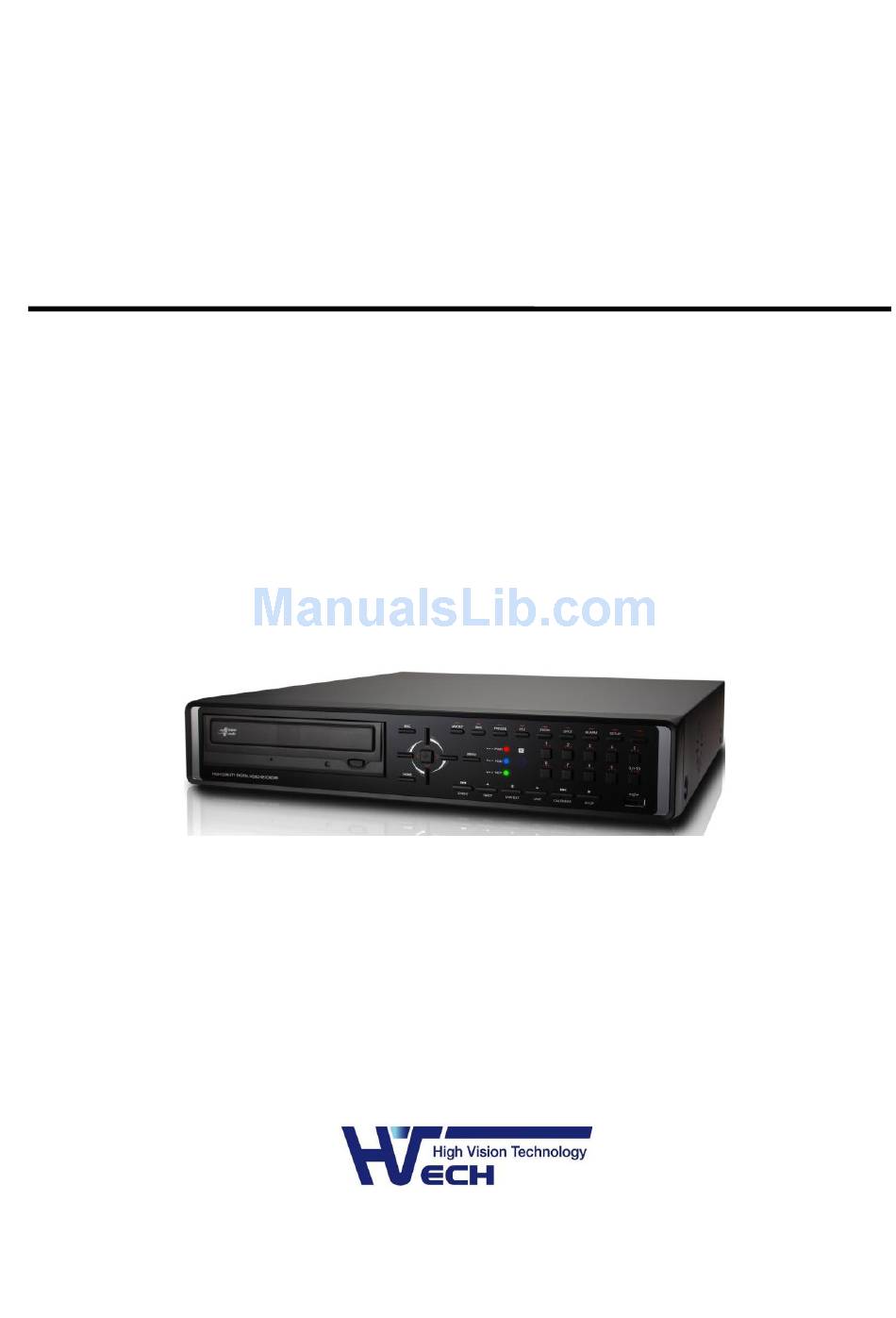

- Page 1 HD-CCTV DVR Digital Video Recorder (Model : HF-402, MF-102/202/402, MH-403, DC-824/1648 ) User Guide (EN Rev1.0)
- Page 2 HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 Product Warranty and Limited Responsibility Thank you for purchasing a High Vision Tech Digital Video Recorder. Before installation or operation please become familiar with the user manual and other referenced manuals mentioned in the booklet.
- Page 3 HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 Warning & Caution Warning √ Please do not bend or press power cord by force which could lead to fire. √ Be careful not to pull. √ Do not pull power cord by force or with wet hands to avoid fire or electric shock.
-
Page 4: Table Of Contents
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 INDEX 1. KEY FEATURES ....................................... 6 2. Part Name and Functions(Front) ..............................7 3. Part Name and Functions(Rear) ..............................8 4. System Start/End(Shutdown) ................................9 4.1 System Start ....................................9 4.2 System Shutdown(End)................................9 5. - Page 5 HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 12. Tools ........................................32 12.1 Upgrade (Firmware) ................................32 12.2 Storage Manager ..................................32 12.3 External Storage ..................................33 12.4 System Log ....................................33 13. Appendix ......................................34 13.1 FAQ (Q&A)....................................34 13.2 Product Dimension ................................35 13.3 HF-402 Spec Sheet ................................
-
Page 6: Key Features
▶ Full Real-Time Live Display & Recording in SD(Standard Definition) (DC-824/DC-1648) ▶ Middle End Level 4CH HD-SDI DVR (HF-402) ▶ Using SD (Analog) Camera & HD-SDI Camera in Hybrid Type DVR (MF-102/MF-202/MF-402/MH-403) ▶ HDMI & VGA enabling superior picture output quality(1920x1080p) ▶... -
Page 7: Part Name And Functions(Front)
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 2. Part Name and Functions(Front) Part Name Functions ① ODD(Cover) DVD & DVD-RW for backup(Option) Used to change a value or move the cursor up / down / left / right. Selects a ②... -
Page 8: Part Name And Functions(Rear)
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 3. Part Name and Functions(Rear) <MH-403(4HD+8SD) Model> Part Functions ① Power Switch Used to Power On/Off ② GA Video Signal Output Port SPOT A live screen output port, separate from the VIDEO OUT. ③... -
Page 9: System Start/End(Shutdown)
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 4. System Start/End(Shutdown) 4.1 System Start When connect Power with DVR and switch on Power button of Rear Panel, Booting Window above will show and system starts. HDMI output don’t show booting window above, just could show Live Display Normally booting time is within 1minute, but just takes more due to abnormal shutdown and HDD stability check-up. -
Page 10: Live Monitoring
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 5. Live Monitoring 5.1 LIVE MONITROING SCREEN CONFIGURATION ● Live Video ● Video OSD(Icon) ● Camera Name – Shows Camera Name(Title) ● Record Mode – Shows current Record Mode Continuous Record Event Record Emergency Record Motion Detection PTZ –... -
Page 11: Context Menu
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 6. Context Menu Setup Screen Division and others like above. It is shown by <Right button of Mouse> or Menu Key. 6.1 Screen Setup and control screen Mode of display. Screen Division/Sequence/Freeze/Zoom Screen Division Mode - 1x1, 2x2, 3x3, 4x4, 1+5, 3+4, 1+7, 2+8, 1+12 Setup by [Context Menu>Screen] or Screen Division Tool Bar. -
Page 12: Control
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 6.2 Control Support PTZ, Zoom, Spot, Alarm/Buzzer, Color, Covert, Mute in Live Pan/Tilt/Zoom Setup and Control PTZ. Setup by [Context Menu>Control>PTZ] - For this, PTZ camera is installed and setup rightly. - Preset Setup =>... -
Page 13: Status Menu
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 Color Control Setup Display Colors Setup by [Context Menu>Control>Color] Can’t Setup Color of HD-SDI Camera Brightness Set Brightness Contrast Set Contrast. Set Hue. Saturation Set Saturation. Covert Setup wanted CH(Camera) be covert(hidden). Setup by [Context Menu>Control>Covert] In Covert, Recording continues. - Page 14 HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 Network Status While Network is connected, this will be activated. Can check and control currently connected Network detail information like above. - IP Address Check and show connectible external IP address and Port (9000: Default) - UPnP(Universal Plug &...
- Page 15 HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 Recording Status Can check each CH’s Recording Status like below.. => Bps is automatically checked in every 10 second. Check and control each CH detail like above (Resolution/Fps/Quality/Mode/Bps) Date/Time Status Check and manage current time Can check current time status like above.(Time Zone/ NTP address).
-
Page 16: Task Bar
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 7. Task Bar In Task Bar like below, users can setup and check the <HOME> menu and all <Information> status menus. In [Context Menu>Always Show Task Bar], users can setup Task Bar always <Shown> or <Shown> by Mouse Move (like PC Window Task Bar) When users can’t see Task Bar, can setup all <Information>... - Page 17 HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 Backup Status While backup, this will be activated. When backup or starting backup, users can check the status like below • Backup Progress Status • Backup Period Status Start Panic Recording Status Refer to Context => Start Panic Recording. (Index 6.3) Audio Status Refer to Context =>...
-
Page 18: Playback
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 8. Playback 8.1 Playback Screen Configuration 1) Playback Video 2) Video OSD - Camera Name – Shows Camera Name(Title) - Playback Mode – Shows current Playback 8.2 Context Menu Setup Screen Division and others like above. It is shown by <Right button of Mouse> or Menu Key. -
Page 19: Playback Control
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 8.3 Playback Control While Playback, users can control and search the data easily by Playback Control Bar like below. By clicking this, users can make Playback Control Bar shown always on top(fixed) or shown only by mouse move - Can change Position in [Context Menu].. -
Page 20: Search
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 9. Search Easily search and playback recorded data like below.. 9.1 Time Table Search (Calendar) 1) Calendar Can check and search Recorded data per day in Calendar. Select Year/Month in clicking Arrow Bar in... -
Page 21: Event Search
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 9.2 Event Search 1) Calendar When clicking a Date in Calendar, Event List is shown like above. Users can select wanted Event and Search and playback. . Select Year/Month in clicking Arrow Bar in Calendar. -
Page 22: Setup
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 10. Setup 10.1 Quick Setup Can Set <Setup> Menu quickly When users don’t change, default and previous values continue. 1) Quick Setup(1/3) - DVR Name – Set DVR Name(Title). - Language – Set OSD Language. -
Page 23: Advanced Setup
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 3) Quick Setup(3/3) - Record Policy – Recycle or One Time select. - Mode – Continuous, Event, Complex(Continuous + Event) Mode - Resolution – Set Recording Resolution CIF/D1/HD1 (HD-SDI 720P, 1024P, 1080P) - Quality – Set Video Quality Lowest ~ Highest ,Total 5 Level - Speed –... - Page 24 HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 1) Information - DVR Name – Set DVR Name(Title) to identify. - Language – Set OSD Language. - Upgrade – Check the current firmware version and upgrade to up-to-date versions by USB or Network.
-
Page 25: Record
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 10.2.2 Record 1) Policy - Recycle/One Time. 2) Record - Can set Record Mode/Resolution/Speed/Quality. - Record Mode ● No Record – Not Recording. ● Normal – Continuous Record. ● Event – Events(Motion, Sensor, Video Loss) Recording. - Page 26 HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 - Schedule : Set Schedule for Recording. - Normal : Set Resolution/Speed/Quality in Continuous Record. - Event : Set Resolution/Speed/Quality in Event Record. - Emergency : Set Resolution/Speed/Quality in Emergency Record. ※ Emergency Record starts by Panic button in Task Bar or Panic Key in front Panel.
-
Page 27: Network
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 10.2.3 Network 1) Basic - LAN – Set IP and DNS. - Port & Bandwidth – Set access port & bandwidth and Auto Port-Forward. ※ Setup Values can be checked in Network Status Information Icon. (Refer to -9) -
Page 28: Device
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 10.2.4 Device 1) Camera - Camera – Set Camera Name and others - Privacy Mask – Set Privacy Mask Areas. Privacy Mask ● It is applied to Record Data ● Areas (Max 4 Areas like below.). -
Page 29: Event
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 - Audio – Set and Check Audio for Record. - PTZ – Set and Check PTZ. 2) Audio - Set Audio 3) Alarm - Set Alarm Name and others. 4) ETC - Buzzer – Set Buzzer & Sound.. - Page 30 HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 Motion Detection Areas Just by clicking Block or Drag & Drop, users can set or delete Areas. Save and Exit to [Context Menu] 2) Sensor - Set Sensor detection. - Set Event Synchronization (Integrated Action). (Refer to -...
-
Page 31: Export/Import Configuration
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 10.2.6 Export/Import Configuration 1) Export - Save current DVR’s Configuration in USB. 2) Import - Import DVR’s Configuration in USB, and apply this to current DVR ※ System Reboots 3) Default - Apply Factory Default. -
Page 32: Tools
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 12. Tools 12.1 Upgrade (Firmware) In [HOME>Tools>Upgrade] or [Advanced Setup>System>Upgrade], users can upgrade firmware. Upgrade starts after download from Network or file Copy from USB, and after full upgrade DVR reboots again. - So restarts 2 times for full upgrade. -
Page 33: External Storage
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 12.3 External Storage - Select Storage and do Upgrade/Backup/Export/Import Configuration and others like above. 12.4 System Log - Can check and manage/playback System Log and save to external Storage or delete. -
Page 34: Appendix
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 13. Appendix 13.1 FAQ (Q&A) Symptom Check Point Q. The system does not turn on and the A. Check if the power supply system is properly connected indicator on the front panel does not A. -
Page 35: Product Dimension
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 13.2 Product Dimension... -
Page 36: Hf-402 Spec Sheet
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 13.3 HF-402 Spec Sheet Item Description Operation Embedded Linux Multi-Language GUI ENGLISH, JAPAN, CHINA, KOREA etc Video Compression H.264 HD-SDI 4CH HD-SDI (SMPTE 292M) input BNC connectors Video Input Composite Video Output 1HDMI / 1VGA / 1Spot... -
Page 37: Mf Series Spec Sheet
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 13.4 MF Series Spec Sheet Item MF-102 MF-202 MF-402 MH-403 Operation Embedded Linux Multi-Language GUI ENGLISH, JAPAN, CHINA, KOREA etc Video Compression H.264 1CH HD-SDI 2CH HD-SDI 4CH HD-SDI 4CH HD-SDI HD-SDI (SMPTE 292M) -
Page 38: Dc Series Spec Sheet
HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 13.5 DC Series Spec Sheet Item DC-824 DC-848 Operation Embedded Linux Multi-Language GUI ENGLISH, JAPAN, CHINA, KOREA etc Video Compression H.264 Video Input Composite 8CH BNC(1.0Vp-p,75Ω) 16CH BNC(1.0Vp-p,75Ω) Video Output 1HDMI / 1VGA / 1Spot... - Page 39 HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 Warranty Product name Digital Video Recorder Warranty term HF-402 / MF-102 / MF-202 / MF-402 Model name / MH-403 / DC-824 / DC-1648 Date of purchase Year Month 1 years after purchase Warranty term...
- Page 40 HD-SDI DVR HF-402, MF-102/202/402, MH-403, DC-824/1648 HIGH VISION TECH Co.,Ltd #1210, Halla SigmaVally, 53 Gasan Digital 2-ro, Geumcheon-gu, Seoul, Korea 153-706 TEL : 02-6443-4850, FAX : 02-6443-4851 www.hivisiontech.co.kr...
