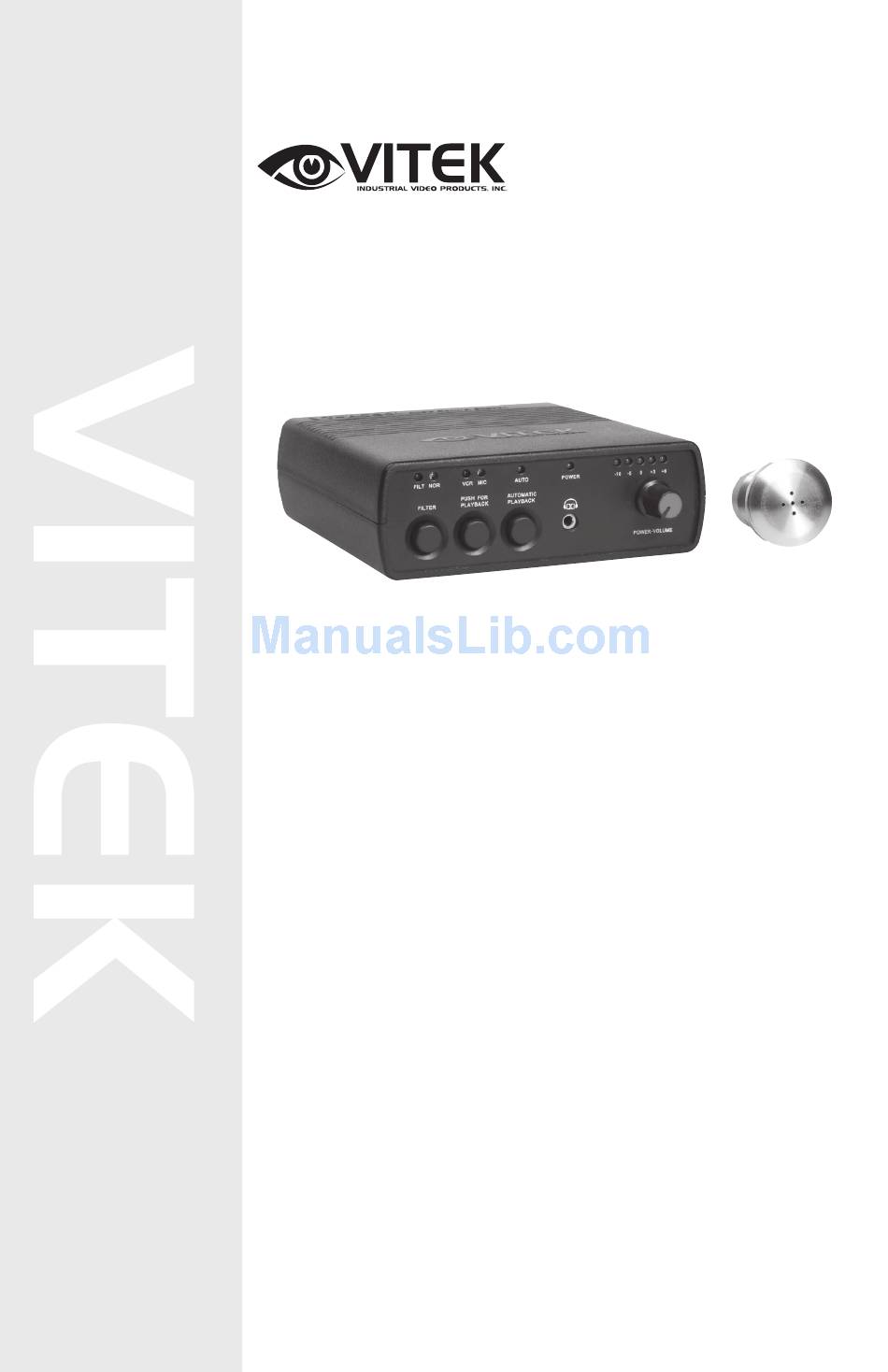

Audio Control Station with internal 3" Speaker for
monitoring live audio and playback
•
Omni-directional Brushed Aluminum Button Style
Condenser Microphone designed to pick up sounds within
a 50' diameter
•
High Sensitivity of -30dB
•
Microphone can be installed up to 2000' from base station
using 22awg shielded microphone wire (not included)
•
12VDC power supply, 3' Dual RCA Audio Cable, and
Audio Warning Decal are also included
VT-ACS01/KT
Audio Surveillance System
Advertisement
Table of Contents
Related Manuals for Vitek VT-ACS01/KT
Summary of Contents for Vitek VT-ACS01/KT
- Page 1 VT-ACS01/KT Audio Surveillance System • Audio Control Station with internal 3” Speaker for monitoring live audio and playback • Omni-directional Brushed Aluminum Button Style Condenser Microphone designed to pick up sounds within a 50’ diameter • High Sensitivity of -30dB •...
- Page 2 2. Only use DC Power Supply 11. Only use attachment/accessories specified by VITEK. 3. Read & Keep these instructions. 12. Use only with cart, stand, tripod, 4. Heed to all warnings and follow all bracket, or table specified by the instructions carefully.
- Page 3 The VT-ACS01/KT Audio Monitoring System enables audio monitoring and external recording to a DVR or other audio recorder accepting a line input . This product incorporates a 3” speaker for Live and Playback audio along with a spe- cial Filter circuit to reduce noise and enhance clarity of sound. An RCA type Audio In/ Out is located on the rear of the attractive desk top Control Station for simple installa- tion.
-
Page 4: Additional Features
ADDITIONAL FEATURES FILTER BUTTON: Use to reduce audio noise and enhance clarity (options are filter or normal) PUSH FOR PLAYBACK: MIC - to listen live. VCR - to listen to recorded audio on playback. AUTOMATIC PLAYBACK: Set for automatic live and playback audio without using push for playback Front Controls Rear Connections... -
Page 5: Important Notes
VT-ACSO1-KT KIT INCLUDES VT-ACS01: Audio Control Station with internal 3” Speaker VT-BT/MIC: Button Style Condenser Microphone VT-12VDC-1000S: 12VDC-1AMP Power Adapter VT-RCA-3: 3’ Dual RCA to RCA Audio Cable VT-A-Decal: Audio Warning Decal ImPORTANT NOTES 1) Always use shielded wire for audio. Unshielded cable is result in noise and hum. - Page 6 4, 8, and 16 Channel Digital Video Recorders with H.264 popular phones including: Compression Apple iPhone, Windows Vitek industrial Video Products, Inc. understands the challenge that Mobile, Palm, Google, you, the Security Dealer, face everyday to continually provide the most Blackberry, and Android powerful and cost effective solutions to your customers.
- Page 7 VTC-IRV30-2810 VTM-LCD174P VTM-LCD174P Mid Range 100’ Day/Night IR Bullet Camera with 550 TV Lines & 2.8-10mm Varifocal VTM-LCD174P Lens 15”, 17“, and 19” Professional LCD Monitors • 1/3” Sony Super HAD II High Resolution with Looping BNC Inputs Color CCD with 550 TVL •...
- Page 8 LImITED LIABILITY WARRANTY Your new VITEK product is guaranteed to be free from defects in materials and workmanship for a period of three years from the date of purchase. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
