1 About Bluetooth Speakerphone
This portable mini-shape Bluetooth speakerphone is specially designed to give you
convenience and freedom of wireless communication which can be used as hands—free car
kit when you are in car or as conference speakerphone on desk-top when you are at home ,
office, etc. With advance built-in microphone on
which adopts D.S.P. solution for Echo Cancellation & Noise Suppression, this speakerphone
creates an outstanding full
duplex sound quality for you.
2. About Bluetooth Technology
Bluetooth wireless technology is set to revolutionize the personal connectivity by providing
freedom from wired connections-enabling links and connectivity between notebook/laptop,
mobile phones, portable handheld devices and other Bluetooth enable Devices within in 10
meters, Utilizing global sound & digital data2.4G l S M transmission, it
makes global communication in the way you are never dreamed of!

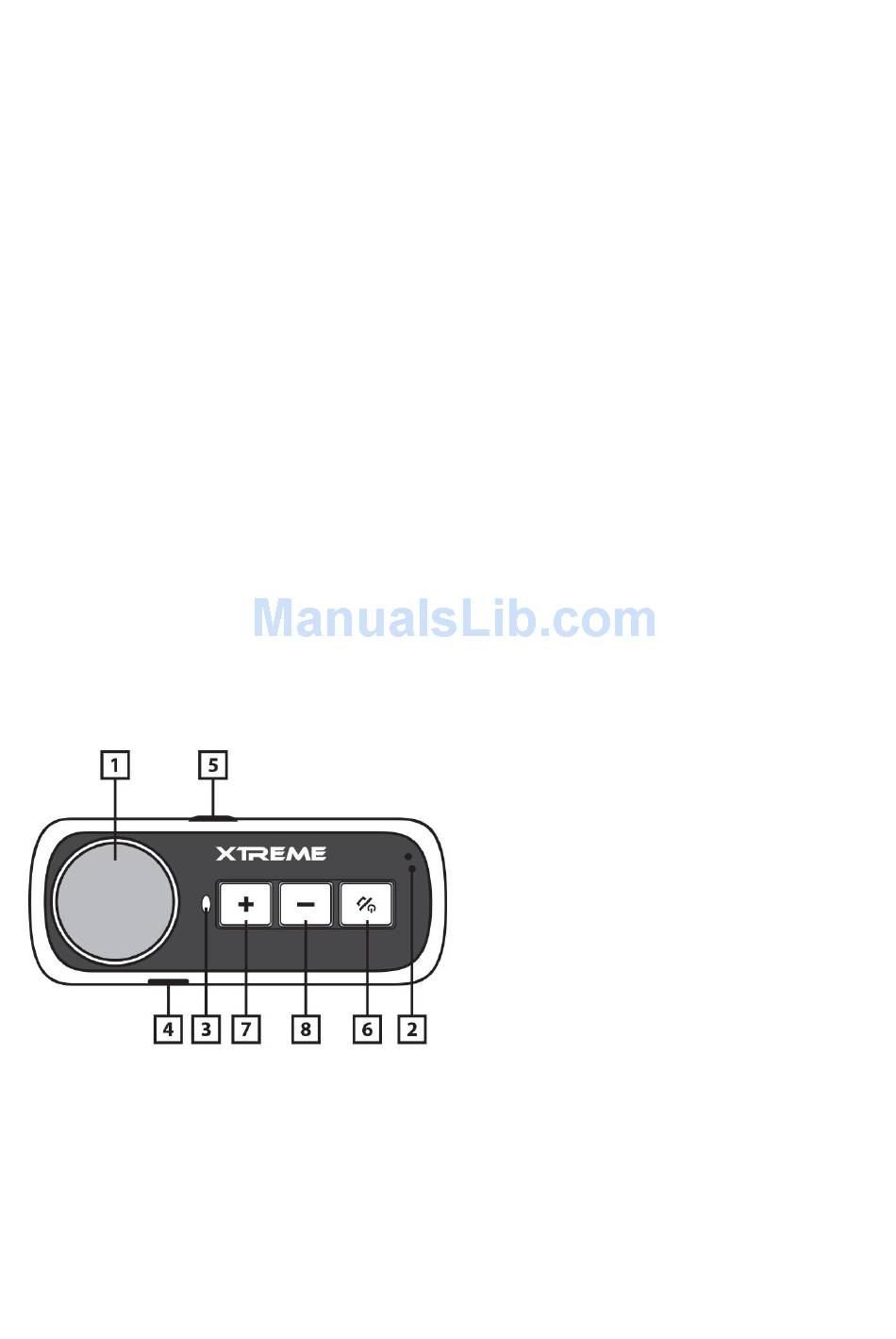

3. Appearance and function
(1) Speaker
(2) Microphone
(3) Status indicator (LED)
(4) Charging Socket
(5) Mute button(Exchange Language and Private talking)
(6) MFB Button(Multi-Function Button) »
(7) Volume-+ (V+)
(8) Volume- (V-)
4. Charging the Battery
The Product with built-in rechargeable battery can be charged random by the equipped
charger. First use your Bluetooth speaker. Please charge the
speakerphone fully.
(1) Prior to using the speakerphone, it is recommended to charge the battery fully for the
first time. Normal full charging time is 3 hrs.(Approx)
(2) While charging, the Red LED Indicator will light up, after charging finished, the
Red LED Indicator will be off and voice report 'Power off"
Advertisement
Table of Contents
Summary of Contents for Xtreme 51870
- Page 1 1 About Bluetooth Speakerphone This portable mini-shape Bluetooth speakerphone is specially designed to give you convenience and freedom of wireless communication which can be used as hands—free car kit when you are in car or as conference speakerphone on desk-top when you are at home , office, etc.
- Page 2 important Notice: (1) Charging indication will be delayed for a few minutes if the speakerphone has not been used for a longtime or the battery is drained. (2) To prolong durability of battery and ensure the stability of Speakerphones functioning, it’s recommended to charge the speakerphone immediately whenever low battery voltage Appear the red LED will flash on every 3 seconds.
- Page 3 Automatic pairing between Speakerphone and Mobile Phone. (1) The speakerphone will automatically connect to the mobile phone matched last time; (2) When the speakerphone is power off or the connected mobile phone is more than 10 meters away from the speakerphone, they will be out of connection automatically and Voice Prompt "Phone is disconnected"...
- Page 4 access calls. It’ll be diverted to speakerphone automatically. (3) Ending a call: During talking status, if you want to end this call, just short press the "MFB" button once to end the call or end the call via your mobile phone in the normal way. (4) Reject a Call: Whenever you would like to reject incoming telegram , press and hold the "MFB"...
-
Page 5: Led Indication
to the hands-free automatic shutdown to loosen the hand, the hands-free has restore factory settings (without any Bluetooth hands-free memory device is matched), restart the restore factory settings. 11. Lower voltage protection of battery. When the battery voltage is low to 3.3V, will hear the voice prompt "low battery", the red LED lights flash once every three seconds, when the voltage is less than 3.0V, hands-free automatically shut down. - Page 6 areas, and potentially explosive atmosphere. (4) Turn off your speakerphone prior to boarding an aircraft. Do not use your Speakerphone on an airplane. (5) Never place or store the speakerphone over the area of the automobile’s safety airbag deployment, or it may cause serious injury when a safety airbag deploys. 15.
