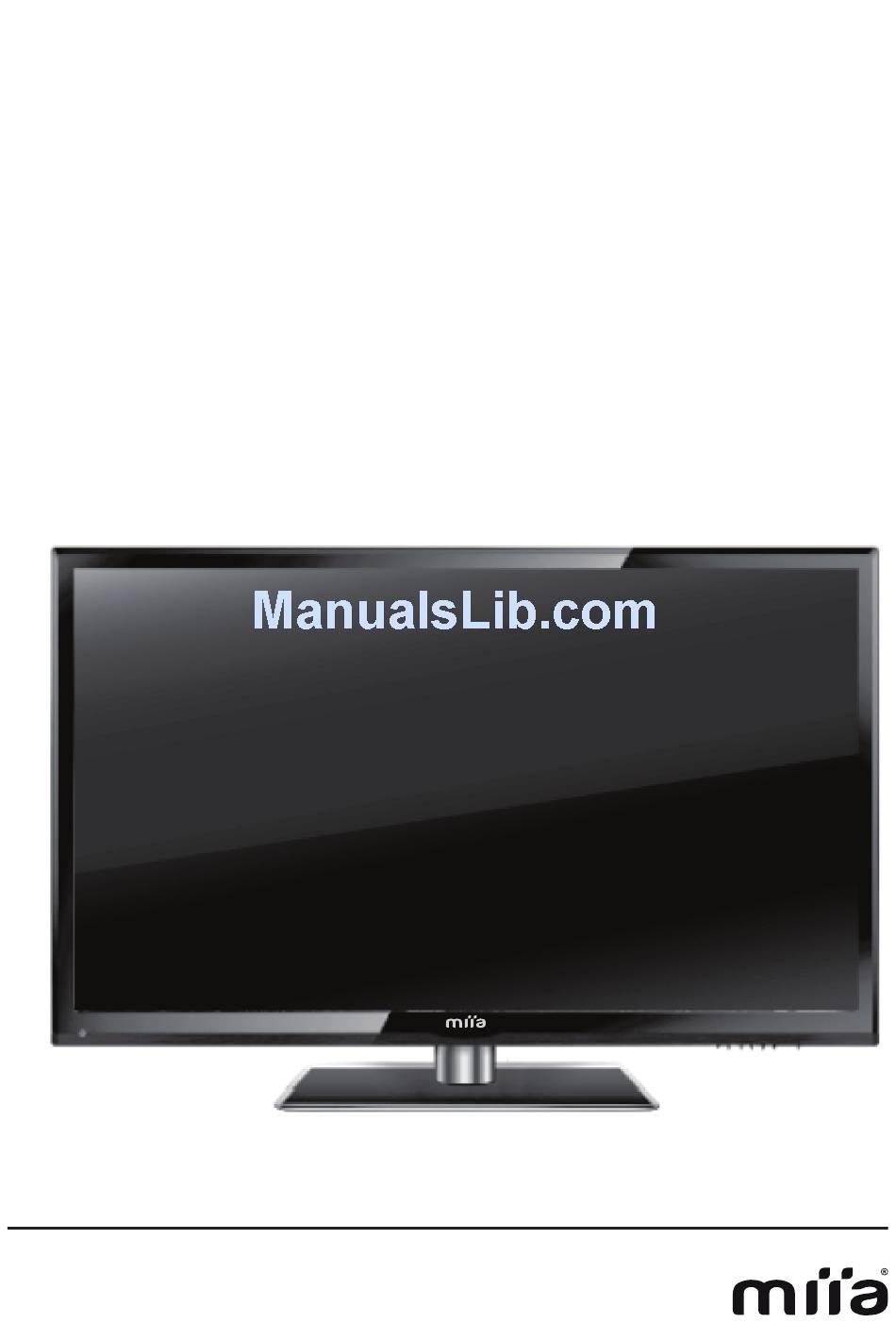

  • Page 1 LEDTV MIIAVISION 32” HD Ready MIIA MTV-C32DLEHD Instruction manual...
  • Page 3: Table Of Contents

    Contents Important safety instructions..........3 Setting up and using your TV ..........What' s included with your TV..........8 Sockets on the back of your TV........... 9 Basic installation ..............10 Remote Control Instruction..........15 Select Input Source......
  • Page 4: Important Safety Instructions

    Important safety instructions Warning Do not let your TV become wet(for example, by keeping it in a damp room, leaving it outside or dripping water on it) You must not put objects filled with water on your TV (including vases of water). 7.Do not put your TV near any heat source 1.Read these instructions carefully.
  • Page 5 Important safety instructions 12.Unplug your TV both power and 11.Only use TV trolleys , stand s ,tripods or antenna during lightning storms or table s that we approve. If you use a when you won't be using it for a week trolley /table with your TV, be careful or more.
  • Page 6 Important safety instructions You will see these stickers on your TV. This symbol means there are wires in your TV which are not insulated. If you touch these wires, you may get an electric shock. This symbol means you should read the servicing guide before you take further action.
  • Page 7: Setting Up And Using Your Tv

    Setting up and using your TV 1.Check the voltage shown on the serial number or rating label on your TV, and make sure your TV is compatible with the voltage in your home. If you are not sure about the voltage you have in your home, please contact your distributor or an electrician.
  • Page 8: Safety Notice

    Setting up and using your TV Do not try to repair your TV yourself. There is high voltage inside it and you could receive an electric shock. Safety notice Your TV has a CE marking. This means your TV meets both the EMC directive (89/336/EEC), (93/68/EEC) and the Low Voltage Directive (73/23/EEC) that the European Community have issued.
  • Page 9: What' S Included With Your Tv

    What is included with your TV What your TV should look like What is included with your TV User guide Remote control How to use your remote control 1.Take the back cover off your TV remote and put two AAA batteries into the remote control.
  • Page 10: Sockets On The Back Of Your Tv

    S o c k e ts o n th e ba c k o f y o u r T V S o c k e ts o n th e ba c k o f y o u r T V 1.Press “VOL+”...
  • Page 11: Basic Installation

    BASIC INSTALLATION Power Cord Connection - Connect the power cord correctly as shown. - Press the STANDBY switch of your LED TV to switch the unit on. The power indicator on the front panel lights up in green or blue. Antennas Connection To ensure good picture and sound,TV antenna system needs to be installed.
  • Page 12 AV Connection Connect the VIDEO and AUDIO output jack of the DVD or VCR to the AV IN jacks on the set using the RCA cable (Yellow [video], White and RED [left & Right audio]). Select the AV input source using the SOURCE button on the remote control. Connect the YPbPr/YCbCr output of the DVD or VCR to the YPbPr input on the set.The picture quality is improved compared to connecting a regular VCR to the video input.
  • Page 13 VGA(PC) Connection Connect the RGB output of the PC to the VGA jack on the set. Connect the AUDIO output of the PC to the PC AUDIO jack on the set. Select the PC input source using SOURCE button on the remote control. HDMI connection allows the user to transfer both audio and video control signals through one cable only.
  • Page 14 SCART Connection Connect the SCART connector on the external video device to the SCART connector on the LED TV using a SCART cable. MEDIA Connection USB: Connect to portable usb device.
  • Page 15 Headphone Connection Head phone -You can connect a headphone to your TV if you wish to watch program without disturbing people around you. -Insert some standard headphone with a 3.5mm jack plug into the 3.5mm jack on the back of the TV (see diagram). NOTE: WARNING 1.HEADPHONE VOLUME WARNNING.
  • Page 16: Remote Control Instruction

    Remote control instruction POWER Press this button to switch your TV on or put it into standby. MUTE Press MUTE to turn off the sound on your TV. Press MUTE again to put the sound back on your Number buttons Press 0~9 button to select a TV channel.
  • Page 17 Remote control instruction To Record what is currently on television. FAV- Press to decrease your favourite program. FAV+ Press to increase your favourite program. Opens the 8 Day TV Guide(Digital TV model). Displays Favourites list. SUBTITLE To switch the dialogue at the bottom of the screen(on/off).
  • Page 18: Select Input Source

    Select Input Source SOURCE SCART YPbPr HDMI1 HDMI2 HDMI3 SOURCE:Exit Basic Menu Operation Press SOURCE button on the remote control to display the input source list Press ▼ / ▲ button to select the input source you want to watch. Press OK button to enter the input source.
  • Page 19 Picture Menu Press MENU button to display the main menu. Press ◄ / ► button to select PICTURE in the main menu,it will highlight the first option. Picture Picture Mode Standard Brightness Contrast Sharpness Saturation Color Temp Standard Aspect Ratio Full Adjust Move...
  • Page 20 Advanced Settings Advanced Settings Medium MPEG NR Medium Dynamic Contrast Adjust Move MENU:Return EXIT : Exit...
  • Page 21 Sound Menu Press MENU button to display the main menu. Press ◄ / ► button to select Sound in the main menu,it will highlight the first option. Sound Sound Mode Standard Treble Bass Balance Surround Sound EQ Setting SPDIF Adjust Move MENU:Return EXIT : Exit...
  • Page 22 EQ Setting Press ▼ / ▲ button to select EQ Setting, then press OK/ ►button to enter submenu. EQ Setting EQ Mode 120 Hz 300 Hz 500 Hz 2 Khz 0 Khz 5 Khz Adjust Move MENU:Return EXIT : Exit Press ▼...
  • Page 23 Channel Menu Press MENU button to display the main menu. Press ◄ / ► button to select CHANNEL in the main menu,it will highlight the first option. Channel Auto Scan Manual Scan Channel Edit Common Interface Signal Information CICAM Profile Edit OK:Select Move MENU:Return...
  • Page 24 Manual Scan Press ▼ / ▲ button to select Manual Scan , then press OK/ ►button to enter submenu. (Default password is ‘0000’) Manual Scan Digital Manual Scan Analog Manual Scan OK:Select Move MENU:Return EXIT : Exit Digital Manual Scan Press ▼...
  • Page 25 Channel Edit Press ▼ / ▲ button to select Channel Edit , then press OK/ ►button to enter submenu (Default password is ‘0000’) . Channel Edit Move Skip Delete Page Move OK:Select MENU:Return EXIT : Exit The three colored key is the shortcut key for programming the channel. First press ▼...
  • Page 26 CICAM Profile Edit Press ▼ / ▲ button to select CICAM Profile Edite , then press OK/ ►button to enter submenu. CI+1.3 Installed Profile List empty... empty... empty... empty... empty... Delete Update Now Exit:Close...
  • Page 27 Lock Menu Press MENU button to display the main menu. Press ◄ / ► button to select LOCK in the main menu,it will highlight the first option. Lock System Enter Password Enable Channel Locks Parental Rating None Lock Keypad Hotel mode New Password Clear Lock Move...
  • Page 28 Parental Rating Press ▼ / ▲ button to select Parental Rating , then press ◄ / ► button to select. Lock Keypad Set to prevent it from being used by young child ren,or other unexpected usage. Press ▼ / ▲ button to select Lock Keypad , then press◄ / ► button to selec On or Offt. Hotel mode Press ▼...
  • Page 29 Setup Menu Press MENU button to display the main menu. Press ◄ / ► button to select SETUP in the main menu, it will highlight the first option. Setup English OSD Language Audio Languages Subtitle Teletext Mode Setting Home Mode Time Settings PVR Settings First Time Setup...
  • Page 30 , ATV, SCART, and AV source. Mode Setting Adjust TV mode settings, including Home Mode and Store Mode,...
  • Page 31 PVR Setting PVR Setting Press ▼ / ▲ button to select , then press OK button to enter submenu. It will check the USB First Time Setup Press ▼ / ▲ button to select First time Setup, then press OK button to enter First Time Setup OSD Language English...
  • Page 32 PC Menu Press MENU button to display the main menu. Press ◄ / ► button to select SETUP in the main menu, it will highlight the first option. PC Setting Auto Adjust H Position V Position Phase Clock Move OK:Select MENU:Return EXIT : Exit 1.
  • Page 34: Usb Multimedia P Ayback Format L

    Media Menu Date 2014-05-12 20:33:15 6/12 S8300639.JPG Resolution 1366 x 768 OK Slide Show / single View Previous / Next Rotate EXIT Back Quick Menu...
  • Page 37: If You're Having Problems

    If you're having problems If you are having problems with your TV, carry out the following checks first. If you are still having problems, unplug your TV and contact the service centre. Problems and how to fix them There is no sound and no picture coming from my TV. -Check that you have connected the TV power cord properly and switched the wall socket on.
  • Page 38 If you're having problems Note: This page only refer to Video Graphics adaptor (VGA) problems. Problems and how to fix them The signal is out of range. -Change the resolution, horizontal or vertical frequency of your source(PC etc. ) . -Check whether the signal cable is connected from the PC to your TV properly.
  • Page 39: Your Tv's Specification

    Your TV's specification LED Panel 32 inch Pixel pitch 0,17025(O) x 0,51075(V) LED panel 28 inch Resolution 1366 x 768 0.27675( H) x 7675( V) Aspect Ratio 16:9 1366x768 Display colours 16,7M colours 16: 9 Backlight life 30.000 hours 16.7M colours Power supply 30,000 hours 100-240V~50/60Hz...
  • Page 40: Wall Mount Installation

    Wall mount installation REMOVING THE BASE STAND INSTALLING : The LED D isplay i s v ery f ragile and m ust b e p rotected a t a ll t imes w hen r emoving t he b ase WARNING Stand.
  • Page 41: Attaching The Stand

    Attaching the stand Place the stand on the TV, insert and tighten the screws 4x14mm (found in the accessories box) in the circled area with the screwdriver provided. Then the TV is ready for use now.
  • Page 42 Produced by: Futura Grafica Spa Via Domenico Fontana 12 00185 Roma - Italy MADE IN CHINA MTV-C32DLEHD...
