INSTRUCTION MANUAL
Optical Tube: 102mm/1000mm Equatorial Mount: EQ3-2
E
F
G
H
I
J
K
1
2
L
3
4
5
FOR 1021EQ3-2
C
D
11
10
9
8
7
6
a
b
B
A
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
K.
L.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
a.
b.
Dust Cap (not shown)
Remove before Viewing
Objective Lens
(not shown)
Sun Shade
Telescope Main Body
Piggyback Bracket
Finderscope
Finderscope Bracket
Alignment Screw
Eyepiece
Diagonal
Focus Tube
Focus Knob
R.A. Flexible Control
Cable
Dec. Flexible Control
Cable
R.A. Lock Level
Polarscope Holder
(not shown)
Altitude Adjustment T-bolts
Counterweight Rod
Counterweight
Counterweight Thumb
Screw
Azimuth Adjustment Knob
Dec. Lock Level
Tube Rings
Accessory Tray
Tripod Leg

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sky-Watcher 1021EQ3-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Synta Sky-Watcher 1021EQ3-2

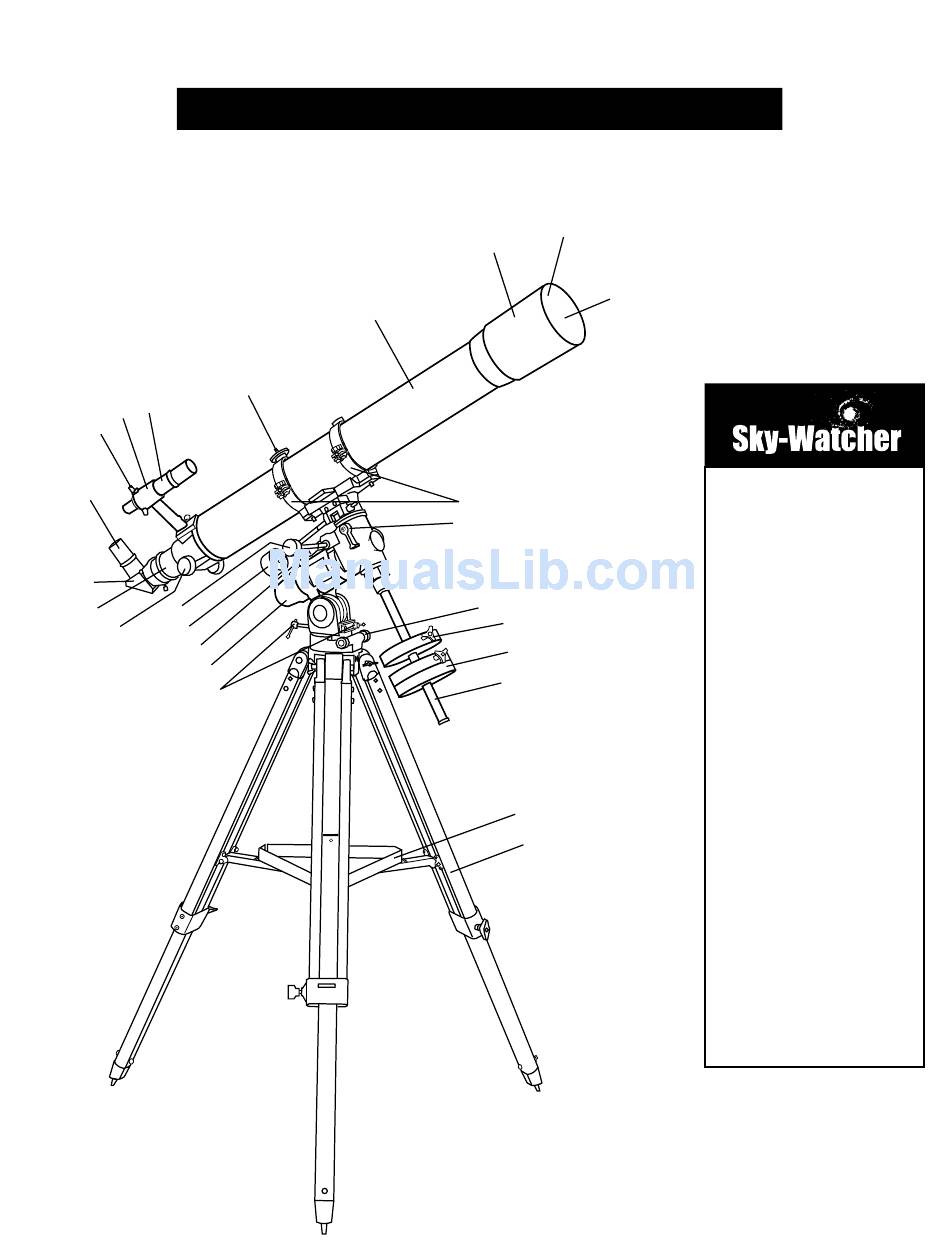

  • Page 1 INSTRUCTION MANUAL FOR 1021EQ3-2 Optical Tube: 102mm/1000mm Equatorial Mount: EQ3-2 Dust Cap (not shown) Remove before Viewing Objective Lens (not shown) Sun Shade Telescope Main Body Piggyback Bracket Finderscope Finderscope Bracket Alignment Screw Eyepiece Diagonal Focus Tube Focus Knob R.A. Flexible Control Cable Dec.

  • Page 2: Assembling Your Telescope

    TABLE OF CONTENTS Assembling Your Telescope Tripod Set up Telescope Assembly Finderscope Assembly Eyepiece Assembly Operating Your Telescope Aligning the Finderscope Balancing Telescope Using the Equatorial Mount (EQ3-2) Using the Oculars Proper Care for Your Telescope Suggested Reading Follow the instructions for your specific Never use your telescope to look directly at the sun.
  • Page 3 SETTING UP TRIPOD RIPOD (1), (2) SET UP 1) Locate equatorial mount/tripod head. 2) Locate and loosen the knurled knob at bottom of the mount to seperate the tripod head. 3) Lie tripod head on its side. Fasten the tripod INSTALLING ACCESSORY TRAY (3) 1) Locate tripod leg brace.
