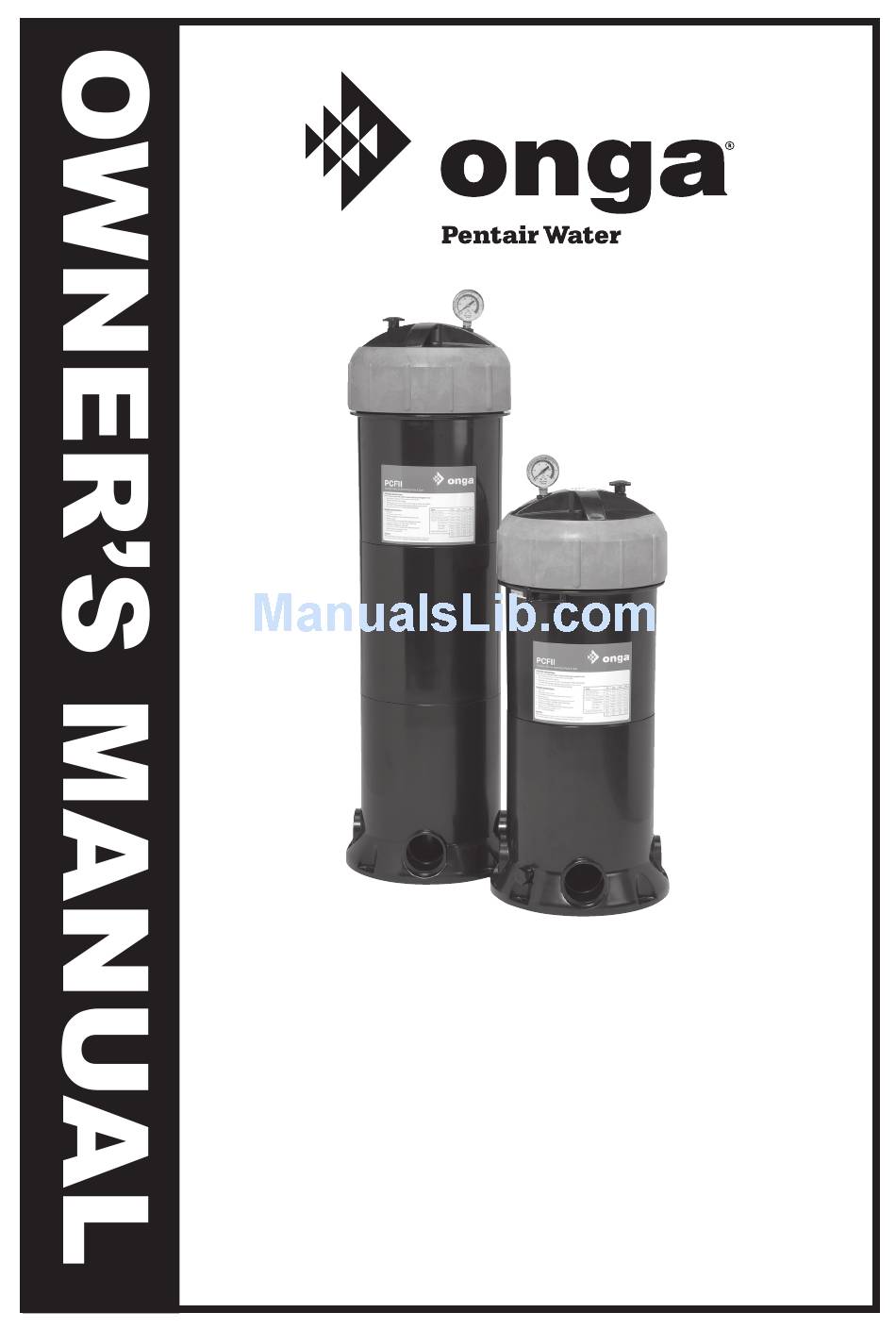

- Page 1 Pantera Cartridge Filter II PCF-II Should the installer or owner be unfamiliar with the correct installation or operation of this type of equipment you should contact the distributor/manufacturer for the correct advice before proceeding with the installation or operation of this product.
- Page 2 Relax - you’ve bought an Congratulations on your decision to purchase an Onga product. Onga is one of the best know brands in its fi eld, with a proud local and international reputation. Onga is a brand for reliability, value for money and technological innovation.
- Page 3 ISO 9001:2000 accreditation. A Fair Price Onga products are neither the cheapest nor the most expensive in their fi eld. Our products do, on the other hand, always represent very good value for money; they always have and they always will.
-
Page 4: Table Of Contents
Table of Contents Page Model Data Filter Application Installation Installation & Assembly of Filter Startup Operation Cartridge Maintenance Tank Assembly Troubleshooting Warranty... -
Page 5: Model Data

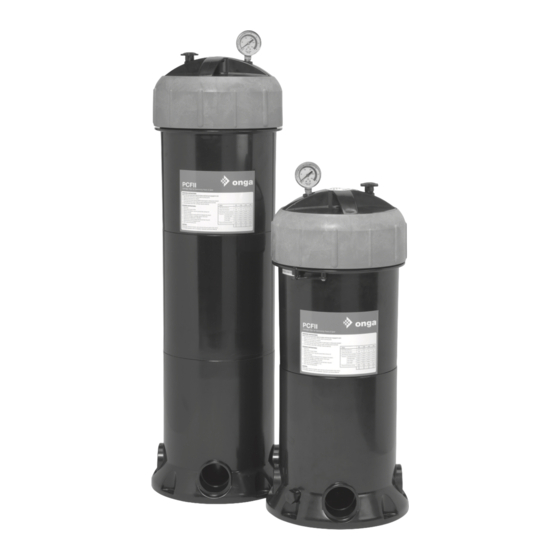

Manufactured in New Zealand, the Onga Pantera Cartridge fi lter is made from UV stabilised PVC. The reputation of durability and performance makes the Pantera cartridge fi lter a great choice for pools of all sizes. -
Page 6: Filter Application
Filter Application - General Information This fi lter is designed for use in domestic/residential swimming pool installations with correctly sanitised fresh or salt chlorinated water. 1. Locate the fi lter system as close to the pool as practical. 2. Place the fi lter on a level stable foundation, preferably a concrete pad or paving. -
Page 7: Installation
Installation Hazardous Pressure Incorrectly installed or tested equipment may fail, causing severe injury or property damage. Read and follow instructions in owner’s manual when installing and operating equipment. Have a trained pool professional perform all pressure tests. All glued fi ttings and pipe work should be allowed to dry to atmosphere for 24 hours before closing installation. -
Page 8: Installation & Assembly Of Filter
Installation & Assembly of Filter Installation of fi lter should be carried out by qualifi ed personnel. 1. Select the fi lters location. Ensure that the fi lter does not restrict the airfl ow from the pump’s motor, and ensure that there is enough room above the fi... -
Page 9: Startup
Startup 1. Ensure pool is fi lled to three quarters of the way up the skimmer opening. 2. Open manual air bleed on the lid of the fi lter, so that the fi lter fi lls with water from the pool. Air will be expelled as it fi lls. Close the manual air bleed when it starts to release water. -
Page 10: Operation
Operation The fi lter operator or owner must be provided with this owner’s manual. This must be read before operation, and followed during operation. Incorrectly installed or tested equipment may fail, causing severe injury or property damage. Read and follow instructions in owner’s manual when installing and operating equipment. -
Page 11: Cartridge Maintenance
Cartridge Maintenance General: Wash outside of fi lter with a mild detergent and water. Rinse off with hose. DO NOT use solvents to clean fi lter, solvents may damage components in system. 1. On a weekly basis, check pressure during operation. When pressure is 70kPa higher than clean operating pressure, clean the fi... -
Page 12: Tank Assembly
Tank Assembly Item Title Quantity Item Title Quantity Tank Base Mac Union Tail Element Mac Union O-Ring Lid O-Ring Drain Bung O-Ring Drain Bung Lock Ring Blank cap Air Bleed O-Ring Safety Lock Lever Screw Air Bleed Safety Lock Lever Washer Pressure Gauge Safety Lock Mac Union Nut... -
Page 13: Troubleshooting
Trouble Shooting Symptom Cause Remedy No Water Discharge Pool water level too low Fill pool to correct level Air leaks in inlet fi ttings to Check and tighten all connections. pump. Tefl on tape fi ttings Short Filter cycles Filter Dirty Clean fi... -
Page 14: Warranty
Pentair Water Product Warranty Pentair Water warrants that, when this product is used for the purpose it was designed, is correctly housed and vented against weather, vermin, dust etc., that it will be free of material and manufacturing defects at the time of the original purchase. This warranty is limited to the cost of the product and does not cover third party costs including the costs of electricians, plumbers, etc. - Page 15 Exclusion of damages: PENTAIR WATER’S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. ONGA SHALL NOT BE LIABLE FOR: 1) DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE OF BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
- Page 16 IMPORTANT Please attach your sales invoice/docket here as proof of purchase should warranty service be required. Please do not return Warranty - Retain for your records. Purchased From ........................Purchase Date........Serial No......Model No......Pacifi c Head Offi ce Australia Pentair Water Australia Pty Ltd Notting Hill Victoria, Australia...
