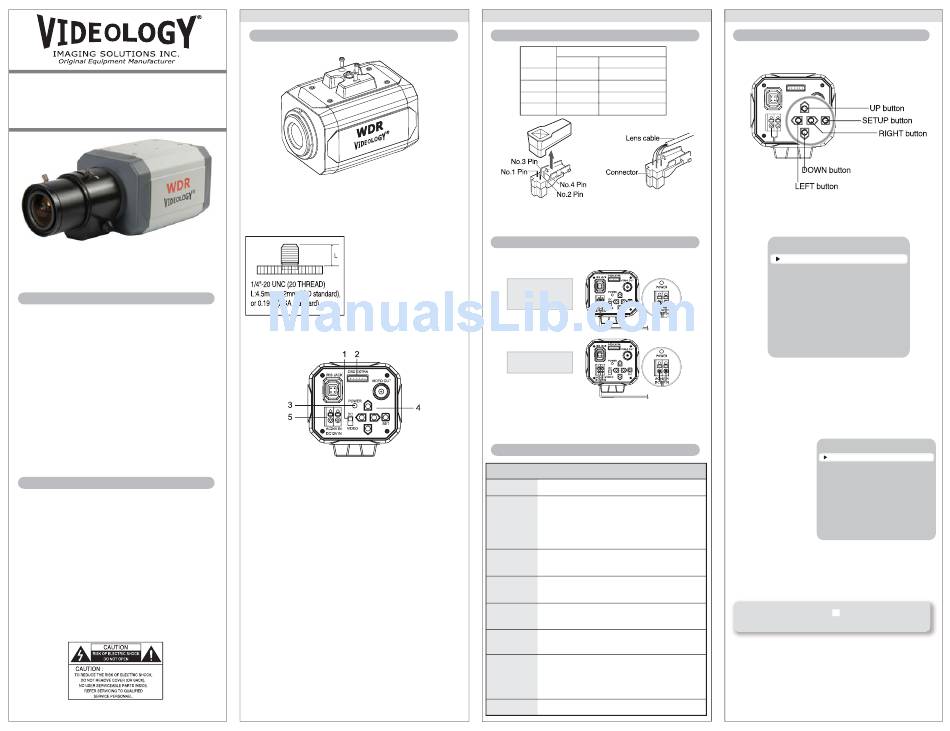

Videology WDR 20C708W How To Use

Wdr Day/Night
Color Box Camera
shown with optional lens
(not included)
MODELS (NTSC/PAL)
20C708W / 21C708W
PRODUCT FEATURES
• 1/3" Pixim CMOS progressive scan
• 690 TVL resolution
• Low 0.1 lux sensitivity
• Dynamic range to 120dB
• Global shutter
• 3D motion adaptive noise reduction (DNR)
Features available via OSD
• Motion detection
• Day/night mode
• Digital pan/tilt/zoom (8x)
• Digital slow shutter (DSS)
• Push to set white balance
• Sens-up (2x-32x)
• NTSC/PAL selectable
BOX CONTENTS
• 20C708W (NTSC) or 21C708W (PAL) camera
• Mounting Plate attached to housing with 2 screws.
(movable for top mounting)
• Operation manual
• C mount adapter ring
SAFEGUARDS & WARNINGS
1. Read instructions before operating camera.
2. Avoid mounting in direct sunlight.
3. Installation and repair should be undertaken by
authorized personnel only.
INSTALLATION TIPS
If the camera is to be mounted outdoors, or in hot,
humid, or otherwise harsh environments, a
secondary enclosure should be used.
03/07/11 INS-20C708W Rev A Preliminary

How to Use the Camera

Names and Functions of Parts

Mounting bracket screw holes
Use the screw holes when fixing the camera onto the
mounting bracket. Please use the clamp screw as
specified in the picture.
The mounting bracket can be
separated and attached on
the top of the camera.
※Please do not tighten the
screw to a depth of more
than 5mm, otherwise serious
damage can occur to the
inside of the camera.
1. Auto iris lens selection switch
Change the mode to DC or VIDEO depending on the
type of auto iris lens being used.
2. OSD Extra
Connects to the remote controller (option).
3. Power lamp
Lights up when the correct power is supplied to the
camera.
4. Setting button
SET button: Used for the menu display. This button
can be used to confirm settings after changing the
value of the selected function or current conditions.
UP & DOWN buttons: Used for selecting items by
moving the cursor up or down on the menu screen.
LEFT & RIGHT buttons: Used when changing item
values, by moving the cursor to the left or right on the
menu screen.
5. Power input terminal
How to Use the Camera

LENS INSTALLATION

LENS
Pin No.
DC VIDEO
No.1 Pin Damping- Red(power)
No.2 Pin Damping+ NC
No.3 Pin Drive+ White(video signal)
No.4 Pin Drive- Black(GND)

POWER CONNECTION

Check the standard power requirement before connecting
to power.
Dual Power Type
(AC 24V/DC 12V,
AC 24V Class2)
DC Power Type
(DC 12V, 500mA)
MENU

SETUP MENU

PRESETS

• NORMAL • INDOOR • OUTDOOR
Exposure • LENS • FOCUS
• EXPOSURE • AGC
MODE • HIGHLIGHT
• DNR • SENS-UP
• COLOR ROLL
• MIDDLE • HIGH • USER
WDR
• LOW
WHITE • ATW • INDOOR • OUTDOOR
BALANCE • AWB • MANUAL
• AUTO • COLOR • BW
• EXTERN
Day/Night
• FREEZE • FLIP • SHARPNESS
Image Adj. • COLOR GAIN • GAMMA
• CAMERA ID • VIDEO OUT • DZOOM
Special • MOTION • PRIVACY • SYNC
• RESET SETUP
• RETURN
Exit Menu
How to Use the Camera

SETTINGS

Settings can be made using the 5 buttons on the rear
of the camera.
OSD EXTRA
IRIS JACK
VIDEO OUT
POWER
DC
SET
SET
AC 24V IN VIDEO
DC12V IN
1. Press the SET button
• Settings can now be made. The SETUP menu is
displayed on the monitor.
SETUP
PRESETS NORMAL
EXPOSURE..
WDR MIDDLE
White Balance ATW
DAY/NIGHT AUTO..
IMAGE ADJ..
SPECIAL..
EXIT MENU.
2. Select a menu item from the list available by using
the UP and DOWN buttons.
• Functions are selected using up and down
buttons.
• The selected position is displayed in blue.
SETUP
Select the function using
PRESETS NORMAL
the UP or DOWN button
EXPOSURE..
WDR MIDDLE
Change the status
WHITE BALANCE ATW
using the LEFT or
RIGHT button DAY/NIGHT AUTO..
IMAGE ADJ..
SPECIAL..
EXIT MENU.
3. Change a selected item by using the Left and Right
buttons.
4. To finish and save the settings, select 'EXIT' and
press the SET button.
NOTE: An item with the .. icon has sub-menus.
To select a sub-menu, press the SET button.
