SECURITY SYSTEM ONLY
REMOTE CAR STARTER ONLY
SECURITY SYSTEM AND REMOTE CAR STARTER
AUTOMATIC / MANUAL TRANSMISSION - 1-WAY REMOTES
FTX64-1W
Model : FTX-64-2W
FCC ID : 2ACKU-R2W01FM
IC : 12084A-R2W01FM
Manufacture :
FORTIN ELECTRONIC SYSTEMS
DESIGNED & ENGINEERED IN CANADA
DOC#: 20141209 REV:3 © 2014 ALL RIGHTS RESERVED
Model : ANT-FMH-2W
FCC ID : 2ACKU-A2W01FM
IC : 12084A-A2W01FM
Manufacture :
FORTIN ELECTRONIC SYSTEMS
User Guide
Advertisement
Table of Contents
Related Manuals for Fortin Electronic Systems FTX64-1W
Summary of Contents for Fortin Electronic Systems FTX64-1W
-
Page 1: User Guide
Model : ANT-FMH-2W FCC ID : 2ACKU-R2W01FM FCC ID : 2ACKU-A2W01FM IC : 12084A-R2W01FM IC : 12084A-A2W01FM Manufacture : Manufacture : FORTIN ELECTRONIC SYSTEMS FORTIN ELECTRONIC SYSTEMS DESIGNED & ENGINEERED IN CANADA DOC#: 20141209 REV:3 © 2014 ALL RIGHTS RESERVED... -
Page 2: Table Of Contents
TABLE DES MATIÈRES TABLE OF CONTENTS TABLE OF CONTENTS ......................... 2 INTRODUCTION ..........................2 CAUTION - WARNING ......................... 3 NOTE ..............................3 INDUSTRY CANADA USER NOTICE ...................... 3 GOVERNMENT REGULATIONS ......................3 USING THE REMOTE CONTROL ......................4 REMOTE-STARTING ..........................5 REMOTE-STARTING THE VEHICLE ....................... -
Page 3: Caution - Warning
CAUTION - WARNING IT IS THE RESPONSIBILITY OF THE REMOTE CAR STARTER OPERATOR TO: • ensure that the vehicle is parked in a safe and responsible manner. • ensure that the vehicle is not remotely started indoors (garage, underground park- ing). -
Page 4: Using The Remote Control

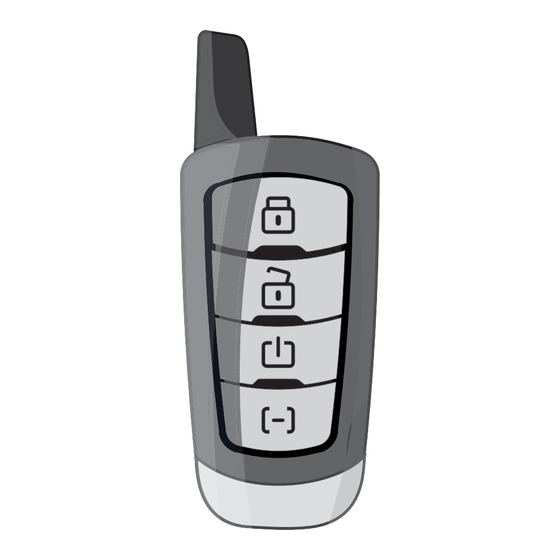

USING THE REMOTE CONTROL The remote starter is equipped with two 1-way 4-button multi-channel remote control. TIME COMMAND DESCRIPTION PRESSED Locks all doors, arm the anti-theft system and activates the Alarm (if LOCK 0,5 SEC. installed). Press LOCK for 3 sec- onds to activate the Panic Mode Unlocks all doors, disarms the anti-theft system and deactivates... -
Page 5: Remote-Starting
REMOTE-STARTING REMOTE-STARTING THE VEHICLE This Remote-Starter supports both manual and automatic transmission vehicles. For manual transmis- sion vehicles see the Ready Mode section. REMOTE-STARTING STEP To remote-start the vehicle press the START button for approximately 3 second. STEP The parking lights will turn on to indicate a response to the Remote-Start signal. - Page 6 are opened, Ready Mode will deactivate and the vehicle will not start until Ready Mode is reactivated. METHOD 1 PROGRAMMED BY DEFAULT THIS METHOD WILL ACTIVATE THE REMOTE CAR STARTER SEQUENCE ONLY WHEN THE END USER IS USING THE REMOTE CAR STARTER REMOTE: The vehicle must be running.
-
Page 7: Driving Off
DRIVING OFF When the vehicle is running with the Remote-Starter, enter the vehicle and proceed with the following steps: STEP 1 Insert the key and turn it to the ignition (ON/Run) position. Warning: Do not turn the key to the START position when the engine is running. -
Page 8: Turbo Mode (Automatic Transmission)
STEP 5 Press the remote START button. The parking lights will fl ash once and then remain on. STEP 6 Remove the key from the ignition barrel. The vehicle will continue to run with the the Remote-Starter. STEP 7 Exit the vehicle and close all of the doors. The vehicle will continue to run after all the doors are closed. -
Page 9: Valet Coding Disbaled (Default)
VALET CODING DISBALED (DEFAULT): To activate and deactivate Valet Mode using the valet switch proceed with the following steps: STEP 1 Insert the key and turn it to the ignition (ON/RUN) position. The vehicle does not need to be started. STEP 2 Within 10 seconds press (1 second) and release the Valet switch 3 times. -
Page 10: Cold Start Timer Mode
To exit Valet Mode using the remote transmitter proceed with the following steps: STEP 1 Press and release the FUNCTION button, within 12 seconds simultaneously press the LOCK and UNLOCK buttons for 1 second. . STEP 2 The LED will turn OFF or will start to fl ash. COLD START TIMER MODE Mode will remote-start the vehicle when the tempeture is below -5 C / 23... -
Page 11: Remote Locking And Unlocking
REMOTE LOCKING AND UNLOCKING LOCK THE REMOTE UNLOCK THE REMOTE To enable the but- To disable all the buttons on the tons on the remote: remote: simultaneously press and simultaneously press hold the LOCK and FUNC- hold TION buttons until the RED LED LOCK and FUNC- comes on. -
Page 12: Ignition Door Locks
IGNITION DOOR LOCKS Ignition Door Locks is an automatic passenger safety feature. When enabled the Remote-Starter/Alarm will automatically LOCK the vehicles doors once the key is turned to the ignition (ON/RUN) position and the brake pedal is pressed. The Remote-Starter/Alarm will also automatically UNLOCK the vehicles doors once the key is turned to the OFF position. -
Page 13: False Alarm Deactivation
any zones which are currently active. The Alarm will sound with several short chirps to indicate which zone is active. A silent ARM or only 1 chirp indicates that no zones are currently active. (See Remote- Starter/Alarm Diagnostics page 15) FALSE ALARM DEACTIVATION This option will disable any zone that triggers the alarm 3 consecutive times. -
Page 14: Transmitter Range
TRANSMITTER RANGE Several factors may affect the operating range of the remote transmitter: • A weak transmitter battery. • The operating environment such as in the city and airports due to radio interference, cell phone towers, etc… • Several types of metal such as the vehicle itself, other vehicles, the windshields tint lines and large buildings. -
Page 15: Remote Start / Alarm Diagnostics
REMOTE START / ALARM DIAGNOSTICS REMOTE STARTER DIAGNOSTICS ALARM DIAGNOSTICS Parking Light fl ashes (before starting) : Parking Light fl ashes (after disarm) : Ready mode disabled Door open – zone 3 Valet mode activated (The LED is on) Shock sensor – zone 4 Hood open Hood open –... - Page 16 USER GUIDE Page 16 / 16...
