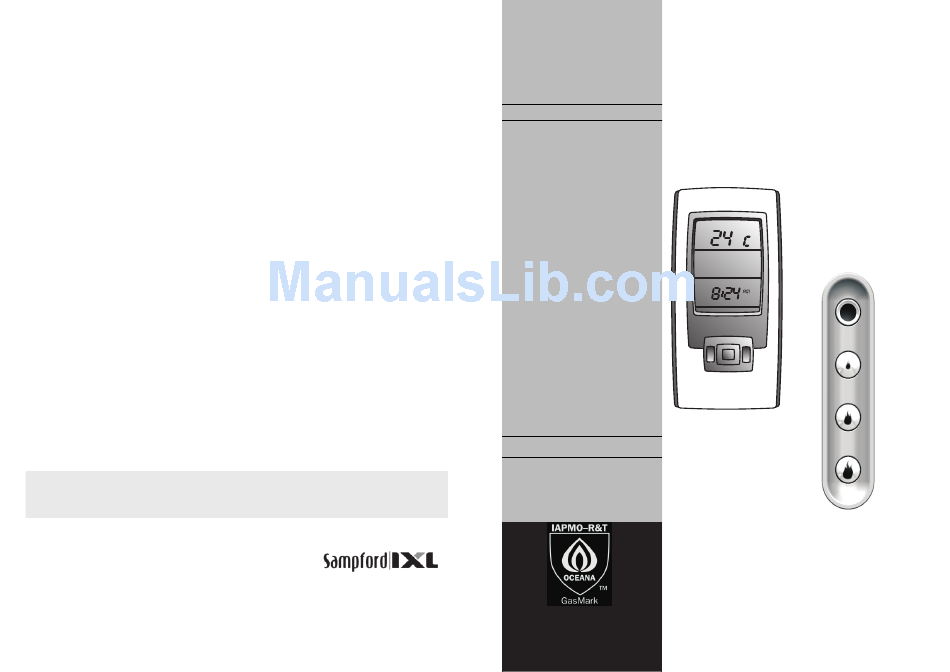

USER INSTRUCTIONS
All Cannon models.
Cannon
Part No: F3754
Revision B - 2010
Remote Thermostat
ROOM
TIME
A/M
T
Cannon
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
Gmk10025
&Gmk10030
Please leave instructions with the owner
AS4553:2008
Cannon
UP
OK
PWR
P
DOWN
USING THIS PRODUCT
Advertisement
Table of Contents
Summary of Contents for Sampford IXL Cannon
- Page 1 All Cannon models. Date installed: ........Compliance Certificate No ......For service to this appliance or spare PLEASE READ THIS MANUAL parts contact the CANNON distributor: Sampford IXL (spare parts) BEFORE INSTALLING AND Cannon 52 - 70 Sparks Avenue USING THIS PRODUCT...
-
Page 2: Table Of Contents
CONTENTS NOTES Initial Start-up Quick start guide. Safety warnings Features Thermostat LCD Functions Button functions Programming button functions Initial setup On / Off Time and day of the week Manual mode Automatic mode Programming 10-11 Programming screen displays Program mode Factory default settings Your settings Settings... -
Page 3: Quick Start Guide
QUICK START GUIDE Manual operation This Remote Thermostat is a room thermostat and to function correctly it In the rare instance of the hand held unit failing to operate, the heater can should be located in the same room as the heater within personal be operated manually. -
Page 4: Safety Warnings
SAFETY WARNINGS Quick reference table Do not place clothing or other flammable material on or near the heater. Function Action Page Keep curtains, clothing, furniture and other flammable materials at least 900mm from front and sides of the heater. Switch on/off Press ‘PWR’... - Page 5 Frequently asked questions Features of your thermostat kit Question Corrective actions Auto mode cycle The heater on start will operate on Low Fire and fan for approx 3 minutes. Check the programmed period start and finish Heater comes on The heater will then go to your preset desired settings on Remote Thermostat. times are correct.
-
Page 6: Features
Thermostat LCD Settings Full display Please note, thermostat settings need to be actioned within a period of 2 seconds total. LCD Display features ROOM Change between °C and °F 1. Temperature of Room in ( C or F) ° ° The thermostat temperature display can be set to°C or °F. - Page 7 Program mode Thermostat LCD Feature Symbol Description Factory default settings Displays the time of day in hours and Time of day Time Period Start Time Heat Temperature (°C) minutes, AM or PM. The time is displayed when the thermostat is on or off. Wake up.
-
Page 8: Functions
Functions Programming Display Settings ROOM ROOM ROOM Button Functions Button Function Description Switches the thermostat on. If the thermostat is off, pressing and releasing the PWR and OK button TIME TIME TIME together will turn the thermostat on to the most recently selected working mode. SU MO TU WE TH FR SA Switches the unit off. -
Page 9: Initial Setup
Programming Initial Setup Setting the period starting time. The hour and AM / PM settings will now flash. To set the P1 starting time, If the ‘PWR ’ is off, the heater will not start. press and release the ‘UP ’ and ‘DOWN ’ button to increase or decrease Press and release the ‘PWR ’... -
Page 10: Manual Mode
Programming Manual mode The manual mode allows setting the temperature at any level. Each day of the week can be programmed individually for periods P1, P2, P3, and P4, making a total of 28 programmed periods. To select Manual mode, firstly the thermostat must be turned on, then press and release the ‘A/M’...
