USER MANUAL

KMLSP150W

Table of Contents

Need help?

Do you have a question about the KMLSP150W and is the answer not in the manual?

Questions and answers

Summary of Contents for Kandolite KMLSP150W

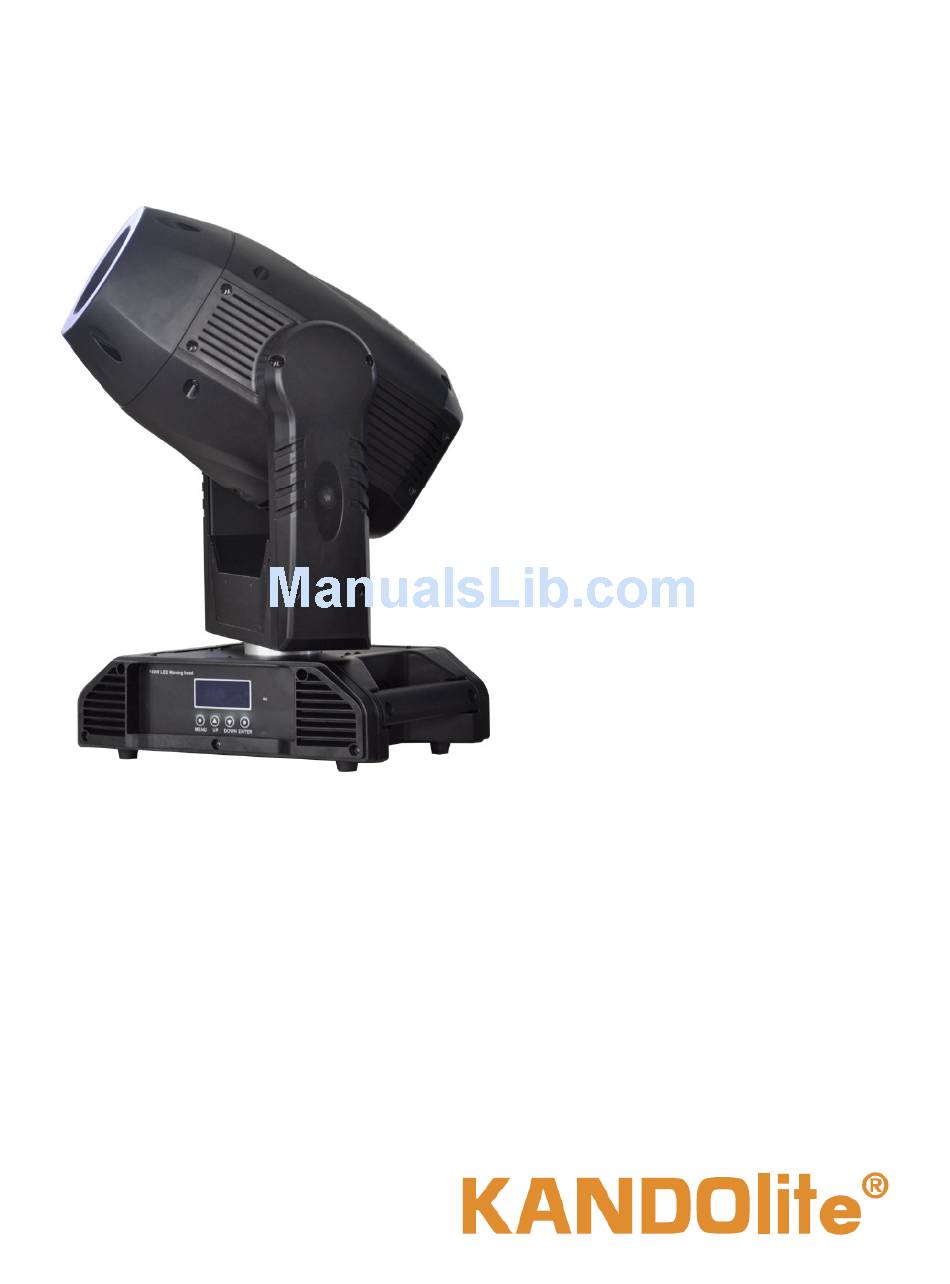

Page 1: User Manual
USER MANUAL KMLSP150W...
Page 2 I n d e x Summarize ................. 3 Product introduction ............3 Safety instruction ............... 4 Installation instruction ............5 Main function ..............6 Display operation instruction..........7 Menu instruction ..............9 DMX controller function ............16 XRL connection instruction ..........20 Wiring diagram ..............21 Problem analyze..............22 Maintenance...............23...
Page 3: Product Introduction
Product introduction This light uses Kandolite KMLSP150w LED light source. The output luminous flux reaches 6200lm. It has 50000-100000hours life span. Compared with traditional moving head (with Gas discharge light bubble), it is featured by light weight, energy-saving and long life span.
Page 4: Safety Instruction
Safety instruction • Please open the carton and check whether there is any damage at the arrival of the fixture. If there is any damage caused by transportation, please do not use the fixture and contact the distributor or manufacturer as soon as possible.
Page 5: Installation Instruction
If you have any questions or suggestions, please contact the distributor or manufacturer promptly. Installation instruction Dimension diagram Clamp Release lock Handle Page 5 of 26...
Page 6 For Safey wire Instruction for changing interchangeable gobos Fixed gobos Wheels gobo wheels Color wheel 1 color wheel 2 Page 6 of 26...
Page 7: Main Function
Main function 150W high brightness LED 2 gobo wheels, 2 color wheels, iris, zoom, focus, prism and Atomization Accord with DMX512 protocol. Wireless DMX and DMX Ethernet network is optional. The color wheel can reach any position 2 DMX channel modes Multi strobe effect, 5 dimmer modes Sound control, auto run Master-slave mode: no need to set slave manually;...
Page 8: Display Operation
Display Operation MENU : access the menu or return to a previous menu option ENTER : select the current menu option : menu selection or parameter increments DOWN : menu selection or parameters decrease Page 8 of 26...
Page 9: Menu Instruction
Menu instruction MENU 001-512 ADDRESS OPTION PAN INVERTE ON/OFF TILT INVERTE ON/OFF P/T SWAP ON/OFF P/T FEEDBACK ON/OFF DIMMER MODE OFF,DIMMER1,DIMMER2,DIMMER3,DIMMER4 CHANNEL MODE 17CH/19CH DISPLAY DISPLAY INTENSITY 01-32 PERMANENTLY ON/2 MINUTES/5 DISPLAY SLEEP MINUTES/10 MINUTES MANUAL CH1:INTENSITY 0-255 CONTROL CH2:SHUT/STROBE 0-255 CH3:PAN 0-255...
Page 10 AUTO RUNNING… FACTORY CALIBRATION LOAD YES/NO DEFAULT SETTING LOAD YES/NO FIXTURE YES/NO RESET SEND YES/NO SETTING Note: 1. When entering MENU *, the fixture is set automatically as a master to send data and the other fixtures will receive the data and work synchronously. When turn on the light again after power off, the fixture will jump to the same position.
Page 11 1 PAN INVERTE 、、、、、、、、 Choose P AN INVERTE f rom menu, press E NTER t o set PAN INVERTE 【】【】 Press U P/DOWN t o choose O FF 【】【...
Page 12 6 DMX channel mode setting 、、、、、、、、 Choose C HANNEL MODE f rom menu, press E NTER t o set DMX channel 【】【】 Press U P/DOWN t o choose 1 7CH 1 9CH 【...
Page 13 CH9:GOBO1 ROTATE 0-255 CH10:GOBO2 0-255 CH11:COLOR1 0-255 CH12:COLOR2 0-255 CH13:IRIS 0-255 CH14:ZOOM 0-255 CH15:FOCUS 0-255 CH16:PRISM 0-255 CH17:ATOMIZATION 0-255 CH18:MOVING BLACKOUT 0-255 CH19:CONTROL Choose M ANUAL CONTROL f rom menu, press E NTER t o set manual 【】【】...
Page 14 Note: A fter pressing E NTER t o confirm, gobo and color wheel will reset 、【】 automatically once w hen the value is 128 the gobo and color wheel are in the middle; when 、， the value is below 128, the gobo and color wheel are moving left by fine adjustment;...
Page 15 Note: A fter pressing E NTER t o confirm, gobo and color wheel will reset 、、【】 automatically once t he factory default value is 128, i.e. the middle. 、 2 recover factory default of setting parameter 、、、、、...
Page 16 Note: Should disconnect with DMX controller before sending the parameters. 、 The setting of D MX ADDRESS C ALIBRATION i s invalid and won’t 、【】【】 be sent. The other fixtures will reset automatically once after receiving data 、...
Page 17: Dmx Control Function
DMX Control Function 17channels 19channels function value dimming I ntensity ，，，， Zero full 0~255 Shutter S trobe ，，，， 0~10 Shutter Closed 11~20 Shutter Open Strobe s low fast 21~60 ， Electronic Sine wave s low fast 61~100 ，...
Page 18 141~220 CW CCW cycle s low fast ， 221~255 Reserved Gobo 2 0~10 no gobo 11~20 gobo1 21~30 gobo2 31~40 gobo3 41~50 gobo4 51~60 gobo5 61~70 gobo6 71~80 gobo7 81~90 shaking gobo1 CH10 91~100 shaking gobo2 101~110 shaking gobo3 111~120 shaking gobo4 121~130 shaking gobo5...
Page 19 91~100 Color 1 d ark blue （） 101~110 Color 2 o range （） 111~120 Color 3 r ed （） 121~130 Color 4 p urple （） Color 5 g reen 131~140 （） Color 6 p ink 141~150 （...
Page 20 231~255 sound running Reserved Iris 0~150 Open closed CH11 CH13 151~190 Opening pulse s low fast ， Closing pulse s low fast 191~230 ， 231~255 Reserved Zoom z oom in zoom out CH12 CH14 0~255 （） CH13 CH15 0~255 Focus Prism 0~10...
Page 21: Xlr Cable Connecting
XLR cable connecting XRL cable：：：： The stand connection way of the XRL is: one end connects to the male plug, and the other connects to the female. ：， Noted In order to avoid failures and interference signal transmission we connect （...
Page 22: Wiring Diagram
The Conversion between 3pin and 5 pin XLR If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable Wiring diagram Page 22 of 26...
Page 23: Problem Analysis
Problem analysis Problem solution Check the power source plug is good or not Can not turn on the Check the switch of the lights is off or on light Check if the fuse is broken Check if the switch power supply is good LED not light (150w) Check if the fan is broken The LED can light up when the fan is working normally...
Page 24: Maintenance
Maintenance Lubrication: to achieve smooth zooming, we suggest lubricating 2 guide rails every 2 months. Should use good and heat resisting lubricating grease Fixture cleaning: to use the fixture reliably, it is very important to keep it clean. Too much dust will cause malfunction of control IC board. More seriously, it will cause short circuit and burn out the control IC board.
Page 25: Technical Specification
Technical Specification Input voltage A C100V-240V 50-60Hz ： Rated power: 300W P F>90% （） Lamp specs: LED-150W 6 500K （） Life Span: above 50000-100000 hours output luminous flux: 6200lm color: 2 color wheels with 7 colors & white gobo 2 gobo wheels, 1 fixed gobo wheel 7 fixed gobos + white...
