Page 1: User Manual
A700 Room Locator User Manual discover. track. monitor. -
Page 2: Table Of Contents
Room Number Setup — DIP Switch Power Level Setup — DIP Switch Optional Cabling Environmental Limits Warranty & Service Limited Standard Warranty Terms Standard Warranty Limitations Obtaining Service & Support RF Code Customer Support PN00084 REV01 A700 Room Locator User Manual... -
Page 3: Preface
RF Code reserves the right to make changes without further notice to any products herein. RF Code makes no war- ranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does RF Code assume any liability arising out of the application or use of any product, and specifically disclaims any and all liability, including without limitation consequential or incidental damages. -
Page 4: A700 Room Locator

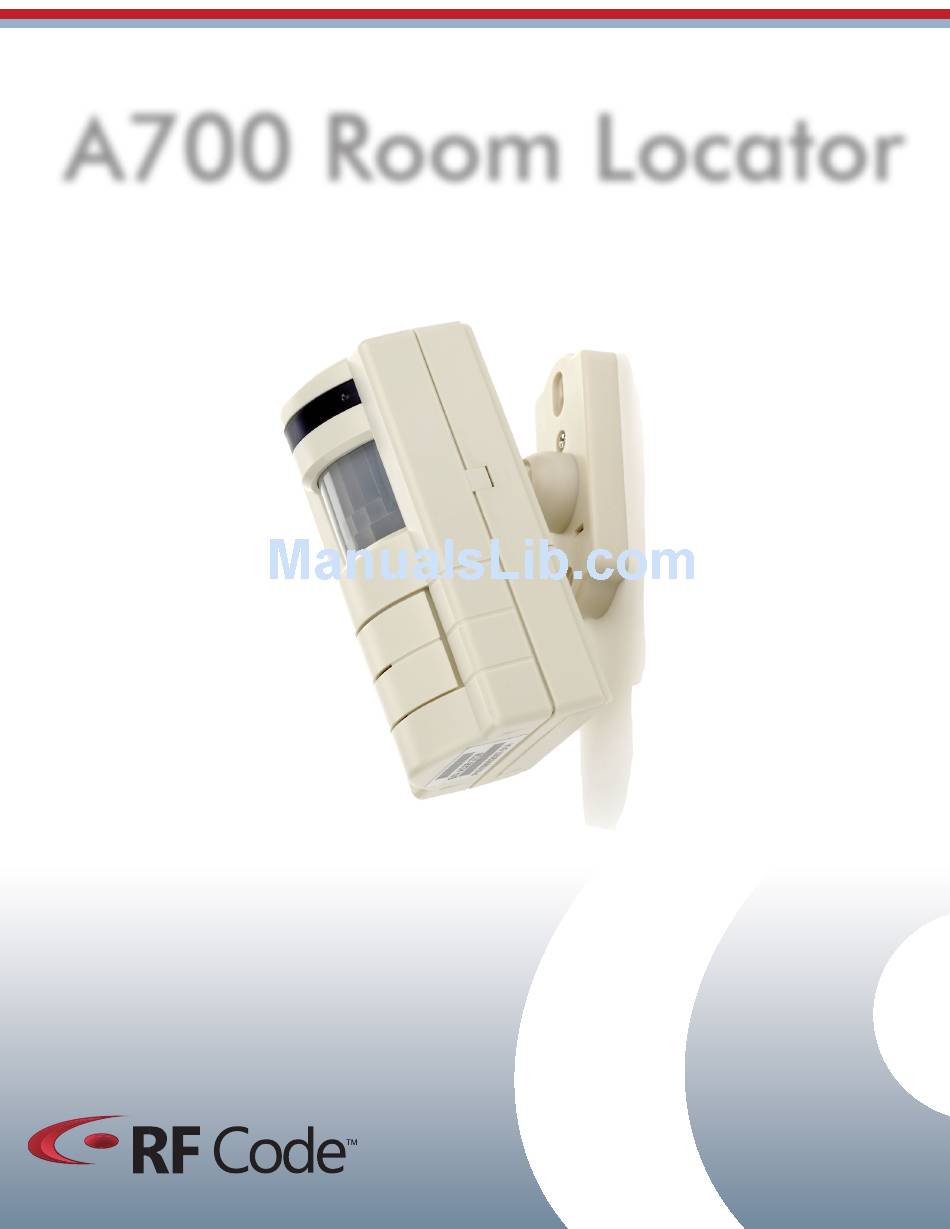

2-by-2-foot space). The A700 is housed in a plastic chassis 4.74” x 2.94” x 2.0” in size. A mounting bracket is included that allows the unit to pivot. Two screws attach the mounting bracket to the wall, and then the A700 snaps into the bracket. -
Page 5: Asset Tracking System Process
When a tag has been stationary for at least 15 minutes and has seen no valid A700 during that time, it will go into a “low power” mode and only check for A700s every 15 minutes. When a tag has been stationary for at least 1 minute and has seen the same valid A700 during that time, it will go into a “low power”... -
Page 6: General And Special Notes
0 to 7, such as 045 or 714. The unique 3-digit ID is configured using the 10-switch DIP bank on the A700 circuit board. At this time, only 9 of the 10 DIP switches are used. These 9 switches are used to set the 3-digit A700 ID. - Page 7 (represents 7), and switches 7, 8, and 9 would be set to off-off-off (represents 0). Example 2 – If the user wants to define a unique ID of 714 for an A700, then set the DIP switches as shown:...
-
Page 8: Power Level Setup - Dip Switch
000, 760, 761, 762, 763, 764, 765, 766, 767, 770, 771, 772, 773, 774, 775, 776, 777 If set to one of these IDs, the red LED on the A700 will continue to blink quickly to indicate the problem. Power Level Setup - DIP Switch In addition to the 10-switch DIP bank, the A700 unit also carries a 4-switch DIP bank to configure the power level. -
Page 9: Environmental Limits
The user will need to design the wiring to comply with the cable input specifications. For example, if five A700 locators are connected to one run of 2000 feet of 24 AWG cable on a 24V regulated supply, the voltage drop would be too large and each A700 would receive under 15 Volts. -
Page 10: Warranty & Service
Limited Standard Warranty Terms RF Code warrants its products to be free from defects in materials and workmanship for a period of 1 year (12 months) for hardware and software from the date of purchase from RF Code. Its obligation under this warranty is limited to repairing or replacing, at its own sole option, any such defective products.
