Summary of Contents for Wisecomm LCD0935

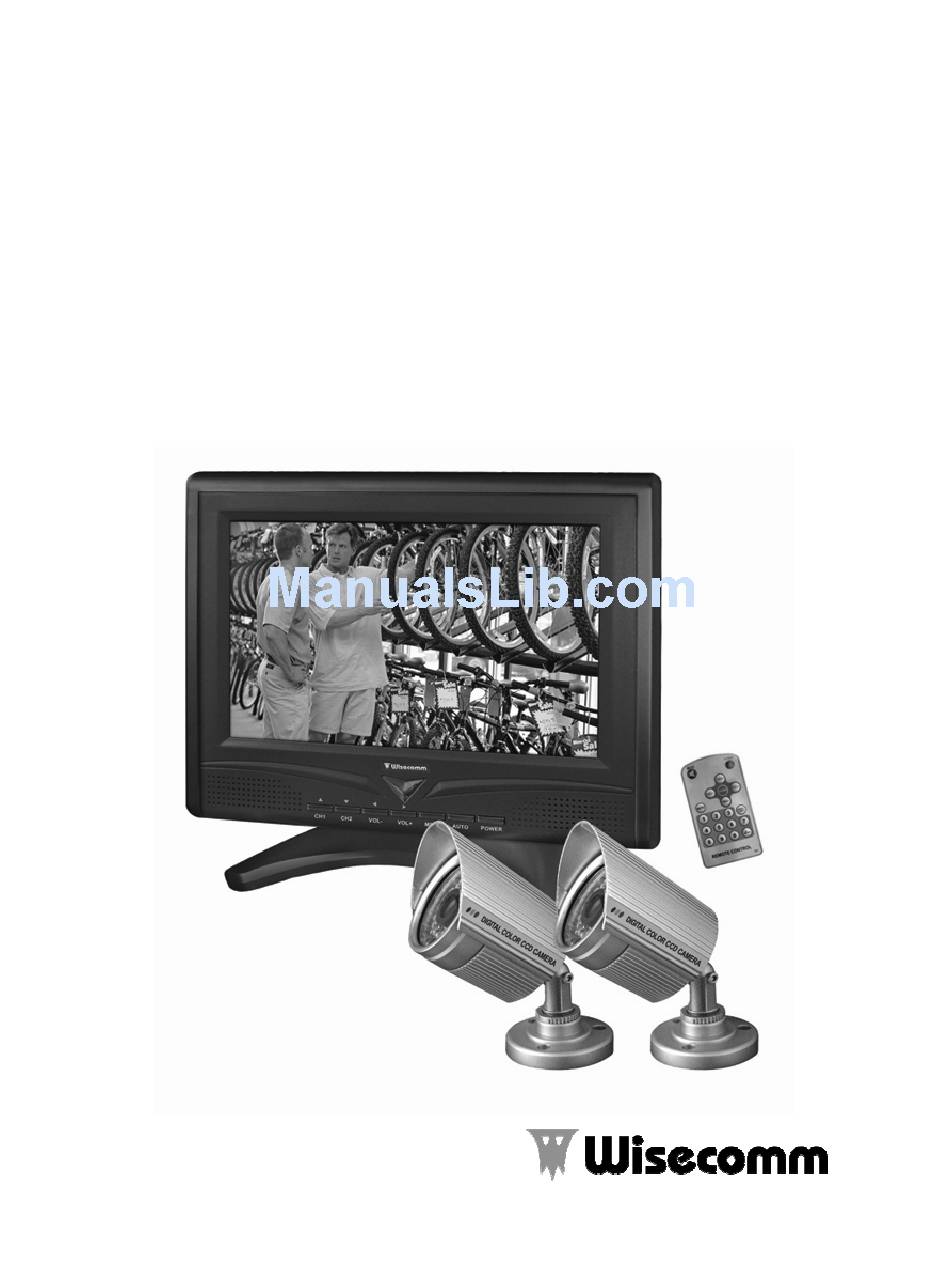

- Page 1 INSTRUCTION MANUAL 9.2” TFT LCD COLOR MONITORING SYSTEM With 2 Indoor/Outdoor Color Cameras MODEL: LCD0935 Copyright © 2009 Wisecomm. All Rights Reserved.
-
Page 2: Important Safety Precautions
1. IMPORTANT SAFETY PRECAUTIONS To prevent fire or shock hazard, do not expose the monitor to rain or moisture. ▪ To avoid electrical shock, do not open the case of this product. ▪ Operate this product using only the supplied power supply . ▪... - Page 3 1. This light is lit in blue when the AC power supply is properly plugged to DC jack (refer to #9). 2 -Select the CH1 camera by pressing this button in the manual mode or automatic sequential mode. -Press Down (▼) button to navigate the submenu. 3.
- Page 4 -Make sure that the two arrows on the monitor and on the top of the cable should be aimed each other. 12. 13. Audio inputs (RCA jack) Connect an audio device to this jack. 14. 15. Video inputs (BNC) Connect a BNC camera to BNC input. Note: -Do not connect more than two cameras to the monitor for proper working.
-
Page 5: Installation
4. INSTALLATION 4.1 Installation of Mounting Bracket for TFT LCD Monitor 1. Turn the tightening knob① counter-clockwise to disassemble the swivel. 2. Place the fixed ring② into the swivel as shown illustration above and turn the tightening knob① clockwise to secure the swivel. Pay attention not to miss the spring③. - Page 6 3. Loosen the locking knob and set the proper angle of square metal④ on the top of the swivel. 4. Place the square metal④ on the top of the mounting bracket into the metal hole ⑤ on the rear of the monitor as shown illustration above, then secure the monitor using the locking ring ⑥.
-
Page 7: Operation
1. Attach the mounting bracket base ① to the wall or ceiling, wherever you want to install the camera. Locate a wall stud or ceiling joist and secure the bracket base using the supplied screws. 2. Lock the mounting bracket with the locking ring②. 3. - Page 8 -Select the VIDEO INHANCEMENT icon in the MAIN MENU by using the ► and the ◄ buttons. -Choose an item with the ▲and the ▼buttons and select the values with the ► and the ◄ buttons. -To return to the MAIN MENU, select the EXIT with the ▲and the ▼buttons and then press the MENU button.
-
Page 9: Auto-Switch
-Choose one among 15, 30, 45 and 60 to turn the power off automatically after the selected time in minute. Sharp: -Adjust the sharpness of images. Panel-LR: -You can view the mirror images or normal images by selecting. Panel-UD: -You can view the reverse images or normal images by selecting. AUTO-SWITCH -Select the dwell time for the automatic sequential mode. - Page 10 S/N ratio More than 48db (AGC off) Gamma characteristics 0.45 Video output 1.0v p-p composite, 75 ohms Electronic shutter speed NTSC: 1/60 to 1/100,000sec PAL: 1/50 to 1/100,000sec Lens 3.6mm fixed lens Housing material Die cast aluminum alloy Current consumption 250 mA Max (LED on) Power supply DC 12V (Regulated: not included)
- Page 11 and send it prepaid and insured to: 13073 E. 166th St, Cerritos, CA 90703. Please include a check for $20.00 to cover the cost of return postage and handling. • If the system is returned within the warranty period, please include a proof of purchase.
