Summary of Contents for Mojave 60411

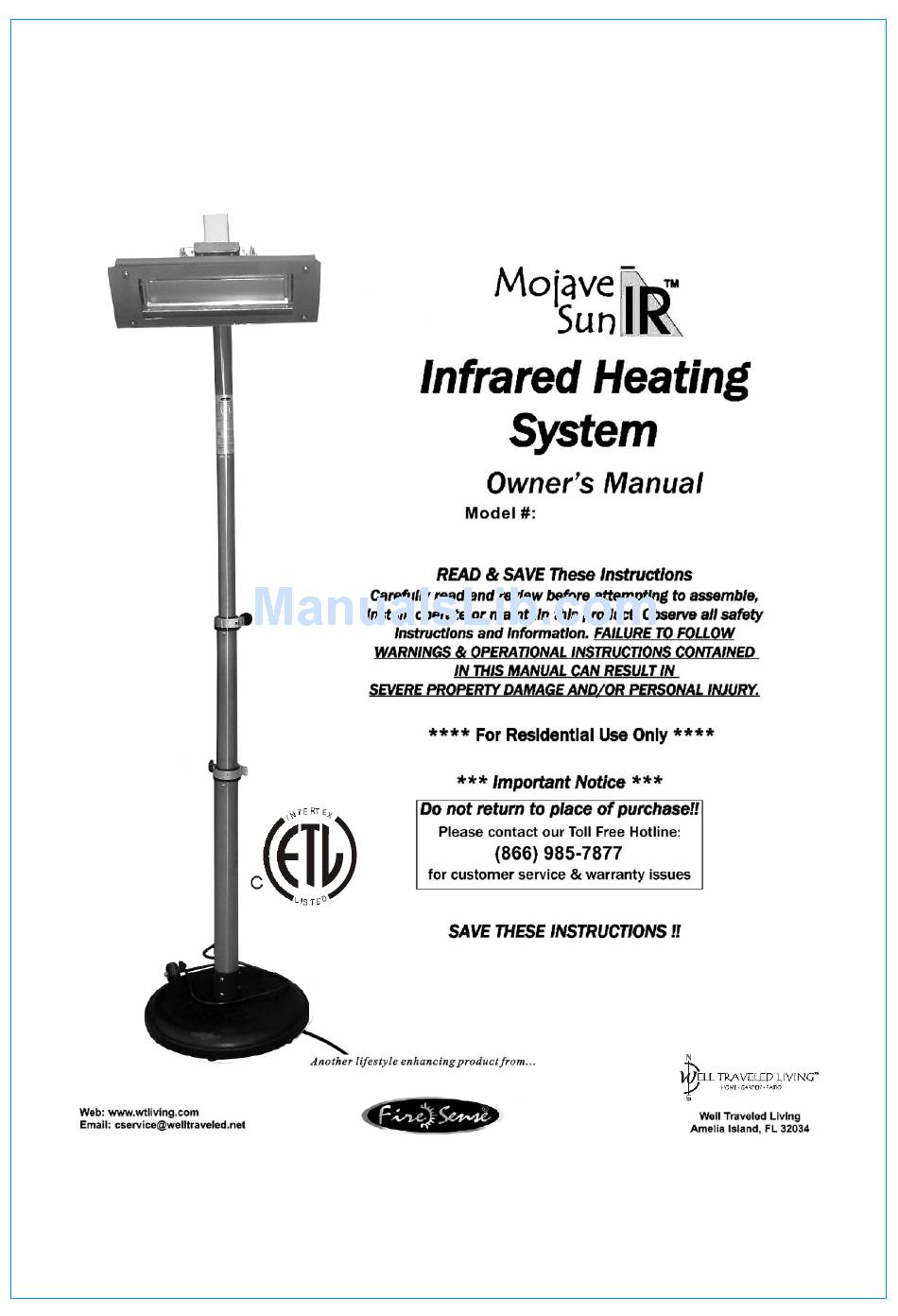

- Page 1 60411...
- Page 3 This appliance MUST be grounded. * When using outdoors, we recommend using a certified GFI (Ground Fault Interrupt) outlet to protect against electrical shock. * All installation must be in accordance with I.E.E. safety regulations or equivalent. * Do not place any objects such as furniture, papers, clothing or curtains closer than 3 ft to the front and the side of the heater.
- Page 4 1. Read all instructions before using this heater. 12. To Prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use 2. This heater will get very hot while in use .To on soft surfaces, like a bed ,where openings avoid burning, do not let bare skin touch hot may become blocked.
- Page 5 Mounting bracket & curved upper arm assembled in proper Step 1 upright position. Be sure to read and familiarize yourself with the overall assembly process and instructions in this manual before beginning. It may be helpful to have someone assist Fig.
-
Page 6: Tilt Switch
Step 6 Carefully lift the completed head unit assembly from step 2 over the telescopic body and completely route the electrical cord down thru the top of the body and pull the end thru the large outlet opening at the base of the body. See Fig. 5. Position the completed head unit assembly onto the upright telescopic body assembly. - Page 7 This appliance MUST be grounded. * When using outdoors, we recommend using a certified GFI (Ground Fault Interrupt) outlet to protect against electrical shock. * All installation must be in accordance with I.E.E. safety regulations or equivalent. * Avoid the use of an extension cord with this appliance, if one is used, it MUST be at least a 14/3 wire, grounded cord, 50 ft max.
- Page 8 Model: 60411 Voltage: 110-125 volts Amps: 13.0 amps Wattage: 1500 watts Lamp Type: Quartz Halogen Min. Operational Height: 7.3ft. 2'' (87'') Weight: 45lbs. Head Unit Dimensions: 18.7'' x 9'' x 9.8'' Complete Assembled Dimensions: 22'' base, 82'' ht. * Always cover the head unit with the outdoor vinyl cover included with your heater when not in use.
- Page 9 Contact toll free customer service hotline to order approved replacement lamps and parts. NOTE: DO NOT touch the new halogen lamp with your bare fingers. Oils from your hand could reduce the life of the lamp by causing a heat spot. Recommend using clean cotton or plastic gloves.
- Page 10 Fire Sense and Well Traveled Living are registered trademarks of Well Traveled Imports, lnc . All assembly instruction presentation s are the property of Well Traveled Imports, lnc. and are protected by U.S. copyrights and trademarks. All right s reserved.
