User Manual

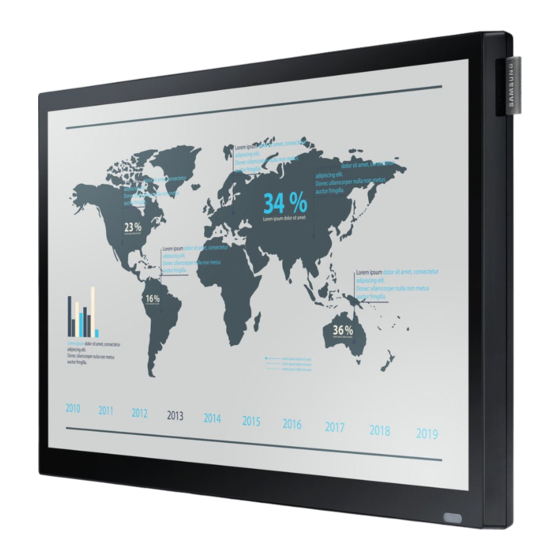

DB22D-T
The colour and the appearance may differ depending on the product,
and the specifications are subject to change without prior notice to
improve the performance.
Recommended hours of use per day of this product is under 16 hours.
If the product is used for longer than 16 hours a day, the warranty
may be void.

Advertisement

Table of Contents
loading

Related Manuals for Samsung DB22D-T

Summary of Contents for Samsung DB22D-T

  • Page 1 User Manual DB22D-T The colour and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance. Recommended hours of use per day of this product is under 16 hours.

  • Page 2: Table Of Contents

    Table of contents Before Using the Product Remote Control (RS232C) Connection using the D-SUB cable (Analogue type) Cable Connection Connection using an HDMI-DVI Cable Copyright Connection Connection using an HDMI Cable Control Codes Safety Precautions Connecting to a Video Device Symbols Connection Using an HDMI-DVI Cable Cleaning...
  • Page 3 Table of contents Screen Adjustment Available features in the Player page Zoom/Position Player page Settings menu Resolution When Content is Running Picture Mode Auto Adjustment File Formats Compatible with Player Backlight / Contrast / Brightness / File Formats Compatible with Videowall PC Screen Adjustment Sharpness / Colour / Tint (G/R) Schedule...
  • Page 4 Table of contents Sound Adjustment Connect to server Power Button MagicInfo Mode Network Standby Sound Mode Server Access Eco Solution FTP Mode Sound Effect Energy Saving Virtual Surround Device Name Screen Lamp Schedule No Signal Power Off Dialog Clarity Equaliser Auto Power Off HDMI Sound Temperature Control...
  • Page 5 Correct Disposal of This Product Troubleshooting Guide More settings (Waste Electrical & Electronic Equipment) Correct disposal of batteries in this product Requirements Before Contacting Samsung Reset All Customer Service Centre Optimum Picture Quality and Afterimage Testing the Product Burn-in Prevention...

  • Page 6: Before Using The Product

    © 2014 Samsung Electronics Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Microsoft, Windows are registered trademarks of Microsoft Corporation. VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.

  • Page 7: Safety Precautions

    Safety Precautions Cleaning ― Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. ― Take the following steps when cleaning. Caution ― The following images are for reference only. Real-life situations may differ from what is shown in the images.

  • Page 8: Storage

    Storage Connect the power plug to a grounded power socket (type 1 insulated devices only). Due to the characteristics of high-glossy products, using a UV humidifier nearby may create • An electric shock or injury may result. white-coloured stains on the product. ―...

  • Page 9: Installation

    THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES. • A fire may result. Only use the power cord provided with your product by Samsung. Do not use the power cord with other products. • A fire or electric shock may result.
  • Page 10 SAMSUNG • Be sure to consult Samsung Customer Service Centre if you want to install the product at such a place.

  • Page 11: Operation

    If the product is dropped or the outer case is damaged, turn off the power Do not lift or move the product by pulling the power cord or any cable. switch and disconnect the power cord. Then contact Samsung Customer Service Centre.
  • Page 12 • Your eyesight may deteriorate. when water or other foreign substances have entered the product. Then contact Samsung Customer Service Centre. • Product failure, an electric shock or fire may result. Do not hold the product upside-down or move it by holding the stand.
  • Page 13 Rest your eyes for more than 5 minutes for every 1 hour of product use. When replacing the battery, insert it with the right polarity (+, -). • Eye fatigue will be relieved. • Otherwise, the battery may become damaged or it may cause fire, personal injury or damage due to leakage of the internal liquid.

  • Page 14: Preparations

    Chapter 02 Preparations Checking the Components Components ― Components may differ in different locations. - Contact the vendor where you purchased the product if any components are missing. - The appearance of the components and items sold separately may differ from the image shown.
  • Page 15 Items sold separately - The following items can be purchased at your nearest retailer. Wall-mount Kit LAN cable RCA stereo cable HDMI-DVI cable HDMI cable Stereo cable USB 2.0 upstream cable...

  • Page 16: Parts

    Parts ― The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Buttons Description Control Panel SOURCE Selects the input source that an external device is connected to. ―...
  • Page 17 ― Touching and holding on the screen when the product is turned on displays Buttons Description the administrator menu. ― If touchscreen control is not available Adjust the Volume. Volume System → Touch From the menu screen, use the remote control to go to ―...

  • Page 18: Reverse Side

    Port Description Reverse Side Connect to a USB memory device. ― The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. USB(PC) Connect to your PC via a USB 2.0 upstream cable. ―...

  • Page 19: Anti-Theft Lock

    Anti-theft Lock Spacer logo ― An anti-theft lock allows you to use the product securely even in public places. Do not pull on the spacer logo using force. The logo may tear or break off. ― The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details.

  • Page 20: Remote Control

    Remote Control ― Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled. ― A button without a description in the image below is not supported on the product. POWER Power off the product.
  • Page 21 Display information about the current input TOOLS INFO Quickly select frequently used functions. source. Move to the upper, lower, left or right menu, or adjust an option's setting. Confirm a menu selection. Exit the current menu. RETURN EXIT Return to the previous menu. Manually select a connected input source from HDMI or HDMI.

  • Page 22: Before Installing The Product (Installation Guide)

    Tilting Angle and Rotation 15 ˚ ― Contact Samsung Customer Service Centre for further details. • The product can be tilted at a maximum angle of 15 from a perpendicular wall surface. • To use the product vertically (portrait), turn it clockwise so that the LED is pointing down.

  • Page 23: Dimensions

    Figure 1.3 Side view Installation on an Indented Wall ― Contact Samsung Customer Service Centre for further details. Plane view Minimum 40 mm Minimum 70 mm Minimum 50 mm Minimum 50 mm Ambient temperature: Under 35 C ― When installing the product on an indented wall, allow at least the space specified above between the product and wall for ventilation and ensure that the ambient temperature is kept below 35 C.

  • Page 24: Installing The Wall Mount

    We recommend you contact a technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the wall mount on your own.

  • Page 25: Remote Control (Rs232C)

    Remote Control (RS232C) • Pin assignment 1 2 3 4 5 Cable Connection RS232C Cable Interface RS232C (9 pins) 6 7 8 9 TxD (No.2), RxD (No.3), GND (No.5) Signal Bit rate 9600 bps Detect data carrier Data bits 8 bit Received data Parity None...
  • Page 26 LAN Cable • RS232C cable Connector: 9-Pin D-Sub to Stereo Cable • Pin assignment 1 2 3 4 5 6 7 8 -P1- -P1- -P2- -P2- Female --------> STEREO <-------- PLUG Pin No Standard Colour Signal ---------- (3.5ø) White and orange Orange White and green Blue...
  • Page 27 Cross LAN cable (PC to PC) • Connector : RJ45 Direct LAN cable (PC to HUB) RJ45 RJ45 RJ45 MDC Signal Signal <--------> <--------> Signal Signal <--------> <--------> <--------> <--------> <--------> <-------->...

  • Page 28: Connection

    Connection RJ45 RJ45...

  • Page 29: Control Codes

    Command type Command Value range Control Codes Video Wall On 0x84 Viewing control state (Get control command) Video Wall User Control 0x89 Header Command Data length Checksum • All communications take place in hexadecimals. The checksum is calculated by adding up all 0xAA Command type values except the header.
  • Page 30 Power control Volume control • Function • Function A product can be powered on and off using a PC. The volume of a product can be adjusted using a PC. • Viewing power state (Get Power ON / OFF Status) •...
  • Page 31 Input source control 0x24 HDMI2_PC • Function 0x25 DisplayPort The input source of a product can be changed using a PC. ― DVI_video, HDMI1_PC and HDMI2_PC cannot be used with the Set command. They only respond to • Viewing input source state (Get Input Source Status) "Get"...
  • Page 32 Screen mode control • Nak Header Command Data length Ack/Nak r-CMD Val1 Checksum • Function The screen mode of a product can be changed using a PC. 0xAA 0xFF 0x18 "ERR" Screen mode cannot be controlled when the Video Wall function is enabled.
  • Page 33 PIP On/Off control Auto adjustment control (PC and BNC only) • Function • Function The PIP mode of a product can be turned on or off using a PC. Automatically adjust the PC system screen using a PC. ― Only available on models that have the PIP function. •...
  • Page 34 Video Wall Mode Control Safety Lock • Function • Function Video Wall mode can be activated on a product using a PC. PC can be used to turn the Safety Lock function on or off on a product. This control is only available on a product whose Video Wall is enabled.
  • Page 35 Video Wall On • Nak Header Command Data length Ack/Nak r-CMD Val1 Checksum • Function Turn Video Wall on or off on the product from your computer. 0xAA 0xFF 0x84 • Get Video Wall On/Off Status "ERR": A code showing what error has occurred Header Command Data length...
  • Page 36 10x10 Video Wall Model 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x1F 0x11 0x12 0x13 0x14 0x15 0x16 0x17 0x18 0x19 0x1A 0x1B 0x1C 0x1D 0x1E 0x2F 0x21 0x22 0x23 0x24 0x25 0x26 0x27 0x28...
  • Page 37 Wall_SNo: Product Number code assigned to the product 10x10 Video Wall Model : ( 1 ~ 100) Set Number Data 0x01 0x02 0x63 0x64 • Ack Header Command Data length Ack/Nak r-CMD Val1 Val2 Checksum 0xAA 0xFF 0x89 Wall_Div Wall_SNo •...

  • Page 38: Using A Touchscreen Monitor

    Touch Control → Device to Control → Samsung SMART Signage. • Take extra care to ensure an electrical substance does not contact the screen. The screen may not • To control the screen of a PC connected to the product by touch input function properly if there is static.

  • Page 39: Connecting The Touchscreen Monitor

    Connecting the touchscreen monitor Connecting to a PC Connecting the devices using a HDMI-DVI cable Connect your PC to the product using a D-SUB, HDMI or HDMI-DVI cable. ― Connecting parts may differ in different products. HDMI IN(DVI) Connecting the devices using a D-SUB cable Connecting the devices using a HDMI cable RGB IN HDMI IN(DVI)

  • Page 40: Connecting To A Laptop Or Tablet Pc

    Connecting to a laptop or tablet PC Connect the power cable from the product to the power outlet. A laptop or tablet PC can be connected to the product using the same method when connecting a After the power supply is connected, the product automatically detects and switches to the desktop PC.

  • Page 41: Configuring The Touchscreen Monitor Settings

    Configuring the touchscreen monitor settings To properly use the touch function of the product in Windows, go to Tablet PC Settings and calibrate the product. ― First connect the touchscreen monitor before configuring the following settings. ― The maximum number of touchscreen monitors that can be connected simultaneously varies, depending on the operating system and graphics card settings. Calibrating a monitor Go to Tablet PC Settings using the appropriate method according to the system configuration as shown below.

  • Page 42: Calibration

    Calibration ― Instructions below are for Windows 8. The same method applies to both Windows 7 and Windows 8. ― After changing the Picture Size from the OSD menu, you may need to calibrate the picture settings again. ― In the occurrence of an error during calibration, go to Tablet PC Settings the Display tab.
  • Page 43 Select the product from Display under Display options. Next, select Calibrate. After calibration is complete, the message Do you want to save the calibration data? appears. Select Yes to save changes. Digitizer Calibration Tool Do you want to save the calibration data? The touchscreen monitor has been calibrated successfully.

  • Page 44: Controlling The Screen

    Controlling the screen Drag Touchscreen gestures Using touchscreen gestures is similar to using a mouse. Lightly touch and drag in any direction on the screen. Use this gesture to move in a specific direction on a web page, map or photo. ―...

  • Page 45: Notes

    Flick Notes • To increase the touch input accuracy, enlarge the font or icons. • In touchscreen control mode, use of the remote control when precise clicks or inputs are required is more effective. Flick your finger on the screen as shown in the image. Use this gesture to go to the previous or next picture or web page.

  • Page 46: Connecting And Using A Source Device

    Chapter 04 Connecting and Using a Source Device Before Connecting Connecting to a PC • Do not connect the power cable before connecting all other cables. Pre-connection Checkpoints Ensure you connect a source device first before connecting the power cable. •...

  • Page 47: Connection Using An Hdmi-Dvi Cable

    Connection using an HDMI-DVI Cable Connection using an HDMI Cable ― When you connect a PC to the product using an HDMI-DVI cable, set Edit Name DVI PC to access video and audio content stored on the PC. HDMI IN(DVI) HDMI IN(DVI) AUDIO IN...

  • Page 48: Connecting To A Video Device

    Connecting to a Video Device Connection Using an HDMI Cable Using an HDMI cable or HDMI to DVI Cable (up to 1080p) • Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. •...

  • Page 49: Connecting The Lan Cable

    Connecting the LAN Cable ― Connecting parts may differ in different products. RJ45 • Use Cat7(*STP Type) cable for the connection. *Shielded Twist Pair...

  • Page 50: Changing The Input Source

    Changing the Input source Source allows you to select a variety of sources and change source device names. You can display the screen of a source device connected to the product. Select a source from source list to display the screen of the selected source.
  • Page 51 Information Using the remote control • SOURCE → Source → TOOLS → Information → ENTER E Using touchscreen control mode • Administrator menu → Source → Source → Options → Information You can see detailed information about the selected external device.

  • Page 52: Using Mdc

    Chapter 05 Using MDC Multiple display control "MDC" is an application that allows you to easily control multiple display devices simultaneously using a PC. - For details on how to use the MDC programme, refer to Help after installing the programme. The MDC programme is available on the website. MDC Programme Installation/Uninstallation In the displayed "Ready to Install the...

  • Page 53: Connecting To Mdc

    Connecting to MDC Using MDC via Ethernet Enter the IP for the primary display device and connect the device to the PC. Display devices can be connected to each other using a LAN cable. Connection using a direct LAN cable ―...

  • Page 54: Home Feature

    Chapter 06 Home feature → This feature is provided in Support Go to Home. Accessible using the HOME button on the remote control. Home If using touchscreen control mode, touch and hold on the screen when the product is turned on. Select from the displayed administrator menu.

  • Page 55: Approving A Connected Device From The Server

    Approving a connected device from the server Select Device from the top menu bar. Approving the Lite server • Set MagicInfo Mode Lite Server Network Settings. Approve and use the Lite server now. ― First configure the server Network Settings before device approval.
  • Page 56 Enter the information required to approve the device. When the device is approved by the server, the schedule registered in the selected group will be downloaded to the device. The schedule will run after it is downloaded. ― For further details on how to configure a schedule, refer to the <MagicInfo Lite Server user's manual>. ―...
  • Page 57 Approving the Premium server Select Device from the top menu bar. • Set MagicInfo Mode Premium Server Network Settings. Premium Approve and use the server now. ― First configure the server Network Settings before device approval. Access the server you have assigned to your device. Select Premium from the menus on the left.
  • Page 58 Enter the information required to approve the device. When the device is approved by the server, the schedule registered in the selected group will be downloaded to the device. The schedule will run after it is downloaded. ― For further details on how to configure a schedule, refer to the <MagicInfo Premium Server user's manual>.

  • Page 59: Network Channel

    Network Channel Device : All Content : All Sort by : File name Options Player 1 / 4 item(s) Browse and play content stored on the selected device. Play content, templates and schedules configured on the server. • You can view whether the server is connected (approval) in the Player menu screen.

  • Page 60: Available Features In The Player Page

    Available features in the Player page Player list page provides the following features. Device • Internal Select either to search for a desired device list. Internal Content • Select a content type as criterion to search for a desired content list. Video Image Flash...

  • Page 61: Player Page Settings Menu

    Player page Settings menu Aspect Ratio Aspect Ratio to either Original or Full. Settings Full Original • ― This feature is only available for Video, Image, Office files. Settings Display Duration Set whether to display content in the original aspect ratio or in full Set the duration for each page in a slideshow.

  • Page 62: When Content Is Running

    When Content is Running Press the INFO button on the remote control. Type : Type of channel currently playing • ― Only applicable during Network Channel Local Channel playback. Viewing the details of the content that is running Number: Number assigned to the channel currently playing •...
  • Page 63 Changing the settings for the content that is running Press the TOOLS button on the remote control during content playback to configure settings such as Picture Mode Sound Mode. Playlist • View a list of content items currently playing. Music •...

  • Page 64: File Formats Compatible With Player

    File Formats Compatible with Player Template files and LFD(.lfd) files • Supported file systems include FAT32 and NTFS. Restrictions • A file with a vertical and horizontal resolution larger than the maximum resolution cannot be • Ensure a distributed folder (content / schedules) exists in Internal memory.
  • Page 65 Contents File Extension Container Video Codec Resolution Frame rate Bit rate Audio Codec (fps) (Mbps) *.avi DivX 3.11 / 4.x / 5.x / 6.x 1920 x 1080 6~30 *.mkv LPCM *.asf MPEG4 SP / ASP *.wmv HE-AAC *.mp4 *.mov H.264 BP / MP / HP *.3gp MPEG(MP3) *.vro...
  • Page 66 Video Audio Image • 3D video is not supported. • Audio content with a Bit rate or Frame rate • Compatible image file format : Jpeg larger than the rate specified in the table above • Content with a resolution larger than the •...
  • Page 67 Flash Power Point • Compatible with Flash 10.1 • Compatible document file formats • Compatible document file formats • Flash Animation - Extension : ppt, pptx - Extension : pdf - Version : Office 97 ~ Office 2007 - Compatible file format : SWF •...
  • Page 68 WORD Template files • Compatible document file formats • Creation/editing/playback are only available in • Supported in Network Channel Local Template. Channel - Extension : .doc, .docx - Version : Office 97 ~ Office 2007 • Compatible document file formats - Extension : .lfd •...

  • Page 69: File Formats Compatible With Videowall

    File Formats Compatible with Videowall ― Refer to the <MagicInfo Server user's manual> for further details. Video Image • 3D video is not supported. • Compatible image file format : Jpeg, bmp, png • Content with a resolution larger than the resolution specified in the table •...
  • Page 70 Restrictions • Only one video (Video) file can be played per client. ― Different content files can be played on the displays of a video wall. Two video (Video) files cannot be played on a single display of a video wall. Available Not available Available...

  • Page 71: Schedule

    Schedule Available features in the Schedule page Schedule page provides the following features. HOME → Schedule → ENTER E Type • - Local: Add or edit schedules. - Network: View the network schedule configured on the server. Schedule Type : Local Device : Internal Options Device...
  • Page 72 Configuring channel schedules Play media content such as videos, photos and music at a desired time. Select a channel to configure. Select video, music and photo content you want to apply to the channel schedule. (Start Time Stop Time) Set the time to play the schedule. Change the channel schedule name, and then select a destination folder to save to.

  • Page 73: Template

    Template Available features in the Template page Create unique content using templates. It is easy to create content. Simply change images and text in a template. HOME → Template → ENTER E Sort the template list using the following criteria. Market •...
  • Page 74 Inserting content such as videos, photos and PDF files Organize a template by inserting text, video, photo, or PDF files as desired. Entering text Template Select in the editable zone to add content or edit the existing text. Edit 1 Item(s) selected Template Select in the editable zone to add content or edit the existing text.
  • Page 75 Preview Configure Template Name and Storage. Save Duration 23:59:59 Template Name Template1 Template preview is running. It will stop after Storage Internal 20 seconds. Save Cancel New town interior design Save Press the button to finish creating the content. Sustainble evolution unfolods tomorrw’s design Preview the created template using the Preview feature.

  • Page 76: Clone Product

    Clone Product Export the product settings to a USB device or load the settings via a USB device. This option is useful when assigning the same settings to several products. When USB does not contain a duplicate file HOME → Clone Product →...

  • Page 77: Id Settings

    ID Settings Assign an ID to a set. Press u/d to select a number, and press E. HOME → ID Settings → ENTER E Device ID Enter the ID number of the product connected to the input cable for input signal reception. (Range: 0~224) ―...

  • Page 78: Video Wall

    Video Wall Customize the layout of multiple displays that are connected to form a video wall. In addition, display part of a whole picture or repeat the same picture on each of the connected multiple displays. To display multiple images, refer to MDC Help or the MagicInfo user guide. Some models may not support the MagicInfo →...

  • Page 79: Network Status

    Format Select how to display images on the videowall display. • Full: Display images in full screen with no margin. • Natural: Display images in the original aspect ratio without enlarging or reducing the size. ― The Format Video Wall is set to On.

  • Page 80: Picture Mode

    Advanced Color Management. - To download the Advanced Color Management programme, visit www.samsung.com/displaysolutions. BD Wise • Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theatre products which support Wise. When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution.

  • Page 81: On/Off Timer

    On/Off Timer ― You must set Clock Set before you can use this feature. On Timer HOME → On/Off Timer → ENTER E On Timer so that your product turns on automatically at a time and on a day of your choosing. The power is turned on with the specified volume or input source.

  • Page 82: Off Timer

    Off Timer Set the off timer (Off Timer) by making a selection from one of the seven options. (Off Timer 1 Off Timer • Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual. If you select Manual, you can choose the days you want Off Timer to turn off your product.

  • Page 83: Ticker

    Ticker Input text while a video or image is displayed and display the text on the screen. • • Message: Enter a message to display on the screen. → → ENTER E HOME Ticker • Time: Set the Start Time End Time to display a Message.

  • Page 84: Url Launcher

    URL Launcher For details on how to use the URL Launcher feature, contact the dealer the product was purchased from. ― To use the URL Launcher feature, set Play via URL Launcher in System. → → ENTER E HOME URL Launcher Change URL 12:00 URL Launcher...

  • Page 85: Screen Adjustment

    Tint (G/R) - To download the Advanced Color Management programme, visit www.samsung.com/displaysolutions. BD Wise • Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theatre products which support Wise. When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution.

  • Page 86: Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

    Backlight / Contrast / Brightness / Your product has several options for adjusting picture quality. Picture Mode Picture Mode settings Adjustable options Sharpness / Colour / Tint (G/R) Shops & Malls, Offices & Schools, Videos/Images Backlight Contrast Brightness Sharpness Terminals & Stations, Video Wall Colour...

  • Page 87: Colour Temperature

    Colour Temperature Adjust the colour temperature (Red / Green / Blue). (Range: 2800K–16000K) ― Enabled when Colour Tone is set to Off. ― Colour Temperature is disabled if Picture Mode is set to Calibration Wise. MENU m → Picture → Colour Temperature →...

  • Page 88: White Balance

    White Balance 2 Point Adjust the colour temperature for a more natural picture. MENU m → Picture → White Balance → ENTER E R-Offset G-Offset / B-Offset: Adjust each colour’s (red, green, blue) darkness. • R-Gain G-Gain / B-Gain: Adjust each colour’s (red, green, blue) brightness. •...

  • Page 89: Gamma

    Advanced Color Management to the Information and Advertisement modes. Don't apply Apply • MENU m → Picture → Calibrated value → ENTER E ― To download the Advanced Color Management programme, visit www.samsung.com/displaysolutions. ― Calibrated value is disabled if Picture Mode is set to Calibration Wise. Picture Calibrated value - The displayed image may differ depending on the model.

  • Page 90: Advanced Settings

    Advanced Settings Picture Mode Picture Mode settings Adjustable options Shops & Malls, Offices & Schools, Videos/Images Black Tone Flesh Tone RGB Only Mode Video Wall Colour Space MENU m → → → ENTER E Picture Advanced Settings Text Dynamic Contrast Black Tone Advanced Settings Terminals &...

  • Page 91: Dynamic Contrast

    Dynamic Contrast Advanced Settings Adjust the screen contrast. Dynamic Contrast High Medium High • Black Tone Darkest Black Tone Flesh Tone Select the black level to adjust the screen depth. RGB Only Mode Dark Darker Darkest • Colour Space Native Flesh Tone Motion Lighting Flesh...

  • Page 92: Picture Options

    Picture Options Picture Mode Picture Mode settings Adjustable options Shops & Malls, Offices & Schools, Videos/Images Colour Tone Digital Clean View MPEG Noise Terminals & Stations, Video Wall Filter HDMI Black Level Film Mode Dynamic MENU m → → → ENTER E Picture Picture Options Backlight...

  • Page 93: Colour Tone

    Colour Tone Picture Options Picture Mode Text is set to Colour Tone Cool Standard Warm • Picture Mode is set to Videos/Images BD Wise Digital Clean View Cool Standard Warm1 Warm2 • MPEG Noise Filter ― If Picture Mode is set to Calibration, Colour Tone is disabled.

  • Page 94: Hdmi Black Level

    HDMI Black Level Picture Options Selects the black level on the screen to adjust the screen depth. Colour Tone Normal • ― Available only in HDMI mode (AV Timing : 480p, 576p, 720p, 1080i, 1080p). Digital Clean View MPEG Noise Filter Film Mode HDMI Black Level This mode is suitable to view movies.

  • Page 95: Picture Size

    Picture Size Choose size and aspect ratio picture displayed on screen. Picture Size MENU m → → → ENTER E Picture Picture Size ― Different screen adjustment options are displayed depending on the current input source. • 16:9: Sets the picture to 16:9 wide mode.

  • Page 96: Position

    Position Adjusts the picture position. Position is only available if Picture Size is set to Zoom1, Zoom2, Wide Fit, Screen Fit or Custom. ― To use the Position function after selecting Zoom1, Zoom2, Wide Fit, Screen Fit or Custom, follow these steps. Press the d button to select Position.

  • Page 97: Resolution

    Resolution If the picture is not normal even when the resolution of the graphics card is one of the following, you can optimize the picture quality by selecting the same resolution for the product as the PC using this menu. 1024x768 1280x768 1360x768...

  • Page 98: Auto Adjustment

    Auto Adjustment Adjust frequency values/positions and fine tune the settings automatically. MENU m → → → ENTER E Picture Auto Adjustment Picture Auto Adjustment - Available in mode only. - The displayed image may differ depending on the model. PC Screen Adjustment Coarse Fine •...

  • Page 99: Picture Off

    Picture Off Picture Off Selecting switches off the screen. The volume is not disabled. To switch the screen on, press any button other than the volume button. MENU m → → → ENTER E Picture Picture Off Picture Picture Off - The displayed image may differ depending on the model.

  • Page 100: Onscreen Display

    Chapter 08 OnScreen Display If using touchscreen control mode, touch and hold on the screen when the product is turned on. Select Menu from the displayed administrator menu. PIP Settings The picture from the external video source will be in the main screen and the picture from the product will be in the PIP sub- picture screen.
  • Page 101 PIP (Off / On): Activate or deactivate the PIP function. • • Source: You can select a source of the sub picture. Size ): Select a size for the subpicture. • Position ): Select a position for the sub-picture. Source •...

  • Page 102: Display Orientation

    Display Orientation Onscreen Menu Orientation Set the menu screen orientation. MENU m → OnScreen Display → Display Orientation → ENTER E • Landscape: Display the menu in landscape mode (default). • Portrait: Display the menu in portrait mode on the right side of the product screen. Display Orientation Source Content Orientation Onscreen Menu Orientation...

  • Page 103: Screen Protection

    Screen Protection Auto Protection Time If the screen displays a still image for a certain period of time you define, the product activates the screen saver to prevent the formation of burnt in ghost images on the screen. MENU m → OnScreen Display →...
  • Page 104 Timer Screen Burn Protection Screen Burn Protection. You can set the timer for Pixel Shift Screen Burn Protection feature stops automatically after a specified period of time. Timer Timer Immediate display Repeat: Display the image retention-preventive pattern set in Mode at specified time intervals(Period).

  • Page 105: Message Display

    Immediate display Screen Burn Protection Select the screen saver you want to display immediately. Pixel Shift Pixel Rolling bar Fading screen • Timer Side Grey Immediate display When the screen is set to 4:3 aspect ratio, adjust the brightness of white margins on sides to protect the screen. Light Dark •...

  • Page 106: Menu Transparency

    Menu Transparency Adjust transparency of menu box. High Medium • MENU m → OnScreen Display → Menu Transparency → ENTER E OnScreen Display Menu Transparency Medium - The displayed image may differ depending on the model. Menu Language Set the menu language. ―...

  • Page 107: Reset Onscreen Display

    Reset OnScreen Display This option returns the current settings under OnScreen Display to the default factory settings. MENU m → OnScreen Display → Reset OnScreen Display → ENTER E OnScreen Display Reset OnScreen Display - The displayed image may differ depending on the model.

  • Page 108: Sound Adjustment

    Chapter 09 Sound Adjustment Sound Configure the sound ( ) settings for the product. Menu If using touchscreen control mode, touch and hold on the screen when the product is turned on. Select from the displayed administrator menu. Sound Mode You can select a sound mode to suit your personal preferences.

  • Page 109: Sound Effect

    Sound Effect Configure your preferred sound effect for output sound. ― Available only when Sound Mode is set to Standard. MENU m → Sound → Sound Effect → ENTER E Virtual Surround Sound Effect This function provides a virtual 5.1 channel surround sound experience through a pair of speakers using HRTF(Head Related Transfer Function) technology.

  • Page 110: Hdmi Sound

    HDMI Sound Select the sound source whether to hear from AV(HDMI) or PC(DVI). AV(HDMI) PC(DVI) • MENU m → Sound → HDMI Sound → ENTER E Sound HDMI Sound AV(HDMI) - The displayed image may differ depending on the model. Speaker Settings TV Sound Output If you are listening to the sound track of a broadcast or movie through an external receiver, you may hear a sound echo caused...

  • Page 111: Auto Volume

    Auto Volume The volume can vary depending on the channel. Automatically equalize the volume level when switching to another channel. Normal Night • MENU m → Sound → Auto Volume → ENTER E Normal equalizes the volume level on each channel, so that when you change channels, the volume level is the same. Night equalizes and decrease the volume level on each channel, so each channel is quieter.

  • Page 112: Network

    Chapter 10 Network If using touchscreen control mode, touch and hold on the screen when the product is turned on. Select Menu from the displayed administrator menu. Network Status Network Settings MENU m → Network → Network Status → ENTER E MENU m →...

  • Page 113: Network Settings (Wired)

    Network Settings (Wired) • Depending on how your network is configured, you may be able to attach your product to your LAN by connecting the LAN port on the back of your product directly to a network wall outlet using a LAN cable. Connecting to a Wired Network See the diagram below.
  • Page 114 Set the network connection to use Internet services such as perform software upgrades. In the pop-up menu that appears, click Status. Automatic Network Settings (Wired) On the dialog that appears, click the Support tab. Connect to the network using a LAN cable. On the Support Tab, click the Details button.

  • Page 115: Network Setting (Wireless)

    ― If the router cannot be found after retrying, select the Stop button. WEP, TKIP or TKIP AES (WPS2Mixed) on your AP or wireless router, Samsung products will not support Add Network button appears. a connection in compliance with new Wi-Fi certification specifications.
  • Page 116 How to set up manually When done, use the right arrow button to move the cursor to Done, and then press E. The network connection screen appears and the verification process starts. Network Type Wireless Network Settings from the page. ―...

  • Page 117: Wps(Pbc)

    When done, select at the bottom of the page, and then press E. The network test screen appears and the verification process starts. When the connection has been verified, the “Your wireless network and Internet connection are setup and ready to use.”...

  • Page 118: Wi-Fi Direct

    Wi-Fi Direct MENU m → Network → Wi-Fi Direct → ENTER E Set to connect the product to wireless mobile devices. Using this function, you can connect wireless mobile devices with your product directly without a router. To use this function, your mobile device To connect your mobile device with your product using Wi-Fi Direct, follow these steps: Wi-Fi Direct.

  • Page 119: Screen Mirroring

    Screen Mirroring Server Network Settings MENU m → Network → Screen Mirroring → ENTER E MENU m → Network → Server Network Settings → ENTER E Connect a mobile device that supports the mirroring function to the product. This allows the screen and Connect to server sound from the mobile device to be outputted on the product.

  • Page 120: Device Name

    Device Name MENU m → Network → Device Name → ENTER E Select or enter a device name. This name can be shown on network remote controls over the network.

  • Page 121: System

    Chapter 11 System If using touchscreen control mode, touch and hold on the screen when the product is turned on. Select Menu from the displayed administrator menu. Setup Initial settings (Setup) After powering on the product for the first time, configure basic settings such as the language, channel and time. MENU m →...

  • Page 122: Touch Control

    • Device to Control Samsung SMART Signage Device to Control Specify a source to control by touch input. If you are playing touchable content created in the author programme, select - The displayed image may differ depending on the model.

  • Page 123: Time

    Time You can configure Clock Set Sleep Timer. You can also set the product to automatically turn on or off at a specified time using the Power On Delay function. ― Press the INFO button if you want to view the current time. MENU m →...

  • Page 124: Auto Source Switching

    Auto Source Switching Turning on the display with Auto Source Switching On, and the previous video source selection is not active, the display will automatically search the different video input sources for active video. Auto Source Switching MENU m → System →...

  • Page 125: Power Control

    Power Control Auto Power On This feature automatically turns on the product as soon as it is plugged in. Pressing the power button is not needed. MENU m → → → ENTER E System Power Control • Max. Power Saving Power Control Turns off the product to reduce power consumption after the PC has been left idle for a specified period of time.

  • Page 126: Power Button

    Power Button Power Control The power button can be set to either turn on the power or turn on/off the power. Auto Power On Power on only: Set the power button to turn on the power. • Power on and off: Set the power button to turn on/off the power.

  • Page 127: Eco Solution

    Eco Solution Energy Saving Reduce the power consumption by adjusting the screen brightness. MENU m → System → Eco Solution → ENTER E Medium High • Screen Lamp Schedule Eco Solution Adjust the panel brightness. A value closer to 100 makes the panel brighter. Energy Saving •...

  • Page 128: Temperature Control

    Temperature Control This function detects the internal temperature of the product. You can specify the temperature range that is acceptable. The default temperature is set to 77 C. The recommended operating temperature for this product is 75 to 80 C (based on an ambient temperature of 40 C). MENU m →...

  • Page 129: Device Manager

    Device Manager Configure options for external input devices connected to the product. Keyboard Settings MENU m → System → Device Manager → ENTER E Configure keyboard connection settings or options for a connected keyboard. Device Manager Select Keyboard Keyboard Settings Select a keyboard you want to use from the available connected keyboards.

  • Page 130: Mouse Settings

    Mouse Settings Device Manager Select Mouse Keyboard Settings Configure mouse connection settings or options for connected mouse devices. Mouse Settings ― Among connected mouse devices, only one mouse can be used. Pointer Settings Mouse Options ― Depending on the country. - The displayed image may differ depending on the model.

  • Page 131: Pointer Settings

    Pointer Settings Device Manager Specify the pointer size, speed and shape. Keyboard Settings Pointer Size Mouse Settings Specify the pointer size. Pointer Settings Small Medium Large Extra Large • Pointer Speed Specify the pointer speed. A higher speed increases the pointer sensitivity. - The displayed image may differ depending on the model.

  • Page 132: Play Via

    Play via Select the appropriate Play via mode depending on the environment where you are using the product. The home screen may be different depending on the setting. MagicInfo URL Launcher • MENU m → → → ENTER E System Play via System Play via...

  • Page 133: General

    Lock USB memory devices to prevent them from being auto detected. • BD Wise Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theatre products which support Wise. When Wise is turned On, the picture mode is automatically changed to the optimal resolution.

  • Page 134: Anynet+ (Hdmi-Cec)

    Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung BD Wise product remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.
  • Page 135 Auto Turn Off Anynet+ (HDMI-CEC) Setting an Anynet+ Device to turn automatically when the product is turned off. Anynet+ (HDMI-CEC) • ― If Auto Turn Off is set to Yes, running external devices will turn off at the same time as the product powers off. Auto Turn Off ―...
  • Page 136 Troubleshooting for Anynet+ Problem Possible Solution Anynet+ does not work. • Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. • Check if the Anynet+ device power cord is properly connected. • Check the Anynet+ device’s Video/Audio/HDMI cable connections. Anynet+ (HDMI-CEC) System •...
  • Page 137 Problem Possible Solution The connected device is not • Check whether or not the device supports Anynet+ functions. displayed. • Check whether or not the HDMI cable is properly connected. Anynet+ (HDMI-CEC) System • Check whether is set to in the menu.

  • Page 138: Hdmi Hot Plug

    HDMI Hot Plug General This feature is used to activate the time delay to turn on a DVI/HDMI source device. Security • BD Wise DivX® Video On Demand Anynet+ (HDMI-CEC) Shows the registration code authorized for the product. HDMI Hot Plug If you connect to the DivXⓇ...

  • Page 139: Reset System

    Reset System This option returns the current settings under system to the default factory settings. MENU m → → → ENTER E System Reset System System Reset System - The displayed image may differ depending on the model.

  • Page 140: Software Update

    This is the software version already installed in the product. Update the software to the latest version. Auto update This feature automatically updates the product when not in use. • Contact Samsung MENU m → Support → Contact Samsung → ENTER E View this information when your product does not work properly or when you want to upgrade the software.

  • Page 141: Go To Home

    Go to Home Go to Home to play a variety of content from a memory device or a connected network. Player Accessible using the HOME button on the remote control. Search or play channels or content saved on devices. MENU m → Support →...

  • Page 142: Video Wall

    Video Wall Customize the layout of multiple displays that are connected to form a video wall. In addition, display part of a whole picture or repeat the same picture on each of the connected multiple displays. To display multiple images, refer to MDC Help or the MagicInfo user guide. Some models may not support the MagicInfo function. Network Status Check the current network and Internet connection.

  • Page 143: Reset All

    Reset All This option returns all the current settings for a display to the default factory settings. MENU m → Support → Reset All → ENTER E Support Reset All - The displayed image may differ depending on the model.

  • Page 144: Playing Photos, Videos And Music (Media Play)

    • Before connecting a USB device to the product, back up files to ensure your data is not damaged or lost. Samsung Electronics is not liable for any damage or loss of data. • Do not remove a USB device while it is loading.
  • Page 145 Compatible devices with media play • Some USB digital cameras, smartphones and audio devices may not be compatible with the product. • Media play is only compatible with USB MSC devices. • MSC device refers to a Mass Storage Class Bulk-Only Transport device. Examples of MSC devices include Thumb drives, Flash card readers and USB HDDs.

  • Page 146: Using A Usb Device

    Using a USB device Connecting a USB device Turn on your product. Connect a USB device containing photo, music and/or movie files to the USB port on the back or side panel of the product. ― If only one USB device is connected, files saved on the USB device are displayed automatically. ―...

  • Page 147: Playing Media Content From A Pc/Mobile Device

    Playing media content from a PC/mobile device Approving a PC/mobile device connection Play photos, videos or music saved on a PC or mobile device. To play media content from a PC or mobile device on the product, the connection with the PC or mobile device must be approved. ―...

  • Page 148: Features Provided In The Media Content List Page

    Play content saved on a device connected to a home network. ― Playing media content using a non-Samsung DLNA server may result in a compatibility issue. ― Playback of some media content shared with a PC or mobile device may not be possible depending on the content encoding type or the content file format. Some functions may not be available.

  • Page 149: Menu Items In The Media Content List Page

    Menu items in the media content list page Option Name Operations Photos Videos Music Slide Show Start a slideshow. ― This menu item is not available if Sort by is set to Folder. Encoding Select an encoding language if the title of media content appears corrupted. Rename Playlist Rename a playlist.

  • Page 150: Available Buttons And Features During Photo Playback

    Available buttons and features during photo playback Pressing the E or TOOLS button displays the following buttons. The RETURN button makes the buttons disappear. Pause Play • Start or stop a slideshow. Using a slideshow, it is possible to play all photos in a folder. Previous Next •...

  • Page 151: Available Buttons And Features During Video Playback

    Available buttons and features Option Name Operations during video playback Select Scene Thumbnails: Select a scene and play the video from the scene. ― Thumbnails is not available if 1) the thumbnail of the video is not extracted yet, 2) the video contains audio only or 3) the video play time is shorter than 60 seconds.

  • Page 152: Available Buttons And Features During Music Playback

    Available buttons and features during music playback Pause Play • Pause or play music. Rewind Fast Forward • Rewind or fast forward music. Speed up playback up to 3x, if required. To play the previous music file, select ∂ twice. Previous Next •...

  • Page 153: Supported Subtitle And Media Play File Formats

    Supported Subtitle and Media play file formats Subtitle External Internal • MPEG-4 timed text (.ttxt) • Xsub Container: AVI • SAMI (.smi) • SubStation Alpha • SubRip (.srt) Container: MKV • SubViewer (.sub) • Advanced SubStation Alpha • Micro DVD (.sub or .txt) Container: MKV •...

  • Page 154: Supported Music File Formats

    Supported music file formats File Extension Type Codec Comments *.mp3 MPEG MPEG1 Audio Layer 3 *.m4a, *.mpa, *.aac, *.3ga MPEG4 *.flac FLAC FLAC The Seek (jump) function is not supported. Supports up to 2 channel Supported Video Formats • Video content will not play, or not play correctly, if there is an error in the content or the container. •...
  • Page 155 File Container Video Codec Resolution Frame rate Bit rate Audio Codec Extension (fps) (Mbps) *.avi DivX 3.11 / 4.x / 5.x / 6.x 1920 x 1080 6~30 *.mkv LPCM *.asf ADMPCM MPEG4 SP / ASP *.wmv (IMA, MS) *.mp4 *.mov HE-AAC H.264 BP / MP / HP *.3gp...

  • Page 156: Troubleshooting Guide

    Chapter 14 Troubleshooting Guide Requirements Before Contacting Samsung Customer Service Centre - Before calling Samsung Customer Testing the Product Service Centre, test your product as follows. If the problem persists, contact Check if your product is operating normally by using the product test function.

  • Page 157: Check The Followings

    Check the followings. Installation issue (PC mode) The screen keeps switching on and off. Check the cable connection between the product and PC, and ensure the connection is secure. Blank spaces are found on all four sides of the screen when The blank spaces found on the screen have nothing to do with the product.
  • Page 158 Screen issue The screen is not clear. The screen is blurry. Adjust Coarse and Fine. Remove any accessories (video extension cable, etc) and try again. Set the resolution and frequency to the recommended level. The screen appears unstable and shaky. Check that the resolution and frequency of the PC and graphics card are set within a range compatible with the product.
  • Page 159 Lines (red, green or blue) are displayed on the screen. These lines are displayed when there is a defect in DATA SOURCE DRIVER IC on the monitor. Contact a Samsung Service Centre to resolve the issue. The display looks unstable and then freezes.
  • Page 160 Sound issue The volume is too low. Adjust the volume. If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software programme. Video is available but there is no sound. If an HDMI cable is connected, check the audio output settings on the PC.
  • Page 161 Make sure you are not wearing a glove and your finger is not dirty. The touch function is not working properly in a programme. If a Windows or Mac programme not provided with Samsung monitors or a programme installed on your PC is not working properly, contact the original software vendor.
  • Page 162 Other issue The product smells like plastic. The plastic smell is normal and disappears over time. Audio or video cuts out intermittently. Check the cable connection and connect it again if required. Using a very hard or thick cable may corrupt audio and video files. Make sure cables are flexible enough to ensure durability.

  • Page 163: Q & A

    Q & A Question Answer What is the minimum touch area? Ensure the touch area is at least 8 mm in diameter when tapping with your finger. How can I change the frequency? Set the frequency on your graphics card. •...
  • Page 164 Question Answer • Windows XP: Set power-saving mode in Control Panel → Appearance and Themes → Display How do I set powersaving mode? → Screen Saver Settings or BIOS SETUP on the PC. • Windows ME/2000: Set power-saving mode in Control Panel → Display → Screen Saver Settings or BIOS SETUP on the PC.

  • Page 165: Specifications

    Chapter 15 Specifications General Size Model Name DB22D-T Panel Size 22 CLASS (21.5 inches / 54 cm) Display area 476.64 mm (H) x 267.786 mm (V) / 18.77 inches (H) x 10.54 inches (V) Dimensions (W x H x D) 507.5 x 311.2 x 59.3 mm / 19.98 x 12.25 x 2.33 inches...
  • Page 166 ― This device is a Class A digital apparatus. [Recommendation] - EU Only • Hereby, Samsung Electronics, declares that this Monitor is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. • The official Declaration of Conformity may be found at http://www.samsung.com/displaysolutions, go to Support >...

  • Page 167: Powersaver

    PowerSaver The power-saving function of this product reduces power consumption by switching off the screen and changing the colour of the power LED if the product is not used for a specified period of time. Power-saving mode does not turn off the power completely. To turn on the screen again from this mode, click on your mouse, enter a key on the keyboard, or tap anywhere on the screen.

  • Page 168: Preset Timing Modes

    ― Check the frequency when you exchange a CDT product (connected to a PC) for an LCD product. If the LCD product does not support 85Hz, change the vertical frequency to 60Hz using the CDT product before you exchange it with the LCD product. Model Name DB22D-T Synchronization Horizontal Frequency...
  • Page 169 Resolution Horizontal Frequency Vertical Frequency Pixel Clock Sync Polarity (kHz) (Hz) (MHz) (H/V) VESA, 640 x 480 37.500 75.000 31.500 VESA, 800 x 600 35.156 56.250 36.000 VESA, 800 x 600 37.879 60.317 40.000 VESA, 800 x 600 48.077 72.188 50.000 VESA, 800 x 600 46.875...

  • Page 170: Responsibility For The Pay Service (Cost To Customers)

    ― When the service is requested, in spite of in warranty, we may charge you for a visit from a service • Use of supplies or separatly sold product unspecified by Samsung. technician in the following cases. • Repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd. Not a product defect •...

  • Page 171: Weee

    WEEE Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

  • Page 172: Optimum Picture Quality And Afterimage Burn-In Prevention

    Optimum Picture Quality and Afterimage Black Matrix Colour-Filter Common Electrode (ITO) Burn-in Prevention Optimum Picture Quality Source Drain • Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the panel. This does not affect product performance. - The number of sub-pixels by panel type: 6,220,800 •...
  • Page 173 Preventing afterimage burn-in • Regular Text colour Change - Use bright colours of similar brightness. ― The best way to protect the product from afterimage burn-in is switching the power off or setting the Interval: Change text colour and background colour every 30 minutes PC or system to run a screen saver when not in use.

  • Page 174: Licence

    In the case of using open source software, Open Source Licenses are available on the product menu. Open Source Licence Notice is written only English. For information on the Open Source Licence Notice, contact the Samsung Customer Centre or send email to oss.request@samsung.com.

  • Page 175: Terminology

    Terminology 480i / 480p / 720p / 1080i / Non-interlace Mode and Interlace Vertical Frequency____ The product Plug & Play____ Plug & Play is a DVD (Digital Versatile Disc)____ DVD 1080p____ Each of the scanning Mode____ Non-interlace mode displays a single image many times function that allows the automatic refers to a CD-sized mass storage disk rates above refers to the number of...

Table of Contents
