Summary of Contents for ELA DD822
-
Page 1: Instruction Manual
Rotary Desiccant Dehumidifier Model DD822 INSTRUCTION MANUAL SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE... -
Page 2: General Information
GENERAL INFORMATION Packaging Please DO NOT dispose of any packaging until you have checked the appliance is operational. After removing the packaging ensure the contents are intact and complete. In the unlikely event of missing parts; contact your retailer. DO NOT leave children unattended with any of the packaging since it is a potential source of danger. - Page 3 GENERAL INFORMATION Features of Desiccant Technology The desiccant dehumidifier is intended for household use only. Do not use this appliance outdoors or on a wet surface. The desiccant dehumidifier is designed to provide an optimum operating performance between 1ºC and 37ºC. To achieve maximum efficiency, keep doors and windows closed.
-
Page 4: Important Safety Instructions
IMPORTANT INSTRUCTIONS WARNING - to reduce the risk of fire, electrical shock or injury to persons or Important Safety Instructions property: Always operate the product from a power source of the same voltage, frequency and rating as indicated on the product identification plate. Close supervision is necessary when any appliance is used by or near Children, the elderly or the infirm. -
Page 5: Product Description

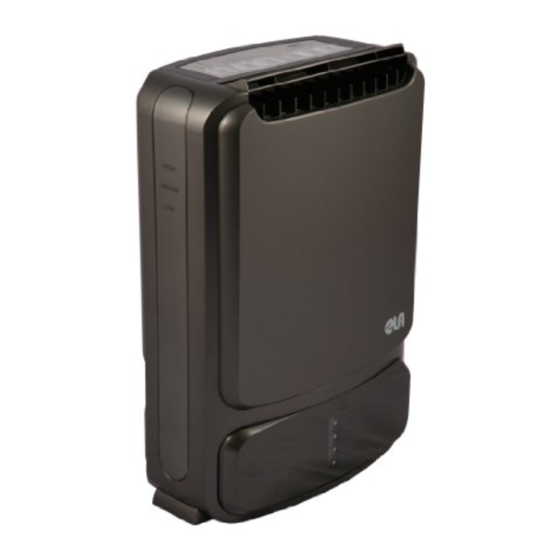

PRODUCT DESCRIPTION Auto air louvre Dry air outlet Air intake Air Filter & Filter Release Tab Control panel Condensate tank Continuous drain (2m hose included) Power cable Water level indicator DO NOT OBSTRUCT THE AIR INLET OR OUTLET... - Page 6 CONTROL PANEL & OPERATING INSTRUCTIONS POWER: Press to switch the appliance ON (3 beeps will sound). Press again to switch the appliance OFF.ON MODE: ‘M’ mode is set when the appliance is switched ON. Press the mode button to control the fan speed through the sequence below. Low, Medium, High(Laundry). The corresponding LED will illuminate on the control panel and side panel.
- Page 7 OPERATING INSTRUCTIONS continued In CONTINUOUS operation the desiccant wheel will operate to remove ALL moisture present in the air & fabric of the building. At 40%, 50% & 60% the appliance will operate to achieve the set humidity. Once achieved, the desiccant wheel will stop operating until the relative humidity rises above the set humidity.
- Page 8 OPERATING INSTRUCTIONS Emptying the Condensate Tank When the tank is FULL the WATER FULL LED on the control panel will illuminate, 10 ‘beeps’ will be heard and the dehumidifier will stop operating. DO NOT move the appliance while the tank is full as this may lead to water spillage and create a potential hazard.
-
Page 9: Filter Maintenance
FILTER MAINTENANCE Turn the appliance OFF and ensure the appliance is disconnected from the mains power outlet. Remove the filter located at the back of the appliance by pulling the filter tab and slide out. Clean the filter using clean water and allow to dry. Alternatively, clean using a vacuum cleaner. - Page 10 SAEFETY FEATURES POWER FAILURE Once the power is restored after a power failure, the appliance will automatically restart at the selected settings prior to the power failure. TURNING THE APPLIANCE OFF After turning the appliance OFF using the POWER button, the fan will continue to run for a short period of time.
-
Page 11: Technical Data
TECHNICAL DATA BS Plug Wiring Wiring Instructions: Should it be necessary to change the plug please note the wires in the mains lead are coloured in accordance with the following code: BLUE ‐ NEUTRAL BROWN ‐ LIVE GREEN/YELLOW ‐ EARTH As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: 1. -
Page 12: General Maintenance
TECHNICAL DATA DD822 Model No. 230‐240V~ 50Hz Power Supply 650 watts Maximum Power Consumption 8 litres per day Extraction Rate 2 litres Tank Volume 115 m³ per hour Air Flow (Max) 1 ‐ 37°C Operating Temperature Range 351mm x 180mm x 500mm Unit Dimensions (LxWxH) Unit Weight 6.3 kg GENERAL MAINTENANCE Ensure the appliance is switched OFF and the power cord is removed from the mains socket outlet . Use a soft moist cloth to remove dirt & dust and wipe dry . -
Page 13: Warranty
WARRANTY ONE (1) YEAR LIMITED WARRANTY Retain this warranty information ELA undertakes to replace or repair at its discretion goods (excluding batteries) should they become defective within one year solely as a result of faulty materials & workmanship. If the product has not been operated, maintained or if any attempt has been made to rectify, dismantle or alter the appliance in any way the warranty will be invalidated.
