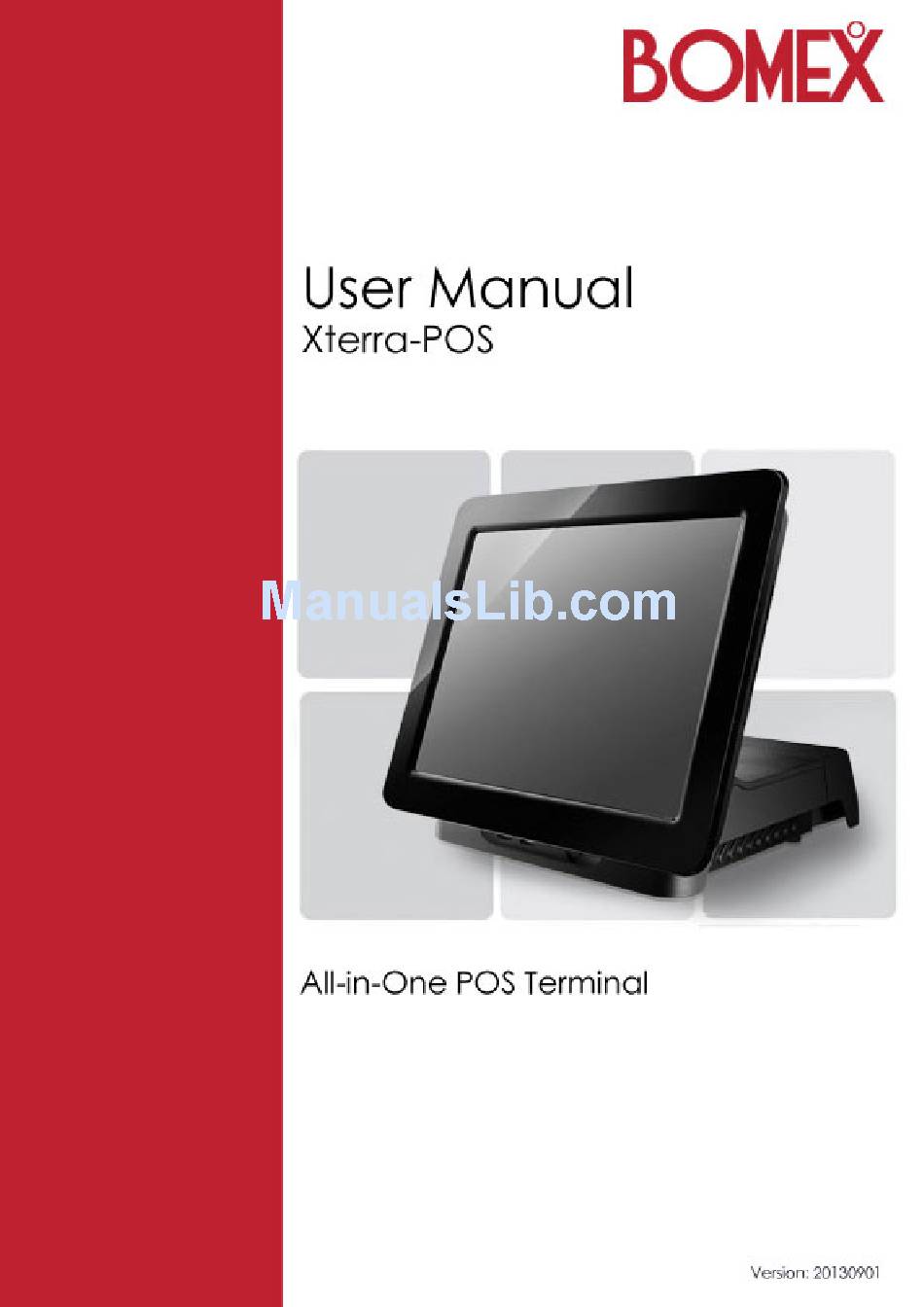

Bomex Xterra-POS User Manual

All-in-one pos terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xterra-POS and is the answer not in the manual?

Questions and answers

Summary of Contents for Bomex Xterra-POS

  • Page 2: Safety Instructions

    Safety Instructions Read these instructions carefully. Keep these instructions for future reference. Please disconnect this equipment from AC outlet before cleaning. Don’t use liquid or sprayed detergent for cleaning. Use moisture sheet or cloth for cleaning. Please keep this equipment from humidity. Lay this equipment on a reliable surface when install.
  • Page 3 Copyright Copyright 2010 Publishing. All Rights Reserved. This manual, software and firmware described in it are copyrighted by their respective owners and protected under the laws of the Universal Copyright Convention. You may not reproduce, transmit, transcribe, store in a retrieval system, or translate into any language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, biological, molecular, manual, or otherwise, any part of this publication without the express written permission of the publisher.
  • Page 4 CE Notice This device complies with the requirements of the CE directive. FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Table Of Contents

    Table of Contents 1. Packing List……………………………………………………… P6 Standard Accessories………………………..………………..P6 2. System View ……………………………………………………….P7~8 2-1. SPEC………………………………………………………..P7 2-2. Front View.……………………………………...……………..P7 2-3. Rear View….……………………………………..….………….P8 2-4. Bottom View…….………………………………………………P8 3. Internal Layout…..…………………………………………………P9 4. Pin Definition….................P10~12 5. Rear I/O Interface…………………………………………………..P13~14 6. System Assembly & Disassembly………………………………P15~17 6-1. MSR……………………………………………………………….P15-17 6-2.

  • Page 6: Packing List

    Packing List 1-1. Standard Accessories a. System b. Power Adapter c. Power Cord d. Driver Bank e. Screw...

  • Page 7: Spec

    2.1 Specification Processor Intel Atom D525 1.8GHz Chipsets Intel ICH8-M Memory DDR3 800 SO-DIMM Supports 512MB~2GB Audio VIA VT1708S Network 10/100/1000Mbps Base-T Fast Ethernet 4*USB 1.1/2.0 Storage DOM / CF / 2.5” SATA HDD / SSD BIOS Award PnP BIOS, 8Mb SPI ROM Power DC 12V/5A 60W Adaptor Power DC 12V/8.33A 100W Adaptor Power (for DC out)

  • Page 8: Rear View

    2.3 Rear View Item 7. DC Jack 8. VGA port 9. COM1 port (5V/12V selection) 10. Lan port 11. USB ports 12. RJ11 port for Cash Drawer 13. PS/2 port 14. Kensington lock 15. Line-out 16. COM3 port (5V/12V Selection) 17.

  • Page 9: Internal Layout

    Internal Layout 1. Speaker 2. Line-out 3. Parallel 4. Jumper for COM Power selection 5. COM4, COM5 □ Mini PCIe (option) 6. USB Pitch 2.0 7. Powered USB SO-DIMM 8. CMOS jumper 9. SATA power 10. DC out Battery 11. SATA 12.

  • Page 10: Pin Definition

    Pin Definition 1. Speaker J16 Pin Name Description Speaker Output L- Speaker Output L+ Speaker Output R- Speaker Output R+ 2. Lin-out J18 Pin NO. Pin Name Description Line OUT L Lint out AMP L Internal speaker AMP R Internal speaker Line OUT R Lint out Ground...
  • Page 11 5. COM4, COM5 Pin NO. Pin Name Description Pin NO. Pin Name Description NDCD1# Data Carrier Detect NDSR1# Data set Ready NRXD1 Serial Data Input NRTS1# Request to Send NTXD1 Serial Data Output NCTS1# Clear to Send NDTR1# Data Terminal Ready NRI1#A Ring Indicator Ground...
  • Page 12 11. SATA CN4,CN5 Pin NO. Pin Name Description Pin NO. Pin Name Description Ground SATA_RX0_N SATA Data Read + SATA_TX0_P SATA Data Write+ SATA_RX0_P SATA Data Read - SATA_TX0_N SATA Data Write- Ground Ground 12. Connector for Power button, USB- J10 Pin NO.

  • Page 13: Rear I/O Interface

    Rear I/O Interface 1. COM (RS232) port 2. Parallel port 3. VGA port 4. USB port...
  • Page 14 5. PS/2 K/B port 6. Lan port 7. RJ11 port (for Cash drawer) 8. DJ Jack 9. DC out (option)
  • Page 15 Peripherals Installation 1. Magnetic Card Reader / I-button Installation a. Loosen 1 screw and open MSR cover. b. The connector for MSR cable connecting is reserved. c. Cut off the edge of MSR cover by hand.
  • Page 16 d. Fasten the Magnetic Card Reader / I-button on the plate chassis with 2 screws. e. Connect the MSR cable.
  • Page 17 f. Fasten the plate chassis on panel cover with 3 screws. Fasten the MSR cover.
  • Page 18 2. HDD / Memory Installation a. Loosen 4 screws and remove cable cover. b. Loosen 1 screw and remove the base cover.
  • Page 19 c. Fasten the HDD on HDD bracket with 4 screws. d. Connect SATA cable with HDD.
  • Page 20 e. Connect the SATA cable. f. Fasten the HDD bracket with 2 screws. g. Fasten the base cover with1 screw. Fasten the cable cover with 4 screws.

  • Page 21: Vfd/Lcm

    3. VFD / LCM Module Installation a. Remove the plate and loosen 4 screws and remove VFD cover.
  • Page 22 b. Connect VFD cable and fasten the VFD/LCM module with 4 screws. c. Recover and fasten VFD cover with 4 screws, the stick the plate as shown below.. d. Stick the plate...
  • Page 23 4. 2 Diplay Installation a. Loosen the cable cover with 4 screws, Loosen 2 rubbers which near the I/O ports on case base then fasten the 2 rubbers on cable cover. b. connect VGA and audio cables...
  • Page 24 c. Reeve the cables out of the tube of cable cover d. Assemble the cable cover and fasten 4 screws. e. Fasten 2 screws on case base.
  • Page 25 f. Fasten the 4 screws (M4*8L) to joint the VESA bracket and the rear cover. g. Reeve cables through the tube of VESA bracket. h. Mount the VESA bracket on the pole and route cables out of the tube of VESA bracket.
  • Page 26 j. Manage the cables into the pole k. Put the cable cover on the hinge of VESA bracket.

  • Page 27: Device Driver Installation

    Device Driver Installation 7.1 Resistive Type Touch Panel 1. Installation 1.1 Run Setup to start installation 1.2 Click Next...
  • Page 28 1.3 Click Next 1.4 Select “None” and click Next...
  • Page 29 1.5 Click OK 1.6 Click Next...
  • Page 30 1.7 Click Next 1.8 Click Next...
  • Page 31 1.9 Run the Touch Panel utility program 1.10 Click “tools folder” and click 4 points calibration box to start Touch Calibration.
  • Page 32 1.11 Follow the instruction to touch the four cross points. 1.12 Calibration done.
  • Page 33 7.2 MSR 1. Install (OS：POSReady2009 English) 1.1 Driver Installation，Execution CP210x_VCP_Win_XP_S2K3_Vista_7.exe 1.2 Click Next...
  • Page 34 1.3 Click I accept the terms of the license agreement & Next 1.4 Click Next...
  • Page 35 1.5 Click Install 1.6 Click Finish...
  • Page 36 1.7 Click finish, then click Install 1.8 Click finish, then click OK...
  • Page 37 1.9 Check this device was detected or not： Please follow below steps. Computer Management → Device Manger → Ports(COM & LPT)， Detected after installation, there will be "Silicon labs cp210X USB to UART Bridge (COM7)" 1.10 Installation and testing program, click putty.exe...
  • Page 38 1.11 Select Serial & Serial line , type COM7 then click Open 。 1.12 Use Ibutton, then will show the ID number or Letter.
  • Page 39 1.13 Slip MSR, then the screen will appear ID card’s data - Finish the test -...

  • Page 40: Bios/Utility Setup

    BIOS/Utility setup Press <DEL> key to enter BIOS SETUP UTILITY when system boot up.
  • Page 41 Standard CMOS Features Date and Time The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility. IDE Devices Press <Enter>...
  • Page 42 Advanced BIOS Features Hard Disk Boot Priority (Press Enter) Scroll to this item and press <Enter> to view the following screen: First/Second Boot Device (Hard Disk/CDROM) Use these three items to select the priority and order of the devices that your system searches for an operating system at start-up time.
  • Page 43 Integrated Peripherals These options display items that define the operation of peripheral components on the system’s input/output ports. SuperIO Device (Press Enter) Scroll to this item and press <Enter> to view the following screen:...
  • Page 44 Power Management Setup Soft-Off by PWR-BTTN (Instant-Off) Under ACPI (Advanced Configuration and Power management Interface) you can create a software power down. In a software power down, the system can be resumed by Wake Up Alarms. This item lets you install a software power down that is controlled by the power button on your system.
  • Page 45 Load Fail-Safe Defaults Option This option opens a dialog box that lets you install fail-safe defaults for all appropriate items in the Setup Utility: Press <Y> and then <Enter> to install the defaults. Press <N> and then <Enter> to not install the defaults.
  • Page 46 Save & Exit Setup Option Highlight this item and press <Enter> to save the changes that you have made in the Setup Utility and exit the Setup Utility. When the Save and Exit dialog box appears, press <Y> to save and exit, or press <N> to return to the main menu: Exit Without Saving Highlight this item and press <Enter>...

  • Page 47: Lcd Surface Cleaning

    LCD Surface Cleaning 1. How to clean the LCD surface properly? ☆ Do not spray any liquids on the LCD screen directly, and do not use paper towels, this can cause the LCD screen to become scratched. ☆ Always apply the solution to your cloth first, not directly to the parts you are cleaning.
