Summary of Contents for PC POP Y20 Pefrect II

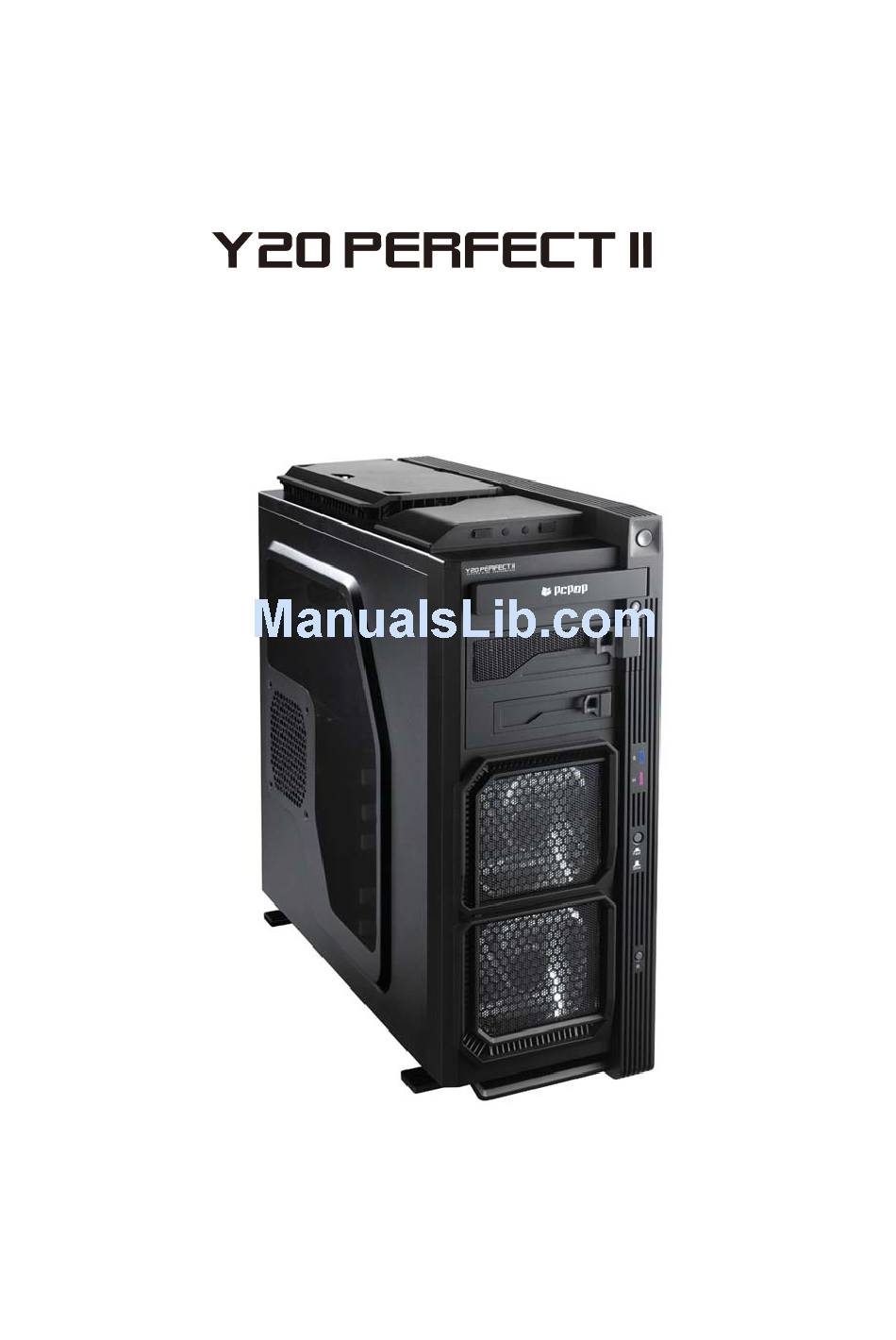

- Page 1 Manual...
- Page 2 CONTENTS Installation and system optimization guide: The following manual and guides were carefully prepared by the PC POP Inc. engineering team to help you maximize the potential of your PCPOP product. Please keep this manual for future reference when upgrading or performing maintenance.
- Page 3 SPECIFICATIONS...
- Page 4 Names of parts...
-
Page 5: Installation Guide
Installation Guide 1 .How to remove the side panel. 2. How to install the PSU. Remove four thumb screws from the rear to Warning: PSU bottom fan can be setup facing up/down to pull the side panels away from the case. accommodate any PSU type. - Page 6 4. How to install the add-on cards. Remove the expansion slot covers as required then insert expansion card into the case. Secure with screws used to secure the expansion slots.
- Page 7 5. How to install the 5.25” devices. 1. Please remove front bezel to install ODD. 2. Insert the ODD device 3. Reinstall the front bezel.
- Page 8 6. How to install the 3.5” and 2.5” devices. - Insert HDD into the hard drive tray - Insert SSD into the hard drive tray and then use screw A to secure it. and then use screw B to secure it. 3.5”...
- Page 9 7. I/O Function panel installation guide. - Please refer to the illustration in the section of USB 2.0 and Audio connector from the motherboard user manual. Please select the motherboard which uses the same USB2.0, HD Audio standard as below. Otherwise, it will cause damage to devices. - The following illustration is a diagram showing the front panel I/O connectors.
- Page 10 USB & AUDIO Below are the front I/O connectors pin definition, please also check your motherboard manual to cross reference with motherboard’s front I/O pin headers. PCPOP’s I/O connectors are in block type to simplify installation. HD Audio USB 2.0 USB 3.0 USB 2.0 Caution : Connecting both USB 2.0 and USB 3.0 will cause shortage.
- Page 11 8. Completing installation. After all wires and cables are connected and routed, place the side panels back on to the case and secure with thumb screws removed from step 1.
-
Page 12: Warranty Information
Warranty information PC POP Inc. guarantees that this device is free of defect in material and workmanship, and provide a one-year limited hardware warranty for device commencing from the date of purchase. Please keep your receipt for proof of purchase.
