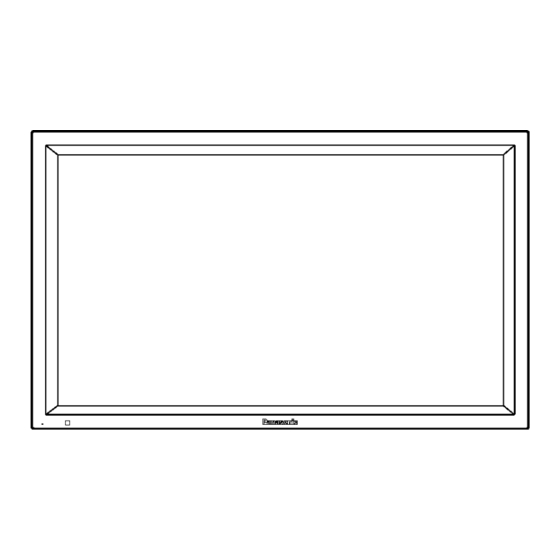

Panasonic TH-50PF30U Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. TV
  5. TH-50PF30U
  6. Service manual
Panasonic TH-50PF30U Service Manual

Panasonic TH-50PF30U Service Manual

High definition plasma display
Hide thumbs Also See for TH-50PF30U:
Table of Contents

Advertisement

Quick Links

See also: Service Manual

TABLE OF CONTENTS

1 Safety Precautions----------------------------------------------- 3
1.1. General Guidelines---------------------------------------- 3
2 Warning -------------------------------------------------------------- 4
2.2. About lead free solder (PbF)---------------------------- 5
3 Service Navigation ----------------------------------------------- 6
3.1. Service Hint ------------------------------------------------- 6
3.2. Applicable signals ----------------------------------------- 7
4 Specifications ----------------------------------------------------- 9
5 Operating Instructions-----------------------------------------10
6 Service Mode -----------------------------------------------------12
sample data) -----------------------------------------------16
7 Troubleshooting Guide ----------------------------------------17
7.1. Self Check--------------------------------------------------17
7.2. No Power ---------------------------------------------------20
7.3. No Picture --------------------------------------------------20
High Definition Plasma Display
Model No.
GPF14DMON Chassis
PAGE
7.4. Local screen failure-------------------------------------- 21
8.1. Removal of Rear Cover -------------------------------- 22
8.2. Removal of Slot Block ---------------------------------- 22
8.3. Removal of DS-Board----------------------------------- 22
8.4. Removal of D-Board------------------------------------- 22
8.5. Removal of HX-Board----------------------------------- 22
8.6. Removal of A-Board------------------------------------- 23
8.7. Removal of Fan------------------------------------------- 23
8.8. Removal of P-Board------------------------------------- 24
8.9. Removal of AC Inlet Assy------------------------------ 24
8.10. Removal of H3-Board Block--------------------------- 25
8.12. Removal of SC-Board----------------------------------- 25
8.13. Removal of SS-Board----------------------------------- 26
8.14. Removal of C1-Board ----------------------------------- 26
8.15. Removal of C2-Board ----------------------------------- 26
8.16. Removal of C3-Board ----------------------------------- 27
8.17. Removal of S1-Board ----------------------------------- 27
© Panasonic Corporation 2011
Unauthorized copying and distribution is a violation
of law.
Order Number MTNC110670CE
TH-50PF30U
B34 Canada: B62
PAGE

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TH-50PF30U

Summary of Contents for Panasonic TH-50PF30U

  • Page 1: Table Of Contents

    7.1. Self Check--------------------------------------------------17 8.15. Removal of C2-Board ----------------------------------- 26 7.2. No Power ---------------------------------------------------20 8.16. Removal of C3-Board ----------------------------------- 27 7.3. No Picture --------------------------------------------------20 8.17. Removal of S1-Board ----------------------------------- 27 © Panasonic Corporation 2011 Unauthorized copying and distribution is a violation of law.
  • Page 2 TH-50PF30U 8.18. Removal of Front Glass, V1, V2-Board and Cabinet Assy ---------------------------------------------- 27 8.19. Removal of Plasma Display Panel------------------- 29 9 Measurements and Adjustments -------------------------- 33 9.1. Adjustment ------------------------------------------------- 33 9.2. Adjustment ------------------------------------------------- 34 10 Block Diagram --------------------------------------------------- 39 10.1. Main Block Diagram ------------------------------------ 39 10.2.

  • Page 3: Safety Precautions

    TH-50PF30U 1 Safety Precautions 1.1. General Guidelines 1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials. 2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units.

  • Page 4: Warning

    TH-50PF30U 2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensi- tive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip”...

  • Page 5: About Lead Free Solder (Pbf)

    TH-50PF30U 2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).

  • Page 6: Service Navigation

    TH-50PF30U 3 Service Navigation 3.1. Service Hint Board Name Function Board Name Function Digital Signal Processor, Microcomputer Data drive (Center) Audio Processor, Speaker Out Amplifier Data drive (Left) Slot Interface Power switch Format Converter, Plasma AI Processor Remote receiver, LED-G, R...

  • Page 7: Applicable Signals

    TH-50PF30U 3.2. Applicable signals...
  • Page 8 TH-50PF30U...

  • Page 9: Specifications

    TH-50PF30U 4 Specifications Power Source 110 - 127 V AC, 50/60 Hz Power Consumption Rated Power Consumption 475 W Stand-by condition Save OFF 0.7 W, Save ON 0.4 W Power off condition 0.2 W Plasma Display panel Drive method: AC type 50-inch, 16:9 aspect ratio 43.5 inch (1,105 mm) (W) ×...

  • Page 10: Operating Instructions

    TH-50PF30U 5 Operating Instructions...
  • Page 11 TH-50PF30U Option Menu for GPF14DMON series GPF14DMON chassis series have special function and operation setting facility called Option Menu. This Option Menu is useful for special function required customers. This should be set at the installation stage. Option menus default setting...

  • Page 12: Service Mode

    TH-50PF30U 6 Service Mode 6.1. CAT (Computer Aided Test) mode To exit the CAT mode, access the ID mode and switch off the main power. 6.1.1. IIC mode Select the IIC mode by Up/Down button on the remote control at the front page of CAT mode and then press the Action button on the remote control.
  • Page 13 TH-50PF30U 6.1.2. CD mode Select the CD mode by Up/Down button on the remote control at the front page of CAT mode and then press the Mute button on the remote control more than 3 seconds. Memory data change To exit the CD mode, press the R button on the remote control.
  • Page 14 TH-50PF30U 6.1.4. SD mode Select the SD mode by Up/Down button on the remote control at the front page of CAT mode and then press the Action button on the remote control. To exit the SD mode, press the R button on the remote control.
  • Page 15 TH-50PF30U 6.1.6. ID mode Select the ID mode by Up/Down button on the remote control at the front page of CAT mode and then press the Mute button on the remote control more than 3 seconds. To exit the ID mode, press the R button on the remote control.

  • Page 16: Iic Mode Structure (Following Items Value Is Sample Data)

    TH-50PF30U 6.2. IIC mode structure (following items value is sample data)

  • Page 17: Troubleshooting Guide

    TH-50PF30U 7 Troubleshooting Guide 7.1. Self Check 7.1.1. Display Indication 1. Self-check is used to automatically check the bus line controlled circuit of the Plasma display. 2. To get into the Self-check mode, press the volume down button on the customer controls at the bottom of the set, at the same time pressing the OFF-TIMER button on the remote control, and the screen will show.

  • Page 18: Power Led Blinking Timing Chart

    TH-50PF30U 7.1.2. Power LED Blinking timing chart 1. Subject Information of LED Blinking timing chart. 2. Contents When an abnormality has occurred to the unit, the protection circuit operates and resets to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.
  • Page 19 TH-50PF30U About blinking LED...

  • Page 20: No Power

    TH-50PF30U 7.2. No Power First check point There are following 3 states of No Power indication by power LED. 1. No lit. 2. Green is lit then turns red blinking a few seconds later. 3. Only red is lit. 7.3.

  • Page 21: Local Screen Failure

    TH-50PF30U 7.4. Local screen failure Plasma display may have local area failure on the screen. Fig - 1 is the possible defect P.C.B. for each local area. Fig - 1...

  • Page 22: Disassembly And Assembly Instructions

    TH-50PF30U 8 Disassembly and Assem- 3. Remove 6 screws and then remove DS-Board. bly Instructions • To disassemble P.C.B., wait for 1 minute after power was off for discharge from electrolysis capacitors. • marks indicate screw positions. 8.1. Removal of Rear Cover 1.

  • Page 23: Removal Of A-Board

    TH-50PF30U 4. Disconnect the connectors (HX1, HX2). 2. Remove 2 screws and then remove the Fan Block (A) 5. Remove 2 Hexagonal-Head screws and 1 screw of HX- and the Fan-Duct Barrier (A). Board and then remove HX-Board. 8.6. Removal of A-Board 1.

  • Page 24: Removal Of P-Board

    TH-50PF30U 7. Stick the Fan Sponges around the Fan. 12. Remove 4 screws and then remove the from the Fan Fixed Metal. 13. Remove 3 Rubbers. Note: The Fan Sponge is not re-usable. Please use a new one when Fan exchange.

  • Page 25: Removal Of H3-Board Block

    TH-50PF30U 3. Remove 1 screw ( ) and then remove the AC Inlet Assy. 3. Remove the flexible cables from the connectors (SU1, SU2, SU3, SU4, SU5, SU11, SD1, SD2, SD3, SD4, SD5). 8.10. Removal of H3-Board Block 1. Disconnect the connector (H37).

  • Page 26: Removal Of Ss-Board

    TH-50PF30U 5. Remove 4 screws ( ) and then remove SC-Board. 7. Remove 7 screws and then remove SS-Board. 8.13. Removal of SS-Board 8.14. Removal of C1-Board 1. Disconnect the connectors (A5, A11, A13, A16, A22, 1. Remove the flexible cable from the connector (C10).

  • Page 27: Removal Of C3-Board

    TH-50PF30U 5. Remove 6 screws ( ) and then remove the flexible 2. Disconnect the connector (S34). cables from the connectors (CB4, CB5, CB6, CB7, CB8, 3. Remove 1 screw (C) and then remove S1-Board. CB9). 6. Remove 4 screws ( ) and then remove C2-Board.
  • Page 28 TH-50PF30U 7. Slide the Plasma Display Panel and then remove the 2. Remove the Front Glass. Plasma Display Panel (arrow2). 8.18.1. Notice when Front Glass or Cabinet Assy is exchanged Please use the Aluminum Tapes when you exchange the Front Glass or the Cabinet Assy.

  • Page 29: Removal Of Plasma Display Panel

    TH-50PF30U 5. Remove 1 hook and then remove V1-Board 6. Remove the Cabinet Assy. 6. Remove 2 hooks and then remove the Power Button Shield. 7. Remove 3 hooks and then remove the Power Button and Power Button Spring. 8. Disconnect the connector (V22) and then remove V2- Board.
  • Page 30 TH-50PF30U 4. Remove 4 hooks and then remove Fan-Duct Barrier (B). 12. Remove 2 screws ( ) and then remove the A-Board Block. 13. Remove 1 screw and then remove the Speaker Terminal Block. 5. Remove 3 screws and then remove the Fan Block (B).
  • Page 31 TH-50PF30U 19. Remove 4 screws ( ) and then remove SU-Board and 23. Remove the flexible cables from the connectors (C10, SD-Board. C20, C26, C36). 24. Remove the Duct Barrier (C). 25. Remove 7 screws ( ) and then remove the Handle Fixing Metal (L, R).
  • Page 32 TH-50PF30U 29. Exchange the Plasma Display Panel.

  • Page 33: Measurements And Adjustments

    TH-50PF30U 9 Measurements and Adjustments 9.1. Adjustment 9.1.1. Vsus selection Caution: When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH. Procedure 1. Access the CAT mode. Press and hold the Volume down / - button on the front panel of the unit and press the [RECALL] button on the remote con- trol 3 times quickly within 2 second, this will place the unit into the CAT mode.

  • Page 34: Adjustment

    TH-50PF30U 9.2. Adjustment 9.2.1. RGB white balance adjustment Instrument Name Connect to Setting • RGB VGA60 W / B pattern PC IN terminal Picture menu: STANDARD • Color analyzer Panel surface User setting: Normal (Minolta CA-100 or equivalent) except PICTURE: max 30...
  • Page 35 TH-50PF30U...
  • Page 36 TH-50PF30U 9.2.2. YUV white balance adjustment Instrument Name Connect to Setting • HD(1125/60i) W/B pattern (COMPONENT Output) PC IN terminal Picture menu: STANDARD • Color analyzer Panel surface User setting: Normal (Minolta CA-100 or equivalent) except PICTURE: max 30 Steps...
  • Page 37 TH-50PF30U...
  • Page 38 TH-50PF30U...

  • Page 39: Block Diagram

    TH-50PF30U 10 Block Diagram 10.1. Main Block Diagram COMPONENT/ DIGITAL CORE SIGNAL PROCESSOR DS SLOT INTERFACE COMPOSIT AUDIO IN VIDEO AUDIO HDMI SLOT1 SPEAKER L,R-1 AUDIO IN AUDIO IN AUDIO IN TERMINALS CVBS LVDS IN LVDS LVDS IN LVDS IN...

  • Page 40: Block (1 Of 5) Diagram

    TH-50PF30U 10.2. Block (1 of 5) Diagram DS SLOT INTERFACE AUDIO IN L AUDIO IN L AUDIO IN R AUDIO IN R A_OA+- - OE+- A_EA+- - EE+- A_CLK+- A_OA+- - OE+- A_ED+/- A_EA+- - EE+- TX3+/- A_CLK+- A_OE+/- SLOT_RXD TX9+/- 32.768KHz...

  • Page 41: Block (2 Of 5) Diagram

    TH-50PF30U 10.3. Block (2 of 5) Diagram VIDEO IN AUDIO IN JK2103 JK2102 PB/B HDMI IN DVI IN DIGITAL CORE SIGNAL PROCESSOR JK2104 PR/R (COMPONENT) FACTORY AUDIO IN(L/R_HA) IC2112 (COMPOSIT) AUDIO IN(L/R_CV) AUDIO IN L CVBS AUDIO IN R LVDS DATA...

  • Page 42: Block (3 Of 5) Diagram

    TH-50PF30U 10.4. Block (3 of 5) Diagram DIGITAL CORE SIGNAL PROCESSOR SPEAKER TERMINALS JK8500 STB+5V A+9V SP_R+ R OUT+ SPEAKER R SP_R- R OUT- TERMINAL VOUT VOUT Q2123,24 IC2001 VIDEO IN SW VIDEO SW SP AMP IC2115 IC2114 R_OUT+ ASIC...

  • Page 43: Block (4 Of 5) Diagram

    TH-50PF30U 10.5. Block (4 of 5) Diagram POWER SUPPLY COLD COLD DIGITAL SIGNAL PROCESSOR Q601,04,06 F201 Q201,Q202 T201 L603 D253 Vsus RESONANCE 5A 250V IC9002 SS11 D254 VDET IC601 TEMP Vsus SENSOR Q602,Q603 P+15V D401 IC201 P3V_IIC2 RESONANCE P+3.3V D351...

  • Page 44: Block (4 Of 5) Diagram

    TH-50PF30U 10.6. Block (5 of 5) Diagram SUSTAIN DRIVE SCAN DRIVE TPVSUS TPVSUS SCAN OUT(UPPER) Vsus Vsus D16618 IC14601-03 P+15V MAIN H Q16607 IC16131 Q16001 CERS VF5V Q16002 SCAN IC16684 Q16003 DRIVER VSCN-F BUFFER CPH1 TPVAD CPH1 T16471 BUFFER Q16600...

  • Page 45: Wiring Connection Diagram

    TH-50PF30U 11 Wiring Connection Diagram 11.1. Wiring (1)

  • Page 46: Wiring (2)

    TH-50PF30U 11.2. Wiring (2)

  • Page 47: Wiring (3)

    TH-50PF30U 11.3. Wiring (3)

  • Page 48: Schematic Diagram

    Model No. : TH-50PF30U Schematic Diagram Note...
  • Page 49 Model No. : TH-50PF30U Replacement Parts List Note...
  • Page 50 Model No. : TH-50PF30U P-Board(1/3)
  • Page 51 Model No. : TH-50PF30U P-Board(2/3)
  • Page 52 Model No. : TH-50PF30U P-Board(3/3)
  • Page 53 Model No. : TH-50PF30U HX,S1,V1 and V2-Board...
  • Page 54 Model No. : TH-50PF30U DS-Board...
  • Page 55 Model No. : TH-50PF30U A-Board(1/14)
  • Page 56 Model No. : TH-50PF30U A-Board(2/14)
  • Page 57 Model No. : TH-50PF30U A-Board(3/14) S-10...
  • Page 58 Model No. : TH-50PF30U A-Board(4/14) S-11...
  • Page 59 Model No. : TH-50PF30U A-Board(5/14) S-12...
  • Page 60 Model No. : TH-50PF30U A-Board(6/14) S-13...
  • Page 61 Model No. : TH-50PF30U A-Board(7/14) S-14...
  • Page 62 Model No. : TH-50PF30U A-Board(8/14) S-15...
  • Page 63 Model No. : TH-50PF30U A-Board(9/14) S-16...
  • Page 64 Model No. : TH-50PF30U A-Board(10/14) S-17...
  • Page 65 Model No. : TH-50PF30U A-Board(11/14) S-18...
  • Page 66 Model No. : TH-50PF30U A-Board(12/14) and H3-Board S-19...
  • Page 67 Model No. : TH-50PF30U A-Board(13/14) S-20...
  • Page 68 Model No. : TH-50PF30U A-Board(14/14) S-21...
  • Page 69 Model No. : TH-50PF30U D-Board(1/4) S-22...
  • Page 70 Model No. : TH-50PF30U D-Board(2/4) S-23...
  • Page 71 Model No. : TH-50PF30U D-Board(3/4) S-24...
  • Page 72 Model No. : TH-50PF30U D-Board(4/4) S-25...
  • Page 73 Model No. : TH-50PF30U C1-Board S-26...
  • Page 74 Model No. : TH-50PF30U C2-Board(1/2) S-27...
  • Page 75 Model No. : TH-50PF30U C2-Board(2/2) S-28...
  • Page 76 Model No. : TH-50PF30U C3-Board(1/2) S-29...
  • Page 77 Model No. : TH-50PF30U C3-Board(2/2) S-30...
  • Page 78 Model No. : TH-50PF30U SC-Board(1/4) S-31...
  • Page 79 Model No. : TH-50PF30U SC-Board(2/4) S-32...
  • Page 80 Model No. : TH-50PF30U SC-Board(3/4) S-33...
  • Page 81 Model No. : TH-50PF30U SC-Board(4/4) S-34...
  • Page 82 Model No. : TH-50PF30U SS-Board(1/2) S-35...
  • Page 83 Model No. : TH-50PF30U SS-Board(2/2) S-36...
  • Page 84 Model No. : TH-50PF30U P-Board(Foil side) S-37...
  • Page 85 Model No. : TH-50PF30U P-Board(Component side) S-38...
  • Page 86 Model No. : TH-50PF30U HX-Board S-39...
  • Page 87 Model No. : TH-50PF30U H3,S1,V1 and V2-Board S-40...
  • Page 88 Model No. : TH-50PF30U DS-Board S-41...
  • Page 89 Model No. : TH-50PF30U A-Board(Foil side) S-42...
  • Page 90 Model No. : TH-50PF30U A-Board(Component side) S-43...
  • Page 91 Model No. : TH-50PF30U D-Board S-44...
  • Page 92 Model No. : TH-50PF30U C1-Board S-45...
  • Page 93 Model No. : TH-50PF30U C2-Board S-46...
  • Page 94 Model No. : TH-50PF30U C3-Board S-47...
  • Page 95 Model No. : TH-50PF30U SC-Board S-48...
  • Page 96 Model No. : TH-50PF30U SS-Board S-49...
  • Page 97 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks ETX2MM855MNH CIRCUIT BOARD P 1 (RTL)PAVCA TNPA5111 CIRCUIT BOARD H3 1 (RTL) TXN/A11QEUS CIRCUIT BOARD A 1 (RTL)PAVCA TXN/D11QEU CIRCUIT BOARD D 1 (RTL)PAVCA...
  • Page 98 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C214 ACMH1H010T 50V 1P C215 ACMEB333K2T 50V 0.033P C217 ACMEB104K2T 25V 0.1P C218 ACMBB106K1AT 10V 10P C219 ACMEB472K5T 50V 4700p C220 ACMBB106K1AT 10V 10P...
  • Page 99 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C555 ACMBB225K2T 25V 2.2P C556 ACMBB105K2T 25V 1P C557 ACRZL1A471T 50V 470P C558 ACMEB104K5T 50V 0.1P C559 ACMEB225K1T 16V 2.2 C560 ACRZL1E221T 25V 220P...
  • Page 100 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C2105 F1H1C105A145 C 1 uF 16 V C2106 F1H1C105A145 C 1 uF 16 V C2107 F1H1C105A145 C 1 uF 16 V C2108 F1H1C105A145 C 1 uF 16 V...
  • Page 101 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C2182 F1G1C104A083 C 0.1UF 16V C2183 ECJ1VB1E104K C 0.1 UF, 25V C2184 EEEHB1C471P C 470PF, J, 16V C2185 EEEHB1C471P C 470PF, J, 16V C2186...
  • Page 102 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C2355 F1K1E106A136 C 10UF, 25V C2356 F1K1E106A136 C 10UF, 25V C2357 F1K1E106A136 C 10UF, 25V C2358 ECJ1VF1C104Z C 0.1UF, 16V C2359 F1H1C105A145 C 1 uF 16 V...
  • Page 103 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C2448 ECJ1XB1C104K C 0.1UF, Z, 16V C2449 F1K1E106A136 C 10UF, 25V C2450 F1K1E106A136 C 10UF, 25V C2452 F1K0J226A049 C 22UF, 6.3V C2453 F1K0J226A049 C 22UF, 6.3V...
  • Page 104 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C2570 F1J1A106A087 C 10UF, 10V C2571 F1G1C104A077 C 0.1UF 16V C2572 F1G1C104A077 C 0.1UF 16V C2573 F1J1A106A087 C 10UF, 10V C2574 F1G1C104A077 C 0.1UF 16V...
  • Page 105 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C3018 F1H1H153A219 C 0.015UF, 50V 1 PAVCA C3019 F1J0J106A004 C 10 UF 6.3 V C3020 F1K1E106A136 C 10UF, 25V C3021 F1J0J106A004 C 10 UF 6.3 V...
  • Page 106 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C4140 F1G1C104A077 C 0.1UF 16V C4141 F1G1C104A077 C 0.1UF 16V C4142 F1J1A106A087 C 10UF, 10V C4143 F1G1C104A077 C 0.1UF 16V C4145 F1G1C104A077 C 0.1UF 16V...
  • Page 107 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C4229 F1G1C104A085 C 0.10UF 16V C4231 F1G1C104A085 C 0.10UF 16V C4234 F1J0J106A004 C 10 UF 6.3 V C4235 F1G1C104A085 C 0.10UF 16V C4237 F1G1C104A085 C 0.10UF 16V...
  • Page 108 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C4311 F1J0J106A004 C 10 UF 6.3 V C4312 F1G1H103A509 C 0.01PF, 50V C4314 F1J0J106A004 C 10 UF 6.3 V C4315 F1G1C104A077 C 0.1UF 16V...
  • Page 109 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8013 F1G1C104A077 C 0.1UF 16V C8014 F1G1C104A077 C 0.1UF 16V C8015 F1G1C104A077 C 0.1UF 16V C8016 F1G1C104A077 C 0.1UF 16V C8017 F1G1C104A077 C 0.1UF 16V...
  • Page 110 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C9228 F1H1C105A145 C 1 uF 16 V C9229 F1J1A475A087 C 4.7UF, 10V C9230 F1K0J226A049 C 22UF, 6.3V C9232 F1K1E106A136 C 10UF, 25V C9235 ECJ1VB1E104K C 0.1 UF, 25V...
  • Page 111 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C16191 F1K1E475A134 C 4.7UF 25V C16192 F1H1C105A145 C 1 uF 16 V C16193 EEUFC1E470 E 47UF, 25V C16195 F1K1E105A029 C 1UF, 25V C16201 F0C2E405A278...
  • Page 112 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C16685 F1H1H104A970 C 0.1UF, , 50V C16692 F1H1H104A970 C 0.1UF, , 50V C16723 F1K1E105A029 C 1UF, 25V C16724 F1K1E475A134 C 4.7UF 25V C16753 F1K1E475A134 C 4.7UF 25V...
  • Page 113 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C17307 ECJ1XB1C104K C 0.1UF, Z, 16V C17308 ECJ1XB1C104K C 0.1UF, Z, 16V C17328 F1K2A224A033 C 0.22UF, 100V C17330 F1K2A224A033 C 0.22UF, 100V C17332 F1K2A224A033 C 0.22UF, 100V...
  • Page 114 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D556 VD1SS133T DIODE D557 VD1SS355T DIODE D601 VD1SS133T DIODE D602 VD1SS133T DIODE D603 VDD15XB80 DIODE D605 VD1SS133T DIODE D606 VDS3V60L1 DIODE D607 VDYG982C6R DIODE...
  • Page 115 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D2324 DZ2J100M0L ZENER DIODE D2325 DZ2J033M0L ZENER DIODE D2326 DB2X41500L DIODE 1 PAVCA D2327 DB2X41500L DIODE 1 PAVCA D2328 B0JCPD000026 DIODE D2330 B0JCPD000026 DIODE...
  • Page 116 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D16133 B0ACCJ000048 DIODE D16134 DZ2J051M0L ZENER DIODE D16191 B0ECKP000055 DIODE D16192 B0ACCJ000048 DIODE D16193 DZ2J051M0L ZENER DIODE D16243 B0ADCJ000100 DIODE D16251 DZ2J330M0L ZENER DIODE...
  • Page 117 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D16674 B0ECHR000004 DIODE D16685 B0ACCJ000048 DIODE D16710 DZ2J15000L ZENER DIODE D16711 B0ECHR000004 DIODE D16712 B0ECHR000004 DIODE D16713 B0ECHS000002 DIODE D16714 B0ECHS000002 DIODE D16720 B0ECHR000004...
  • Page 118 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks IC403 VISC2603ASKT IC501 MIP3E70MY IC551 VIJM1431AF IC601 VIFA5610NTE1 IC2001 C1AB00003457 IC2002 C0JBAA000558 IC2101 C1AB00003042 IC2102 TVRS238S 1 PAVCA IC2103 TVRS239S 1 PAVCA IC2104 C0CBCDD00025...
  • Page 119 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks IC8001 C1AB00002899 IC8002 C0CBCAG00039 IC9001 TVRS267S 1 PAVCA IC9002 C1ZBZ0004127 IC9003 MNZSFH8KGL1 1 PAVCA IC9004 C1ZBZ0003983 IC9005 C0CBCAG00046 IC9300 C1AB00003461 IC9304 TVRS268S 1 PAVCA...
  • Page 120 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks JK3502 K2HC1YYB0058 JACK 1 PAVCA JK3503 K4AC02B00049 EARTH SPRING 1 PAVCA JK3504 K2HC1YYB0058 JACK 1 PAVCA JK3505 K2EKYB000001 JACK 1 PAVCA JK8500 K4AC02B00043 EARTH SPRING...
  • Page 121 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks L2325 J0JHC0000096 CHIP INDUCTOR L2326 G1C8R2ZA0253 INDUCTION COIL 1 PAVCA L2329 J0JHC0000096 CHIP INDUCTOR L2330 J0JHC0000096 CHIP INDUCTOR L2331 J0JHC0000096 CHIP INDUCTOR L2332 J0JHC0000096...
  • Page 122 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks L4022 J0JHC0000096 CHIP INDUCTOR L4023 J0JHC0000096 CHIP INDUCTOR L4024 J0JHC0000096 CHIP INDUCTOR L4025 J0JHC0000096 CHIP INDUCTOR L4026 J0JHC0000096 CHIP INDUCTOR L4027 J0JHC0000096 CHIP INDUCTOR...
  • Page 123 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks PC16461 B3PBE0000058 PC16462 B3PBE0000060 PC16480 B3PBA0000580 PC16581 B3PBA0000580 PC16603 B3PBA0000580 PC16685 B3PBA0000496 PC16723 B3PBA0000580 PC16896 B3PBA0000580 PC16897 B3PBA0000580 Q201 VKFMV19N57ES Q202 VKFMV19N57ES Q203 VQ2PB709ART...
  • Page 124 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks Q2105 B1ABCE000015 TRANSISTOR Q2106 B1ADCF000194 TRANSISTOR Q2107 B1ABCE000015 TRANSISTOR Q2108 B1ADCF000194 TRANSISTOR Q2109 B1CBHD000002 Q2110 B1CBHD000002 Q2111 B1ABCE000015 TRANSISTOR Q2112 B1ABCE000015 TRANSISTOR Q2113 B1ADCF000194...
  • Page 125 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks Q4100 B1ABCE000015 TRANSISTOR Q4101 B1ADCF000194 TRANSISTOR Q4102 B1ABCE000015 TRANSISTOR Q4103 B1ADCF000194 TRANSISTOR Q4104 B1ABCE000015 TRANSISTOR Q4105 B1ABCE000015 TRANSISTOR Q4106 B1ABCE000015 TRANSISTOR Q4109 B1ABCE000015 TRANSISTOR...
  • Page 126 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks Q16891 DSA2001S0L TRANSISTOR Q16892 DSC2001Q0L TRANSISTOR Q16921 B1CBGD000001 Q16922 B1CBGD000001 Q16931 B1ABCN000007 TRANSISTOR Q17101 B1ABCN000007 TRANSISTOR Q17301 B1ABCN000007 TRANSISTOR R201 ERJ6GEYJ103V M 10KOHM J 1/8W...
  • Page 127 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R280 D0GB102JA057 M 1KOHM,J,1/10W R351 ERJ6ENF1332 M13.3KOHM,F. 1/8W R352 ERJ6ENF1302 M 13KOHM,F. 1/8W R353 ERJ6ENF8661 M8.66KOHM,F.1/8W R354 ERJ6ENF8661 M8.66KOHM,F.1/8W R371 ERJ6RND1802 0.1W 18k R372 ERJ6RND1001 0.1W 1k...
  • Page 128 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R519 ERJ3GEYJ224 M 220KOHM,J,1/10W R520 ARCFS2J121T 0.25W 120 R521 ERJ3GEYJ223 M 22KOHM,J,1/10W R522 ERJ6GEYJ180 M 18 OHM,J,1/8W R524 ERJ3GEYJ223 M 22KOHM,J,1/10W R525 ERJ6GEYJ103V M 10KOHM J 1/8W...
  • Page 129 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R623 ERJ6ENF9312 M93.1KOHM,F. 1/8W R624 ARCFS2J472T 0.25W 4.7k R625 ARCFS2J101T 0.25W 100 R626 ERJ6ENF9312 M93.1KOHM,F. 1/8W R627 ARCFS2J154T 0.25W 150k R628 ERJ6ENF9312 M93.1KOHM,F. 1/8W...
  • Page 130 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R1512 D1BB4701A055 M 4.7KOHM,J.1/10W R1513 D1BB8201A055 M 8.2KOHM,J.1/10W R1550 D0GD103JA052 M 10KOHM,J,1/8W R1551 D0GD470JA052 M 47 OHM,J,1/8W R1552 D0GD224JA052 M 220KOHM,J,1/8W R1553 D1BD1471A066 M1.47KOHM,F.1/8 W...
  • Page 131 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R2146 D0GAR00J0005 M 0 OHM, 1/16W R2147 D0GAR00J0005 M 0 OHM, 1/16W R2148 D0GA101JA015 M 100 OHM, J,1/16W R2149 D0GA101JA015 M 100 OHM, J,1/16W...
  • Page 132 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R2221 D0GA333JA023 M 33KOHM,J,1/16W R2222 D0GA473JA015 M 47KOHM, J,1/16W R2223 D0GA222JA023 M 2.2KOHM, J,1/16W R2224 D0GA102JA023 M1KOHM, J.1/16 W R2225 D0GA101JA015 M 100 OHM, J,1/16W...
  • Page 133 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R2316 D0GA103JA015 M 10KOHM,J,1/16W R2320 D0GAR00J0005 M 0 OHM, 1/16W R2321 D0GA103JA015 M 10KOHM,J,1/16W R2322 D0GA102JA023 M1KOHM, J.1/16 W R2323 D0GA103JA015 M 10KOHM,J,1/16W R2324 D0GA104JA023 M100KOHM, J.1/16 W...
  • Page 134 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R2451 D1BA3900A014 M 390 OHM,J.1/16 W R2452 D0GA104JA023 M100KOHM, J.1/16 W R2453 D1BA9101A040 M 9.1KOHM,J.1/16 W 1 PAVCA R2454 D0GA220JA023 M22 OHM, J.1/16 W...
  • Page 135 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R2567 D0GA473JA015 M 47KOHM, J,1/16W R2568 D0GA473JA015 M 47KOHM, J,1/16W R2569 D0GA473JA015 M 47KOHM, J,1/16W R2570 D0GA101JA015 M 100 OHM, J,1/16W R2571 D0GA103JA015 M 10KOHM,J,1/16W...
  • Page 136 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R2732 D0GA220JA023 M22 OHM, J.1/16 W R2733 D0GA220JA023 M22 OHM, J.1/16 W R2734 D0GA220JA023 M22 OHM, J.1/16 W R2735 D1BA7501A014 M 7.5 KOHM,J.1/16 W...
  • Page 137 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R3008 D0GB220JA065 M 22 OHM J 1/10W R3009 D0GB220JA065 M 22 OHM J 1/10W R3010 D0GB220JA065 M 22 OHM J 1/10W R3011 D0GBR00J0004 M 0 OHM J 1/10W...
  • Page 138 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R4122 D1BA2400A014 M 240 OHM,J.1/16 W R4125 D1BA2400A014 M 240 OHM,J.1/16 W R4128 D1BA2400A014 M 240 OHM,J.1/16 W R4131 D0GA101JA015 M 100 OHM, J,1/16W...
  • Page 139 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R4210 D0GA272JA023 M 2.7KOHM, J.1/16W R4211 D0GA272JA023 M 2.7KOHM, J.1/16W R4214 D0GA272JA023 M 2.7KOHM, J.1/16W R4215 D0GAR00J0005 M 0 OHM, 1/16W R4216 D0GAR00J0005 M 0 OHM, 1/16W...
  • Page 140 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R4310 EXB2HV100JV M 10 OHM 1/16 W R4311 EXB28V100JX M 10 OHM 1/32 W R4317 EXB2HV100JV M 10 OHM 1/16 W R4318 EXB2HV100JV M 10 OHM 1/16 W...
  • Page 141 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R4432 D0GA101JA015 M 100 OHM, J,1/16W R4433 D0GA101JA015 M 100 OHM, J,1/16W R4444 EXB2HV470JV M 47 OHM 1/16 W R4445 EXB2HV470JV M 47 OHM 1/16 W...
  • Page 142 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8087 D0GA470JA023 M 47 OHM, J,1/16W R8088 D0GA470JA023 M 47 OHM, J,1/16W R9070 D0GA103JA015 M 10KOHM,J,1/16W R9072 D0GA102JA023 M1KOHM, J.1/16 W R9099 D0GA103JA015 M 10KOHM,J,1/16W...
  • Page 143 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R9252 D0GA330JA023 M 33 OHM, J,1/16W R9255 D0GA330JA023 M 33 OHM, J,1/16W R9316 D0GA470JA023 M 47 OHM, J,1/16W R9318 D0GA470JA023 M 47 OHM, J,1/16W...
  • Page 144 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16171 D0GD100JA059 M 10 OHM,J,1/4W R16173 D0GB473JA065 M 47KOHM J. 1/10W R16181 D0GD100JA059 M 10 OHM,J,1/4W R16183 D0GB473JA065 M 47KOHM J. 1/10W R16191 D1BD2700A044 M 270 OHM,J.1/8 W...
  • Page 145 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16476 D0GB222JA065 M 2.2KOHM,J,1/10W R16478 D0GB562JA065 M 5.6KOHM,J,1/10W R16479 D0GD103JA052 M 10KOHM,J,1/8W R16490 D1BD1203A077 M 120KOHM,D.1/10W R16491 D1BD1203A077 M 120KOHM,D.1/10W R16492 D1BD1203A077 M 120KOHM,D.1/10W R16493 D1BD5111A077 M5.11KOHM.J.1/8 W...
  • Page 146 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16615 D1BB1871A055 M1.87KOHM, 1/10W R16617 D0GD222JA052 M 2.2KOHM,J,1/8W R16621 D0GD221JA052 M 220 OHM,J 1/8W R16622 D0GD221JA052 M 220 OHM,J 1/8W R16623 D0GD221JA052 M 220 OHM,J 1/8W...
  • Page 147 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16838 ERG2FJS104D M 100KOHM, J, 2W R16841 D0GB472JA065 M 4.7KOHM, J,1/10W R16842 D0GD102JA052 M 1.0KOHM,J,1/8W R16844 ERA6YEB242 M 2.4KOHM, B 1/10W R16845 D1BD6812A077 M68.1KOHM,D.1/10W R16846 D1BD5762A077 M57.6KOHM,D.1/10W...
  • Page 148 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R17202 D0GB101JA065 M 100 OHM,J,1/10W R17203 D0GB101JA065 M 100 OHM,J,1/10W R17204 D0GB101JA065 M 100 OHM,J,1/10W R17205 D0GB101JA065 M 100 OHM,J,1/10W R17206 D0GB101JA065 M 100 OHM,J,1/10W...
  • Page 149 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks K1KY02B00012 2P CONNECTOR SC20 K1MY35BA0345 35P CONNECTOR SC41 K1KA09AA0707 9P CONNECTOR SC42 K1KA09AA0707 9P CONNECTOR SC46 K1KA09AA0707 9P CONNECTOR SC50 K1KA02AA0193 2P CONNECTOR SS11...
  • Page 150 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks ZA17301 K4CD01000013 AV TERMINAL ZA17302 K4CD01000013 AV TERMINAL ZA17303 K4CD01000013 AV TERMINAL ZA17304 K4CD01000013 AV TERMINAL ZD203 VZMTZJ27DT ZENER DIODE ZD204 VZMTZJ27DT ZENER DIODE...
  • Page 151 Model No. : TH-50PF30U Exploded View S-104...
  • Page 152 Model No. : TH-50PF30U Cabinet part location S-105...
  • Page 153 Model No. : TH-50PF30U Flat cable location S-106...
  • Page 154 Model No. : TH-50PF30U Flat cable location S-107...
  • Page 155 Model No. : TH-50PF30U Packing and Accessories S-108...
  • Page 156 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks 103RRS-176-01E BATTERY COVER 1 PAVCA J0KG00000014 FILTER K2CG3YY00029 AC CORD L6FAYYYH0095 FAN(80MM-T25) MD50F14S1J PLASMA DISPLAY PANEL N2QAYB000535 REMOTE CONTROLER TBMA227 PANASONIC BADGE TBXA46704A 5KEY BUTTON...
  • Page 157 Model No. : TH-50PF30U Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks THEA068N SCREW THEJ036J SCREW THEJ039J SCREW THEL0239 SCREW THEL0429 SCREW THEL057J SCREW THTF011N SCREW XSB3+6FJ SCREW XTB4+10JFJ SCREW XTV3+10GFJ SCREW XTV3+10JFJ SCREW XTV3+8JFJ SCREW...

Table of Contents
