SERVICE MANUAL
Ver. 6 2004F
Revision History
Area
Model
US Canadian
American
Latin
Quebec
European
AEP/UK
International
Asian/Oceania/
South Africa
Thai
9-876-365-06

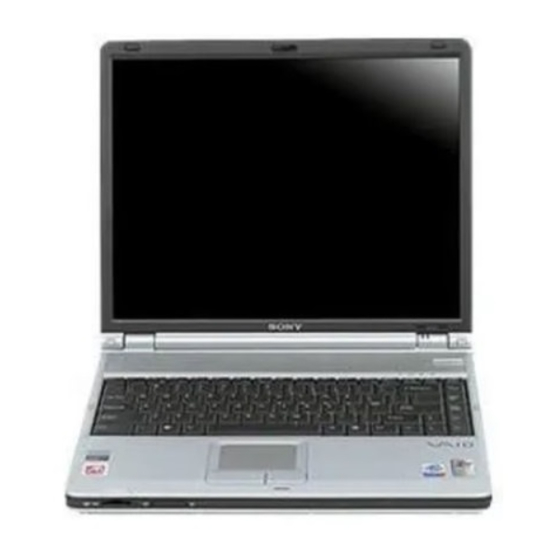

PCG-K12FP/K12P/K13/K13F/K13Q/K14/K15/K15F/K17
PCG-K115B/K115M/K115S/K115Z/K195BP/K195HP
Lineup
PCG-K12P
PCG-K13
PCG-K14
PCG-K15
PCG-K17
PCG-K12FP
[MA]
1
PCG-K13F
PCG-K15F
[MA]
1
PCG-K13Q
[MA]
1
PCG-K115B
PCG-K115M
PCG-K115S
PCG-K115Z
PCG-K195BP
PCG-K195HP
PCG-K64
PCG-K66P
PCG-K64S
PCG-K66SP
[MA]
3
PCG-K64/K64S/K66P/K66SP
Design and specifications are subject to
change without notice.
NOTEBOOK COMPUTER
S400
Advertisement
Table of Contents
Related Manuals for Sony Vaio PCG-K12FP
Summary of Contents for Sony Vaio PCG-K12FP
-
Page 1: Service Manual
PCG-K12FP/K12P/K13/K13F/K13Q/K14/K15/K15F/K17 PCG-K115B/K115M/K115S/K115Z/K195BP/K195HP PCG-K64/K64S/K66P/K66SP SERVICE MANUAL Ver. 6 2004F Revision History Area Model Lineup PCG-K12P PCG-K13 US Canadian PCG-K14 PCG-K15 American PCG-K17 PCG-K12FP [MA] Latin PCG-K13F PCG-K15F [MA] Quebec PCG-K13Q [MA] S400 PCG-K115B PCG-K115M PCG-K115S European AEP/UK PCG-K115Z PCG-K195BP PCG-K195HP PCG-K64 International Design and specifications are subject to Asian/Oceania/... - Page 2 1. Obey precautionary markings and 4. Inspect after completing service Sony, VAIO and CLIE are trademarks or regis- ing and the service instructions. instructions tered trademarks of Sony. Microsoft,Windows,...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Section Title Page Section Title Page CHAPTER 1. SPECIFICATIONS CHAPTER 5. OTHERS 1-1. Specifications .......................... 1-1 5-1. The Barcode Label ........................5-1 (to 1-1) 5-2. Replacing the CPU ......................... 5-2 (to 5-2) CHAPTER 2. BLOCK DIAGRAM ..................2-1 (to 2-1) CHAPTER 3. -
Page 4: Chapter 1. Specifications
CHAPTER 1. SPECIFICATIONS 1-1. Specifications PCG-K17 PCG-K15 PCG-K12P PCG-K13 PCG-K14 PCG-K15F PCG-K13F PCG-K12FP PCG-K13Q P4-3.06GHz P4-2.8GHz P4-2.8GHz P4-2.8GHz P4-2.8GHz P4-2.8GHz Cel-2.8GHz P4-2.8GHz P4-2.8GHz RADEON IGP RADEON IGP RADEON IGP RADEON IGP RADEON IGP RADEON IGP RADEON IGP RADEON IGP RADEON IGP Graphic 345M 345M... -
Page 5: Chapter 2. Block Diagram
CHAPTER 2. BLOCK DIAGRAM Intel Pentium 4 75W 478 PIN mPGA System bus DDR VRAM 16MBX4 400/533MHz R/G/B RADEON 9200 NORTH BRIDGE DRAM SIGNAL LVDS SIGNAL AGP bus DDR 266 (M9+X) ATI RS200MP DDR CLOCK SO-DIMM 1/2 TV SIGNAL AVOUT PCI bus TI-PCI7420 Mini PCI... -
Page 6: Chapter 3. Frame Harness Diagram
CHAPTER 3. FRAME HARNESS DIAGRAM From board to connector (direct connection) LCD unit ANTENNA Harness (with connectors on both ends) WIRELESS Harness (soldering on either end) LAN CARD INVERTER UNIT MONITOR PRINTER PHONE DC_IN Rear Panel SPEAKER SPEAKER L ch R ch DC FAN CON22... -
Page 7: Chapter 4. Exploded Views And Parts List
CHAPTER 4. EXPLODED VIEWS AND PARTS LIST The parts list is compiled by blocks of a palmrest and bottom etc. The sections of the parts list are different depending on the model. Please refer to list of contents shown in the below. Section Page Palmrest... - Page 8 P-1. Palmrest Ref. No. Part No. Description X-4626-726-1 HOUSING PALMREST ASSY 4-681-301-01 LATCH DETECTOR 4-676-233-01 SPRING LATCH DETECTOR 4-681-336-01 BRACKET KEYBOARD A-8068-709-A COMPLETE PWB SWX-169 4-681-295-01 & CUSHION PALMREST 4-681-296-01 ESCUTCHEON TOUCHPAD X-2021-524-1 BRACKET TOUCHPAD ASSY 2-022-446-01 MYLAR BRACKET K/B 1-829-138-11 FFC (T/P TO CHARGE) 1-829-140-11...
- Page 9 Ref. No. Part No. Description A-1055-864-A COOLING UNIT (S) 2-022-437-01 MYLAR COOLING LEFT 2-022-438-01 MYLAR COOLING RIGHT M-1.Main Board 2-022-440-01 CUPPER TAPE 2-022-439-01 GASKET LAN 2-022-441-01 GASKET USB REAR X-4626-731-1 I/O BRACKET ASSY 2-022-442-01 CUSHION COOLING BTM * 111 4-674-030-01 GUIDE DRIVE * 112 4-674-028-01...
- Page 10 B-1. Bottom Ref. No. Part No. Description X-4626-606-1 HOUSING BOTTOM ASSY JE21 4-681-313-01 & FOOT 4-674-041-01 & FOOT REAR [COR] A-8068-710-A COMPLETE PWB IFX-169 (WL) 4-681-340-01 HEATSINK BOTTOM INSULATION 2-022-444-01 GASKET HOUSING BTM1 2-022-445-01 GASKET HOUSING BTM2 1-962-775-11 HARNESS (WITH DC JACK, 2P) 4-681-314-01 &...
- Page 11 H-1. Hood Keyboard Ref. No. Part No. Description X-4626-727-1 HOOD KB ASSY 1-825-825-21 SPEAKER (3.2CM) * 303 4-681-308-01 BRACKET SPK 1-825-825-11 SPEAKER (3.2CM) A-8068-706-A $ COMPLETE PWB PWB SWX-168 2-022-447-01 GASKET PW BOARD KAPTON TAPE 4-665-205-01 SPECIAL FLAT HEAD (EG GRIP), M2 Confidential PCG-K12FP/K12P/K13/K13F/K13Q/K14/K15/K15F/K17 (AM) PCG-K115B/K115M/K115S/K115Z/K195BP/K195HP (EU)
- Page 12 L-1. LCD 15-inch XGA (High Brightness) – Made by AUO – Ref. No. Part No. Description X-4626-729-1 BEZEL DISPLAY ASSY 4-681-309-01 BUTTON LATCH LCD 4-681-352-01 SPRING LATCH LCD 4-681-353-01 & CUSHION LATCH 4-681-354-01 & CUSHION LCD 4-681-355-01 & CUSHION HINGE * 408 4-681-348-01 BRACKET LCD SPWG L...
- Page 13 L-2. LCD 15-inch XGA (High Brightness) – Made by QDI – Ref. No. Part No. Description X-4626-729-1 BEZEL DISPLAY ASSY 4-681-309-01 BUTTON LATCH LCD 4-681-352-01 SPRING LATCH LCD 4-681-353-01 & CUSHION LATCH 4-681-354-01 & CUSHION LCD 4-681-355-01 & CUSHION HINGE * 508 4-681-348-01 BRACKET LCD SPWG L...
- Page 14 L-3. LCD 15-inch XGA – Made by AU – Ref. No. Part No. Description X-4626-729-1 BEZEL DISPLAY ASSY 4-681-309-01 BUTTON LATCH LCD 4-681-352-01 SPRING LATCH LCD 4-681-353-01 & CUSHION LATCH 4-681-354-01 & CUSHION LCD 4-681-355-01 & CUSHION HINGE * 608 4-681-348-01 BRACKET LCD SPWG L 4-681-356-01...
- Page 15 L-4. LCD 15-inch XGA (High Brightness) – Made by SH – Ref. No. Part No. Description X-4626-729-1 BEZEL DISPLAY ASSY 4-681-309-01 BUTTON LATCH LCD 4-681-352-01 SPRING LATCH LCD 4-681-353-01 & CUSHION LATCH 4-681-354-01 & CUSHION LCD 4-681-355-01 & CUSHION HINGE * 708 4-681-350-01 BRACKET LCD SSSP L...
- Page 16 A-1. Accessories 1001 AC Adaptor Ref. No. Part No. Description ! 1001 1-478-390-61 & ADAPTOR, AC 1-478-037-32 & ADAPTOR, AC ! 1002 A-8120-052-A & BP-2NY (U) ASSY (S) A-8112-427-A & BP2NX SNT (U) ASSY (S) 1-756-269-42 & BATTERY PACK, LITHIUM ION A-8120-053-A &...
-
Page 17: The Barcode Label
CHAPTER 5. OTHER 5-1. The Barcode Label The hatched portion of the barcode is used as the repair data. [ MBX-96 Board ] [ LCD 15-inch XGA (High Brightness) (AUO) ] [ DVD+-RW Drive (Made by Pa) ] [ HDD ] (Side A) (Rear) (Top) -
Page 18: Replacing The Cpu
5-2. Replacing the CPU Note: We have two kinds of CPU for this set, and either of them is used. Two kinds of CPU have differences in the lock position and the unlock position. 1. Socket configuration 1 2. Socket configuration 2 1. - Page 19 PCG-K15 PCG-K15F PCG-K17 : Additional Models This manual and the constituent data may not be replicated, copied nor reprinted in whole or in part without prior written authorization of Sony Corporation. English/Japanese 2004F0500-1 Sony Corporation 9-876-365-06 © 2004 Sony Corporation —...
-
Page 20: Revision History
Revision History Suffix Ver. Date Contents QM No. Ver. 1 2004.03.02 First Edition Ver. 2 2004.03.26 Front Page (Model Lineup), Page 1-1, Page 4-1 to 4-4, Page 4-6 to 4-10, Back Cover N2004_043AK Ver. 3 2004.04.06 Page 4-3, Page 4-4, Page 4-6 to Page 4-10 N2004_045CK Ver.
