VADDIO 999-1105-038 Installation And User Manual

Quick-connect usb interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

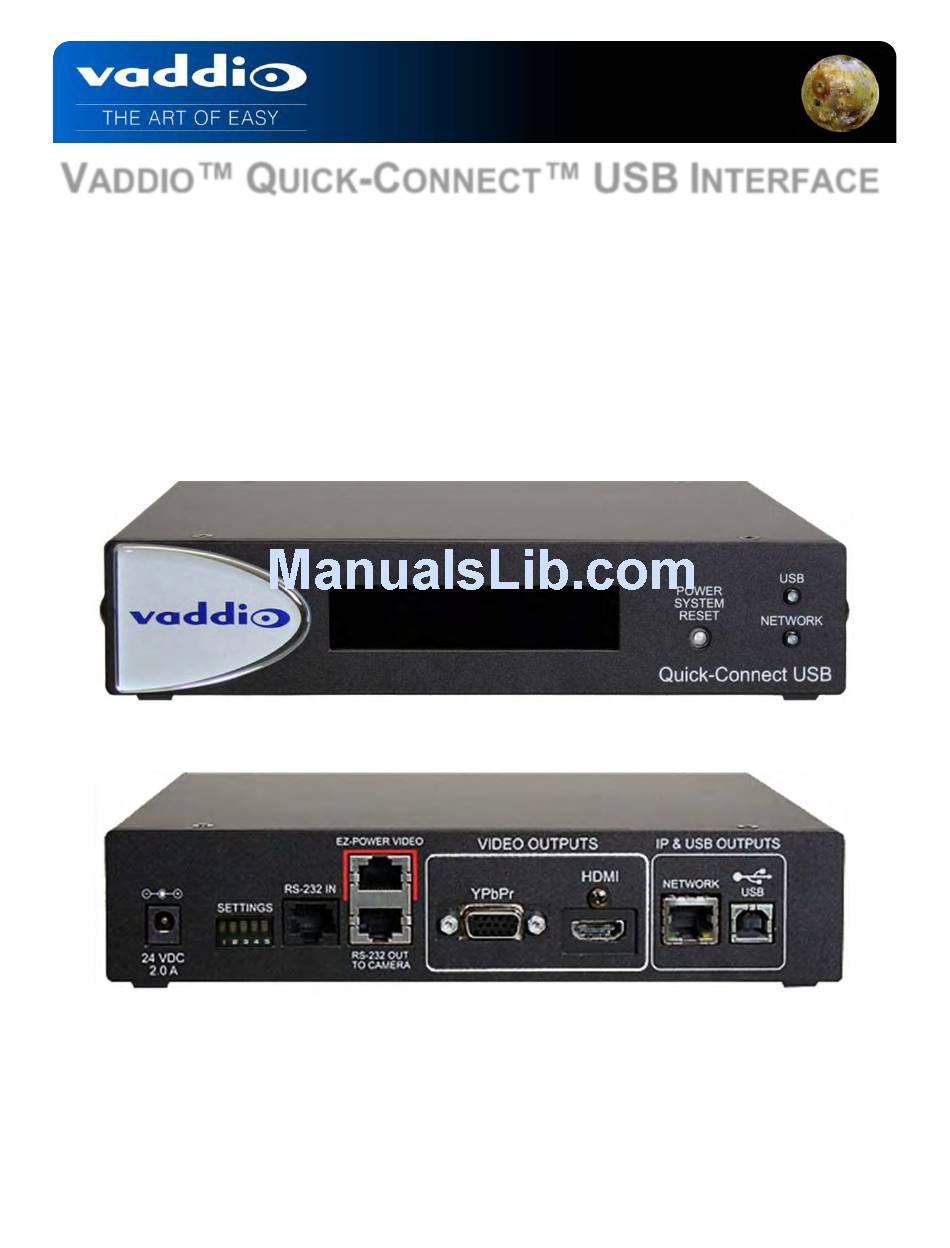

Installation and User Guide
V
™ Q
-C
™ USB I
ADDIO
UICK
ONNECT
NTERFACE
Quick-Connect USB Interface for use with Vaddio Cameras with EZCamera™
Cat-5 interface, featuring Multi-format Outputs and IP or USB Streaming
Model Number 999-1105-038 (North America)
Model Number 999-1105-138 (International)

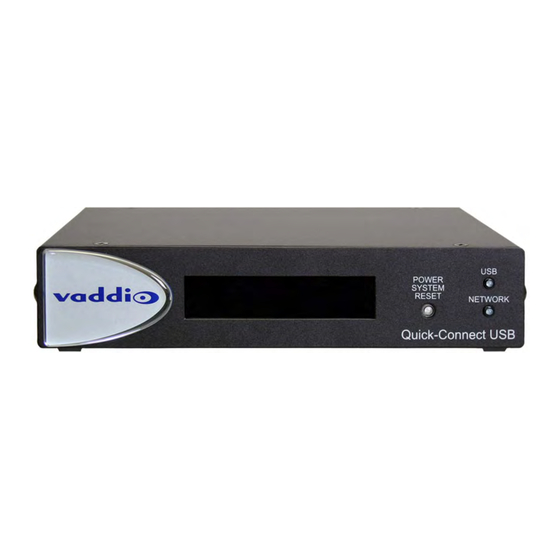

Images: Quick-Connect USB Front Panel ISO (above) and Rear Panel ISO (below)
© 2013 Vaddio - All Rights Reserved. Quick-Connect USB - Document Number 342-0653 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 999-1105-038 and is the answer not in the manual?

Questions and answers

Related Manuals for VADDIO 999-1105-038

Summary of Contents for VADDIO 999-1105-038

  • Page 1 Cat-5 interface, featuring Multi-format Outputs and IP or USB Streaming Model Number 999-1105-038 (North America) Model Number 999-1105-138 (International) Images: Quick-Connect USB Front Panel ISO (above) and Rear Panel ISO (below) © 2013 Vaddio - All Rights Reserved. Quick-Connect USB - Document Number 342-0653 Rev B...
  • Page 2 Quick-Connect USB Interface Inside Front Cover - Blank Quick-Connect USB, Document Number 342-0653 Rev. B Page 2 of 36...

  • Page 3: Table Of Contents

    Overview ..........................................4  Unpacking: ..........................................5  Compatible Vaddio Cameras ....................................5  Table: Quick-Connect USB Interface and Vaddio Camera Compatibility ...................... 5  Table: WallVIEW Camera Packages with Quick-Connect USB ........................5  Quick-Connect USB Interface ....................................5  Image: Front Panel with Feature Call-outs ..............................6 ...

  • Page 4: Overview

    Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.

  • Page 5: Unpacking

    The information contained in this manual will help you install and operate your product. If these instructions are misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product drawings for the Vaddio product line on the Vaddio website.

  • Page 6: Image: Front Panel With Feature Call-Outs

    IP address (static or DHCP) is listed on the bottom line. This display with IP and MAC addresses allows for easy access to the embedded web server and Vaddio camera settings for the PC or BYOD (bring your own device - laptop or tablet) users of UC conference systems.

  • Page 7: Image: Rear Panel With Feature Call-Outs

    All UP ALL DOWN (with power cycle) RS-232 IN: Serial RS-232 input on a RJ-45 connector. This control port allows a Vaddio joystick controller or 3 party controller (Crestron/AMX) to control the camera functions if the embedded webserver is not used for real time control.

  • Page 8: Basic Application Diagrams

    Quick-Connect USB Interface ASIC PPLICATION IAGRAMS Diagram: Basic Wiring Configuration - Without Network or PC PowerVIEW HD-22 PTZ Camera Rear View Cat-5 Cable Distance up to 100’ (30.48m) for PTZ cameras Cat-5 Cable for Power and Video Cat-5 Cable for (EZ-POWER VIDEO) RS-232 Control ←...

  • Page 9: Diagram: Basic Zoomshot Wallview Usb Configuration - Usb 2.0 Streaming

    Quick-Connect USB Interface Diagram: Basic ZoomSHOT WallVIEW USB Configuration - USB 2.0 Streaming ZoomSHOT HD Video Camera Power to Camera > Two (2) Cat-5 Cables carry < HD Video to QC-USB Power, Video and Control Signals Two Cat-5 Cables up to 150’ (45.72m) for stationary POV cameras such as ZoomSHOT and WideSHOT Quick-Connect USB Interface...

  • Page 10: Diagram: Complex System With Audio

    AMERA IRST The Vaddio cameras were designed to be very easy to use and operate. There is documentation at the back of the camera manuals for pin-outs for the connectors on cameras. The Quick-Connect USB pin-outs are in this manual’s appendix.

  • Page 11: Step By Step Quick-Connect Usb Installation Instructions

    Built-in Webserver Control: The Quick-Connect USB has a built-in webserver that auto-loads the control protocols of the Vaddio camera attached (pretty cool huh?). Full camera controls including CCU image controls are available from any approved browser on any computer. The IP address is always displayed on the front panel display of the Quick-Connect so access to the internal webpages is super accessible and easy.

  • Page 12: Software And Os Compatibility

     Linux Evolving Compatibilities: As more UC soft-client and lecture capture programs are released and gain popularity, Vaddio will provide a continuing research and development effort to ensure the compatibility with other manufacturer’s products. USB 2.0 UVC Drivers The USB 2.0 UVC (Universal Video Class) video driver resolution table is an internal list of resolutions available for the Host PC and the Quick-Connect USB to negotiate and use for any approved/tested USB application.

  • Page 13: Internal Web Pages And Control

    Quick-Connect USB Interface NTERNAL AGES AND ONTROL The internal web pages will allow control of the Quick-Connect USB and control of the attached camera via a network connection. These web pages will allow the user or administrator to set security passwords, change the IP address, view diagnostics, access the firmware upgrade page and more! DHCP IP Set-up (Dynamic Host Configuration Protocol) DHCP Set-up (skip this section if Static IP).

  • Page 14: Screen Shot: Camera Control Page - No Camera Detected

    Quick-Connect USB Interface Screen Shot: Camera Control Page - No Camera Detected The No Camera Detected window will appear if the Quick-Connect USB has no communication with the camera. Check the camera power and serial connections if no camera is found within 30 seconds of initialization. Screen Shot: User Menu - Camera Control Page ➐...

  • Page 15: Screen Shot: Admin Log-In

    6) CCU Scenes: The user has access to the CCU scenes set and stored by the Admin. There are three (3) user definable presets and six (6) presets preconfigured by the technical folks at Vaddio (really Scott set them all) that are meant to be used in certain lighting scenarios. These lighting presets included: Automatic, Incandescent Hi, Incandescent Lo, Fluorescent Hi, Fluorescent Lo and Outdoor.

  • Page 16: Screen Shot: Admin Menu - Camera Settings Page

    Quick-Connect USB Interface Screen Shot: Admin Menu - Camera Settings Page The Camera settings page provides the parameters to allow the end user to match the camera to the environment, set the CCU presets and make startup assignments. ➊ ➋ ➌...
  • Page 17 Quick-Connect USB Interface  Iris: Move adjustment slider as required to adjust the iris opening. A numeric value will be displayed in the box to the right of the slider.  Gain: Move adjustment slider as required for amount of iris gain desired. Numeric value will be displayed in the box to the right of the slider.

  • Page 18: Screen Shot: Admin Menu - Usb 2.0 Or Ip Streaming Mode Page

    Quick-Connect USB Interface Screen Shot: Admin Menu - USB 2.0 or IP Streaming Mode Page ➊ ➋ ➌ ➍ ➎ Streaming Mode: Streaming can be set for either USB 2.0 streaming (MJPEG) or IP streaming (H.264); but not both at the same time.
  • Page 19 Quick-Connect USB Interface Screen Shot: Admin Menu - Room Labels The Room Labels menu allows the administrator to label the company name, room name, room phone and help phone on a per QC-USB basis. The labels appear on every page at the top/middle of the page. Simply enter the room information and click Save.

  • Page 20: Screen Shot: Admin Menu - Dhcp Network Configuration

    Quick-Connect USB Interface Screen Shot: Admin Menu - DHCP Network Configuration Under the Networking menu, The Network Configuration and Network Interfaces are displayed. This is where the Network administrator assigns either DHCP or a Static address and the associated parameters. MAC Address, IP Address, Subnet Mask and Gateway will Auto-...

  • Page 21: Screen Shot: Admin Menu - Security

    “admin” password at any given time. If changes are made, click on Save to store the change. Screen Shot: Admin Menu - Diagnostics Diagnostics menu button will display a set of self-diagnostics. These diagnostics may help the Vaddio technical support team diagnose a problem with the Quick-Connect USB and attached camera.

  • Page 22: Screen Shot: Admin Menu - System Menu

    After clicking on “Begin Firmware Update…” a confirmation pop-up and warning will be displayed. Please contact Vaddio Tech support for assistance with updates. Please read and completely understand the pop-up warnings as it is easy to lose patience waiting for updates. Click on continue to start the update (this example is from 1.0.0 to 1.1.0)

  • Page 23: Screen Shot: Admin Menu - Update In Progress

    Screen Shot: Admin Menu - HELP Service/Help information can be found under the Help menu. Support phone numbers and e-mail, manuals, FAQ’s and System information is listed on this page. Have this page open when calling Vaddio Tech Support. TECHNICAL SUPPORT NOTE: Please work with your Network Administrator prior to calling Vaddio for technical support.

  • Page 24: Connecting The Quick-Connect Usb And Camera To The Pc And Program Of Choice

    The Quick-Connect USB and attached camera are compatible with many programs and media players. The following is an attempt to generally describe the steps to plug in the QC-USB with a Vaddio camera and get an image in a couple of popular programs.

  • Page 25: General Specifications

    Quick-Connect USB Interface ENERAL PECIFICATIONS Quick-Connect USB Interface Part Numbers 999-1105-038 (North America) 999-1105-138 (International) Video Outputs USB 2.0 (MJPEG): Resolution up to 720p/30 (USB 2.0 MJPEG) H.264 (IP) of Ethernet: Resolution up to 1080p/30 (H.264 over IP Analog Component (YPbPr): Resolution up to 1080p/59.94 HDMI: Resolution up to 1080p/59.94...

  • Page 26: Compliance And Ce Declaration Of Conformity, Quick-Connect Usb Interface

    Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.

  • Page 27: Warranty Information

    Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair.

  • Page 28: Appendix 1: Pin-Outs For Ez-Power Video Cameras And Quick-Connect Usb

    PB - 12345678 Important Note: The EZ-POWER VIDEO RJ-45 Connector on a Vaddio CAT-5 system camera is for use with the Quick-Connect SR, Quick-Connect DVI/HDMI SR, Quick-Connect USB and USB Mini Interfaces ONLY (568B Wiring Standard). The video signals are differential (HSDS) and can only be processed by the interfaces above.

  • Page 29: Appendix 2 - Telnet Serial Command Api

    ERIAL OMMAND The Vaddio Serial Command protocol is a high level text based command line interface supported via telnet session on the Quick-Connect USB. Camera control commands supported on the Quick-Connect USB includes ClearVIEW HD-18, HD-19 and HD-20, PowerVIEW HD-22, HD-30, ZoomSHOT and WideSHOT. The command application protocol interface is intended to allow external device such as AMX or Crestron to control the camera.
  • Page 30 ZOOMSHOT WallVIEW USB Camera System Camera Preset  NAME camera preset - Recall and storing of camera presets  SYNOPSIS camera preset {recall|store} [1-6]  DESCRIPTION Method used to recall and store camera presets  OPTIONS recall Recall preset store Store preset preset Required value from 1-6 used to indicate the preset number ...
  • Page 31 Quick-Connect USB Interface Exit  NAME exit - ends the current API command session  SYNOPSIS exit  DESCRIPTION Exit ends the current API command session. If the session is over telnet, the session is ended and the socket is closed. If the session is over serial, a new session is started.
  • Page 32 Quick-Connect USB Interface Network Settings  NAME network settings - get current network settings  SYNOPSIS network settings {get}  DESCRIPTION Method used to get the current network settings of the device  OPTIONS get Get the current network settings for the machine ...
  • Page 33 Quick-Connect USB Interface Streaming Quality  NAME streaming quality - Gets or sets the current streaming quality  SYNOPSIS streaming quality {get|low|standard|high}  DESCRIPTION Method used to get or set the current streaming quality  OPTIONS get Get the current streaming quality low Set video quality to low standard Set video quality to standard high Set video quality to high...
  • Page 34 Quick-Connect USB Interface System Factory‐Reset  NAME system factory-reset - Gets or sets factory reset status  SYNOPSIS system factory-reset {get|on|off}  DESCRIPTION Method used to get or set the factory reset status  OPTIONS get Get the current factory reset status on Enable factory reset on reboot off Disable factory reset on reboot ...
  • Page 35 Quick-Connect USB Interface Inside Back Cover - Blank Quick-Connect USB System Document Number 342-0653 Rev B Page 35 of 36...
  • Page 36 © 2013 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice or obligation. Vaddio, PowerVIEW, ClearVIEW, ZoomSHOT, WideSHOT, REVEAL, CeilingVIEW, ProductionVIEW, WallVIEW, EZCamera, Quick-Connect and HSDS are trademarks of Vaddio.

This manual is also suitable for:

999-1105-138
