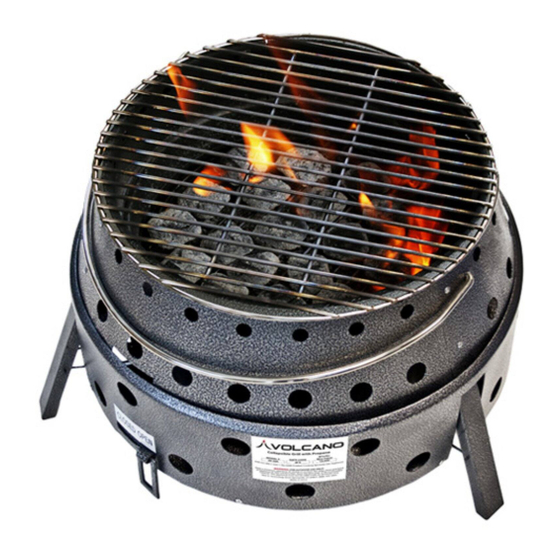

Volcano collapsible stove
Hide thumbs Also See for 20-200:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Volcano Collapsible Stove
20-200 and 20-300 Grills
INSTRUCTIONS FOR USE
For Outdoor Use Only
IMPORTANT
"This instruction manual contains important information
necessary for the proper assembly and safe use of the
appliance." "Read and follow all warnings and instructions
before assembling and using the appliance." "Follow all warnings
and instructions when using this appliance."
"Keep this manual for future reference."
If you have questions about assembly, operation, servicing or
repair of this stove, please call Volcano at 888-320-2005.
ANSI Z21.89a · CSA 1.18a-2008
Outdoor Cooking Specialty Gas Appliance
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Volcano 20-200

Summary of Contents for Volcano 20-200

  • Page 1 “Keep this manual for future reference.” If you have questions about assembly, operation, servicing or repair of this stove, please call Volcano at 888-320-2005. ANSI Z21.89a · CSA 1.18a-2008 Outdoor Cooking Specialty Gas Appliance...

  • Page 2: Table Of Contents

    CONTENTS DANGER General Safety Informa- p. 2-3 Maintenance p. 10 tion If you smell gas: To Set up p. 6 Troubleshooting p. 11 Shut off gas to the appliance at the tank. Leak Check p. 4-5 Service p. 11 Extinguish any open flame. Operation p.
  • Page 3 15. When frying, slowly submerse food products into the oil or grease. WARNING Do NOT drop. 16. DO NOT place an empty cooking vessel on burner while in opera- tion. Use caution when placing anything in the cooking vessel Combustion by-products produced when using this product contain while burner is in operation.
  • Page 4 LP TANK VALVE MUST HAVE: • Type 1 outlet compatible with regulator or appliance. • Safety relief valve. • UL listed Overfill Protection Device (OPD). This OPD safety fea- ture is identified by a unique triangular hand wheel. Use only tanks equipped with this type of valve.
  • Page 5 Step 1 #20-300 GRILLS Step 2 SETUP FOR 1LB. PROPANE CYLINDER ADAPTOR • Remove plastic cap from top of pro- • Attach adaptor to regulator hose. pane cylinder. Save cap for use in • Attach hose to propane cylinder. storing. Screw REGULATOR onto Ensure cylinder is marked “propane”.

  • Page 6: To Set Up

    DANGER To Set Up CONSUMER NOTICE: These assembly instructions are designed for stove models 20-200 and 20-300. Features shown MAY CARBON MONOXIDE HAZARD NOT be in more than one stove and will not be provided by this company or at the place you purchased your stove.

  • Page 7: Operation

    Installing Propane Attachment For Charcoal/Wood Grills Step 1 Step 1 #20-200 #20-300 GRILLS • Stand unit upright. • Stand unit upright • Remove all grills and grates from the stove. • The venting system must be in the “Open” position before installing the propane burner.

  • Page 8: Before Cooking

    Attached to gas valve To Light Wood/Charcoal Fuel Source Step 1 #20-200, #20-300 GRILLS • Do not lean over stove while lighting • Install the bottom grate. • Place wood or charcoal on the Step 2 bottom grate.

  • Page 9: Tear Down/Clean

    • Store top grill, bottom grate, and diffuser plate inside inner pouch of CLEANING AND MAINTENANCE the Volcano storage bag. Correct care and maintenance will keep your appliance operating smoothly. Clean regularly as determined by the amount of use. NOTE: Clean the entire appliance each ear and tighten all hardware on a regular basis (1-2 times a year or more depending on usage).

  • Page 10: General Safety Informa- Tion P. 2-3 Maintenance

    212°F ± 20°F (100°C ± 10°C). If it does not function properly, obtain a replacement thermometer specified by the • Place the stove in the Volcano storage bag and zip shut. manufacturer before using the appliance. • When frying with oil or grease, do not use a pot deeper than 6”...

  • Page 11: Leak Check P. 4-5 Service

    4. For repair service call one of the numbers listed on the cover of this manual for location of your nearest Volcano Service Center. If product must be mailed to Service Center, attach to product your name, address and a description of problem and mail to Service Center with shipping and insurance prepaid.

  • Page 12: To Light P. 8 Replacement Parts List

    Replacement Parts - Volcano Collapsible Stove Parts List ITEM DESCRIPTION NOTE Inner Body Outer Body Vent Adjusting Bar Must be open for propane use Vent Adjusting Ring Bail Handle Top Grill Heat Deflector Plate Bottom Grate Bottom Pan Burner Cradle...
  • Page 13 Volcano Collapsible Stove Contents - 20-200 Grill (1) Volcano Stove (1) Instruction Manual (1) Bottom Grate (1) Top Grill (1) Heat Diffuser Plate (1) Storage Bag Contents - 20-300 Grill (1) Volcano Stove (1) Propane Burner (1) Instruction Manual (1) Bottom Grate...
  • Page 14 Accessories The following accessories are available: Volcano Cookbook and Volcano Lid Volcano Flexible Skewer # 30-700 # 30-800 Technical Manual # 30-600 Volcano Storage Bag Trivet Handy Handle # 30-510 # 30-010 # 30-020 Propane Valve Adaptor Middle Grill Roast Rack...
  • Page 15 Notes...
  • Page 16 Warranty Volcano Limited Warranty Your Volcano Cook Stove is covered by a one (1) year limited warranty from the original date of purchase against any manufacturing or material defects (exclud- ing paint). During this period of time, manufacturer will correct any defects or flaws associated with your cook stove by replacing or repairing defective parts.
