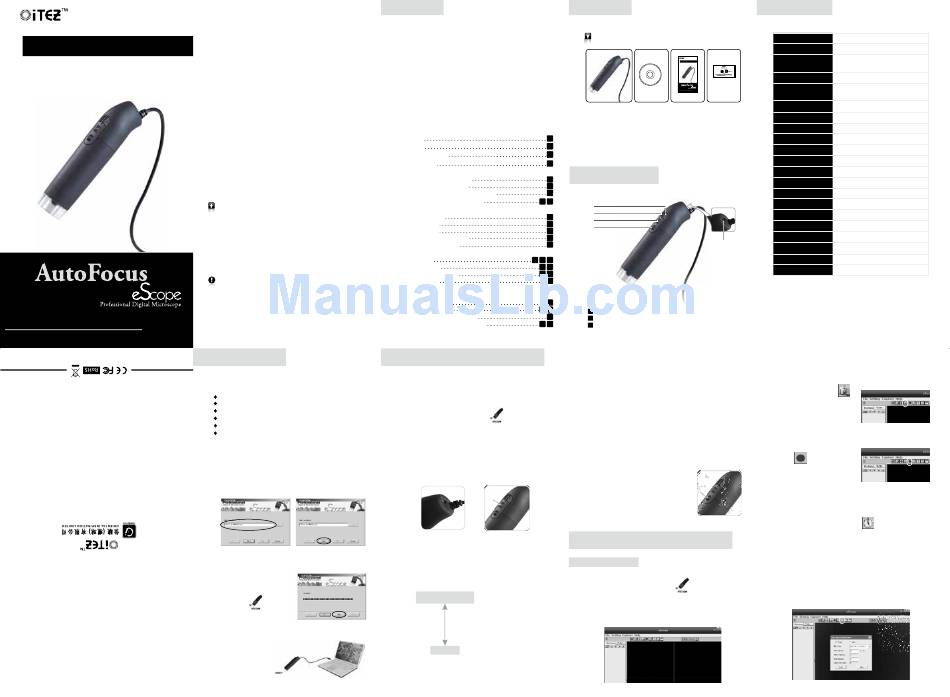

iTEZ AutoFocus eScope DP-M13 User Manual

Auto Focus Digital Mi roscope c
DP-M13
2.0M Pixel
15~65x, 225x
User Manual
Installation Guide
Oriental Inspiration Limited reserves the right to the
interpretation of the product and correlative contents.
Attentions
Please put the device back in place to avoid dust and moisture
when it is not in use.
Please stop using the product if any abnormal phenomena.
Please use dry cloth to gently clean product. Do not use any
chemicals to clean it.
If the lens gets dirty, clean it with a blower brush or a soft cloth
moistened with a little neutral detergent. Be careful not to scratch
the lens surface.
Warnings
Do not modify any accessories, our company won't responsible
for any malfunctions and calamities may cause.
Do not put the product into fire, our company won't responsible
for any malfunctions and calamities may cause.
Please follow the manual to operate the product, otherwise you
have to bear all after effect.
Computer System Requirement
Microsoft Windows XP, Vista or Win7
Pentium 4 processor or higher
200MB or higher hard disk space
1GB RAM or more
USB 2.0 Port
CD-ROM or DVD Drive
eScope Software Installations
1. Insert enclosed CD into CD-ROM drive, the installation
program will start automatically. If installation program
doesn't start automatically, please browse your CD -ROM
drive and execute the "eScopeSetup.exe " program
2. Select a path for the software.
3. Click 'Next' to install.
4. Click "finish" to complete
the installation.
5. Now the " " shortcut
icon will show on the desktop
automatically.
Auto Focus eScope Hardware Installations
After the software installation finish,
connect Auto Focus eScope
to computer by the
USB port.
5
Contents
Thank you for your purchase of professional digital microscope.
To guarantee the product function into fully play and prolong
service life, please read the user manual carefully before installations.
And the product should be well clean and maintenance when
using it.
In line with the policy of continued development, if there are
any amendments on the appearance, color or assemblies,
please refer to the real object. Our company reserves the right
to amend on the the specifications and the manual without
prior notification.
Contents 2
Part Lists 2 3
Product Overview 2 3
Specifications
4
Installation Guide
Computer System Requirement 5
eScope Software Installations
5
Auto Focus eScope Hardware Installations 5
Auto Focus eScope Operations
6 7
eScope Software Guide
Execute Software 7
Capture Photo
8
Capture Video 8
Time-lapsed Picture / Video 8
Picture / Video Save as 9
Calibration and Measurement
9 10 11
Calibration
12 13
Measurement
Change the Calibration 13 14
Draw and Text 14
eScope Software Interface Instructions
Main Interface
Toolbar Instructions 15
Options instructions 15 16
Picture and Video Saving Folder 17
17 18
Measurement interface instructions
2
Auto Focus eScope Operations
To ensure the correct way in using the Auto Focus eScope,
please follow below steps to operate.
1. Execute the eScope Software
Double click the shortcut icon " " on desktop,
and then the real-time image will show up on screen.
2. Focus
Focus the clear cover of eScope on the object.
3. Choose a magnification rate.
Use the adjustable switch on the trail to choose a magnification
rate. There are two magnification rates of 15~65X and 225X.
* I f s l i d e t h e m a g n i f i c a t i o n s w i t c h t o 1 5 ~ 6 5 X . T h e
magnification rates between 15-65X are depend on the
distance between the object and microscope. If the distance
is between 0~15cm, the smaller distance, the bigger
m a g n i f i c a t i o n , a n d t h e f u r t h e r distance, the smaller
magnification will be. You can use the calibration and dial
to calculate the exact magnification rate.
Auto Focus eScope
15X 15cm
Magnification
Distance
rate
(keep the clear cover of microscope
65X 0
close to the object)
Object
* If slide the magnification switch to 225X, please keep the
clear cover of microscope close to the object.
6
Part Lists
Please check and confirm all the accessories are available
before using.
Auto Focus Digital Mi roscope c
DP-M13
2.0M Pixel
15~65x, 225x
User Manual
a. b. c. d.
a.
Auto Focus eScope x1
b.
Driver CD-Rom x1
c. User Manual x1
d. Calibration Sheet x1
Product Overview
4
3
2
1
5
1 Snap Shot Button
2 Auto Focus Button
3 Slight Adjustment Button <Up>
4 Slight Adjustment Button <Down>
5 Magnification Switch
3
4. Auto Focus
Press the AF button to start auto focus.
* Make sure the Auto Focus eScope is fixed on the object
after pressing the AF button, or it can't focus well.
* The auto focus accuracy rate can't reach to 100% for all the
Auto Focus products. Some colors or objects may affect
the focus. In this case, please use the Slight Adjustment
Button to help to adjust.
* The higher resolution you choose, the longer time it'll take
to auto focus. We suggest use the resolution of 640 x 480
during auto focus and after the focus is ready, choose a
higher resolution to capture photo so that you can get a
photo with high resolution finally.
5. Capture Photo
Please press on Snap Shot Button to
capture photo after the focus is ready.
* You can also use the eScope software
to capture photo or video.
(Detail operations please refer to
eScope software guide)
eScope Software Guide
Execute Software
Remark: Before executing the software, please make sure
microscope is connected to the PC.
Double click the shortcut icon " " on desktop, and
then the real-time image will show up on screen.
* Slide mouse to the short cut icons in the main manual bar to
quickly know the uses. (Please refer to eScope software
interface instruction for more details)
7
Specifications
CMOS Sensor 1/3〝 CMOS
Image Sensor 2.0 Mega Pixel
Video Capture 1600x1200, 1280x960, 800x600,
Resolution 640x480
Video Capture Format AVI
Still Image Capture 1600x1200, 1280x960, 800x600,
Resolution 640x480
Still Image Format BMP, JPEG
Light Frequency 50Hz / 60Hz
Frame Rate 30fps@VGA
Magnification Rate 15~65x, 225x
1 sec. to 1/1000 sec.
Shutter Speed
White Balance Auto
Exposure Auto
Auto Focus Function Yes
Focus Fine Button Yes <Up/Down>
Light Source White LED x 8
PC Port USB2.0
Operated System Windows XP / Vista / Win7
OSD Language English, Simplified Chinese
Power Supply
5V DC from USB Port
Size 132(L)x32(D)mm
105g
Weight
4
Capture Photo
a. Click 'Capture Picture ,
shortcut icon in the main menu
bar.
b. Click 'Capture > Photo F4'.
c. Press the key F4 on keyboard.
Capture Video
a. C l i c k ' S t a r t / S t o p R e c o d e r
Video shortcut icon in the
main menu bar.
b. Click 'Capture > Video F8'.
c. Press the key F8 on keyboard.
Time-lapsed Picture / Video
a. Click 'Time-lapsed Photo/Video , shortcut icon in the
main menu bar.
b. Click 'Capture > Time-lapsed photo/video F5'.
c. Press the key F5 on keyboard.
* A new dialogue box appears in which you can enter desired
setting data.
* Under Time-lapsed photo, you can set the start time, interval
time and total picture number.
* Under Time-lapsed video, you can set the start time, interval
time and total video number.
8
