Summary of Contents for MicroVision MV1-A

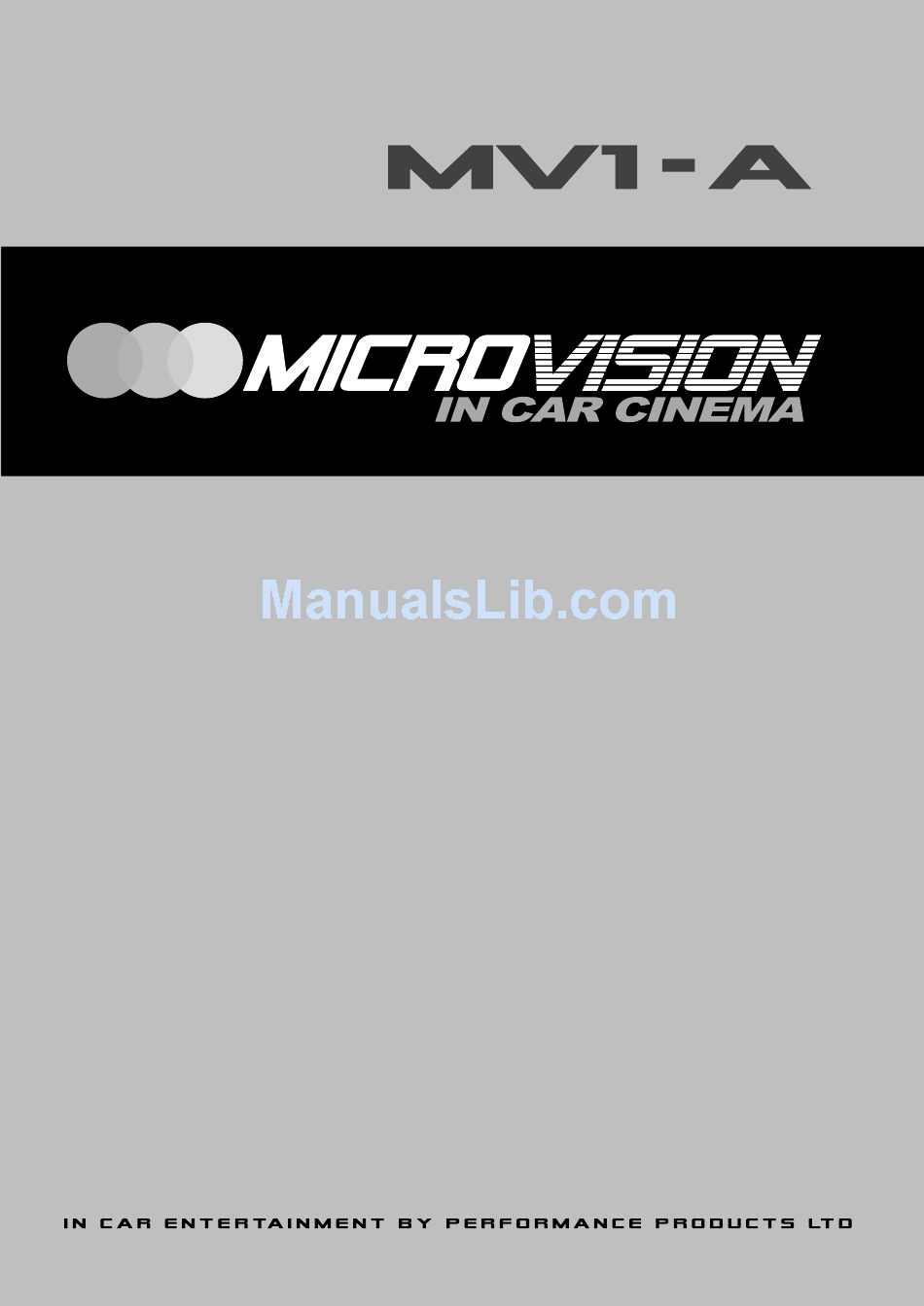

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
Page Introduction Contents Features Installation Operation Troubleshooting Specifications Microvision Accessories Service Under Warranty to r S e le c /V id e o A u d io A V -S IT O R M O N IT O R M O N... - Page 3 Thank you for purchasing the Microvision MV1-A In Car Cinema Upgrade System. The MV1-A has been designed to allow you to add an additional monitor to your MV1 In Car Cinema system as well as allowing each passenger to personally select between three different sources, if different sources have been installed.
-
Page 4: Contents
System Contents 1 x 5.7" LCD Colour Monitor 1 x MVAV-S Audio/Video Selector 1 x Headphone Set 1 x Monitor Fitting Sock 1 x RCA Loom 1 x Monitor Loom 5.7" LCD Colour Monitor Monitor Fitting Sock MVAV-S Audio/Video Selector to r S e le c /V id e o... - Page 5 Microvision 5.7" LCD Colour Monitor PAL/NTSC Flips Image Switch Upside Down Headphone Input Volume Control Brightness Control Power On/Off A/V Input 12V DC Input Flip Image Left to Right (Mirror) Power On LED...
- Page 6 Microvision MVAV-S Audio/Video Selector The MVAV-S Audio/Video Selector allows you to connect up to three different sources ie Video, DVD or Games Console to two monitors. The viewer of each monitor can then select their desired source independently from the other.
-
Page 7: Installation
Installation Please begin by unpacking the contents of your MV1-A and checking that all the necessary components are included as specified on the ’Contents’ list on page 4. You will then need to connect the MVAV-S Audio/Video Selector. Unzip the base of the Microvision rucksack to... - Page 8 You can now connect the Audio/Video looms for each monitor to the Output sockets, numbered 1 and 2 on the rear of the Audio/Video Selector again matching White to White and Yellow to Yellow. When connected place selector unit in the base of the rucksack. Then attach the 12V power cable from the same looms to the 12V 3 way power cable supplied with your MV1 In Car Cinema system...
- Page 9 Take the two velcro straps and attach them to the headrest ensuring that the ’female’ sides of the plastic connectors are positioned to the top of the headrest in a horizontal position as indicated in Picture A. Secure the monitor to the headrest straps by connecting the male sides of the plastic connectors on the monitor ’sock’, to the female sides of the plastic connectors on the headrest straps as...
- Page 10 Your Microvision MV 1 In Car Cinema System is now ready for use! Adjust the Brightness control to obtain the best picture quality. Please Note: Do not start the vehicle whilst your In Car Cinema system is plugged into the vehicles cigarette lighter socket.
- Page 11 To prevent possible battery drain do not leave your Microvision In Car Cinema System plugged in to the cigarette lighter socket while the unit is not in use and when the vehicles engine is not running. Only...
-
Page 12: Troubleshooting
Trouble Shooting No power to video Check fuse in cigarette lighter or monitor(s) adaptor Check cigarette lighter socket is operating correctly No power to Check monitor(s) are switched monitor(s) only No picture & white Ensure that the Audio/Video noise only from LCD loom from each monitor is monitor(s) correctly connected to the... -
Page 13: Specifications
MVPR-1 Video Cassette Player for complete specifications. Microvision Accessories & Price List MV1-A - Second Monitor Upgrade System....£269.95 MVAV-S - 3 Way Audio/Video Selector......£49.95 MVPS-150 - Games Console Power Adaptor..... £49.95 MVH-1 - Additional Headphone set........£7.95 MVH-2 - 2-1 Headphone Adaptor........£2.95... -
Page 14: Service Under Warranty
Service Under Warranty 1 To obtain service during the two year warranty period, return your Microvision MV1-A, postage paid by recorded delivery and in suitable packaging to: Performance Products Limited Cleaver House 8 Boughton Chester, CH3 5AG. UK Tel: +44 (0) 1244 321300 Fax: +44 (0) 1244 343370...
