Yoshimura 1999-2001 GSX-R1300 Service Manual

This product is designed for racetrack use only. Do not use on the public road.
Be sure to carefully read the instruction manual before starting installation.
During installation, keep these instructions at hand and proceed with the work in
accordance with the instructions.
These instructions should be retained until the product is scrapped.
Danger
Danger
Caution Caution
(Reference)

KIT contents

- Intake camshaft
- Exhaust camshaft X 1
(Including Cam Sprockets, Flanges, Bolts)
This product is only intended for use
with the model & year listed below.

Applicable model

SUZUKI GSX-R1300 (1999-01)
To remove, install and adjust valve lash for camshafts use the SUZUKI genuine service manual
procedures.
Caution Caution
During the disassembling procedure do not drop any parts into the
crankcase. All removed parts should be thoroughly cleaned and dried.

Inspections

Inspections
Other than mentioned, please inspect each part in accordance with the SUZUKI genuine service manual
SPECIAL PARTS TECHNICAL SERVICE MANUAL
SUZUKI '99-01 GSX-R1300
ST-1 CAMSHAFT
(PART NO.SUXR-341)
X 1

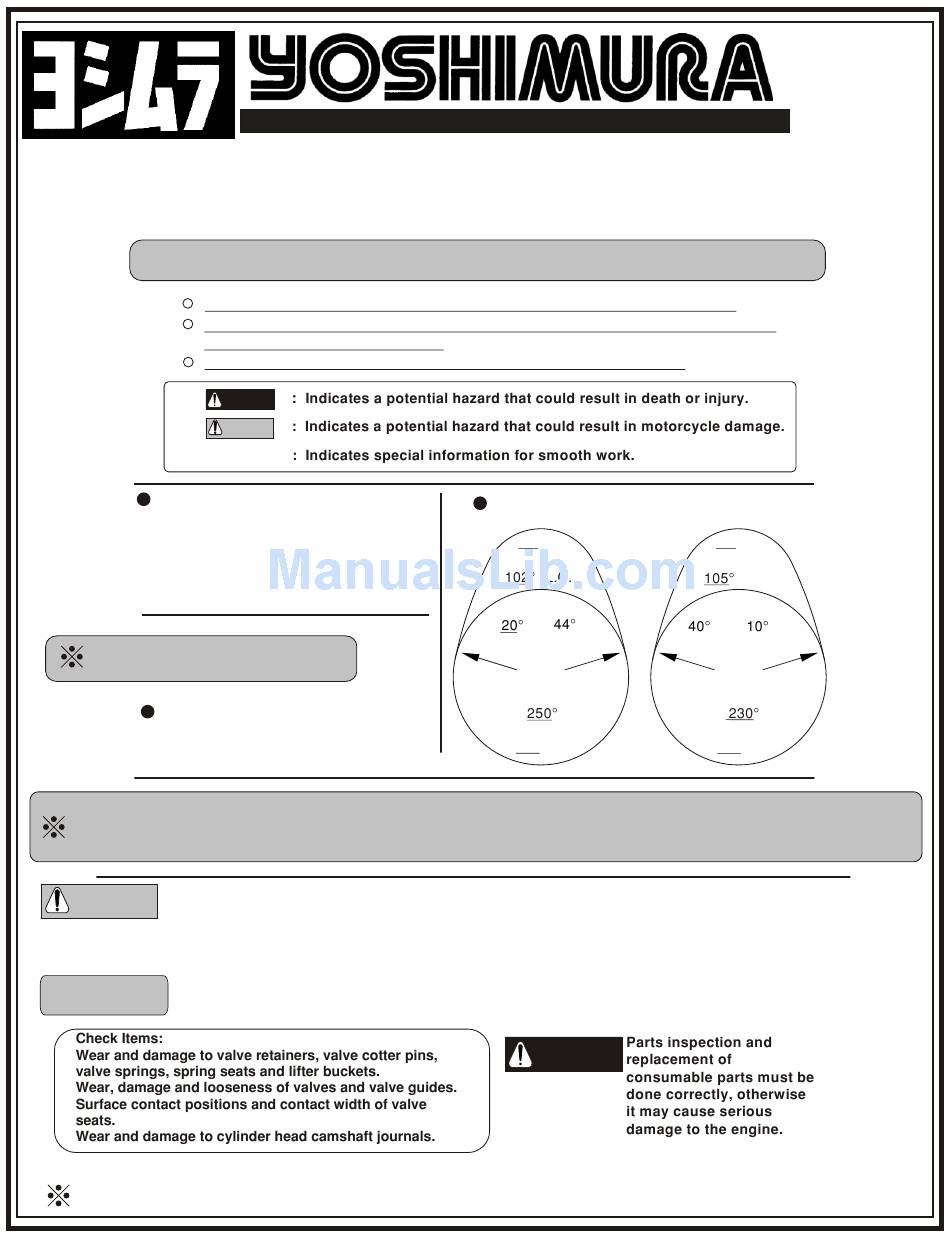

Cam Profile

9.0 mm
MAX LIFT
ABDC
BTDC
1mm 1mm
OPEN
CLOSE
INTAKE
DURATION 1 mm
AT
Tappet Clearance
0.20 mm
Danger
7.8 mm
MAX LIFT
L.C.
BBDC ATDC
1mm
1mm
OPEN
CLOSE
EXHAUST
DURATION 1 mm
AT
Tappet Clearance
0.20 mm
